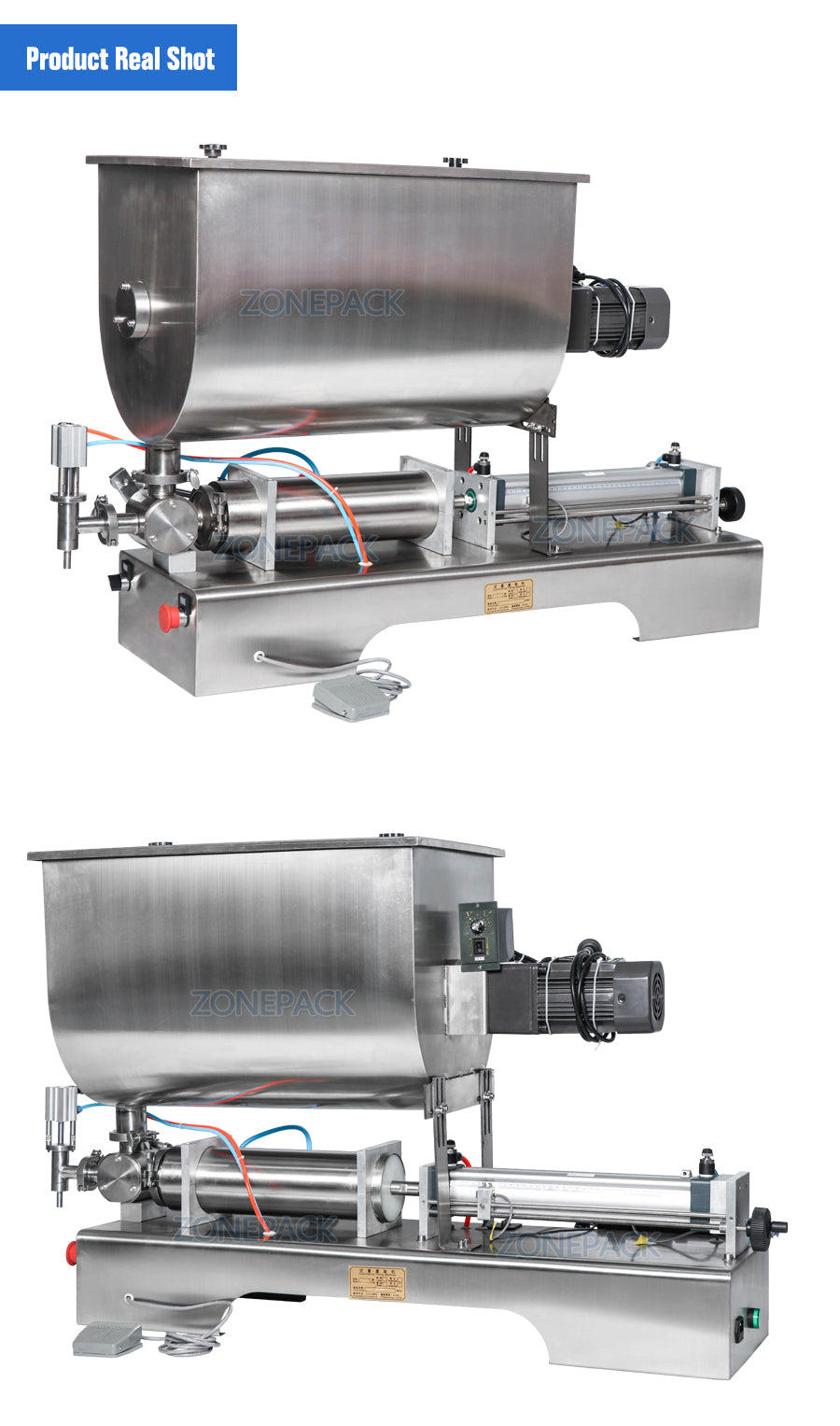

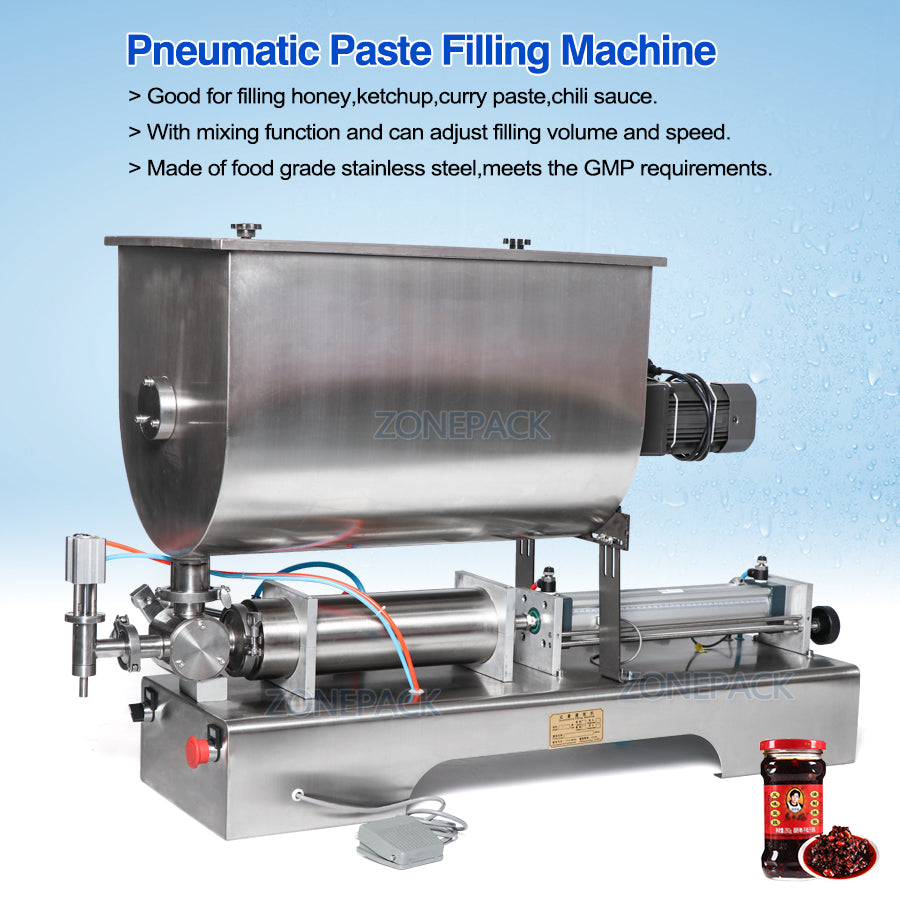

ZONESUN ZS-GTU1 Pneumatic Sauce Paste Filling Machine with Mixer
The ZS-GTU1 is a semi-automatic piston filling machine designed for high-viscosity products such as chili sauce, oyster sauce, chemical pastes, and pharmaceutical liquids. Its horizontal spiral mixer ensures uniform blending for precise, consistent filling. Compact and easy to operate, it features AirTac pneumatic components, adjustable filling speed and volume, and a drip-proof nozzle with lifting function. Made with food-grade stainless steel, it supports customization for explosion-proof, fully pneumatic, and heated hopper configurations.
Key Features
- Horizontal spiral mixer prevents sedimentation and ensures uniform blending
- Anti-drip stainless steel nozzle with lifting function for clean, accurate fills
- Adjustable filling volume and speed to suit different materials
- Available in 1, 2, or 4 nozzle configurations
- AirTac pneumatic components for reliable, long-service operation
- Food-grade stainless steel construction
- Pedal switch for easy manual control; supports automatic mode
- Customizable: explosion-proof, fully pneumatic, heated hopper options
Specifications
| Parameter | Value |
|---|---|
| Voltage | 220V / 110V |
| Filling Nozzles | 1 / 2 / 4 Nozzles |
| Filling Range | 5–100ml / 10–200ml / 50–500ml / 100–1000ml / 500–2500ml / 1000–5000ml |
| Filling Speed | 8–25 bottles/min |
| Filling Accuracy | ≤1% |
| Air Pressure | 0.4–0.6 MPa |
| Machine Size | 1130 × 315 × 740 mm |
| Net Weight | 54.5 kg |
| Packing Size | 1280 × 515 × 810 mm |
| Gross Weight | 76 kg |
Applications
Suitable for food & beverage, pharmaceutical, chemical, and pesticide industries. Ideal for filling chili sauce, oyster sauce, soy sauce, hot sauce, BBQ sauce, fish sauce, chemical pastes, and similar high-viscosity materials.

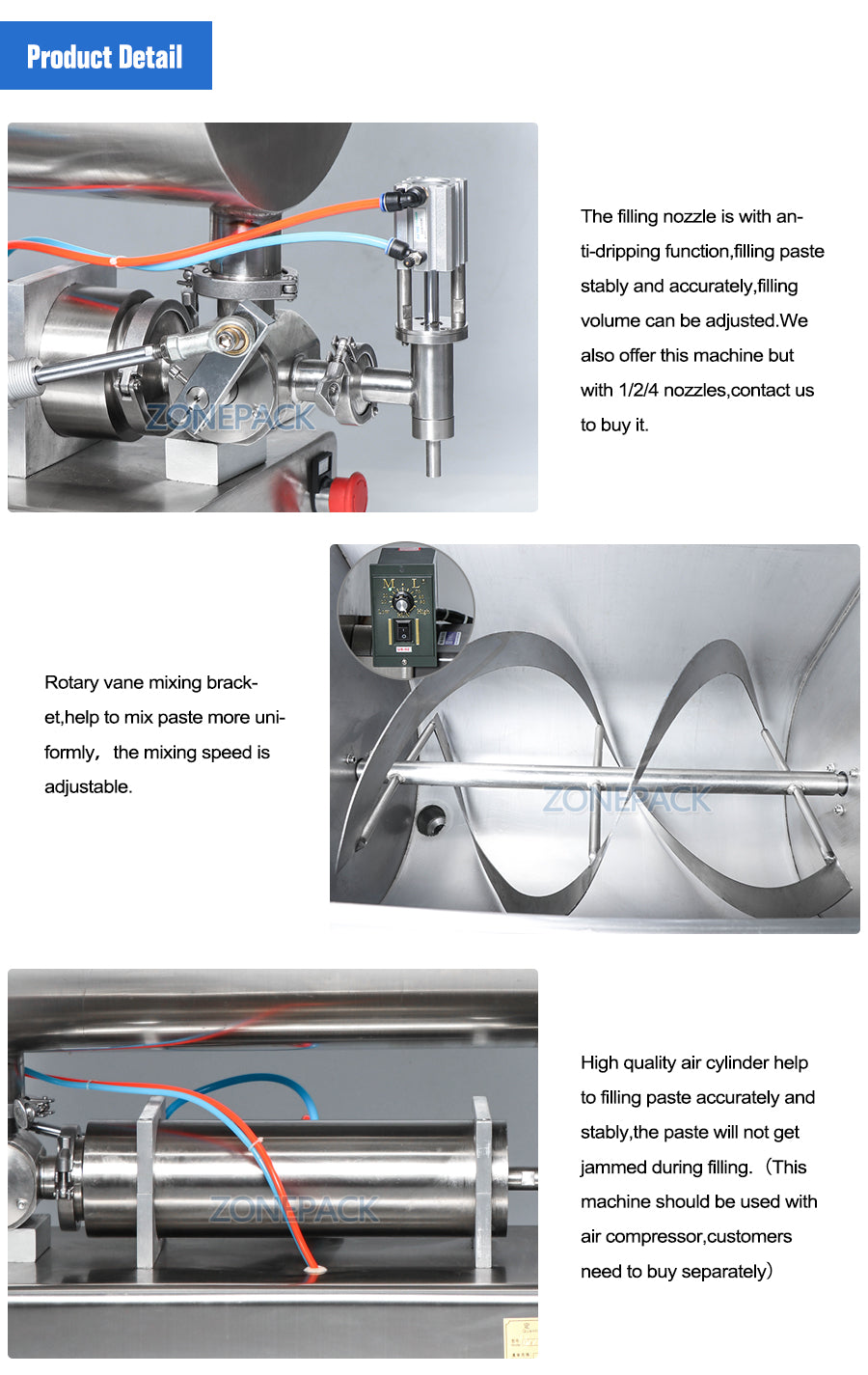

ANTI-DRIP FILLING NOZZLE
The stainless steel anti-drip nozzle supports stable, accurate filling. The filling volume is adjustable, and one-, two-, or four-nozzle configurations are available.
MIXING HOPPER
The rotary-vane mixing hopper blends material evenly to help prevent sedimentation. Mixing speed can be adjusted for different materials.
FILLING CYLINDER
The filling cylinder controls material intake and discharge for consistent volumetric filling, while the graduated scale provides a clear reference for the set volume.

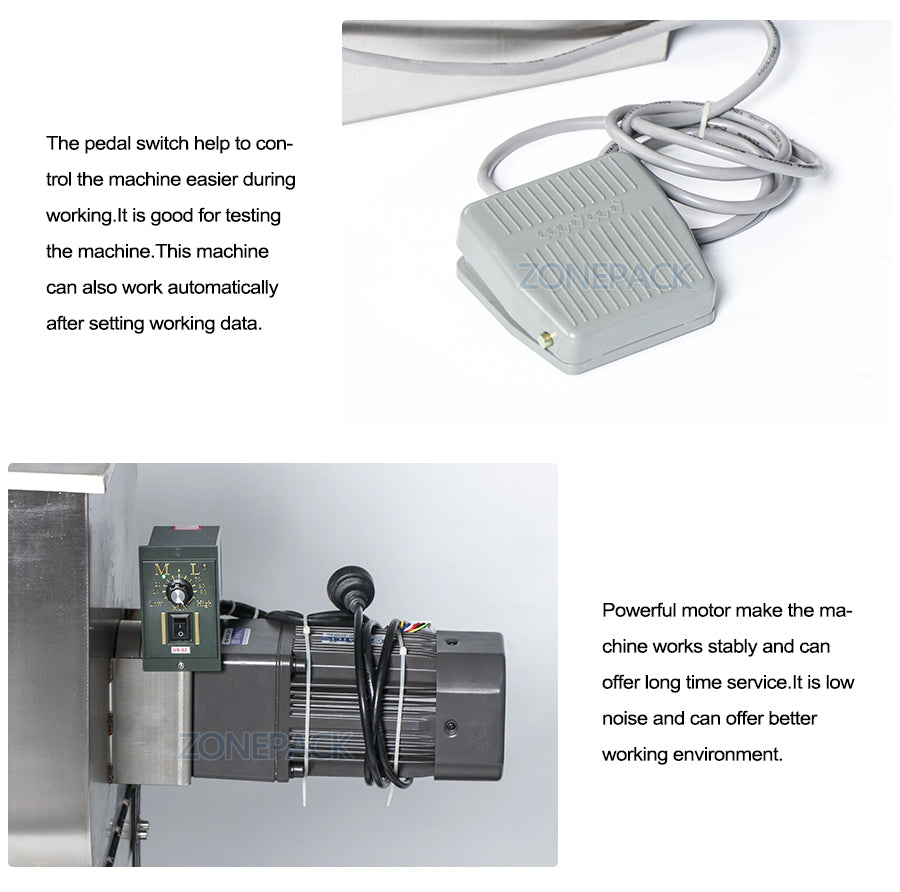

PEDAL SWITCH
The pedal switch simplifies control during setup and testing. After the operating data is set, the machine can run in automatic mode.
MOTOR
The motor is designed for stable, low-noise operation and extended service life.
