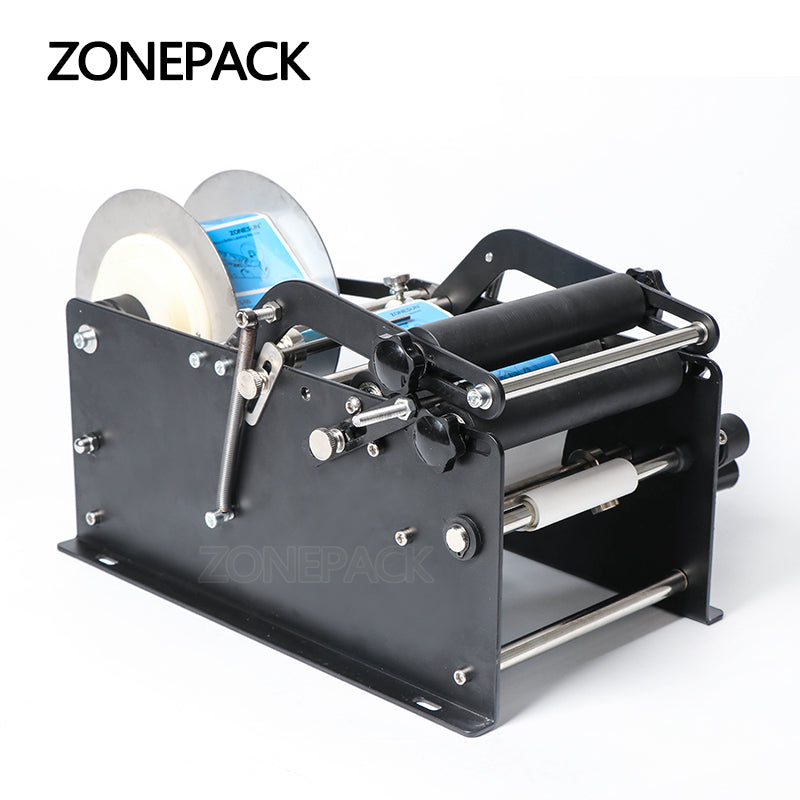

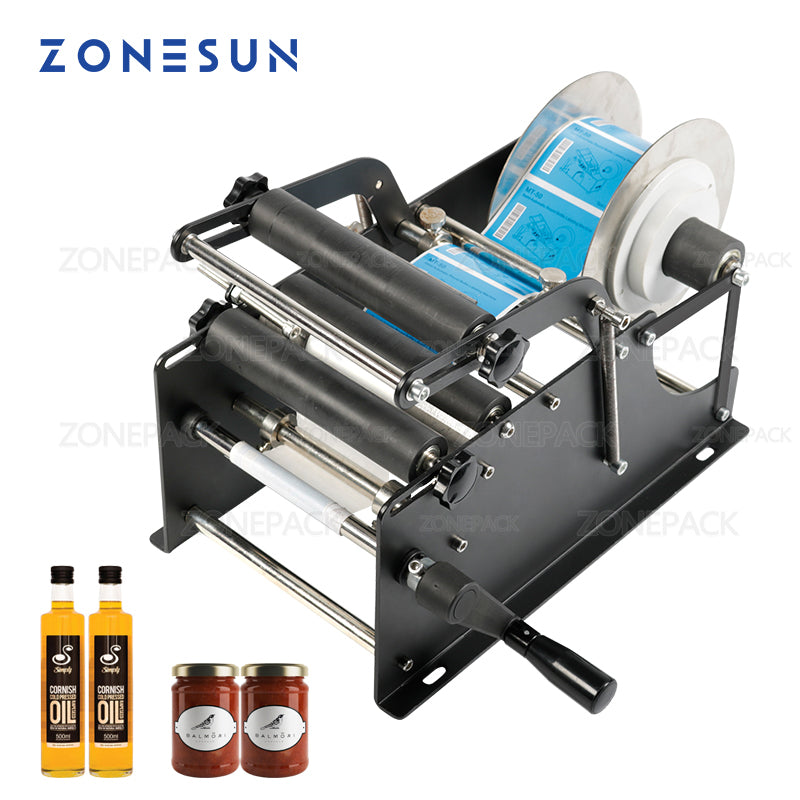

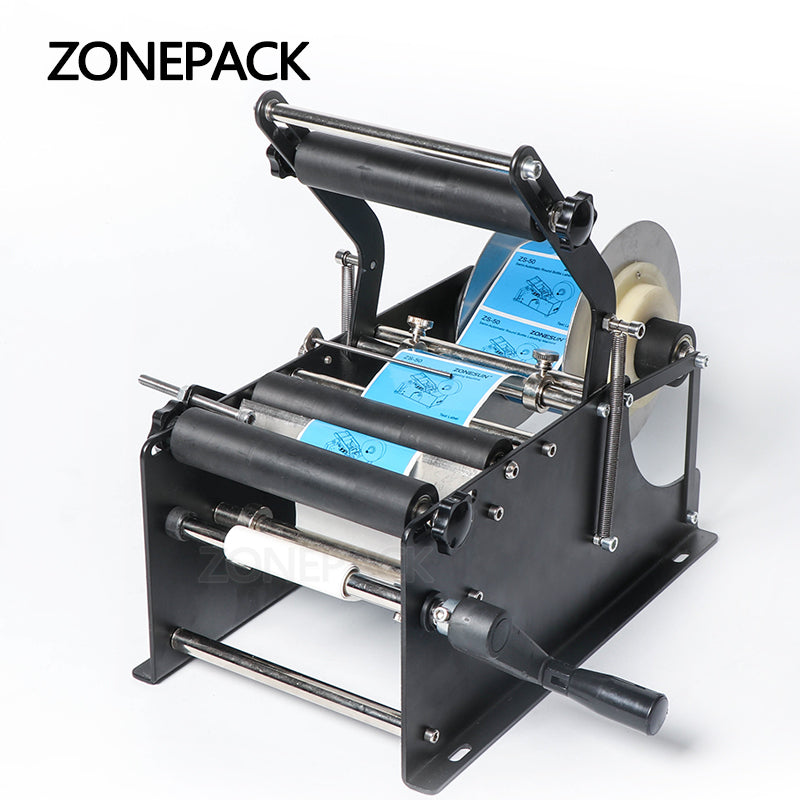

The ZONESUN ZS-50P is an upgraded manual labeling machine designed for round bottles including PET, plastic, glass, and metal containers. Compared to the MT-30, it features a pressing bar for improved label adhesion on lightweight bottles, preventing bubbles and misalignment. A load-bearing side bar enhances stability during transport and supports heavier labels. Compact and easy to operate, it is ideal for small-scale production across cosmetics, beverages, food, and medical industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Labeling Speed | 30 times/min |
| Labeling Accuracy | +/- 0.5 mm |

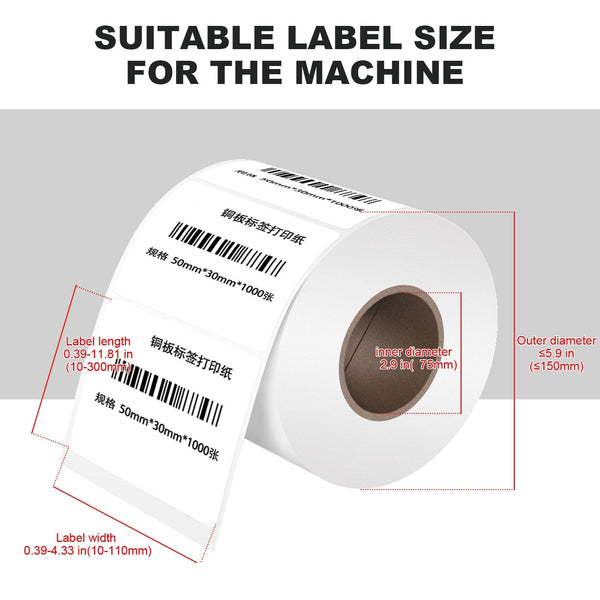

| Label Roll Inner Diameter | ≥ 75 mm |
| Label Roll Outer Diameter | ≤ 150 mm |
| Applicable Bottle Diameter | 15 – 120 mm |
| Applicable Bottle Height | ≤ 150 mm |
| Label Width | 10 – 110 mm |
| Label Length | 10 – 300 mm |
| Machine Dimensions | 420 x 250 x 280 mm |
| Machine Weight | 6 kg |
Key Features

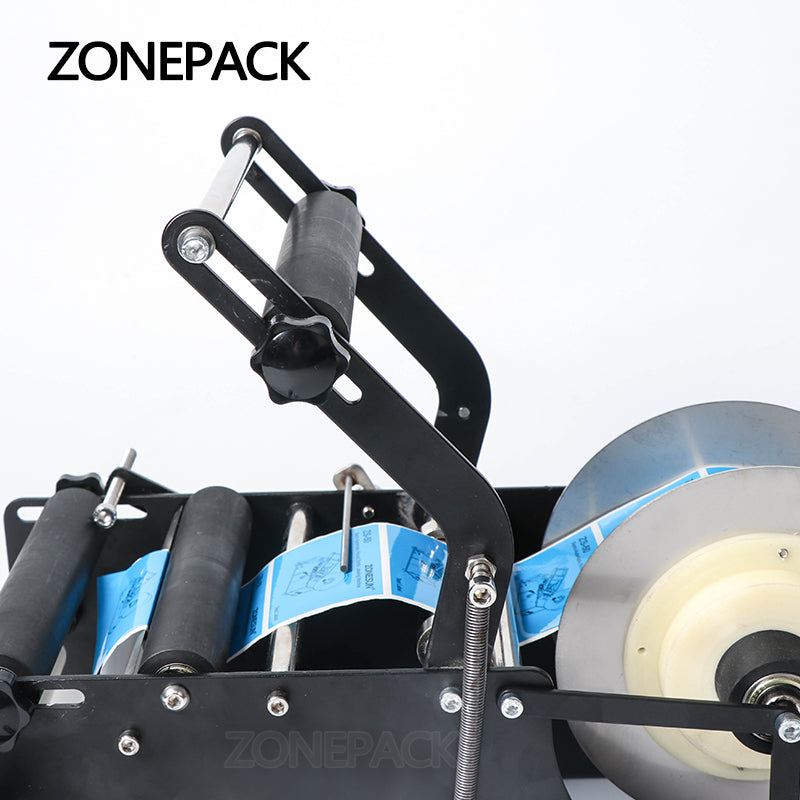

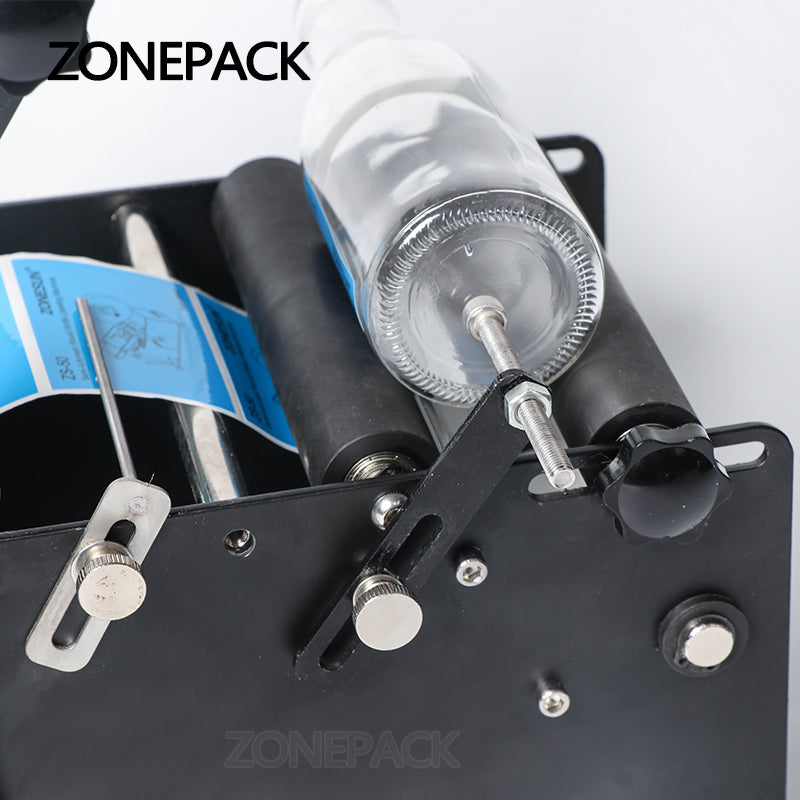

- Pressing Bar Design: Applies consistent pressure during labeling to eliminate air bubbles and prevent label misalignment, especially effective on lightweight PET and plastic bottles.
- Load-Bearing Side Bar: Reinforced structural support improves machine stability during operation and transport, and accommodates heavier label rolls.
- Wide Bottle Compatibility: Handles round bottles from 15 mm to 120 mm in diameter, covering a broad range of container sizes in a single machine.
- High Labeling Accuracy: Achieves +/- 0.5 mm precision, ensuring consistent label placement across every bottle in a production run.
- Compact Footprint: At 420 x 250 x 280 mm and 6 kg, the machine fits on a standard workbench and requires no dedicated floor space.
- No Power Required: Fully manual operation eliminates electrical dependency, reducing setup time and maintenance costs.
Applications
The ZS-50P is suited for small-batch and startup production environments that require reliable, precise round-bottle labeling without the cost of automated equipment. Typical use cases include:
- Cosmetics and personal care: lotions, serums, toners, and essential oil bottles
- Food and beverage: sauce bottles, juice containers, and condiment jars
- Pharmaceutical and medical: supplement bottles, disinfectant containers, and reagent vials
- Chemical and industrial: lubricant bottles, cleaning solution containers, and sample tubes
