MY-380F Printing Machine 3-30cm Produce Solid Ink Roll Coding Card Bag Continuous Date Printer Machine
Description
MY-380F solid-ink coding machine fit for printing label on paper, thin cardboard, plastic film and aluminum foil. Adopt solid-ink coding, characterized by high definition, instant printing & instant dry, various colors selectable and strong adhesion.
Characteristic

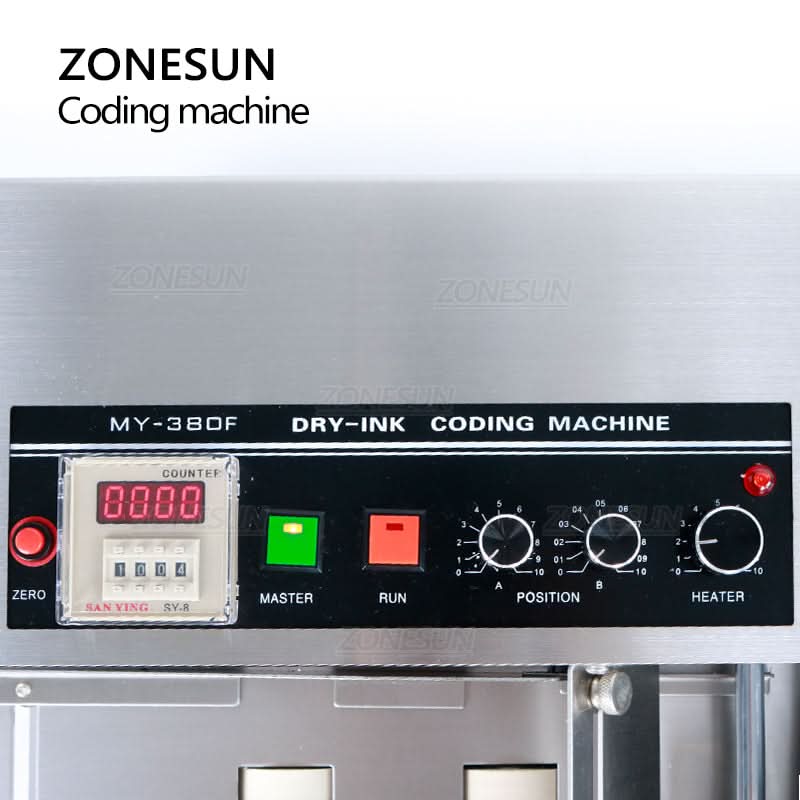

- Adopt photoelectric mechanism technology, automatic temperature control, auto counting, adjustable print position.
- The printing position can be adjusted by rotating the knob, easy to operate.
- Work efficiently and automatically at high speed, up to 30pcs per minute.
- The thickness can be adjusted as needed, making it suitable for products of different thickness.
- With the function of paging and printing date at one machine, saving labor cost and improving efficiency.
Parameter
|
Machine Model |
MY-380F |
MY-380FW |
|
Feature |
Standard |
Wider Type |
|
Voltage |
AC 220V/110V 50-60Hz |
|
|
Power |
180W |
|
|
Solid InkRollSize(OD*H) |
φ36×32MM(default),φ36*16MM,φ36*32MM,φ36*36MM,φ36*40MM |
|
|
ApplicableFont Size |
2*3.5*6.8mm(T, default)3*3.5*6.8mm(T) |
|
|
Attention |
Pleaseremarkwhich ink roll and letters you want in the order, or we'll ship the defaulted one.(One machine is only with one type of letters and ink roll) |
|
|
Working Speed |
12.5m/min |
|
|
Printing Speed |
≤300 times/min |
|
|
Printing Lines |
Max 11 Lines, 15pcs letters(based on2*3.5*6.8mm) |
|
|
Minimum Product Size(L*W) |
55*30MM |
50*30MM |
|
Maximum Product Size(L*W) |
500*190MM |
500*300MM |
|
Product's Thickness |
10-25MM |
|
|
Print Position |
Unilateral 60-250mm |
|
|
Font |
Number 0-9, E,X,P,M,F,D,L,O,T |
|
|
Machine Size |
440*365*260mm |
440*465*300mm |
|
Machine Weight |
22kg |
24kg |
|
Package Size |
510*410*340mm |
560*510*340mm |
|
Package Weight |
23kg |
25kg |
Notice
STANDARD MACHINE is 220V, if you need 110V. PLS contact to us or leave message, or we will ship 220V in Euro Plug Directly. Thank you!
Please note that the standard configuration is not a complete set of fonts. If you need a complete set of fonts, you need to purchase additional, please click this PICTURE to purchase,Thank you
