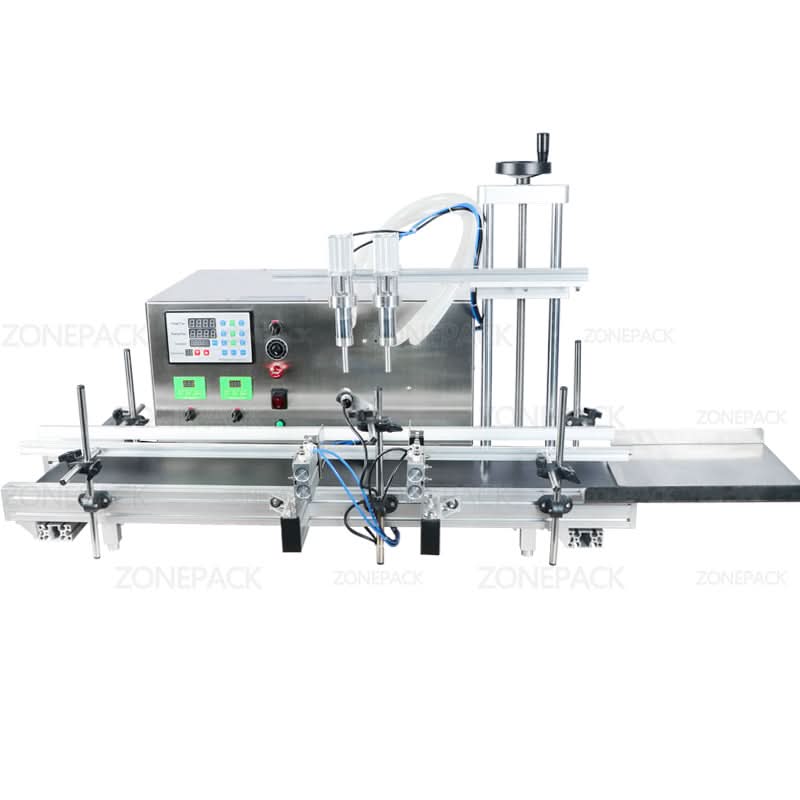

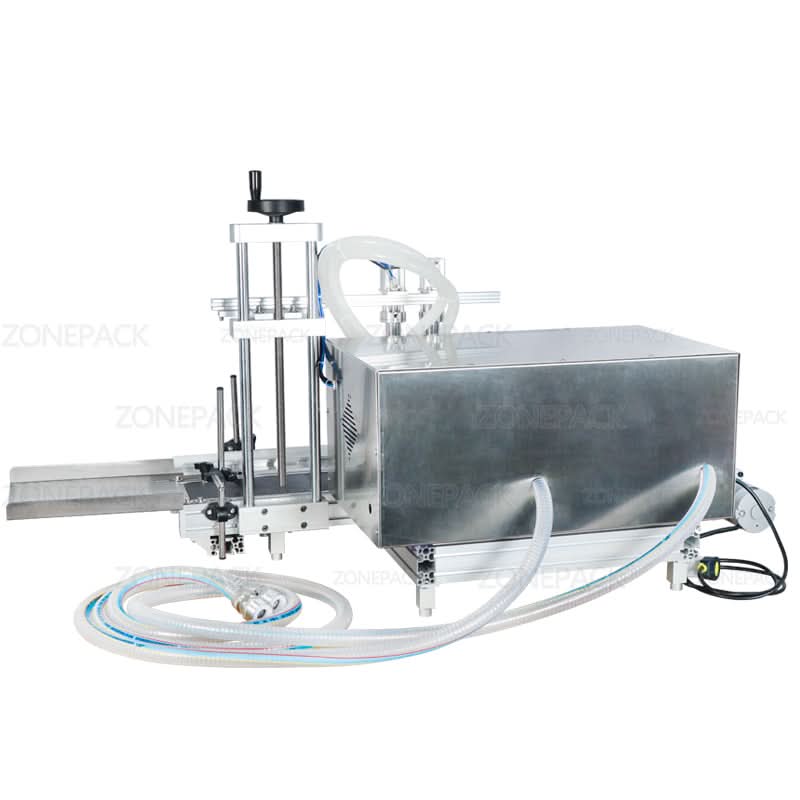

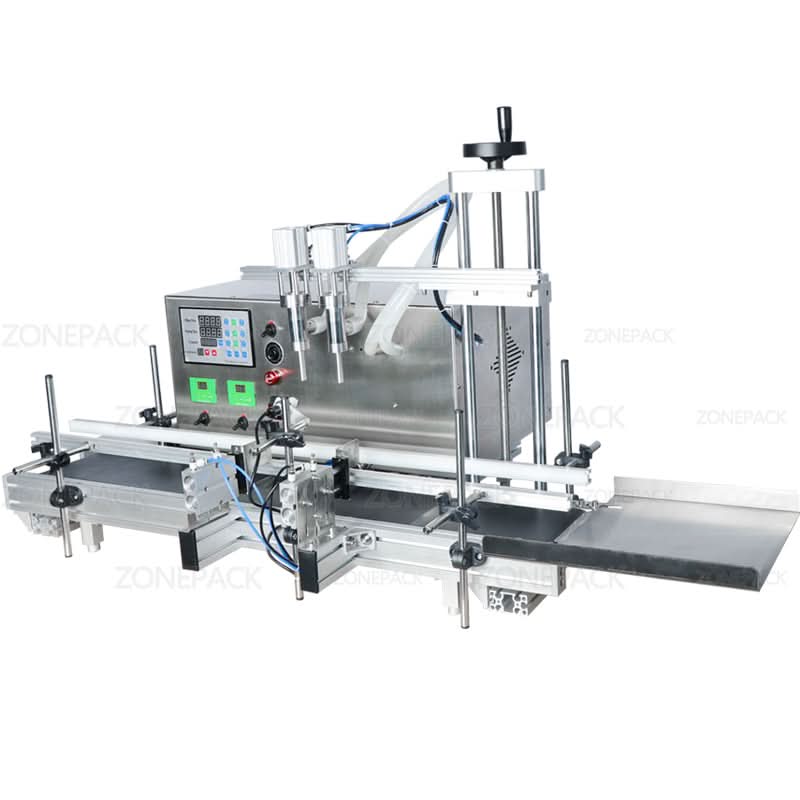

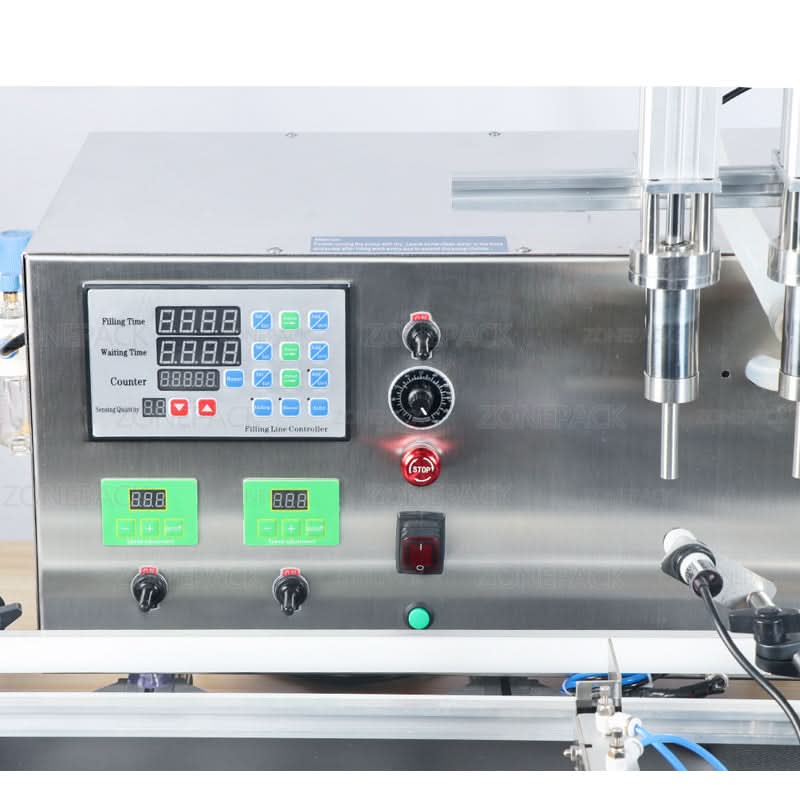

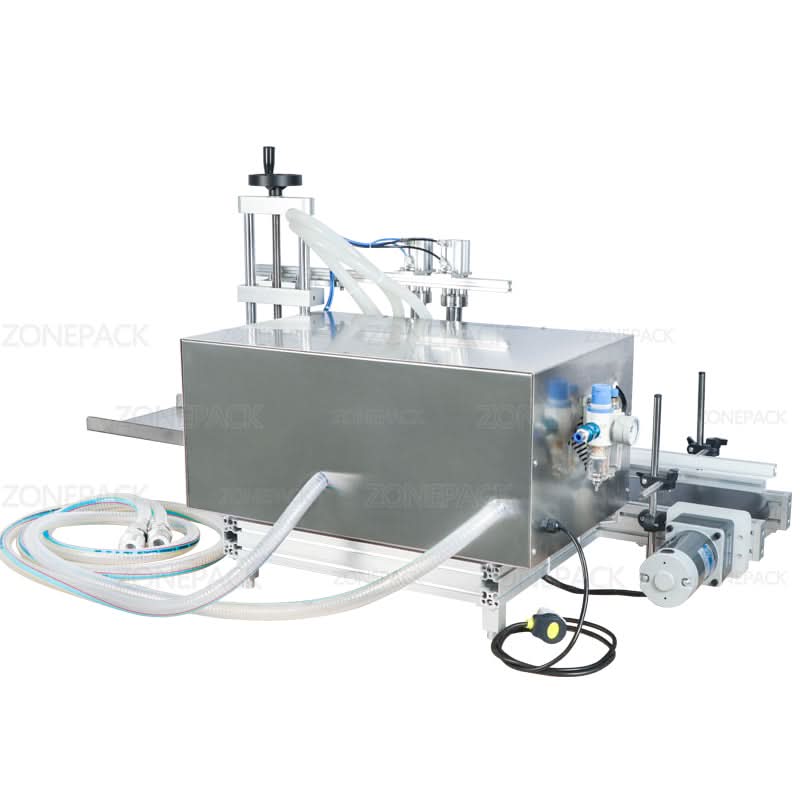

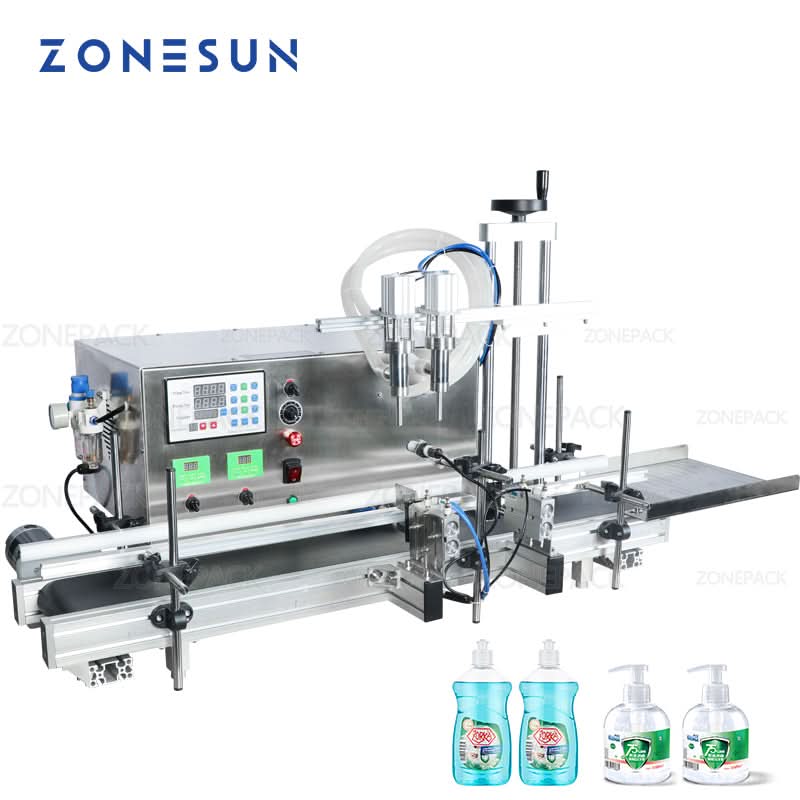

ZONEPCK ZS-DTDP20-2 Automatic Big Flow Double Heads Liquid Beverage Shampoo Gel Filling Machine Diaphragm Pump Bottle Filler
Parameter
|
Machine Model |
ZS-DTDP20-2 |
|
Voltage |
110/220V 50-60Hz |
|
Power |
500W*2 |
|
Maximum flow velocity |
20000ml/min(Each nozzle and based on water) |
|
Working speed |
20-25 bottles/min*2 (depend on bottle size and liquid) |
|
Air pressure |
0.3-0.4MPa |
|
Filling accuracy |
≤+1% (For water) |
|
Bottle Height |
＜220mm(Can be customized,max height 300mm) |
|
Diameter of Filling Nozzle |
8mm |
|
Conveyor Size |
1030mm*140mm(L*W) |
|
Filling Volume |
100-1000ml(220V) 3- 500ml(110V) since the power of 110v machine is not large, so we recommend 100-500ml for each nozzle |
|
Size of Air Compressor Connector |
OD 8mm |
|
Machine size |
About 1360*700*710mm |
|
Package size |
About 1140*740*500mm |
|
Net weight |
About 54.5kg |
|
Gross weight |
75.8kg |
Description
The pump of this desktop liquid filling machine can fill 20L/min,it is more powerful and faster,suitable for filling thicker liquid like gel,liquid soap,machine oil,laundry detergent etc.The conveyor belt can transport containers during filling,saves production time and reduce production error.
