The ZONESUN ZS-FAL180Z7 is a fully automatic liquid packaging line designed to streamline your production. It includes a 4-head magnetic pump filling machine for precise dosing, a CO₂ laser coding machine with no consumables, a vibration bowl capping system for secure sealing, a wrap-around labeling unit for professional presentation, and a wrapping machine with shrink tunnel to ensure tight, protective packaging. Ideal for juice, water, and other bottled beverages.

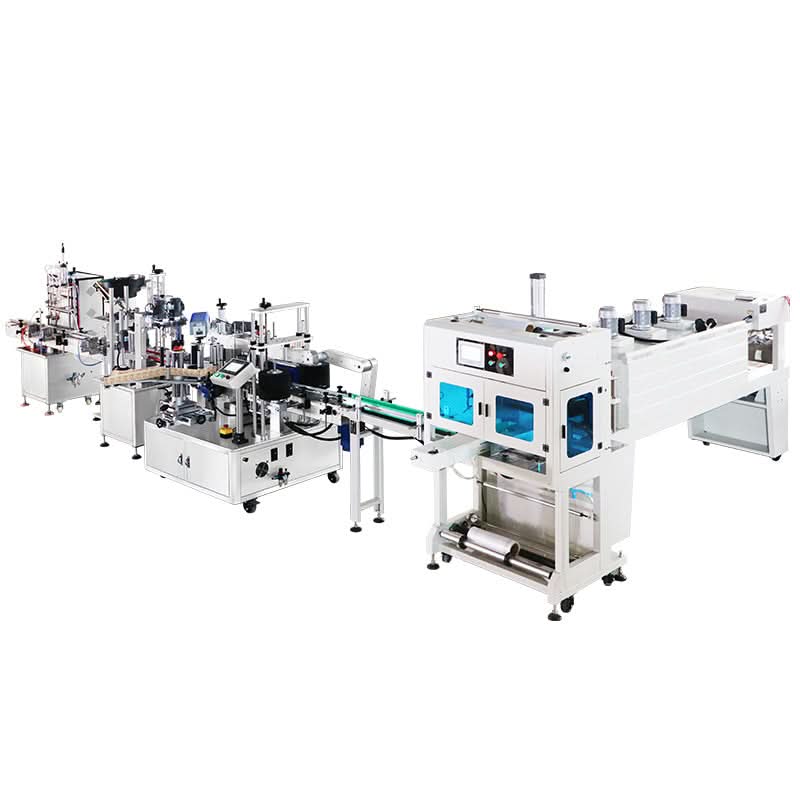

This is an automatic liquid packaging production line.
- Filling Machine: Equipped with a 4-head magnetic pump and adjustable nozzles, this machine ensures precise and efficient filling.
- Coding Machine: Features CO2 laser marking technology. No consumables.
- Capping Machine: Features a vibration bowl for cap feeding, pneumatic cap placement, and 4 rubber wheels for secure sealing.
- Labeling Machine: Utilizes an application belt for wrap-around labeling, ensuring accurate and professional labeling of your juice bottles.
- Wrapping Machine: This automatic machine stacks bottles and applies a protective film, maintaining product integrity and facilitating convenient transportation.
- Shrink Tunnel: The final step in the process, the shrink tunnel utilizes heat to shrink the film, creating a tight and secure packaging for your juice bottles.

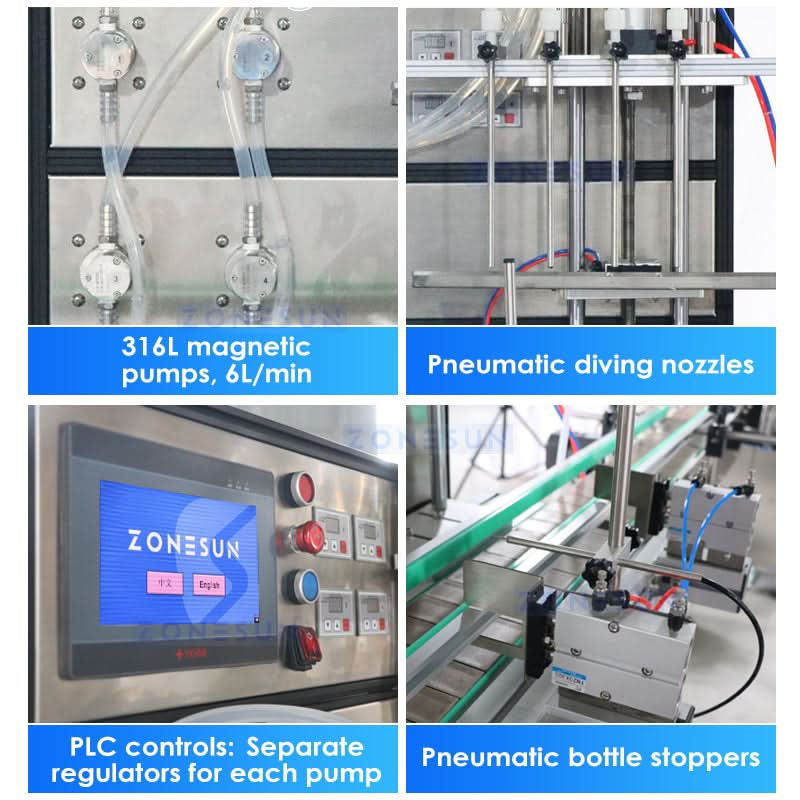

316L MAGNETIC PUMPS
Four 316L magnetic pumps provide a maximum flow rate of 6 L/min.
PNEUMATIC DIVING NOZZLES
Pneumatic diving nozzles support the filling process.
SEPARATE PUMP CONTROLS
PLC controls allow each pump to be regulated separately.
PNEUMATIC BOTTLE STOPPERS
Pneumatic bottle stoppers position containers during operation.

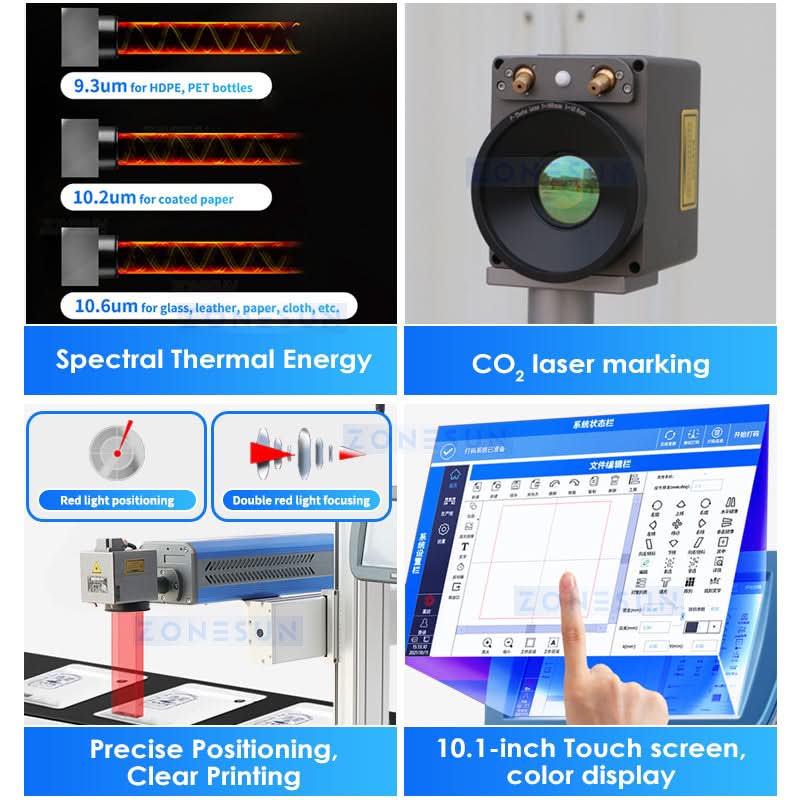

SPECTRAL THERMAL ENERGY
Spectral thermal energy supports clear, lasting marks.
CO₂ LASER MARKING
CO₂ laser marking provides ink-free coding.
PRECISE POSITIONING
Red-light positioning and focusing support clear, accurate printing.
10.1-INCH TOUCHSCREEN
A 10.1-inch color touchscreen provides machine controls through a clear interface.

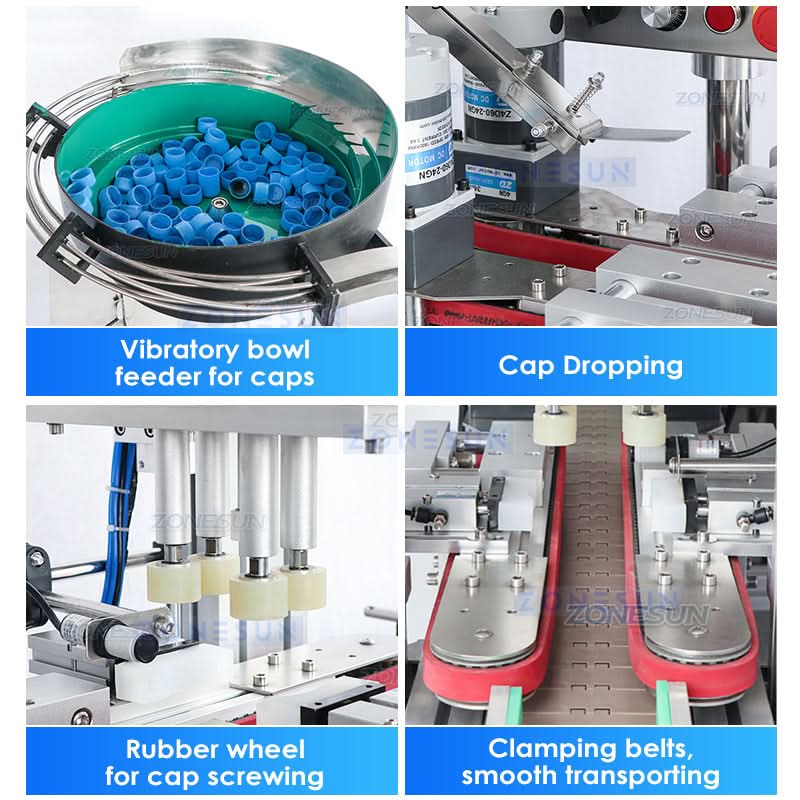

VIBRATORY BOWL FEEDER
The vibratory bowl feeds caps to the capping section.
CAP DROPPING
Caps are placed onto bottles before tightening.
RUBBER-WHEEL CAP SCREWING
Rubber wheels screw caps onto the bottles.
CLAMPING BELTS
Clamping belts transport bottles smoothly through the capping section.

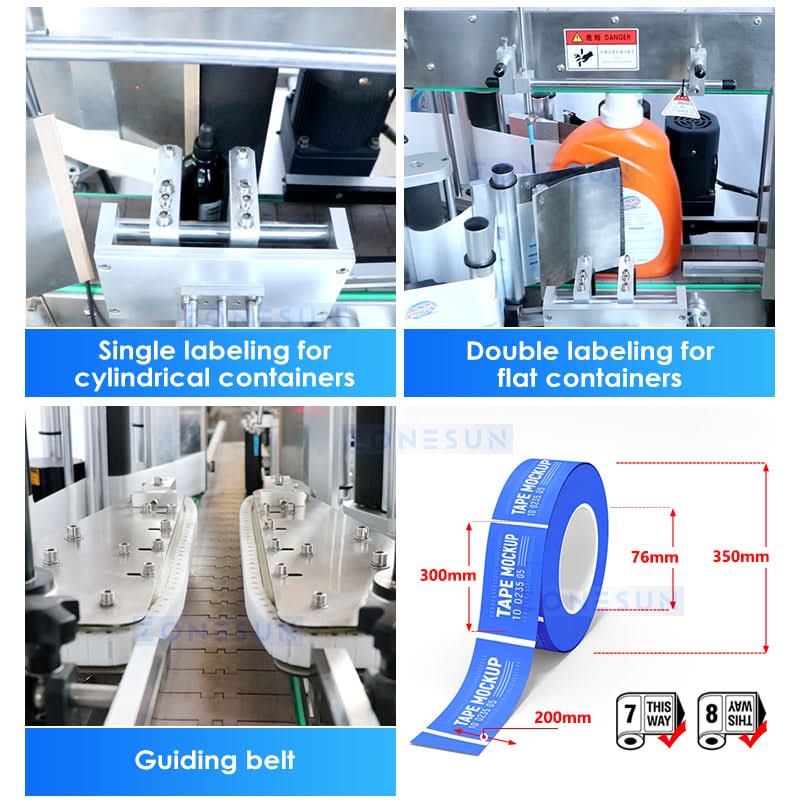

SINGLE-SIDE LABELING
Supports single-side labeling for cylindrical containers.
DOUBLE-SIDE LABELING
Supports double-side labeling for flat containers.
GUIDING BELT
The guiding belt helps guide containers through the labeling process.
CLAMPING BELTS
Clamping belts transport containers smoothly through the labeling section.

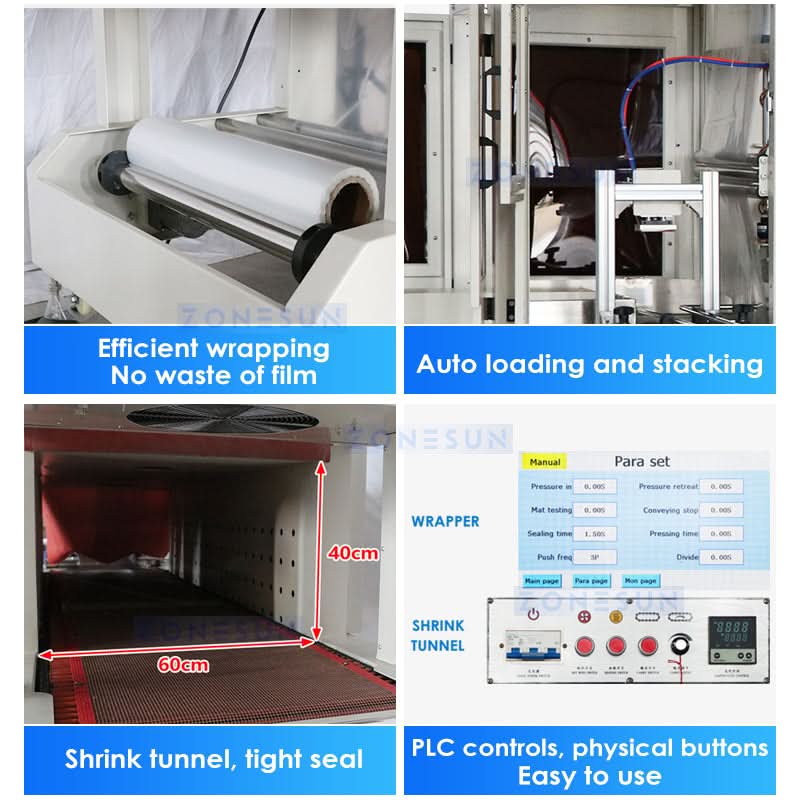

EFFICIENT WRAPPING
The wrapping section applies film with minimal waste.
AUTOMATIC LOADING AND STACKING
Bottles are loaded and stacked automatically before wrapping.
SHRINK TUNNEL
The shrink tunnel creates a tight seal around the package.
CONTROL PANEL
PLC controls and physical buttons support straightforward operation.
