DESCRIPTION
This advanced automatic pouch filling and sealing machine is engineered to simplify and accelerate your powder packaging operations. With a streamlined design and precise auger filling system, it handles premade pouches with efficiency and care. Ideal for applications ranging from food powders to industrial materials, it offers consistent sealing quality and intuitive operation, making it an essential asset for high-output production environments.
| Parameter | Specification |
|---|---|
| Machine Model | ZS-AFS210 |
| Voltage | 220V / 110V, 50–60Hz |
| Power | 2.5 KW |
| Production Speed | Approx. 15–60 pcs/min (depends on pouch size and filling materials) |
| Premade Pouch Size | (W) 80–210mm × (L) 110–300mm |
| Filling Range | 50g–5kg (customizable) |
| Filling Accuracy | ±0.3–1.5% |
| Measuring Method | Auger Filling |
| Hopper Capacity | 10L (customizable) |
| Sealing Temperature | 100–190℃ |
| Air Consumption | 0.7 m³/min |
| Air Pressure | 0.6 MPa |
| Machine Weight | Approx. 755 kg |
| Machine Size (Main Unit) | Approx. 2150 × 1200 × 1200 mm |
- High-Speed Output — Achieves 15–60 pouches/min, dramatically boosting throughput for high-volume powder packaging lines.
- Precision Auger Filling — Delivers ±0.3–1.5% filling accuracy, minimizing waste and ensuring consistent product weight across every pouch.
- Wide Pouch & Fill Range — Handles premade pouches from 80–210mm wide and fills 50g to 5kg per cycle, covering a broad spectrum of packaging formats.
- Adjustable Sealing Temperature — 100–190℃ range accommodates various pouch materials for a reliable, airtight seal every time.
- Dual Voltage Support — Available in 110V and 220V (50–60Hz) for seamless deployment in both North American and international facilities.

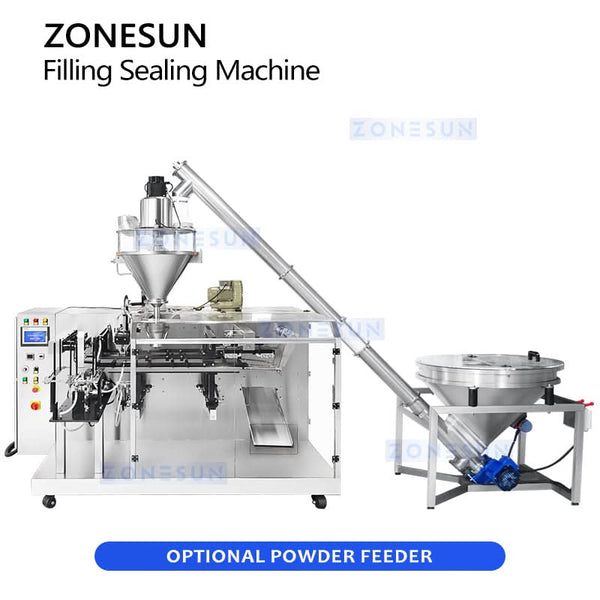

- Modular Configuration Options — Choose from Without Auger Hopper, With Auger Hopper, With Powder Feeder, or With Vacuum Powder Feeder to match your exact production needs.
- Broad Industry Applicability — Suited for food powders, coffee, milk powder, cocoa, detergents, supplements, and industrial materials.
- Customizable Hopper & Fill Range — 10L hopper capacity and fill range are both customizable to align with your specific production requirements.

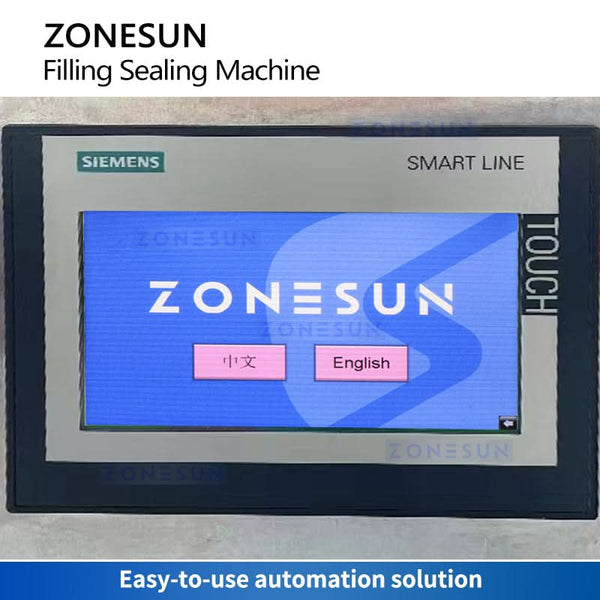

TOUCHSCREEN CONTROL PANEL
Production parameters can be set and adjusted through the touchscreen control panel.
CUSTOMIZABLE OPERATING LANGUAGE
The interface language can be customized to suit operator requirements.

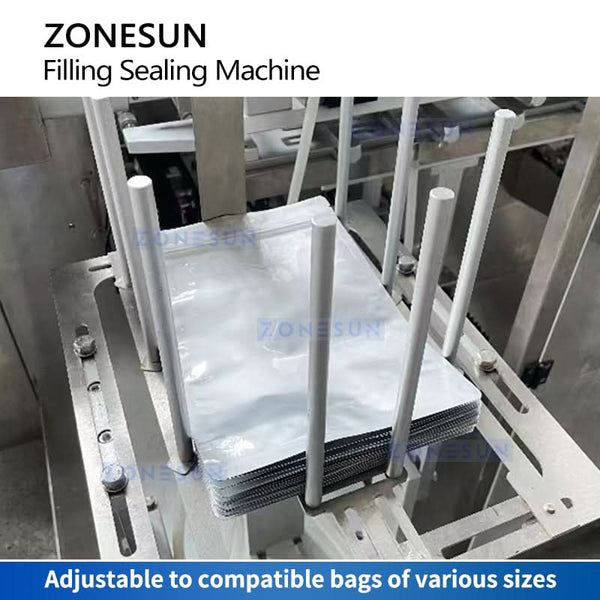

HIGH-CAPACITY POUCH STORAGE
The pouch holder accommodates approximately 200–300 premade pouches.

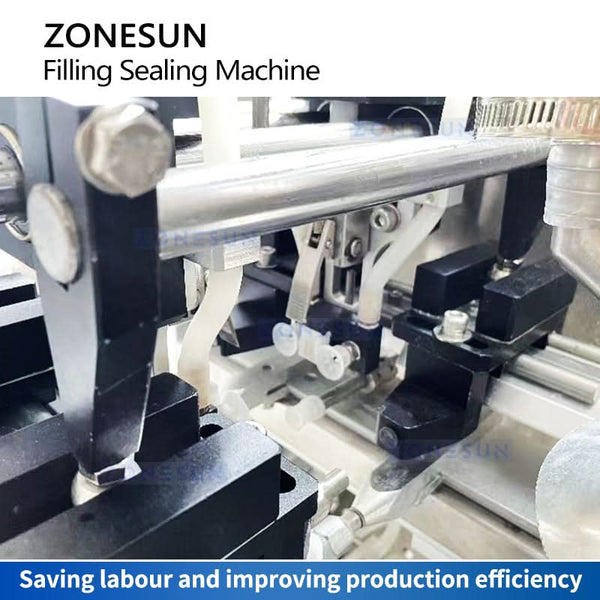

AUTOMATIC POUCH FEEDING
Suction cups pick and transfer each pouch to the next process.
SUCTION-CUP POUCH OPENING
Suction cups separate the pouch sides before filling.
VACUUM-CONNECTED FILLING NOZZLE
The filling nozzle can be connected to a vacuum cleaner to help manage powder during filling.
OPTIONAL MANUAL ADDITION FUNNEL
An optional custom funnel can be used to add an item such as a measuring spoon manually.
ADJUSTABLE SEALING TEMPERATURE
The sealing temperature can be adjusted to suit the packaging material.
HEAT-SEALABLE POUCH COMPATIBILITY
The sealing unit is designed for compatible heat-sealable premade pouches.
CUSTOMIZABLE SEAL PATTERN
The sealing pattern can be customized to meet packaging requirements.

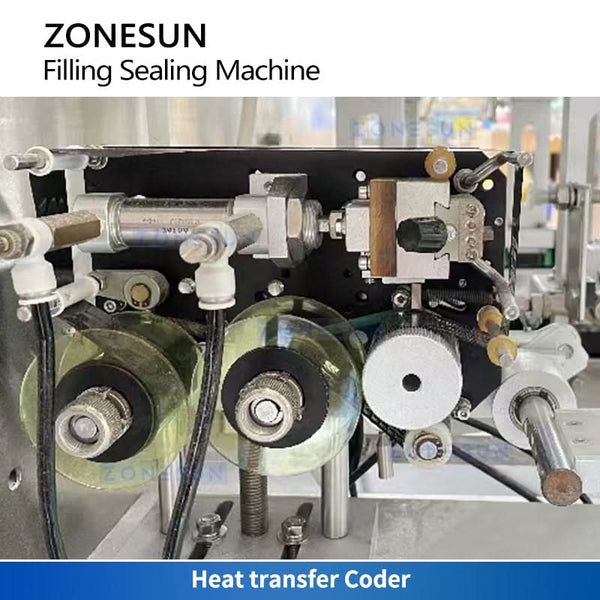

DATE AND BATCH CODING
The coding unit can print production dates and batch numbers on the pouch.
CUSTOMIZABLE MULTI-LINE PRINTING
The number of printed lines can be customized.
