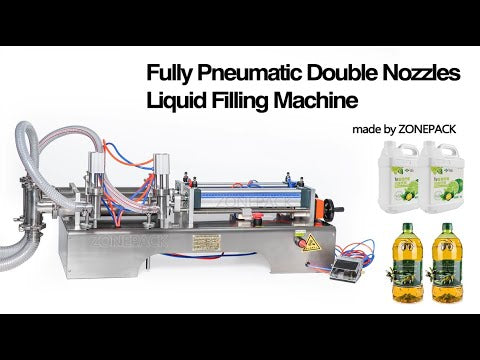

Air-Powered Dual-Head Liquid Filling
The ZONESUN ZS-YT2 fully pneumatic liquid filler uses compressed air to operate its two filling heads. Adjustable filling speed and volume, together with pedal-controlled and automatic operating modes, support semi-automatic filling tasks.

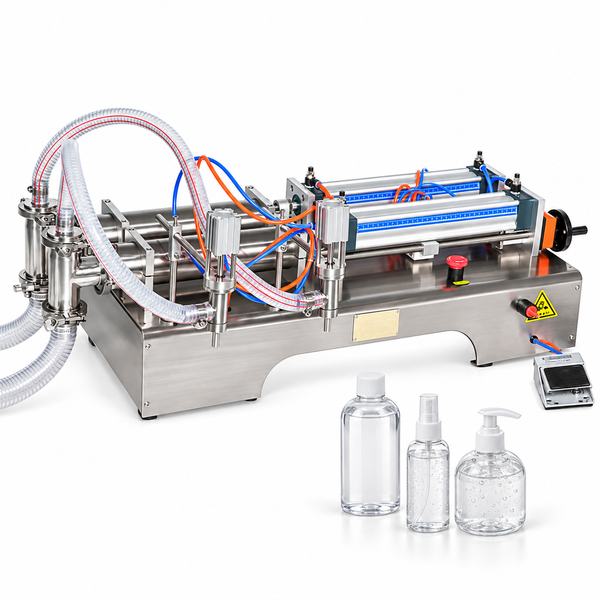

Applications may include compatible alcohol, disinfectant, spray and gel formulations. For alcohol or other flammable products, confirm the application requirements and equipment suitability before ordering.
Key Features
- Fully pneumatic, air-powered filling operation.
- Two filling heads with independent nozzle controls.
- Anti-drip nozzle structure.
- Rotary controls for filling volume and speed.
- Automatic cycling and pedal-controlled operating modes.
- Air-pressure gauge for monitoring operating pressure.
Choose Your Filling Range
Select the range that covers your required volume. The options represent different configurations, not one machine adjustable across all listed ranges.
| 10–100ml | Select this configuration for filling volumes within its stated range. |
|---|---|
| 30–300ml | Select this configuration for filling volumes within its stated range. |
| 50–500ml | Select this configuration for filling volumes within its stated range. |
| 100–1000ml | Select this configuration for filling volumes within its stated range. |
| 500–3000ml | Select this configuration for filling volumes within its stated range. |
| 1000–5000ml | Select this configuration for filling volumes within its stated range. |
Technical Specifications
| Model | ZS-YT2 |
|---|---|
| Drive | Fully pneumatic |
| Filling heads | 2 |
| Listed filling speed | 5–30 bottles/min × 2 heads; confirm whole-machine output for your filling task |
| Filling accuracy | Contact us to confirm the filling tolerance for your product and selected range |
| Working air pressure | 0.4–0.6 MPa |
| Compressed-air supply | Contact us to confirm compressor capacity, air consumption and connection requirements |
| Operating modes | Automatic cycling or pedal-controlled operation |
| Filling ranges | According to the selected option above |
| Machine dimensions | 1010 × 360 × 300 mm |
| Package dimensions | 1130 × 515 × 340 mm |
| Net weight | 36.5 kg |
| Gross weight | 46.5 kg |
Selection & Setup
Send your liquid details, target filling volume, bottle opening dimensions and required output when contacting us for configuration support. Confirm the required compressed-air supply and included accessories before ordering.
Filling performance depends on the product, selected volume, air supply and operator handling. Ask us to confirm the achievable speed and filling tolerance for your application.
Frequently Asked Questions
Does automatic mode include automatic bottle transport?
The mode selector controls the filling operation. Confirm the bottle-handling arrangement and supplied equipment for your intended workflow.
Can the two heads fill different liquids?
Independent nozzle control is provided. If you need to fill different liquids, contact us to confirm the liquid-supply paths and required configuration first.
How does this differ from the other ZS-YT2 listing?
Compare our ZS-YT2 dual-nozzle filler for shampoo and liquid-soap applications, and ask us to confirm the configuration differences relevant to your product.
