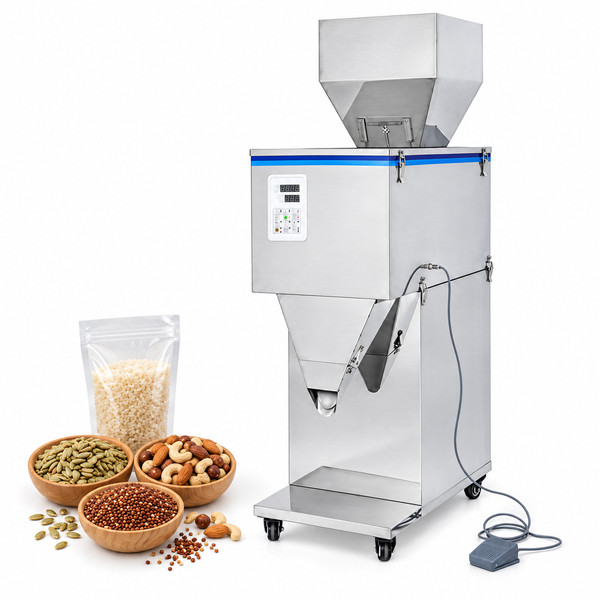

Weigh and Fill Dry Granules into Bags
The ZONESUN DL-5000 is a semi-automatic granule weighing and filling machine for portioning compatible dry materials such as grains, seeds, herbs, pet food and small industrial parts. Its adjustable filling range is 20–5000g, with vibration feeding and digital weighing control.
Key Features
- Weight-based dosing: Set the target filling weight on the digital control panel.
- Adjustable feeding: Fast, medium and slow filling settings and an adjustable outlet baffle help adapt feeding to the material.
- Foot-pedal discharge: Use the pedal to control discharge during semi-automatic filling.
- Interchangeable outlets: 11cm, 8cm and 6cm outlet widths accommodate different bag openings.
- Movable design: Universal wheels help reposition the machine.
Material Compatibility
Choose this machine primarily for compatible dry, free-flowing granular products. Fine, dusty, sticky or easily clumping powders require a material test before purchase. Contact us with your material, target weight and bag opening size to confirm suitability.
Specifications
| Model | DL-5000 |
|---|---|
| Voltage | 110V / 60Hz or 220V / 50Hz, according to the selected option |
| Power | 350W |
| Filling range | 20–5000g |
| Working speed | Approx. 6–15 bags/min; varies with material, target weight and operator handling |
| Listed accuracy | 2g; depends on the material and operating conditions |
| Machine dimensions | 38 × 66 × 145cm |
| Listed machine weight | 56kg |
| Outlet widths | 11cm, 8cm and 6cm |
Before Ordering
This is a semi-automatic weighing and filling machine. Allow for manual bag positioning and handling in your workflow. Confirm any bag-sealing requirements separately. The listed speed and accuracy are reference specifications, not guaranteed results for every material or filling weight.
Machine Details
Digital control panel and feeding adjustment: The controls include counting and filling-speed settings. The outlet baffle adjusts the discharge opening.
Interchangeable outlet and movable design: Replace the outlet to suit the bag opening. Universal wheels help move the machine.
