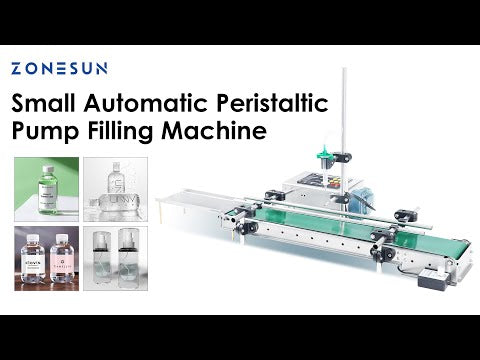

The ZONESUN ZS-DTPP100C is an automatic peristaltic pump filling machine designed for 5–100 mL dispensing of compatible low-viscosity liquids. The liquid contacts only the tubing during filling, making tube replacement and product changeover more convenient. An electric-eye sensor detects bottles for automatic filling, while the compact conveyor is available in 600 mm and 1200 mm lengths. The machine can handle compatible liquids at temperatures up to 100°C but does not heat the product.
Key Features
- 5–100 mL Small-Volume Filling — Designed for controlled dispensing of compatible low-viscosity liquids.
- Peristaltic Pump System — The liquid contacts only the tubing for easier product changeover and cleaning.
- Automatic Bottle Detection — The electric-eye sensor triggers filling when a bottle reaches the filling position.
- Up to 100°C Liquid Compatibility — Suitable for compatible heated liquids; the machine itself does not heat the product.
- Two Conveyor Lengths — Available with a 600 mm or 1200 mm conveyor for different workspace requirements.
- Adjustable Operation — Filling parameters, conveyor speed and sensor sensitivity can be adjusted for production needs.
Choose Your Conveyor & Voltage
| Option | Selection guide |
|---|---|
| 600 mm conveyor | Choose for a shorter conveyor layout where bench space is limited. |
| 1200 mm conveyor | Choose when your workspace and bottle-handling layout require a longer conveyor. |
| 110V / 220V | Select the voltage that matches your intended electrical supply. |
The 600 mm and 1200 mm options refer to conveyor length. Choose according to your workspace and bottle-handling needs; filling speed depends on the liquid, fill volume and operating settings.
Check Your Bottle & Liquid
Send your target filling volume, bottle height and diameter, neck opening dimensions and liquid details to check ZS-DTPP100C suitability. The listed nozzle outer diameters are 3.3 mm and 8.3 mm; confirm the nozzle supplied with your configuration and its fit with the bottle opening.
Specifications
| Machine Model | ZS-DTPP100C |
| Voltage | 110V or 220V, 50–60Hz — select the required voltage |
| Power | 75 W |
| Pump Type | Peristaltic Pump |
| Recommended Filling Range | 5–100 mL |
| Maximum Flow Rate | 700 mL/min (based on water) |
| Filling Speed | Approx. 10 bottles/min (50 mL perfume) |
| Conveyor Size | 600 × 100 mm; optional 1200 mm length |
| Filling Nozzle Diameter | OD 3.3 mm and OD 8.3 mm |
| Suitable Liquid Temperature | Up to 100°C |
| Collecting Tray Size | 210 × 100 mm (L × W) |
| Liquid Inlet Pipe | 7.2 mm ID × 9.9 mm OD |
| Pipe in the Pump | 4.8 mm ID × 8 mm OD |
| Main Machine Size | Approx. 180 × 128 × 95 mm (L × W × H) |
| Machine Weight | 4.3 kg |
| Package Size | Approx. 655 × 160 × 185 mm (L × W × H) |
| Package Weight | 5 kg |
Compatibility Note: Confirm the liquid temperature, viscosity and tubing compatibility before filling essential oils, solvents, inks or other special products. This machine does not heat the liquid.
Frequently Asked Questions
Can this machine fill liquid at 100°C?
Yes. The machine supports liquid temperatures up to 100°C. It does not heat the product, so any required heating must be provided separately.
Why is a peristaltic pump useful for changing products?
The liquid flows through and contacts only the tubing during filling. The tubing can be replaced for product changes or when a different compatible tube material is needed.
Is 700 mL/min the production output?
700 mL/min is the maximum flow rate measured with water. The listed bottle-filling reference is approximately 10 bottles/min for 50 mL perfume; actual output depends on your liquid, filling volume and bottle handling.
Does the longer conveyor increase the filling rate?
The longer conveyor changes the bottle-handling layout. Check the pump flow, target volume and filling cycle when estimating output.
Are both nozzle sizes and spare tubing included?
Contact us to confirm the supplied nozzles, tubing, spares and accessories for your selected configuration.
What should I check when ordering replacement tubing?
The listed inlet tubing is 7.2 mm ID × 9.9 mm OD, and the pump tubing is 4.8 mm ID × 8 mm OD. Confirm the tube material for your liquid, operating temperature and pump requirements before replacement.
Compare Related Equipment
Explore our peristaltic pump filling machines or compare small conveyor filling lines for your packaging workflow.
Machine Details & Controls
CONTROL PANEL
The digital control panel is used to set filling and operating parameters. The inching function helps operators test and prime the machine.
PERISTALTIC PUMP
The liquid contacts only the tubing during filling. The tube can be replaced when changing products or when a different compatible tube material is required.
FILLING HEAD
The compact filling nozzle is designed for small-volume dispensing. Its height can be adjusted to suit different bottles.
ELECTRIC-EYE SENSOR
The sensor detects bottles and triggers automatic filling. Its sensitivity can be adjusted for the container and production setup.
CONVEYOR BELT
Conveyor speed can be adjusted to match bottle handling and the filling setup. Follow the equipment instructions for cleaning the conveyor and nearby electrical components.
