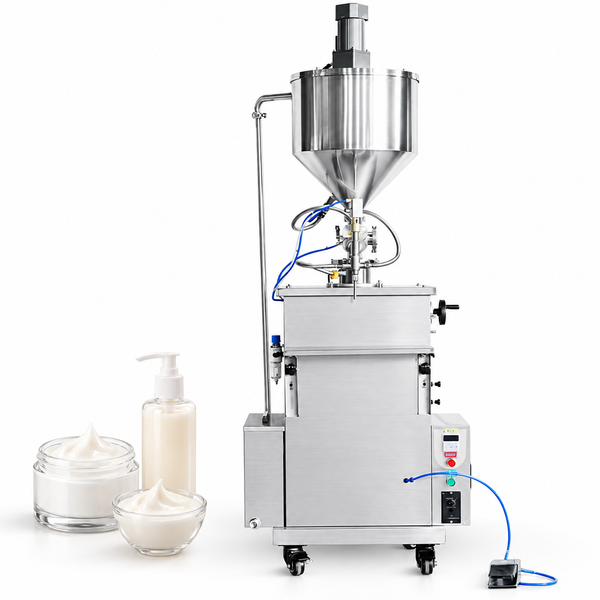

Technical Specifications
| Machine Model | ZS-WCHJ1 |
|---|---|
| Power Supply | 220V, 50/60Hz; 110V supply supported via external transformer |
| Power | 3.2 kW |
| Filling Speed | Approx. 10–20 bottles/min, depending on material and bottle size |
| Filling Range | 100–1000 mL (customizable) |
| Filling Accuracy | ±1% |
| Hopper Capacity | 30 L |
| Max. Heating Temperature | 90–95°C |
| Mixing Speed | 0–35 rpm |
| Air Consumption | 0.05 m³/min |
| Machine Material | Stainless steel |
| Machine Size (L × W × H) | Approx. 695 × 645 × 1760 mm |
| Package Size (L × W × H) | Approx. 770 × 630 × 1930 mm |
| Gross Weight | Approx. 129 kg |
30 L HOPPER
The 30 L hopper holds compatible liquid or paste products during filling.
MIXING FUNCTION
The integrated mixing system helps keep compatible materials evenly blended inside the hopper.
WATER-CIRCULATION HEATING
The water-circulation heating system warms compatible products before and during filling.
ADJUSTABLE TEMPERATURE AND MIXING SPEED
Heating temperature and mixing speed can be adjusted to suit different production requirements.
PISTON PUMP
The piston pump provides stable and efficient dispensing for compatible thick liquids and pastes.
CUSTOMIZABLE FILLING RANGE
The filling range can be customized according to the required product and container size.
PNEUMATIC FILLING HEAD
The filling head operates with compressed air to provide consistent product dispensing.
CONTROLLED FILLING
The filling system supports controlled dispensing for different containers while helping reduce product waste.
ADJUSTABLE VOLUME AND SPEED
The controls allow operators to adjust filling volume and operating speed.
AIR SUPPLY REQUIREMENT
An air compressor is required for operation and is sold separately.
