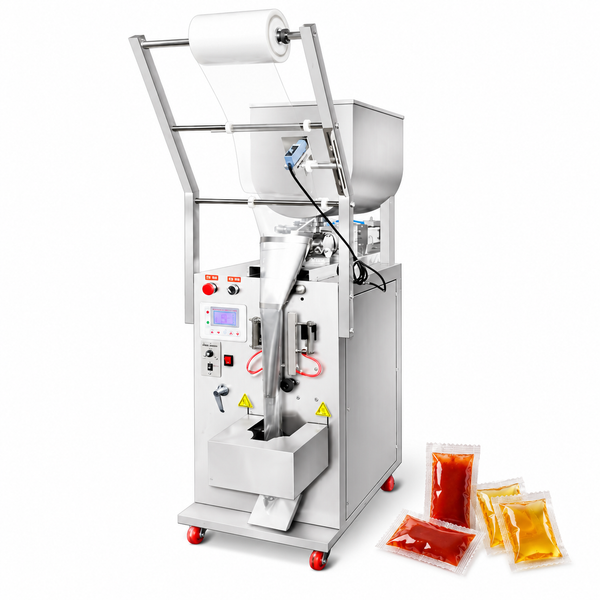

This paste sachet packaging machine is designed for filling paste or liquid products, such as sauce, honey, and similar materials into sachets. It features a large-capacity hopper with a mixing function to ensure uniform consistency of the filling material. Various sealing types are customizable, including back seal, three-side seal, and four-side seal, to meet different packaging needs.
Paste Sachet Packaging Machine Parameter
- Machine Model: ZS-FS200D1
- Machine Voltage: 110/220V 50-60HZ 650W
- Film width: 50- 180mm (machine can work for one size as the bag transformer is customized.)
- Recommend Filling Volume: 5-100ml (Customizable)
- Filling Accuracy: ±1-2 ml
- Hopper Size: 80L (With Mixer, Optional Heater)
- Machine Size: 580*1100*1750 mm
- Machine Weight: About 95 kg
- Package Size: About 940*550*1150 mm(Main Machine) About 590*510*660 mm(Hopper)
- Package Weight: About 82 kg(Main Machine)+34 kg(Hopper)
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Paste Sachet Packaging Machine Simple Control Panel
Intuitive interface allows for easy operation and quick parameter adjustments.
Sealing Structure
Compatible with PE/PP and laminated films. Sealing temperature is adjustable to suit different materials.
Bag Cutting Structure
Supports tear notch customization with flexible sealing formats: back seal, three-side seal, or four-side seal.
Hopper with Stirrer
80L hopper equipped with a stirrer for pre-processing of materials. Optional heating function available for temperature-sensitive products.
Piston Pump
Filling volume is controlled by piston stroke. Air inlet/outlet valves adjust filling speed. Rotary valve available for handling viscous pastes with soft particles.
Color Mark Sensor
Detects color marks on film to ensure precise cutting and consistent packaging alignment.
