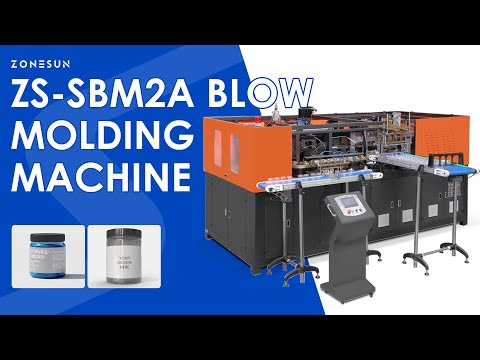

ZONESUN ZS-SBM2A 2-Cavity PET Bottle Blow Molding Machine

Price: $89,000.00

Please check your cart or click "Buy It Now" to view shipping costs

Shipping Information

Shipping methods and costs vary by machine, package size, destination, and delivery method. Available options may include express delivery, air freight, sea freight, or logistics services.

To view the available shipping options and estimated cost, add the product to your cart and enter your delivery address at checkout.

We can help coordinate shipping and customs clearance for eligible destinations. Please contact us before ordering to confirm availability, delivery arrangements, and applicable charges.

For large machines, customized equipment, or complete production lines, please contact us before ordering so we can confirm the shipping method, packing requirements, freight cost, and estimated delivery time.

Import duties, customs clearance fees, local taxes, and other destination charges may apply.

Voltage:380v

Product variants

ZS-SBM2A 2-Cavity PET Bottle Blow Molding Machine

The ZONESUN ZS-SBM2A is an automatic two-cavity stretch blow molding machine for compatible PET bottles and containers. Its preform-heating system, PLC control and customizable molds support bottle production up to the listed size range.

Key Features

Two-cavity automatic bottle forming
PLC touchscreen control
Infrared-lamp preform heating
Customizable cavity shape and configuration
Gripper transfer for formed containers

Technical Specifications

Model	ZS-SBM2A
Cavities	2
Output	1200–1300 bottles/h
Maximum volume	5 L
Maximum bottle-mouth diameter	150 mm
Maximum bottle diameter	180 mm
Maximum bottle height	400 mm
Heating tubes	32
Heating-tube power	1.5 kW
Maximum heating power	48 kW
Installed power	51 kW
Actual consumption	35.7 kW
Working pressure	5–6 kg/cm²
Temperature range	10°C
Machine size	4700 × 1600 × 1900 mm
Weight	3000 kg
