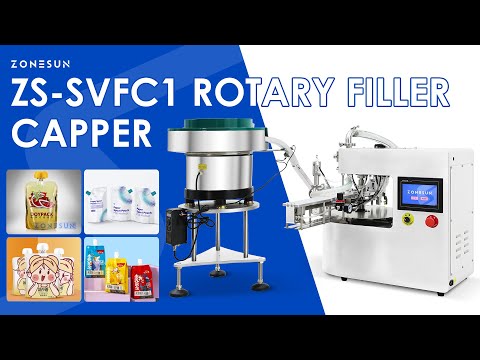

The ZONESUN ZS-SVFC1 is an automatic spout pouch filling and capping machine with a listed filling range of 50–2000 mL. Touchscreen and PLC controls coordinate filling and capping, while pouch-handling parts are configured for the required pouch format.
Choose Your Configuration
| Only Machine | Filling and capping machine without the cap unscrambler. Confirm the cap-loading method and operator steps for this configuration. |
|---|---|
| Machine With Cap Unscrambler | Filling and capping machine with a cap unscrambler for automatic cap handling. Confirm compatibility with your cap shape and dimensions. |
| 110v / 220v | Select the required voltage and confirm frequency and electrical requirements in the quotation. |
The cap unscrambler is included only in the “Machine With Cap Unscrambler” option. Confirm the supplied pouch magazine, cap guide, tooling and accessories for the selected configuration.
Key Features
- Filling and capping combination: Processes compatible spout pouches through the configured workflow.
- Touchscreen and PLC controls: Set and coordinate operating parameters.
- Servo-driven gear pump: Controls product dispensing for compatible formulations.
- Pouch handling: A customizable magazine and star-wheel indexing support pouch transfer.
- Filling-head design: Helps minimize splashing during dispensing.
- Servo capping: A three-jaw gripper tightens compatible spout caps.
Working Process
Load compatible pouches into the configured magazine, set up the filling and capping parameters, and supply product and caps according to the selected configuration. The machine indexes pouches through filling and cap tightening. Confirm pouch loading, cap loading and discharge arrangements for your setup.
Technical Specifications
| Model | ZS-SVFC1 |
|---|---|
| Listed electrical specification | 220V / 50Hz, 2 kW |
| Available voltage options | 110v / 220v — confirm the electrical specification for your selection |
| Listed filling range | 50–2000 mL |
| Filling accuracy | Confirm the filling tolerance for your product, target volume and test conditions |
| Listed filling speed | 35–40 bags/min, depending on filling volume and setup |
| Listed machine dimensions (L × W × H) | 800 × 600 × 700 mm |
| Listed machine weight | 70 kg |
| Compressed-air pressure | 0.5–0.8 MPa |
| Listed air consumption | 0.5 m³/min |
| Listed operating noise | ≤85 dB |
Confirm achievable output at your target filling volume and product viscosity. Ask us to confirm whether the listed dimensions, weight and power cover the main machine or the complete configuration with cap unscrambler, and request the installation and packing details for your order.
Pouch, Cap & Product Compatibility
Contact us to check ZS-SVFC1 suitability with pouch height and width, spout inner and outer diameters, hanging-collar dimensions, cap diameter and shape, target filling volume, and required output. Provide sample pouches and caps when checking tooling or changeover requirements.
For juice, sauce, detergent or other formulations, confirm viscosity, particle content, temperature and liquid-contact material compatibility. Discuss cleaning, changeover and the required air supply for the actual product.
Frequently Asked Questions
Is the cap unscrambler included in every option?
No. Choose “Machine With Cap Unscrambler” to include it. “Only Machine” does not include the cap unscrambler.
Will all pouches between 50 and 2000 mL fit?
Filling volume alone does not confirm compatibility. The pouch, spout, cap and holding parts must also match the machine configuration.
Can the same machine run different pouch sizes?
Send each pouch and cap specification so we can confirm adjustment ranges, magazine configuration and any required change parts.
Does it support remote monitoring?
Touchscreen and PLC control are described for the machine. Confirm any network connection, remote-access function and related options separately before ordering.
What should be confirmed before installation?
Confirm electrical supply, compressed air, main-machine and cap-unscrambler space, product supply, discharge arrangements, supplied accessories and cleaning requirements.
Related Equipment
Compare our automatic filling and capping machines or browse filling equipment for other packaging formats.
Machine Details & Controls
TOUCHSCREEN CONTROLS
The intuitive touchscreen simplifies operation and allows parameters to be adjusted easily.
PLC PROCESS CONTROL
The PLC system provides precise control of the filling and capping processes.
POUCH FEEDING
The magazine can be customized for the required pouch format. Automatic pouch handling and indexing support a smooth workflow.
SERVO-DRIVEN FILLING
The servo-driven gear pump controls liquid dispensing. Confirm filling tolerance using your actual product, target volume and calibration conditions.
CUSTOMIZABLE FILLING RANGE
The filling range covers a wide variety of applications and can be customized.
NON-DRIP FILLING HEAD
The recessed filling-head design helps minimize splashing and supports cleaner filling.
STAR WHEEL
The star-wheel design supports continuous pouch processing and increased production output.
CAP FEEDING
The cap-feeding guide connects with the cap unscrambler in the “Machine With Cap Unscrambler” configuration. Confirm the cap-loading method for “Only Machine” before ordering.
SERVO CAPPING
The servo-driven three-jaw gripper provides secure, precise cap tightening.
