Application

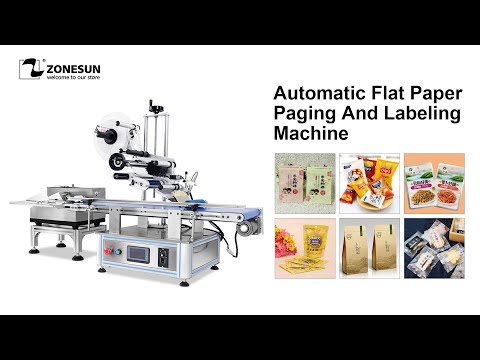

The ZS-TB180PBF paging labeling machine is designed to streamline paper separation and labeling processes with precision and efficiency. Compact in size yet powerful in function, this machine operates automatically, saving valuable workspace while boosting productivity. Its adaptable design makes it ideal for diverse application needs across pharmaceutical, cosmetic, and food industries. Whether labeling flat products or packaging materials, this machine delivers consistent performance and smooth operation—perfect for production lines that demand reliability and speed.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | ZS-TB180PBF |
| Voltage | 220V / 110V, 50-60 Hz |
| Machine Power | 980 W |
| Labeling Speed | 20-120 pcs/min |
| Labeling Accuracy | ±1 mm |
| Applicable Product Size | ≤300 mm (W) × 500 mm (H) |
| Label Roll Inside Diameter | Φ75 mm |
| Label Roll Outside Diameter | Φ250 mm |
| Label Size | ≤250 mm (W) |
| Conveyor Size | Approx. 1,100 mm × 300 mm (L×W) |
| Working Speed (Paging Machine) | 12.5 m/min |
| Machine Size (Paging Machine) | 440 mm × 465 mm × 300 mm |
| Machine Size (Labeling Machine) | Approx. 1,130 mm × 1,050 mm × 500 mm |
| Machine Weight | 24 kg (Paging) + 74 kg (Labeling) |
| Package Size (Labeling Machine) | Approx. 1,370 mm × 620 mm × 630 mm |
| Package Size (Paging Machine) | Approx. 570 mm × 510 mm × 340 mm |
| Package Weight | 129 kg (103 kg + 26 kg) |
Key Highlights
High-Speed Labeling — Processes up to 120 pieces per minute, significantly boosting throughput on flat pouch, card, and bag production lines.
Precision Application — Achieves ±1 mm labeling accuracy, ensuring clean, consistent label placement with minimal waste or rework.
2-in-1 Paging + Labeling System — Combines automatic paper separation (paging) and label application in one integrated solution, eliminating the need for separate equipment.
Wide Product Compatibility — Handles flat products up to 300 mm wide and 500 mm tall, suitable for pouches, cards, bags, and flat packaging across pharma, cosmetic, and food sectors.
Dual Voltage Support — Available in 110V or 220V ,choose on your need.
Optional Date Coder — Upgrade to the “with dater” variant to print batch numbers and expiry dates inline, with no additional printer required.
Compact Desktop Footprint — The paging unit measures just 440 × 465 × 300 mm, saving valuable floor space while maintaining full automatic operation.
