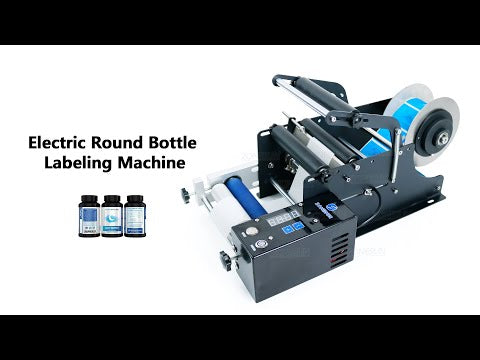

Semi-Automatic Round Bottle Labeling Machine
The ZONESUN ZS-TB50SM is designed for applying self-adhesive labels to round bottles with diameters from 20 to 80 mm and heights from 55 to 140 mm. Digital label-length adjustment, a label sensor and a pressing bar support consistent application on cosmetic, beverage, essential-oil and dropper bottles. Its compact structure is suitable for workshops and small-batch packaging.
Product Highlights
- Suitable for round bottles from 20 to 80 mm in diameter
- Handles bottles from 55 to 140 mm in height
- Supports self-adhesive labels up to 80 mm wide
- Digital adjustment for label feeding length
- Label sensor controls label output
- Pressing bar stabilizes bottles during labeling
- Compact design for small-batch production
Specifications
| Parameter | Specification |
|---|---|
| Model | ZS-TB50SM |
| Voltage | 220 V / 110 V, 50–60 Hz |
| Motor Power | 36 W |
| Label Width | ≤80 mm |
| Bottle Diameter | 20–80 mm |
| Bottle Height | 55–140 mm |
| Label Roll Inner Diameter | 75 mm |
| Label Roll Outer Diameter | ≤150 mm |
| Machine Dimensions | Approx. 465 × 255 × 180 mm |
| Net Weight | Approx. 7.5 kg |
| Package Dimensions | 590 × 320 × 290 mm |
| Gross Weight | Approx. 9 kg |
START CONTROL
Press the start button to begin label dispensing and bottle labeling.
LABEL SENSOR
The label sensor detects each label and controls label output for consistent positioning.
LABEL LENGTH SETTING
The digital control allows the label feeding length to be adjusted for different labels.
PRESSING BAR
The pressing bar holds the bottle in position during labeling.
