ZS-YT4T-4PX Automatic Face Cream Lotion Body Gel Hair Spray Cosmetics Bottle Filling Machine

Shipping calculated at checkout.
Machine Size: Regular 110V
Pre-sale Support Quality Guarantee About Shipping
This automatic piston pump filling machine is equipped with feeding pump,this is more convenient for feeding filling material.Different filling range can be chosen and multiple filling nozzle can be customized according to operation need.


Machine model:ZS-YT4T-4PX
Voltage:110/220V 50-60HZ 1KW
Filling range:10-180ml/30-500ml/100-1000ml
Working speed:About 30-100 bottles/min
Air pressure:0.6-0.8MPa
Filling accuracy:±1%
Filling Nozzle:4(can be customized)
Machine size:About 1000*550*1500mm(L*W*H)
Machine wieght:About 80kg

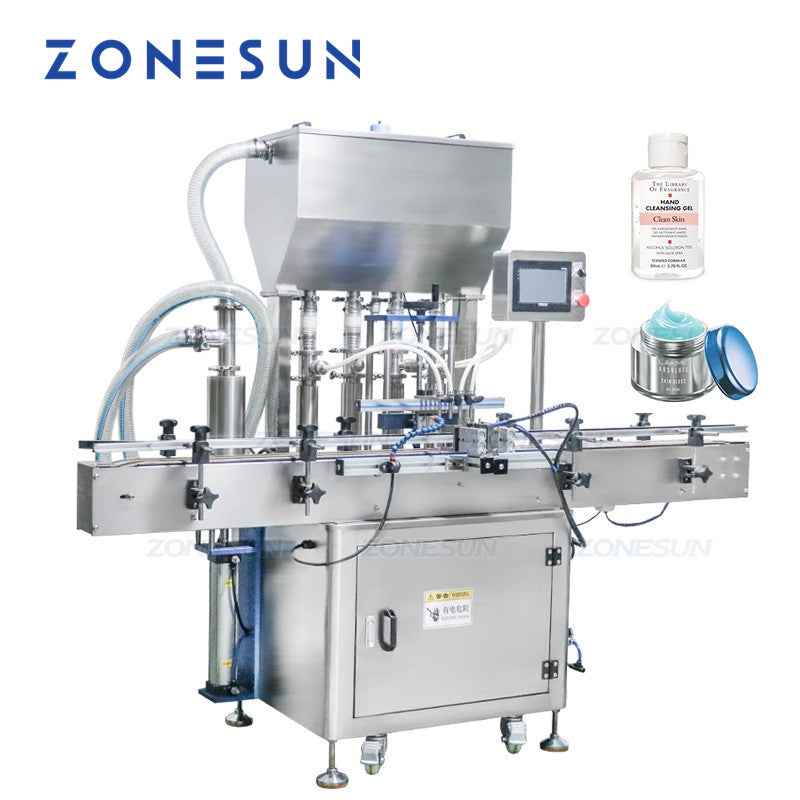

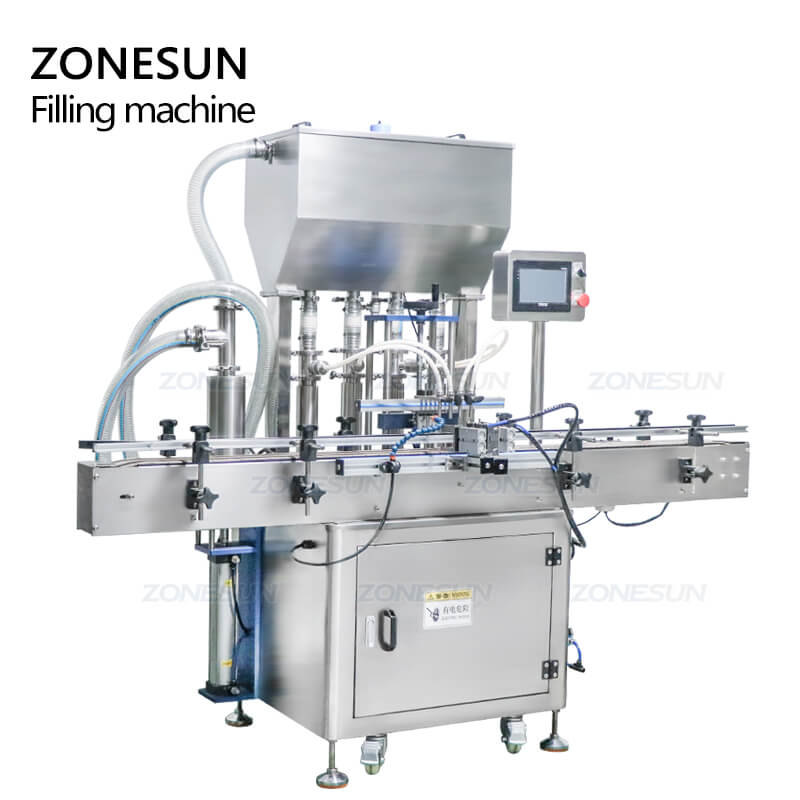

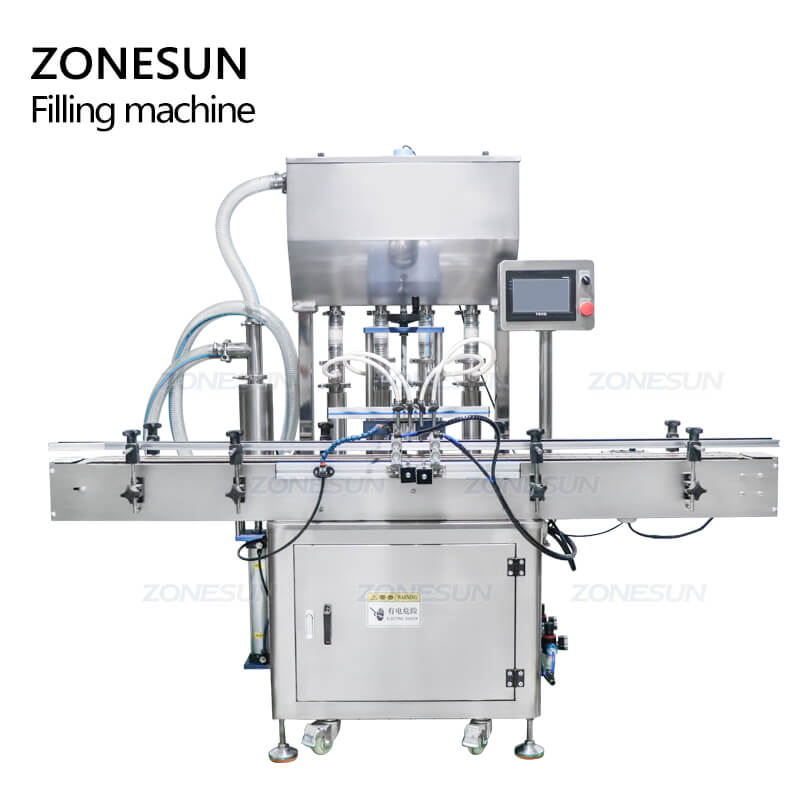

Automatic Face Cream Filling Machine


Application of Automatic Face Cream Filling Machine

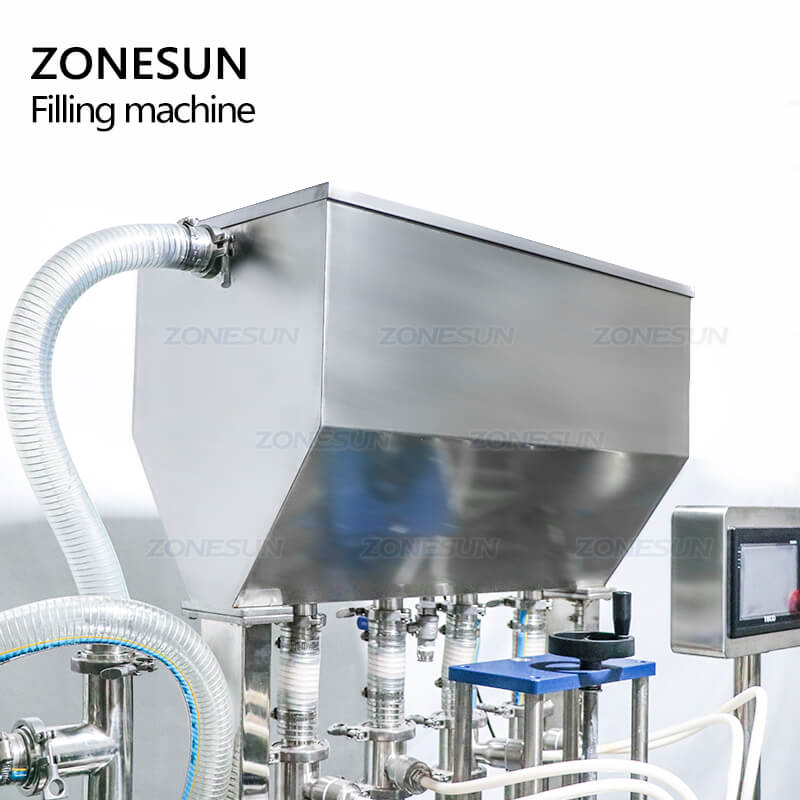

Details of Automatic Face Cream Filling Machine



Operation Panel of Automatic Face Cream Filling Machine

The touch screen control panel can be customized in different kinds of language for convenient operation.Visual working data makes it easier to adjust the machine in real time.

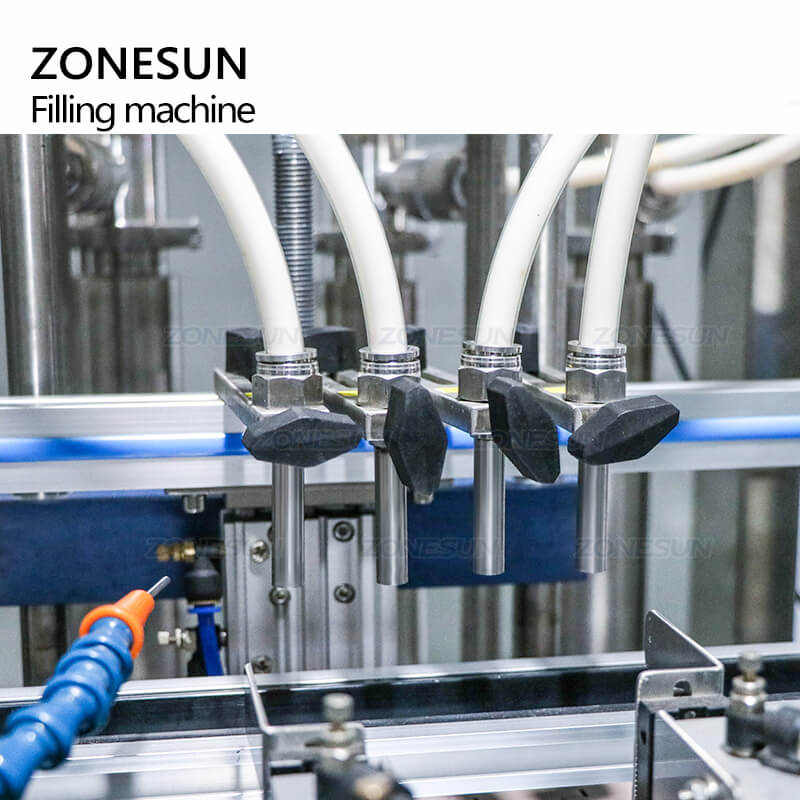

Filling Nozzle of Automatic Face Cream Filling Machine

The position of filling nozzle can be adjusted according to bottle size,multiple filling nozzle can be customized according to production need.Multiple filling nozzles can help you improve production efficiency greatly.

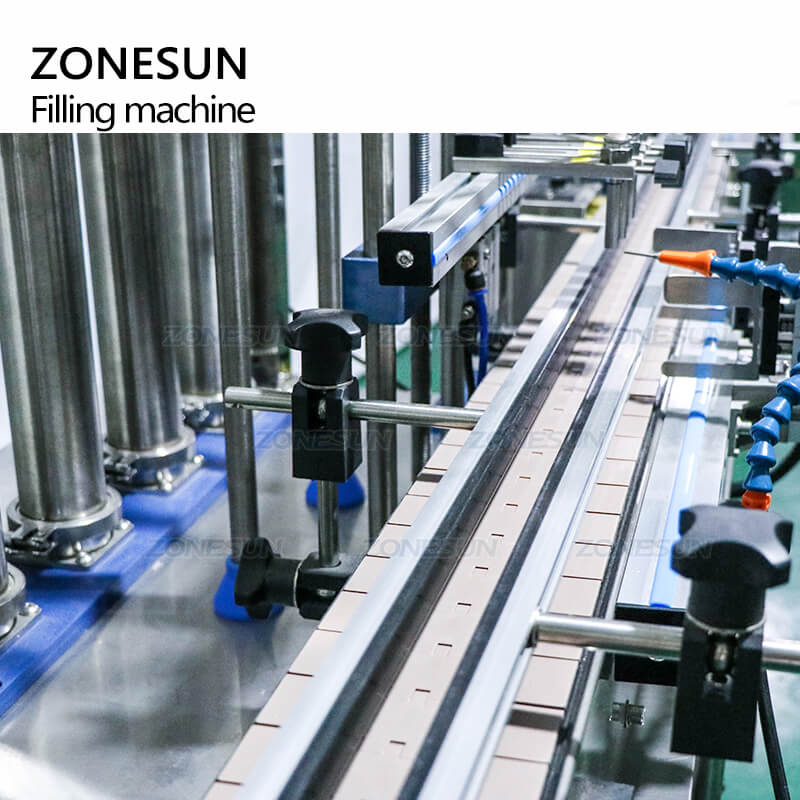

Conveyor of Automatic Face Cream Filling Machine

Made of high quality conveyor belt,the chain conveyor can transport bottles faster and smoothly,the width and length can be customized as operation need.


Electric Eye of Automatic Face Cream Filling Machine

Equipped with high quality electric eye,it can detect passing by bottles and control the machine to start work.This can prevent from missing bottles and ensure the automated production can be processed smoothly.


Piston Pump of Automatic Face Cream Filling Machine

The high quality piston pump can ensure the filling material will be filled faster and easier,the filling range can be adjusted slightly,ensure the filling accuracy.


Automatic Face Cream Filling Machine

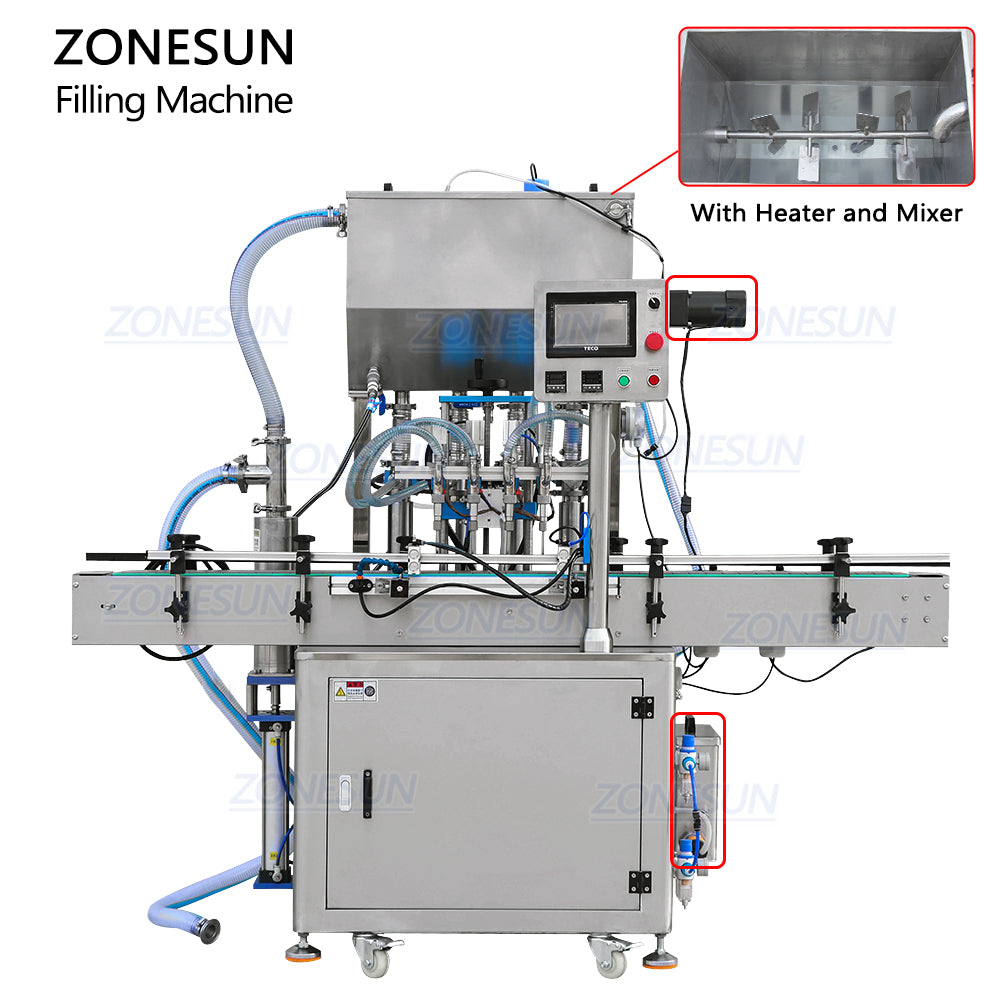

Automatic Filling Machine With Heater & Mixer
