01SEPARATE STATIONS
Start in separate steps
Good fit for: Small-volume, low-viscosity liquid batches.
Example fillerZS-DTPP100C
- Fill
- Hand-cap
- Label
- 5–100 mL filling
- Liquid stays in the tubing
- Independent workstations
Filler with conveyor. The handheld capper and labeler are separate machines; an operator moves bottles between steps.
02FILLING + CAPPING
Combine fill & cap
Good fit for: Moving from separate filling and capping steps.
Example filling & capping systemZS-MPXG1
- Fill + cap
- Transfer
- Label
- Filling + screw capping
- Shared conveyor system
- Separate labeling option

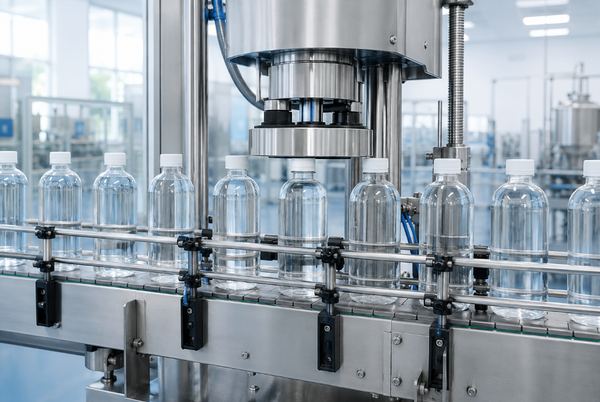

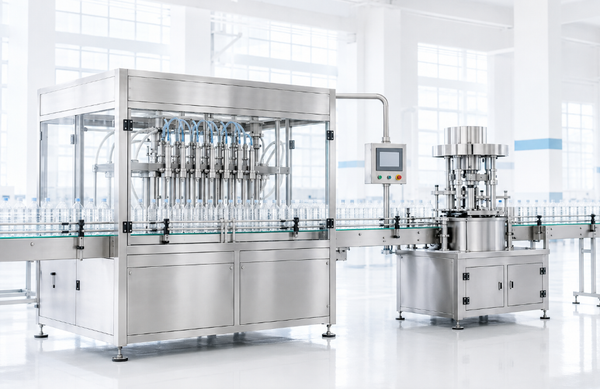

Filling, screw capping and conveying share one setup. Confirm cap placement and bottle handling; the linked labeler is separate.
03CONNECTED WORKFLOW
Connect the whole line
Good fit for: Repeat production with a defined bottle and cap.
Example complete lineZS-FAL180C10
- Fill
- Cap
- Label
- Automatic cap feeding
- Linked filling, capping & labeling
- Matched to bottle & cap samples
A connected filling, cap-feeding, capping and labeling example. Confirm the supplied configuration and matched line rate for your samples.
These are equipment examples, not fixed bundles. Ask for a list of included machines, change parts and optional equipment. Confirm bottle and cap fit, label format, operator tasks, utilities, footprint and finished bottles per hour; individual filling speeds do not establish the complete line output.
