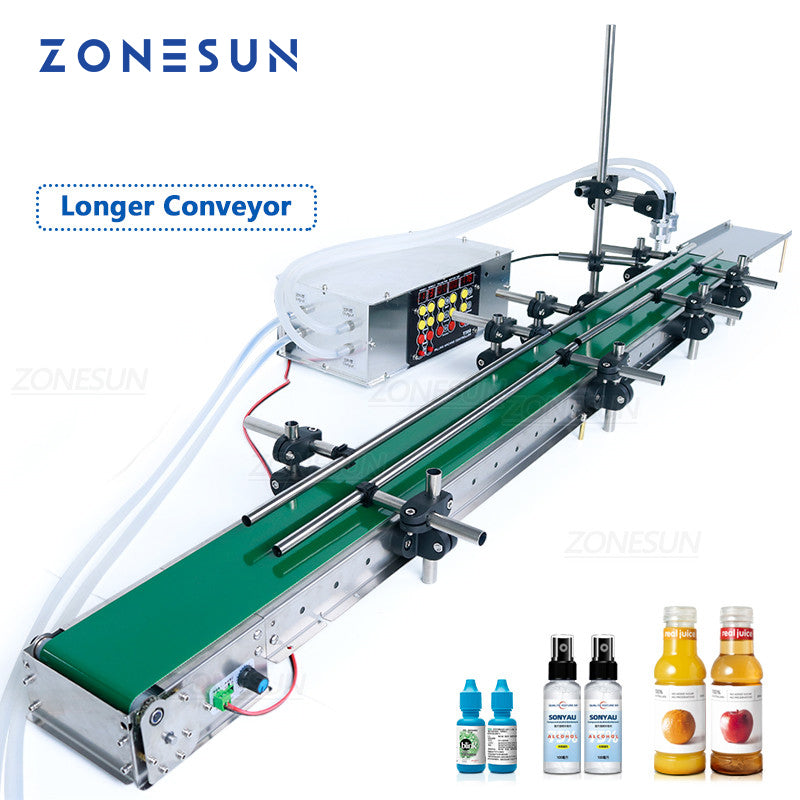

ZONESUN ZS-DPYT200L Automatic Liquid Filling Machine with 1.2m Conveyor

$319.00
Shipping calculated at checkout.
Voltage: 110v
Pre-sale Support Quality Guarantee About Shipping

Feature

1.The filling speed of two nozzles can be controlled separately, easy to operate.

2.The conveyor belt is lengthened, whose length is 1200mm, greatly improving work efficiecy. It is also with waterproof function.

3.With digital control panel, it is easy to set parameters like filling time.

4.With intelligent electric eye, it can detect bottles accurately.

Parameter

Machine Model

ZS-DPYT200L

Voltage

110V/220V 50-60Hz

Filling Range

10-3000mL

Max Flow Rate

3L/min (based on water)

Filling Speed

1-99 (Adjustable)

Filling Time

0.1-999s

Applicable Bottle Size

Diameter: 0-100mm   Height: 0-300mm

Diameter of Filling Nozzle

OD 9mm(Can choose 6mm or 4.3mm)

Hose Length

0.8m(inlet)/1.2m(outlet)

Hose Diameter

6mm(ID)/10mm(OD)

Conveyor Size

1200mm(L)*100mm(W)

Liquid Temperature

Max 60℃

Loading Capacity

≤6kg

Conveyor Belt

Waterproof

Memory Function out of power

Available

Machine Size

About 295mm*155mm*105mm

Net Weight

7.3kg

Package Size

670*200*170mm(conveyor belt)

350*200*160mm(host machine)

Gross Weight

8kg



Application ​This machine is suitable for filling liquid which is without particles, such as essential oil, juice, milk, etc. It is in small size, which is an ideal choise for indivisual workshop.
