ZONESUN ZS-DTPP10B 10 Head Vaccine Ampoule Pharma Vial Bottle Peristaltic Pump Filling Machine

Shipping calculated at checkout.
Voltage: 110v
Type: Machine with 1 PCS tray
Pre-sale Support Quality Guarantee About Shipping


1.We default shipping the machine whose filling range is 5-50ml.

2.If you want the one whose filling range is 0.3-5ml,

[1] Please remark when placing the order. Or we'll ship the 5-50ml one.

[2]The pump and appearance of the 0.3-5ml machine is different from the one shown on the page. Please contact us to confirm it. Thank you!


Machine model


Power supply

AC110V/220V 50Hz-60Hz 60W*4

Filling Range

A. 5-50ml(default) B. 0.3-5ml

Maximum flow

650ml/min for each nozzle (based on water )

Filling nozzles

10(we can customize nozzles based on your demands)

Working speed

70-90 bottles/min(based on 50ml-water)

Filling accuracy

≤±1% (For water)

Diameter of filling nozzle


Delay range


Conveyor size


Machine size

About 380*490*300mm(Without conveyor belt)

Net weight

About 38kg

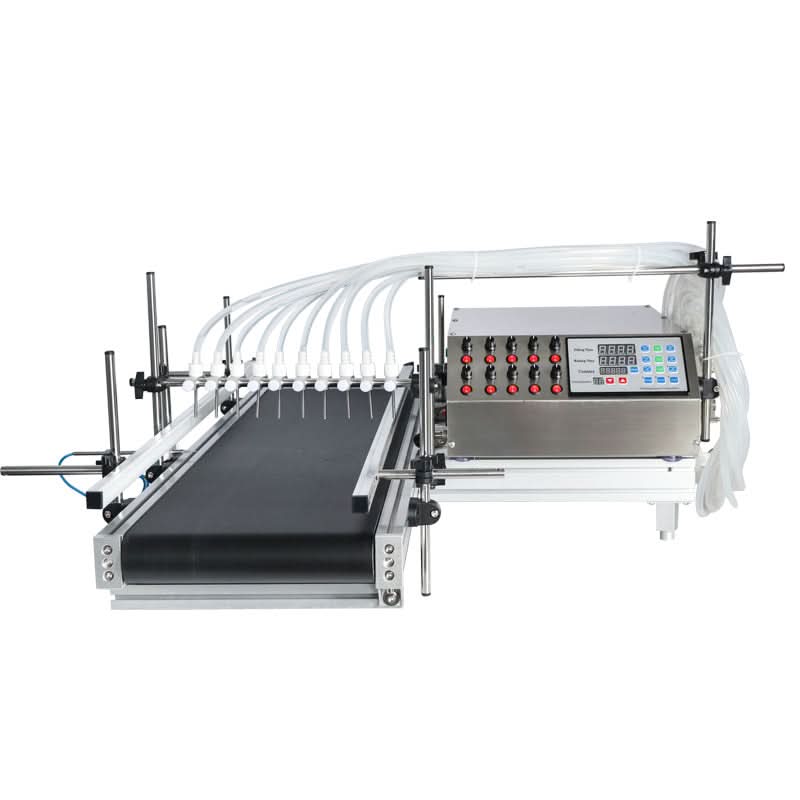

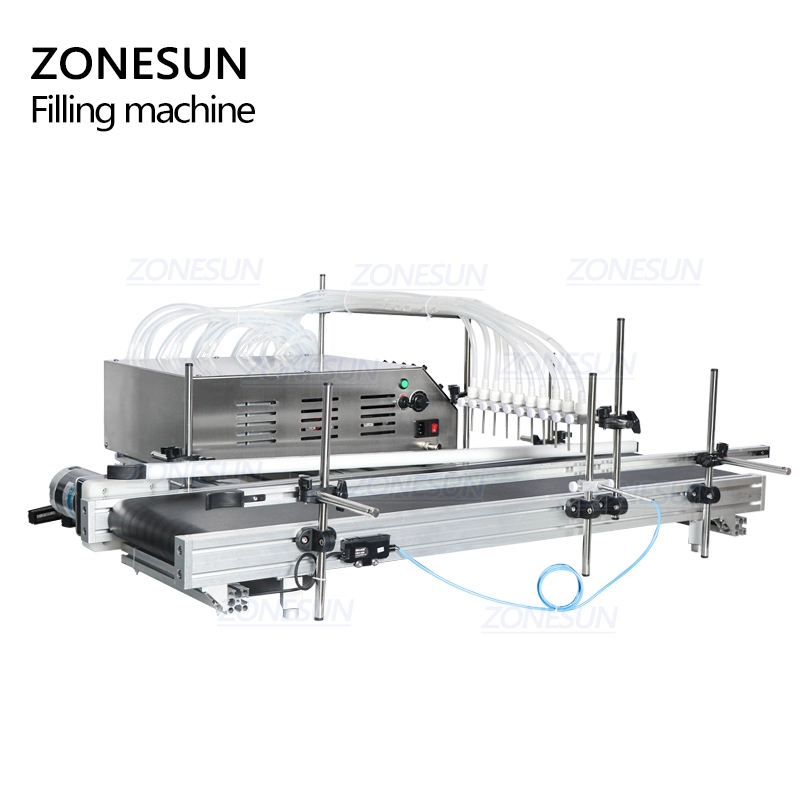

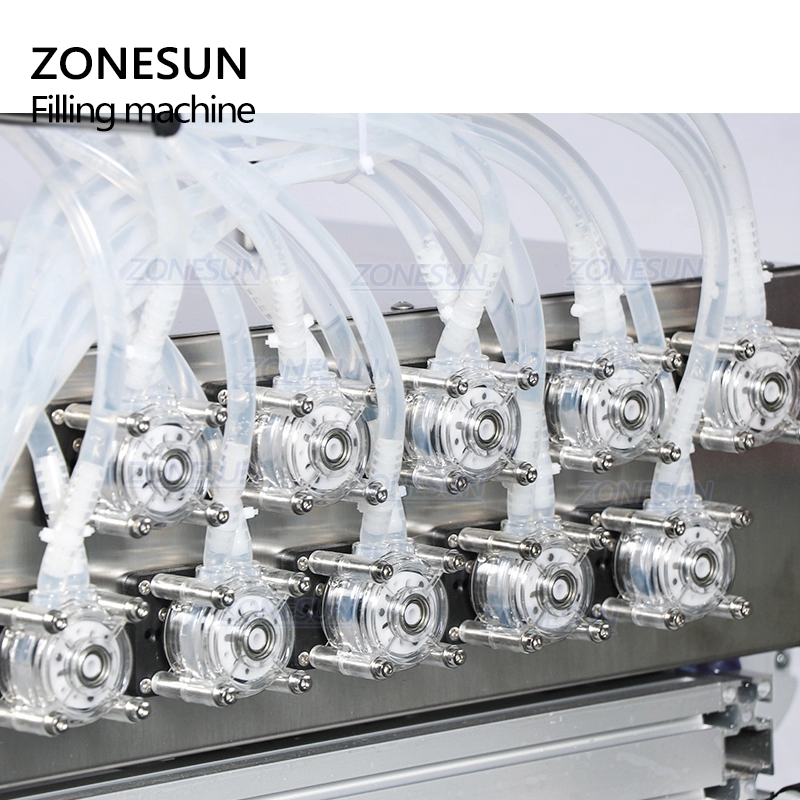

This desktop automatic filling machine is suitable for filling liquid like eye drop, perfume, essential oil, etc. The ten filling heads can be controlled separately, easy to operate.Equipped with peristaltic pumps, the liquid won't pass through the pump, ensuring its cleanliness. This machine can be widely used in pharmaceutical, daily chemical, cosmetic, beverage industries. Help to improve work efficiency.

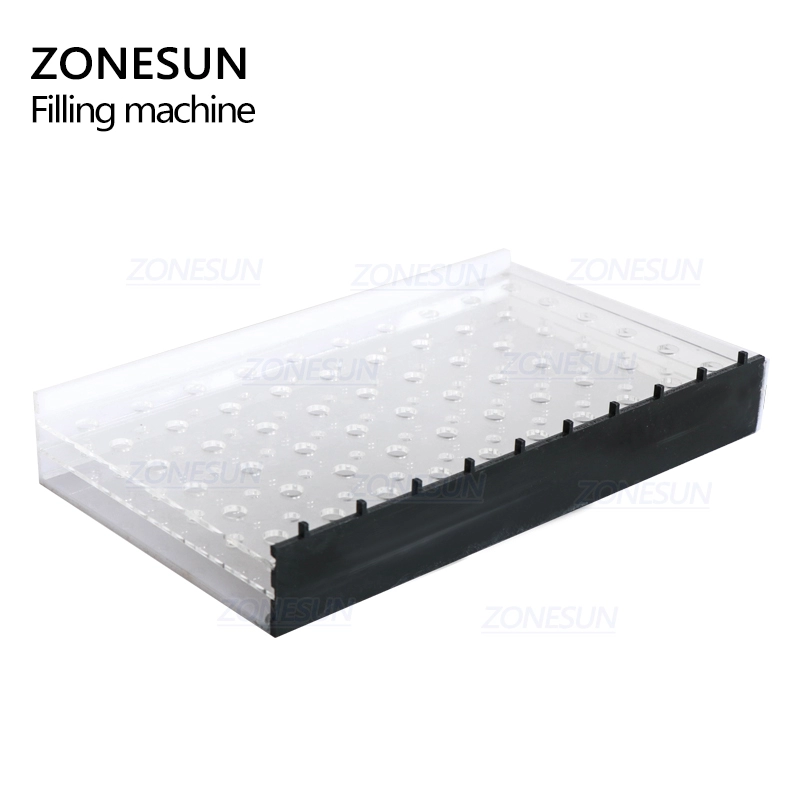

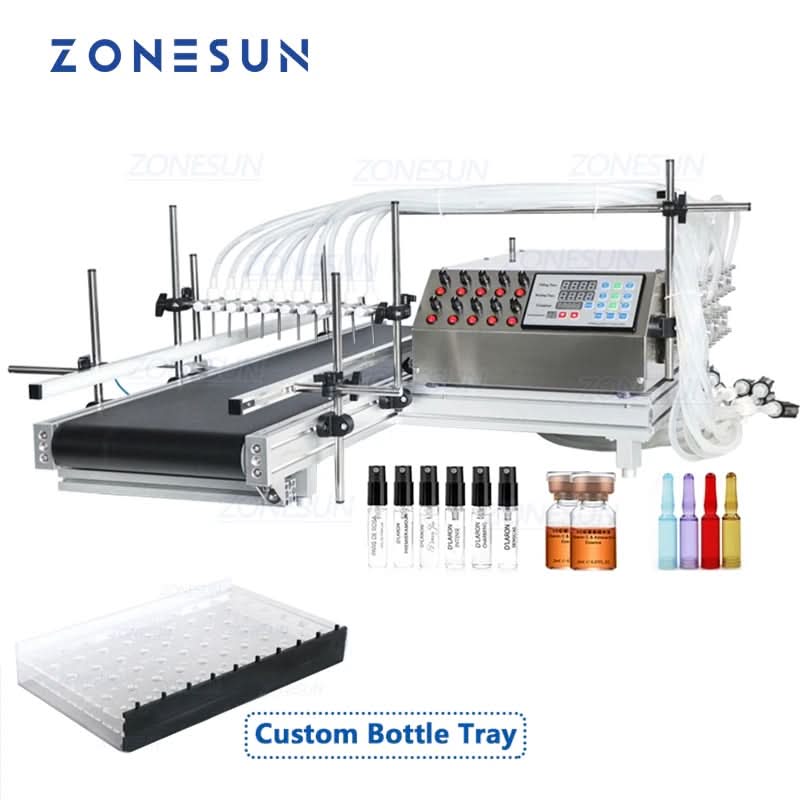

The bottle tray can be customized according to customers' need. If you need, please contact us. Thank you!
