ZONESUN ZS-DTYT2L Automatic Pneumatic Filling Machine Liquid Cosmetic Body Shop Oil Water Bottle Filler Small Production Line

$899.00
Shipping calculated at checkout.
尺寸: 5-100ml
颜色: 110v
Pre-sale Support Quality Guarantee About Shipping



1. DESCRIPTION

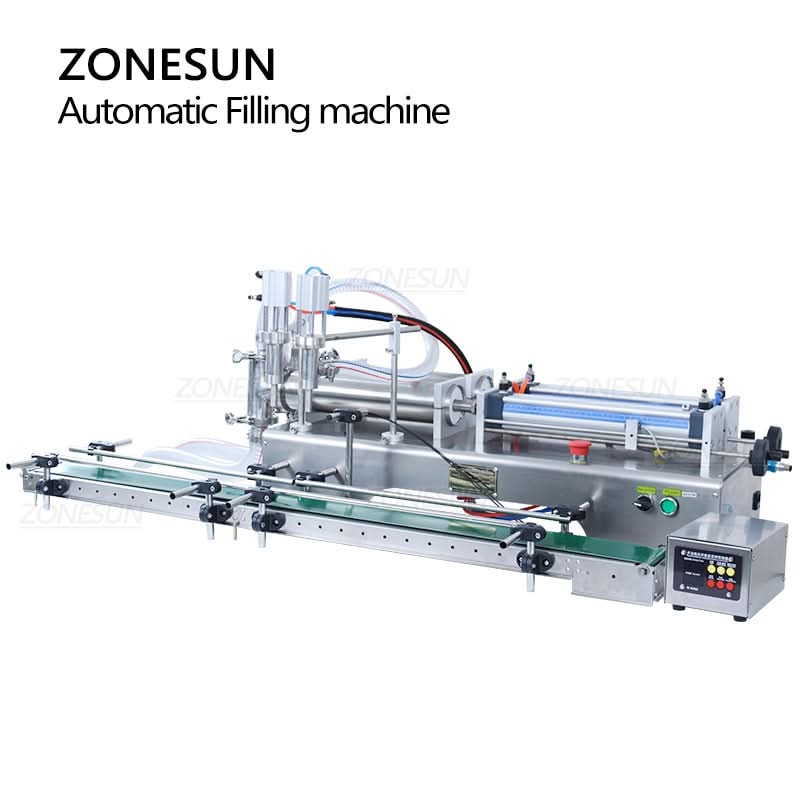

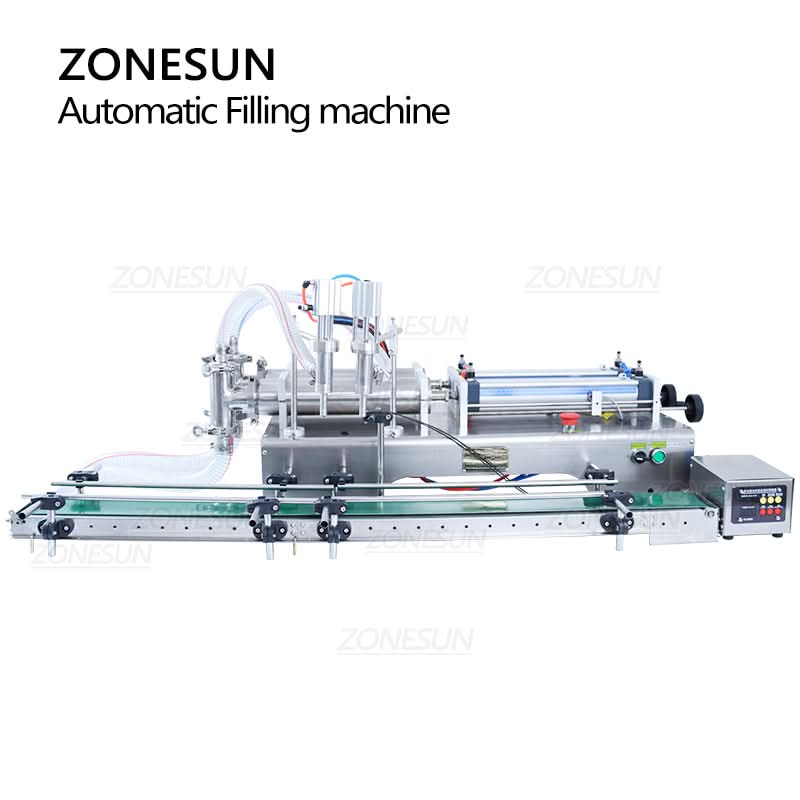

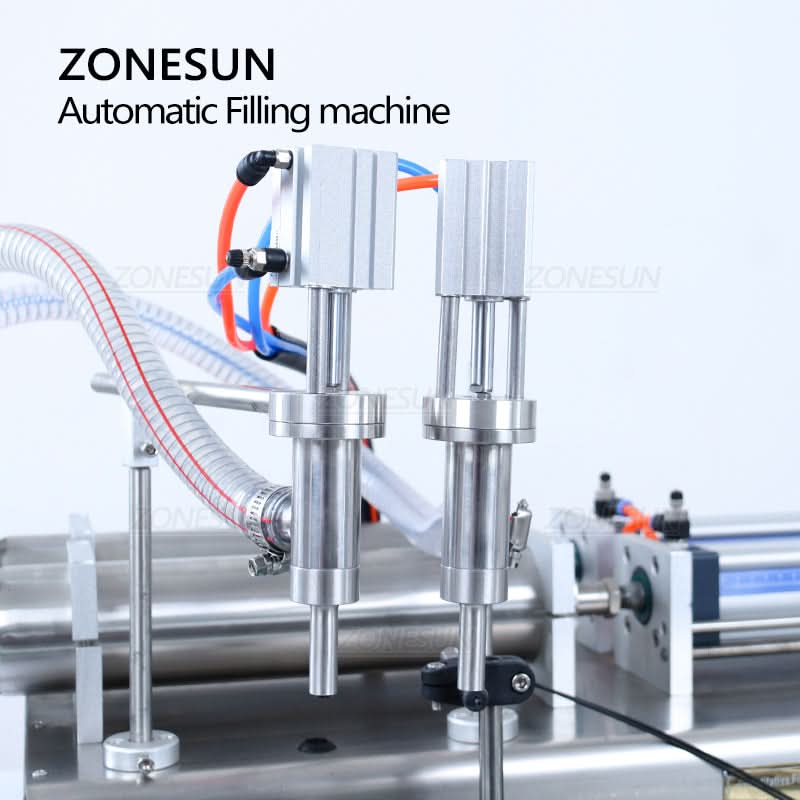

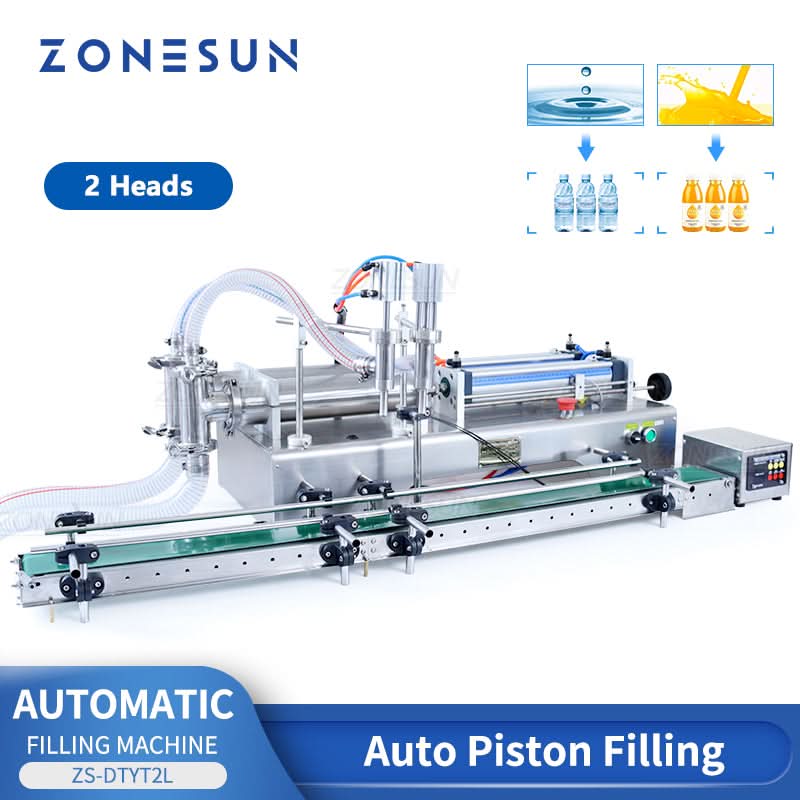

The pneumatic filling machine is designed with a portable conveyor belt, so it can be fully automatic. The 2 nozzles are driven by 2 pistons and pneumatic power for filling, so it is stable and powerful and can fill the liquid at fast speed.

2. APPLICATIOIN

This pneumatic filling machine can be used for filling liquid like beverage, oil, shampoo, hand sanitizer, etc., especially in medicine, food, pharmaceutical industries.

3. PARAMETER

Machine Model

ZS-DTYT2L

Voltage

220V/110V 50-60Hz

Power

About 85W

Filling Range

100-1000ml

Filling Speed

About 20 bottles/min(based on 275ml juice)

Suitable Bottle Height

≤235mm

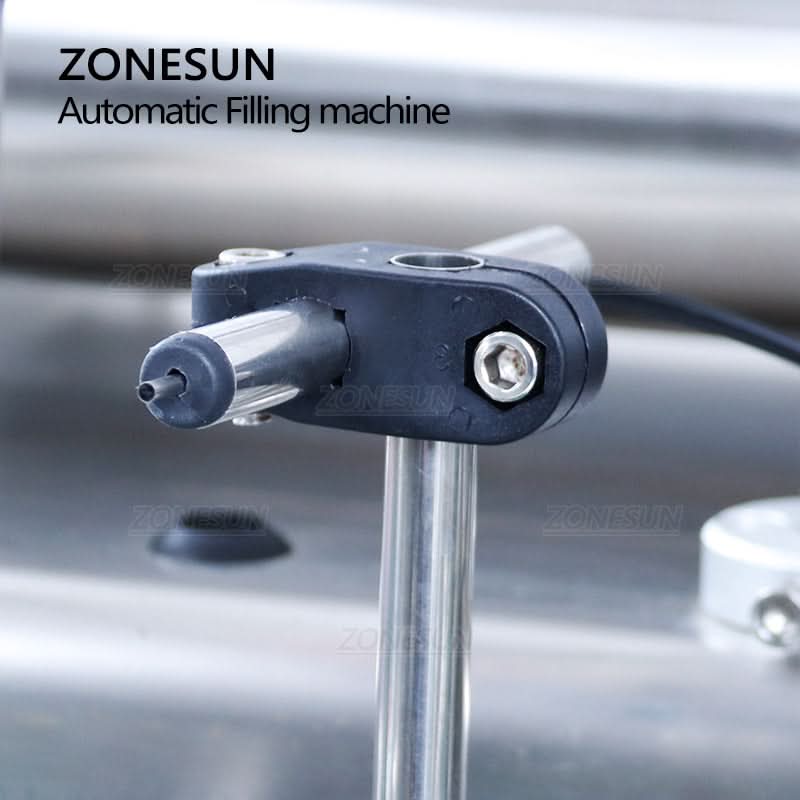

Filling Nozzle Diameter

OD 12mm

Size of Conveyor Belt

About 1200mm*100mm

Machine Size

About 1200*610*510mm(L*W*H)

Machine Weight

About 38kg

Package Size

About ​260*150*180mm(Control Box)

About 670*170*200mm(Conveyor Belt)

About 1170*370*650mm(Filling Machine)

About 470*470*530mm(Hopper)

Package Weight

About 2KG(Control Box)+ ​5.5KG(Conveyor Belt)+

58.5KG(Filling Machine)
