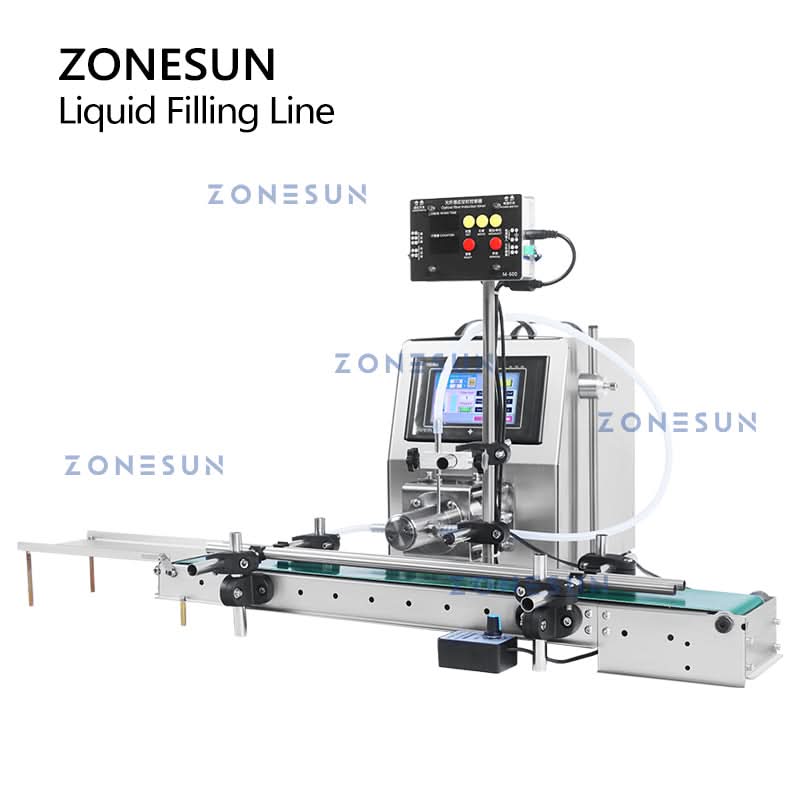

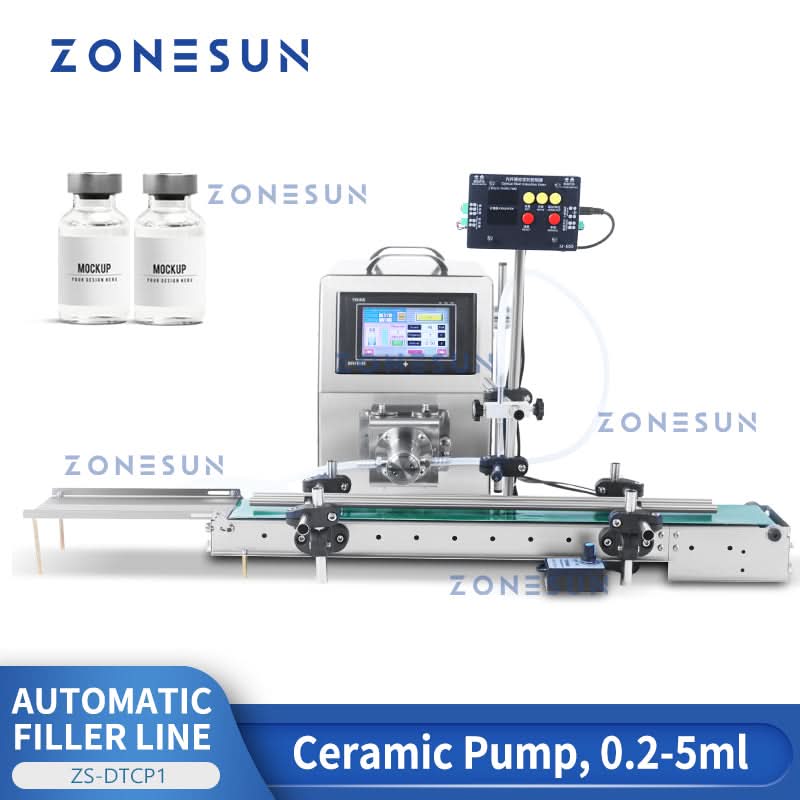

This compact automatic filling system combines a high-precision ceramic pump filler with a smooth-speed conveyor, ideal for small-dose liquid applications. Designed for accuracy and efficiency, it’s widely used in cosmetics, pharmaceuticals, and daily chemical production. The anti-drip nozzle ensures clean operation, while the integrated memory function supports consistent batch filling. Perfect for vials, reagent bottles, and eyedrop containers.
Specification
Product Filler
Model ZS-CPYT1S
Voltage 110V / 220V
Power 120W

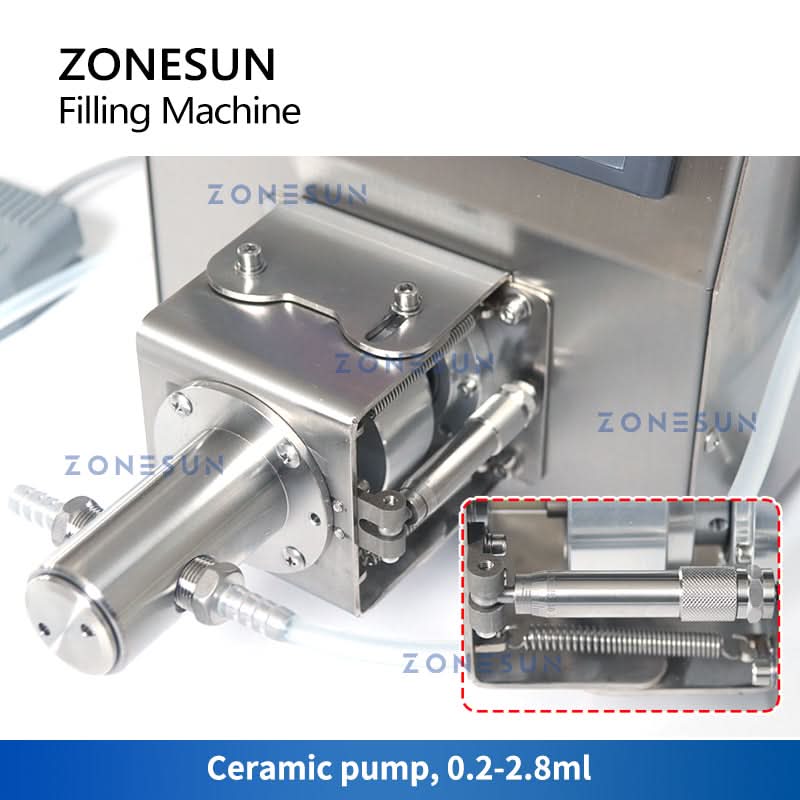

Pump Ceramic Pump
Pump Output (Per Time) 0.2–2.8ml
Recommended Filling Range 0.2–5ml
Margin of Error ±1%
Nozzle 2mm, Anti-dripping
Memory Function √

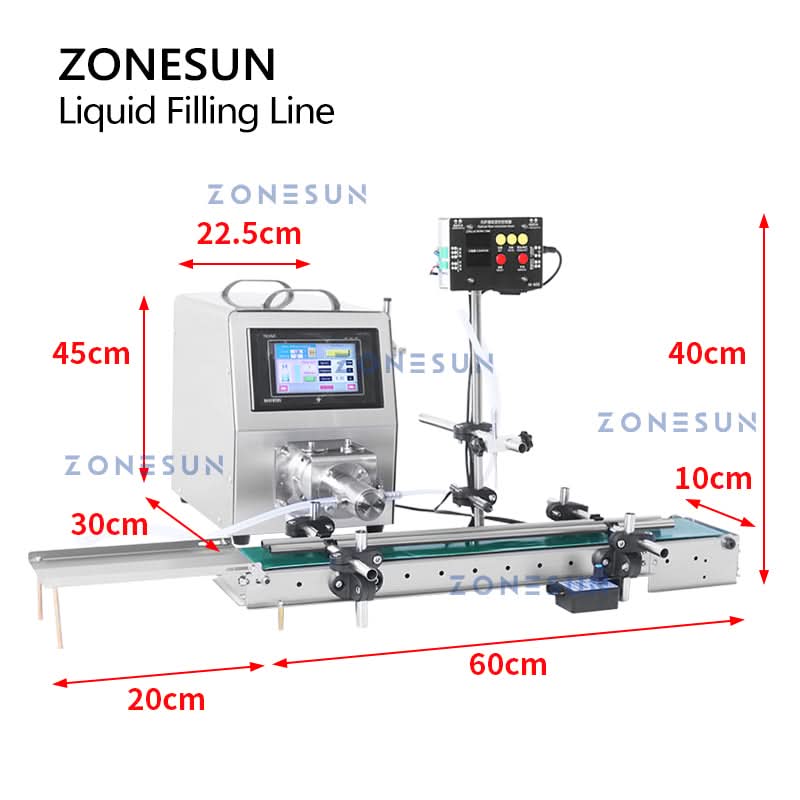

Machine Size 22.5×45×30cm
Machine Weight 10kg
Product Conveyor
Model ZS-CBG600
Voltage 110V / 220V
Power Supply 15V 5A, 75W
Conveying Speed 10 cm/s
Conveyor Belt Size 60 × 10 cm
Collecting Tray Size 20 × 10 cm
Bracket Height 40 cm
Net Weight 2.9 kg
Product Size 80 × 10 × 40 cm
Gross Weight 3.5 kg
Package Size 65 × 15 × 10 cm

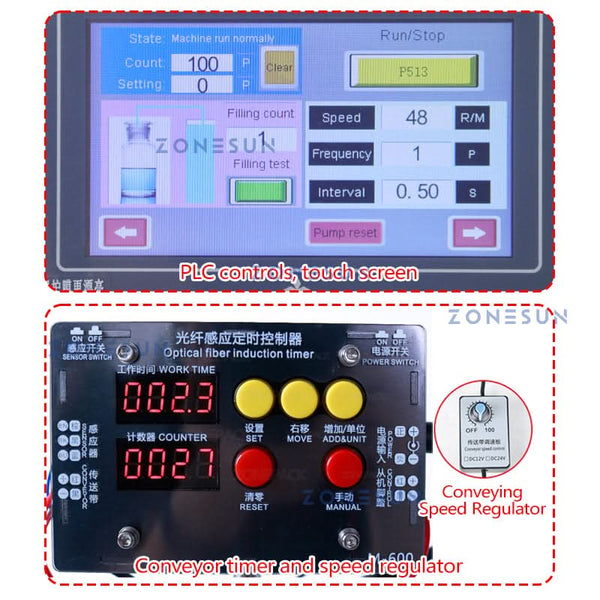

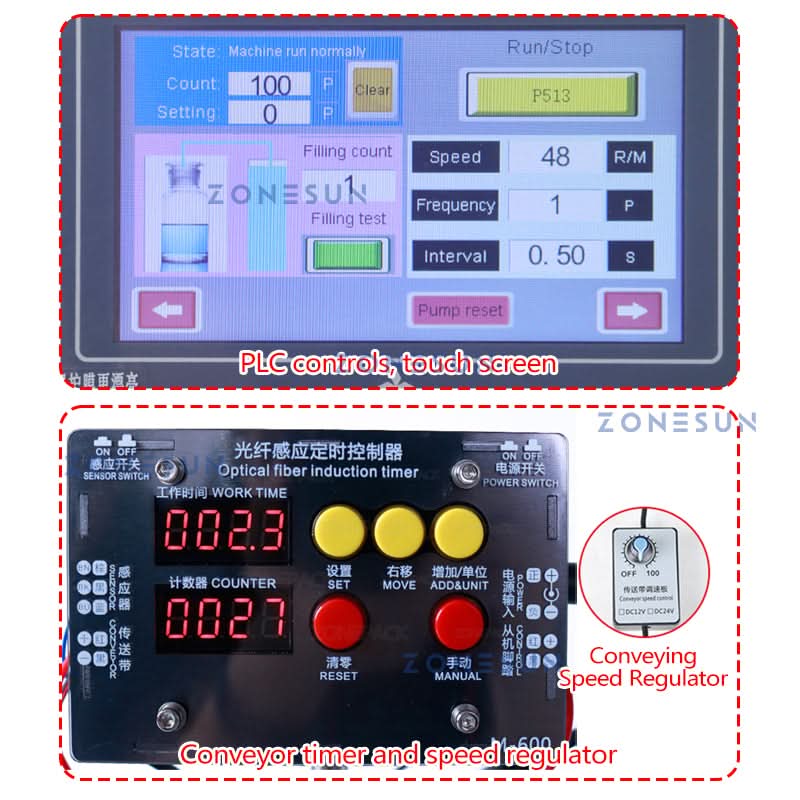

PLC control with a touchscreen color display provides straightforward operation through an English-language interface. The conveyor speed can be adjusted using the dedicated control. The machine supports foot-switch operation. An integrated handle supports convenient handling. Air vents are integrated into the machine housing. The photoelectric eye detects containers during operation.
CONTROL PANEL
CONVEYOR SPEED CONTROL

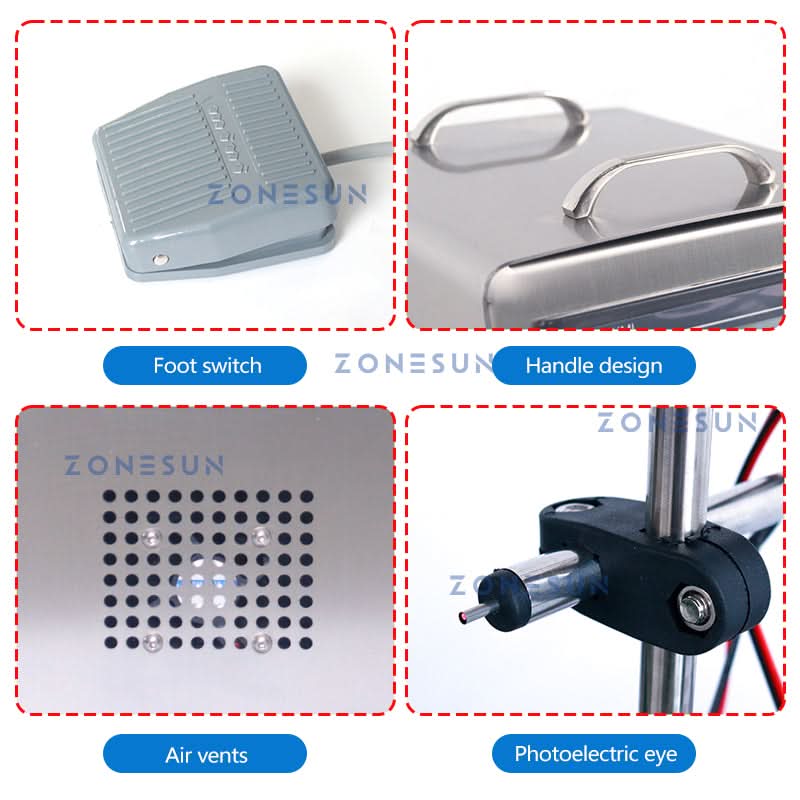

FOOT SWITCH
HANDLE
AIR VENTS
PHOTOELECTRIC EYE
