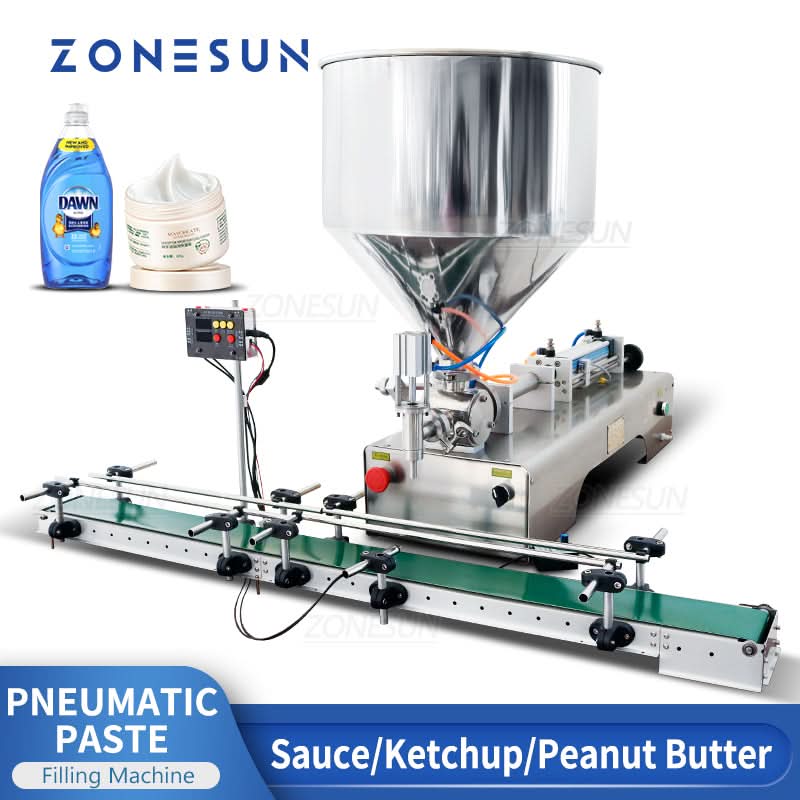

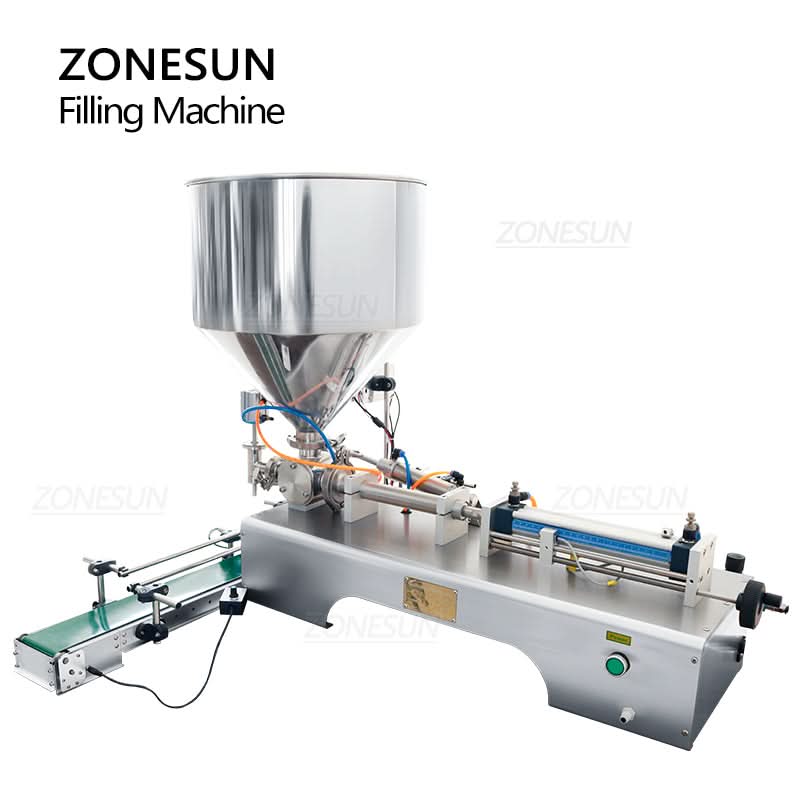

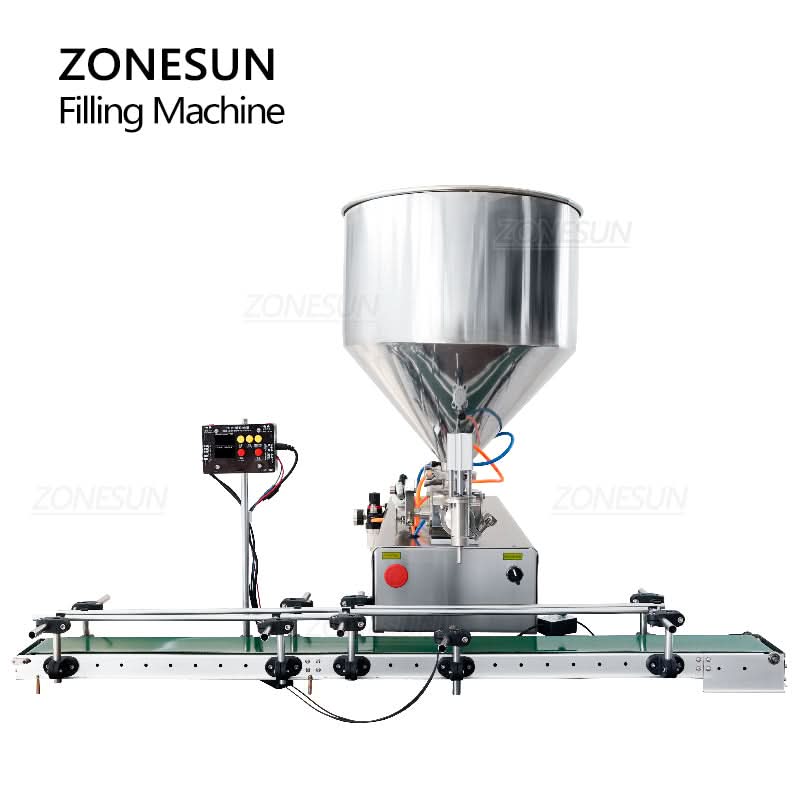

The ZS-DTGT1P pneumatic paste filling machine offers efficient, automatic filling with its integrated conveyor system. Designed for versatility, it handles a wide range of viscosities and is compatible with multiple filling volumes. Ideal for producers in the food, beverage, cosmetics, and daily chemical sectors seeking speed, precision, and reliability in semi-automated filling lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | ZS-DTGT1P |
| Power Supply | 110/220V, 50–60Hz, 60W |
| Filling Range | 10–100ml / 50–500ml / 100–1000ml |
| Filling Speed | 10–15 bottles/min (based on 100ml gel) |
| Filling Accuracy | ≤ ±0.5% |
| Hopper Size | 30L |
| Air Pressure | 0.4–0.9 MPa |
| Filling Nozzle Size | OD 10 mm |
| Conveyor Dimensions | 1.2m (L) × 100mm (W) |
| Conveyor Max Load | 6 kg / 6 × 1000ml water |
| Conveyor Speed | Adjustable |

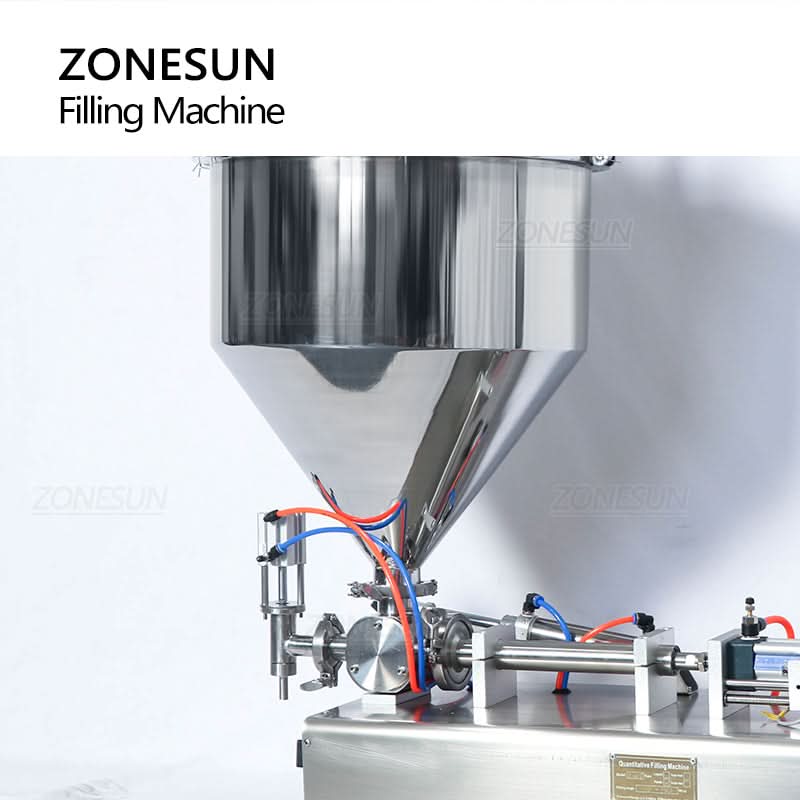

LARGE HOPPER
The thicker, larger hopper supports stable and efficient operation.

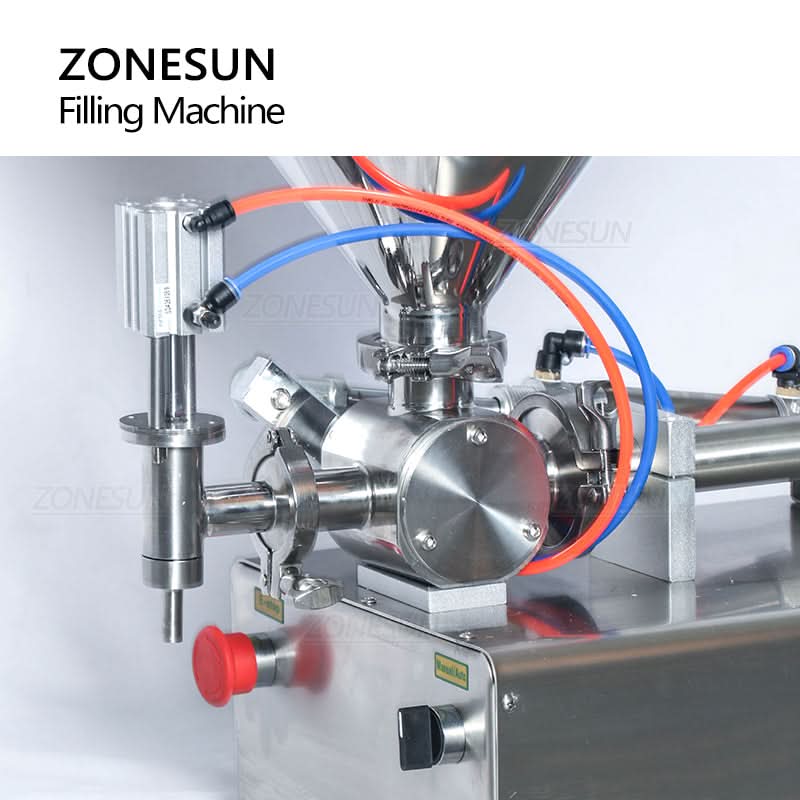

10 MM FILLING NOZZLE
The 10 mm-OD filling nozzle supports faster material dispensing.
CUSTOM NOZZLE OPTIONS
Multiple filling nozzles can be customised to meet production requirements.
FILLING SPEED AND WAITING TIME
Filling speed and waiting time are adjustable. Turning the controls clockwise reduces speed, while a longer waiting time can support automatic operation.

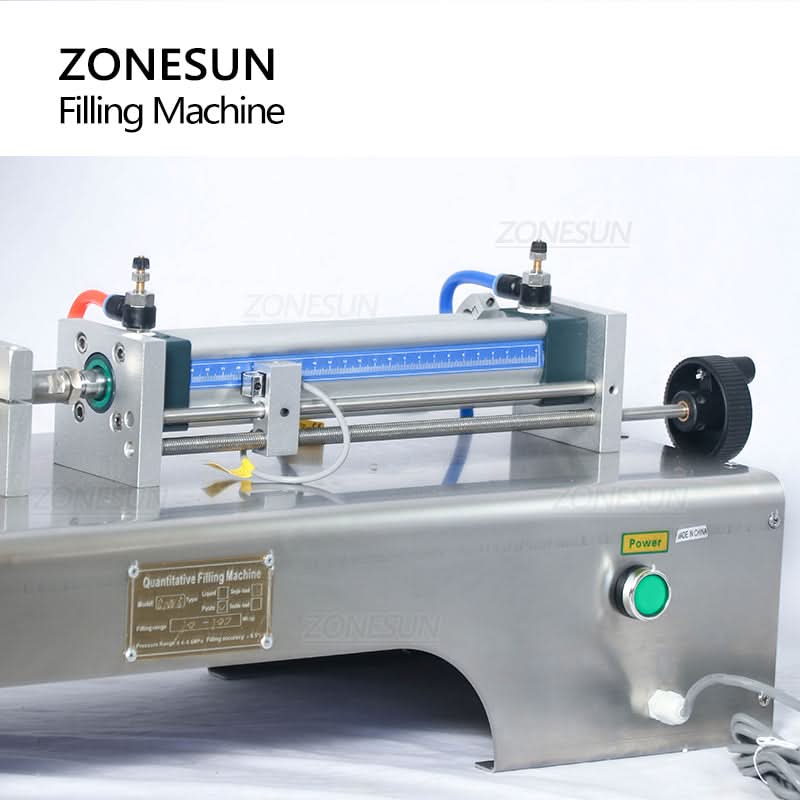

ADJUSTABLE FILLING RANGE
The large rotary knob on the right adjusts the filling range.
PHOTOELECTRIC BOTTLE DETECTION
The photoelectric sensor detects bottles and stops them in position for paste filling.
ADJUSTABLE CONVEYOR SPEED
The conveyor speed can be adjusted through the speed controller.
AIR COMPRESSOR REQUIRED
This product must be used with an air compressor, which is sold separately.
、
