ZONESUN ZS-PFC500 Automatic Granule Filling Machine for Seeds, Tea & Small Parts

Price: $920.00

Please check your cart or click "Buy It Now" to view shipping costs

Shipping Information

Shipping methods and costs vary by machine, package size, destination, and delivery method. Available options may include express delivery, air freight, sea freight, or logistics services.

To view the available shipping options and estimated cost, add the product to your cart and enter your delivery address at checkout.

DDP (Delivered Duty Paid) service may be available for selected destinations. For large machines, customized equipment, or complete production lines, please contact us before ordering so we can confirm the shipping method, packing requirements, freight cost, and estimated delivery time.

For non-DDP shipments, import duties, customs clearance fees, local taxes, and other destination charges may apply.

Voltage:110V 50Hz

110V 50Hz

110V 60Hz

220V 50Hz

220V 60Hz

Product variants

ATTENTION

The filling range of 5-500g is based on rice. It varies greatly for different materials.

DESCRIPTION

Introducing our latest innovation, the compact particle filling machine combo with conveyor belt and control box. This versatile combination is specifically designed for small-scale particle filling production in your business. It is suitable for filling rice, nuts, beans, etc.

Whatever your packaging needs are, you can rely on ZONESUN.

PARAMETER

Model	ZS-PFC500
Voltage	110V/220V, 50/60Hz
Filling range	5-500g
Capacity	500bph (50g)
Conveyor Size	900mm(L)*150mm(W)
Conveyor Payload	6kg
Conveyor Speed	10cm/s
Filling Accuracy	±0.5g

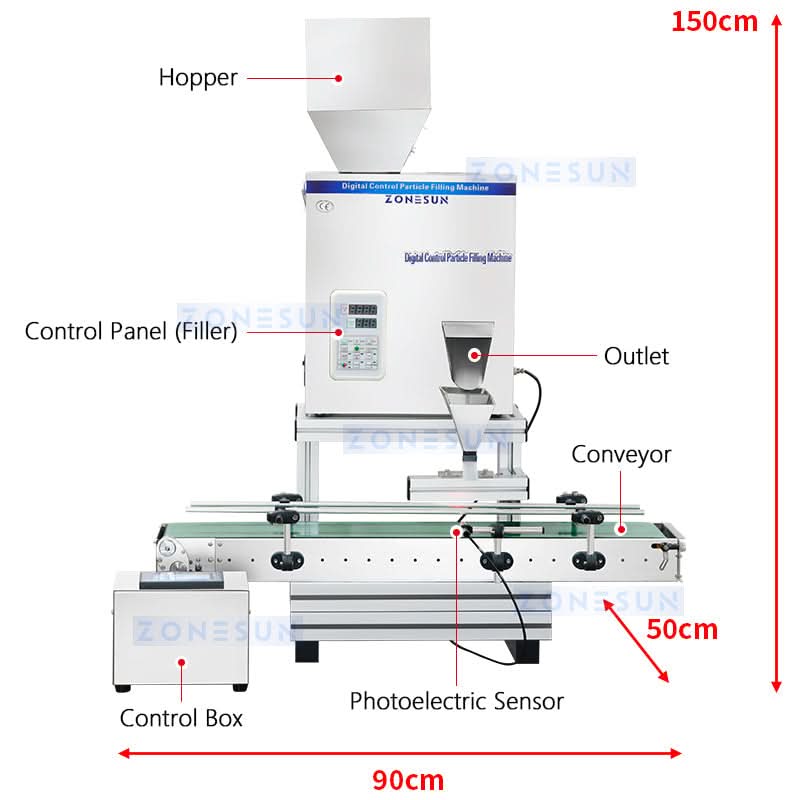

Size	9040150cm
Weight	35kg

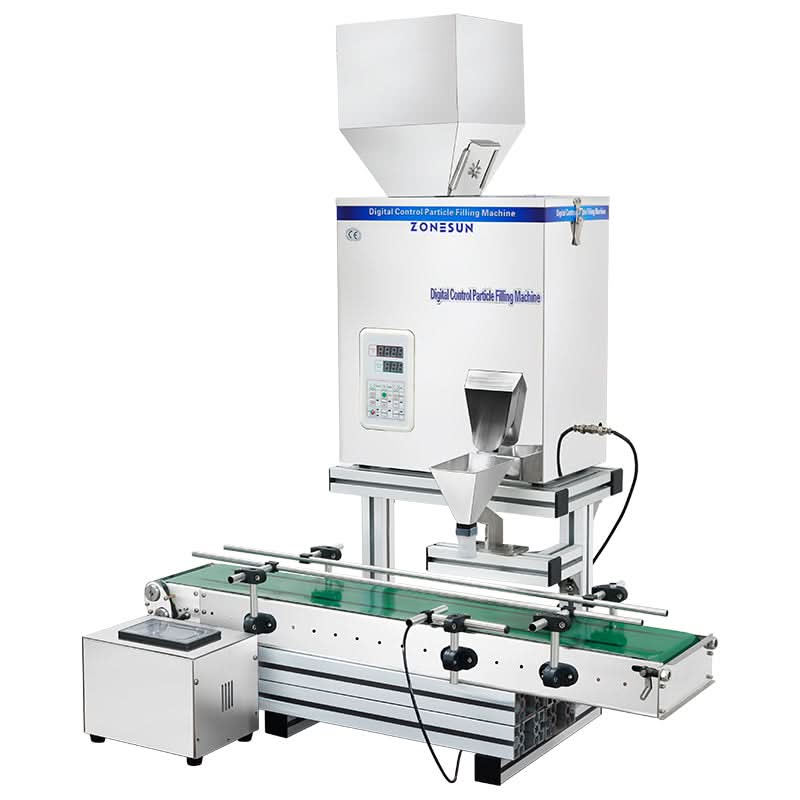

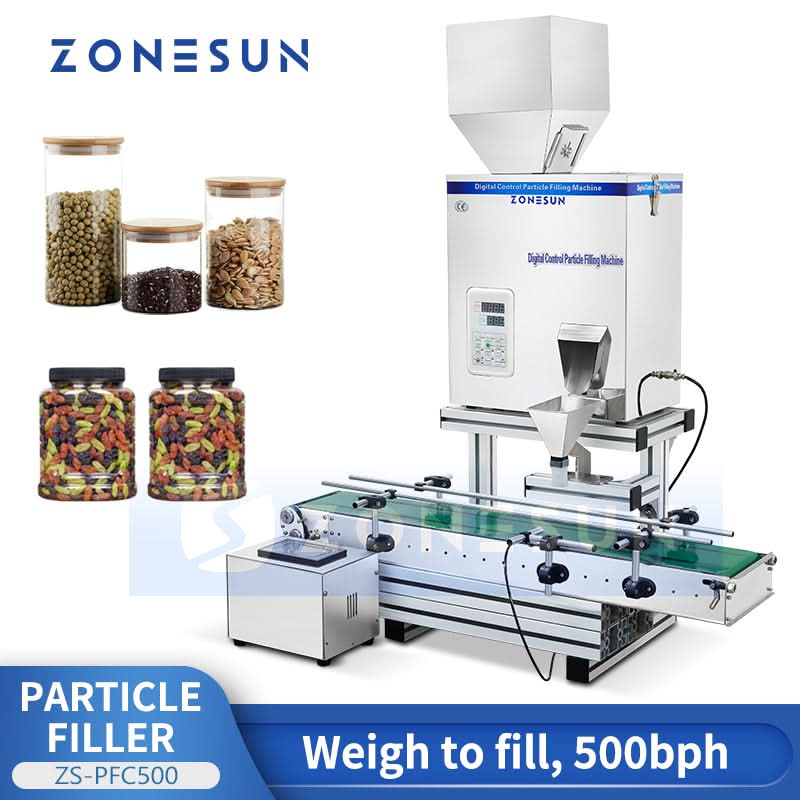

ZONESUN Automatic Digital Control Partical Filling Machine ZS-PFC500

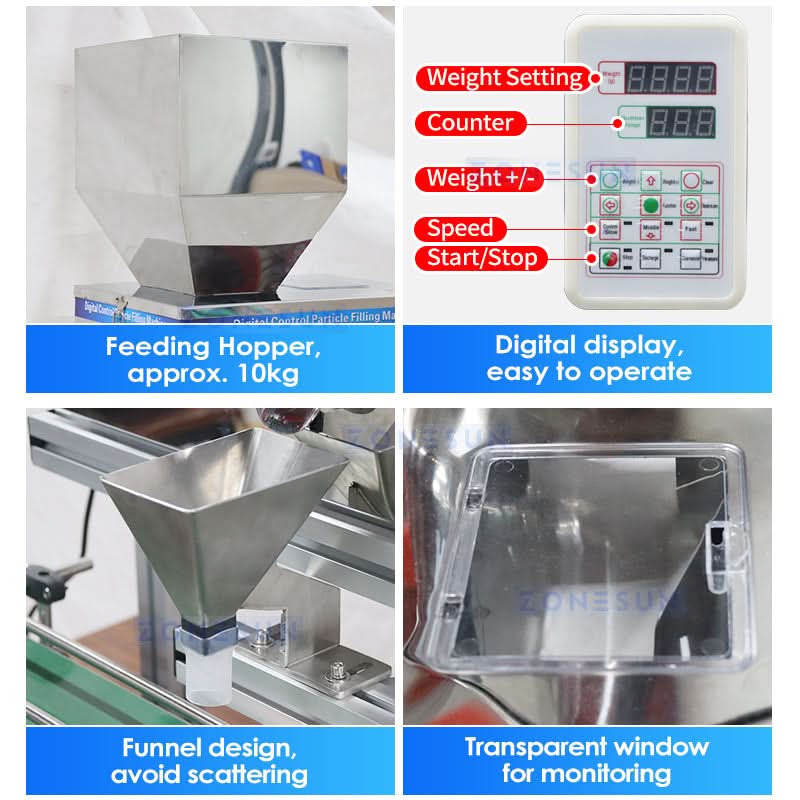

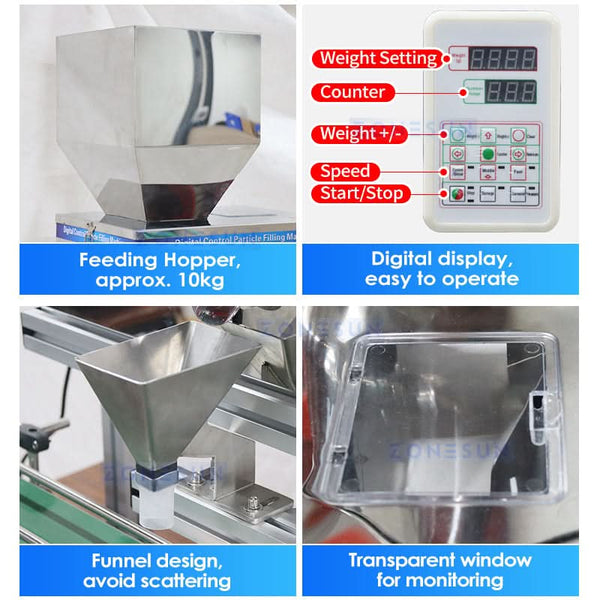

FEEDING HOPPER

The feeding hopper has an approximate capacity of 10 kg.

DIGITAL DISPLAY

The digital display provides clear access to weight, count, speed, and start/stop settings.

FUNNEL DESIGN

The funnel design helps reduce product scattering during filling.

TRANSPARENT WINDOW

The transparent window allows operators to monitor the material level and filling process.

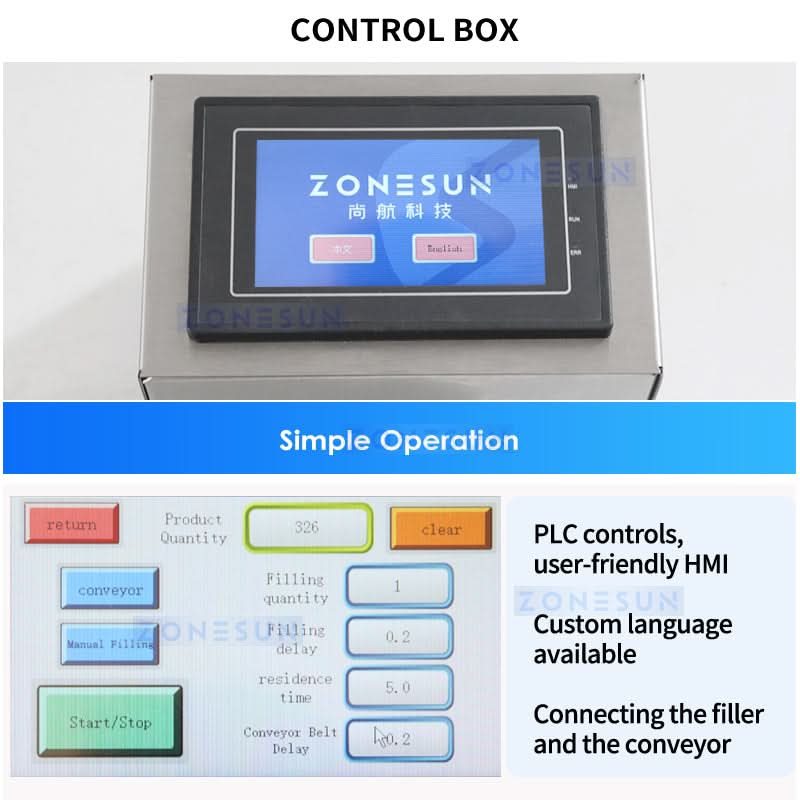

PLC CONTROL

PLC control and a user-friendly HMI support straightforward machine operation.

CUSTOM LANGUAGE

The control interface supports customized language options.

FILLER AND CONVEYOR CONNECTION

The control system coordinates operation between the filling unit and conveyor.

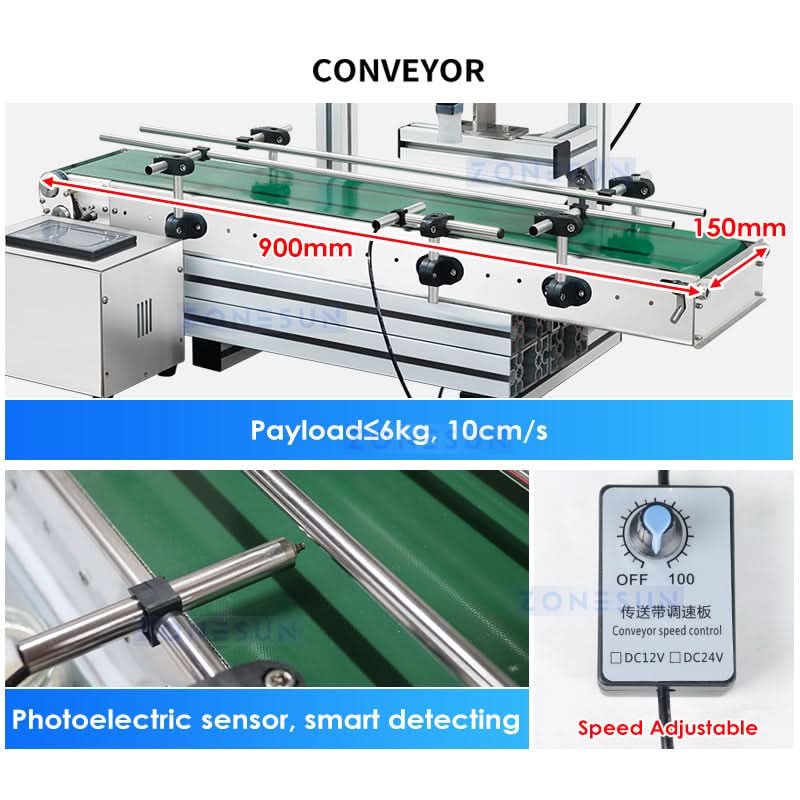

CONVEYOR CAPACITY

The conveyor supports loads of up to 6 kg and operates at approximately 10 cm/s.

PHOTOELECTRIC SENSOR

The photoelectric sensor detects containers as they move along the conveyor.

ADJUSTABLE SPEED

Conveyor speed can be adjusted through the speed controller.
