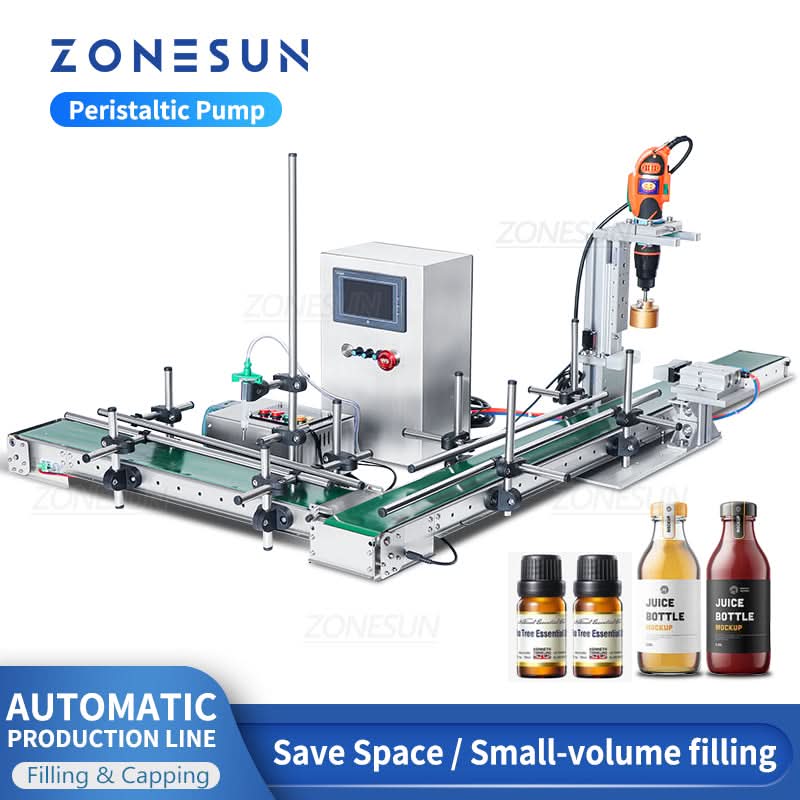

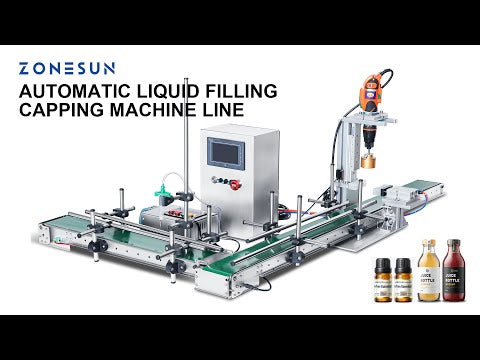

The ZONESUN ZS-FAL90S Automatic Liquid Bottle Filling Line is built for space-efficient, small-scale production of low-viscosity liquids. Featuring a compact footprint and smooth conveyor design, this system enables consistent bottle transport and precise filling through either a peristaltic or magnetic pump. Ideal for cosmetics, beverages, and daily chemical industries, it supports a customizable cap diameter and adjustable filling range for flexible packaging needs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZS-FAL90S |
| Voltage | 220V/110V, 50–60Hz |

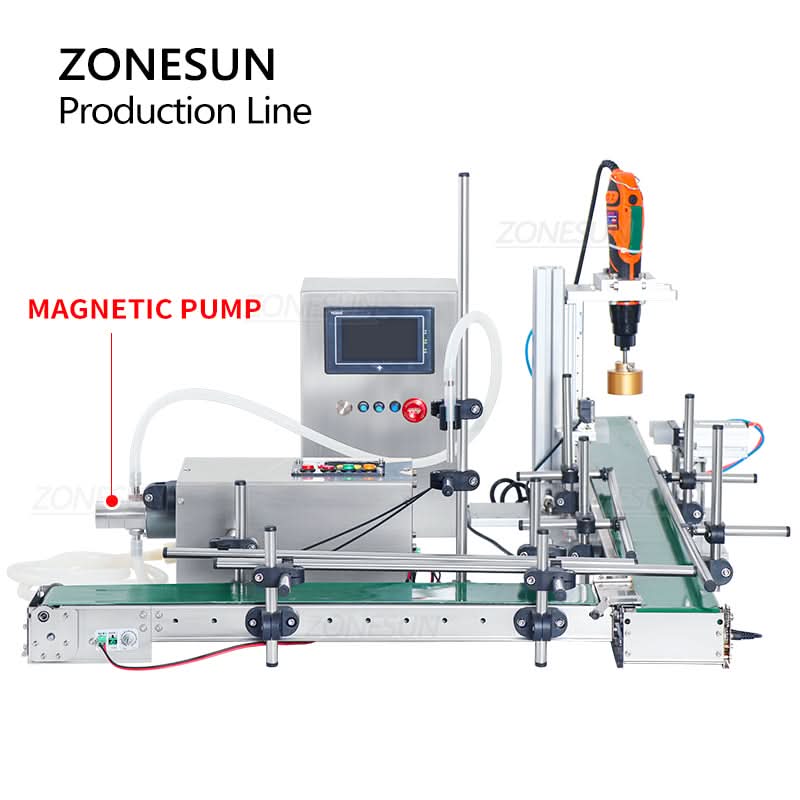

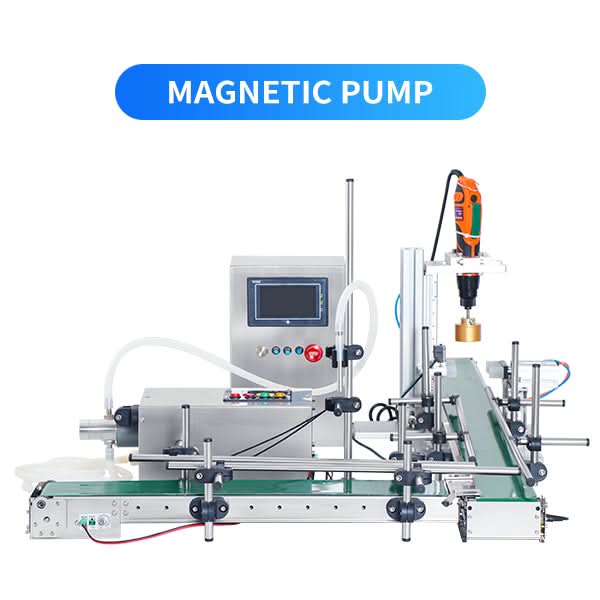

| Machine Pump | Peristaltic Pump / Magnetic Pump |
| Production Capacity | Approx. 5–15 bottles/min (based on bottle size) |
| Recommended Filling Range | 80–500mL |
| Max Flow Rate | 700mL/min (based on water) |
| Suitable Bottle Diameter | 30–60mm |
| Suitable Bottle Height | 50–150mm |
| Cap Diameter | Customizable |
| Conveyor Size | 600×100mm ×1 + 1200×100mm ×1 (Customizable) |
| Conveyor Max Load | 6kg |
| Filling Nozzle Diameter | OD 3.3mm |
| Machine Weight | Approx. 20kg |
| Machine Dimensions | Approx. 1200 × 600 × 505mm |

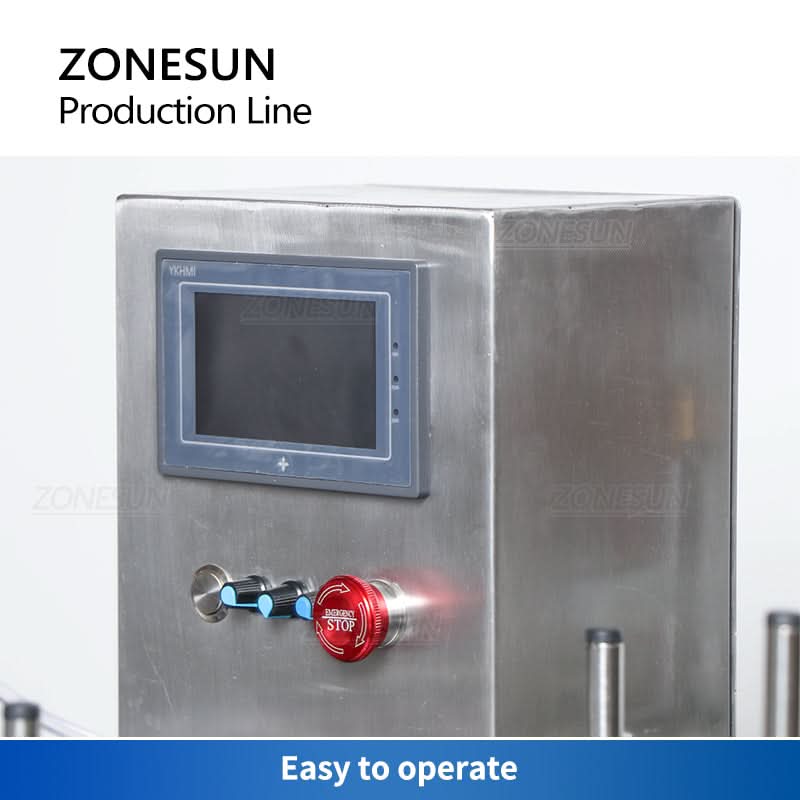

CONTROL PANEL
The full-text interface is easy to understand and operate, making it suitable for small-volume filling.

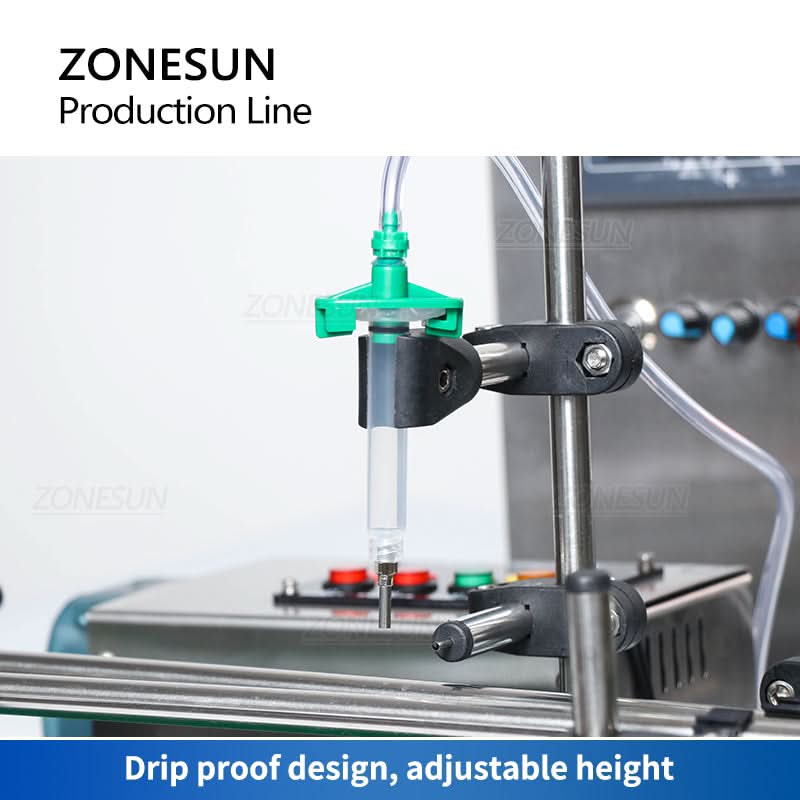

ADJUSTABLE FILLING NOZZLE
The filling nozzle features an anti-drip design, and its height can be adjusted.

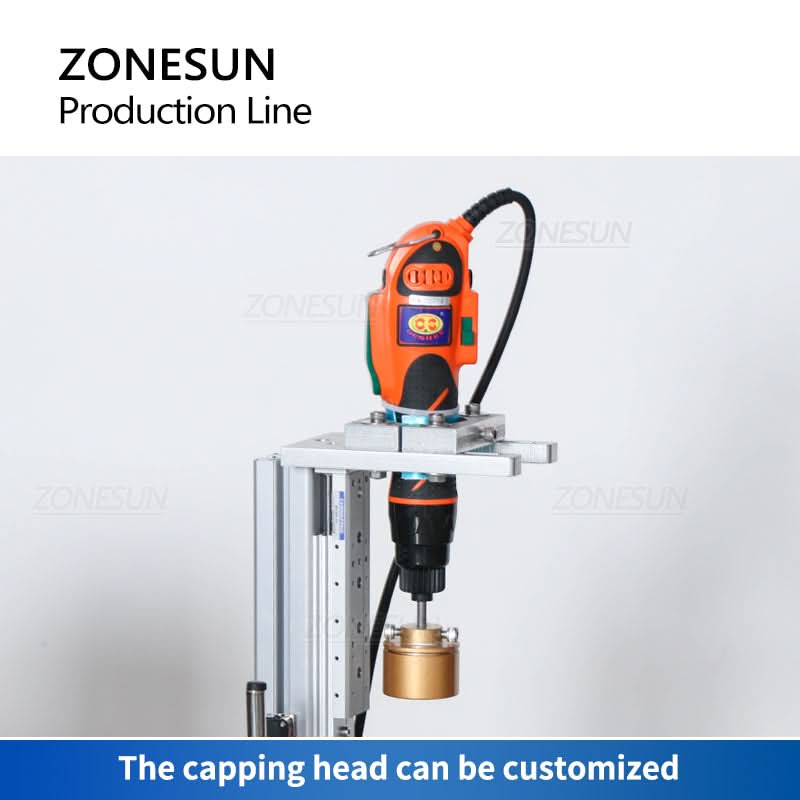

CAPPING HEAD
The capping head can be customised to suit the bottle-cap size.

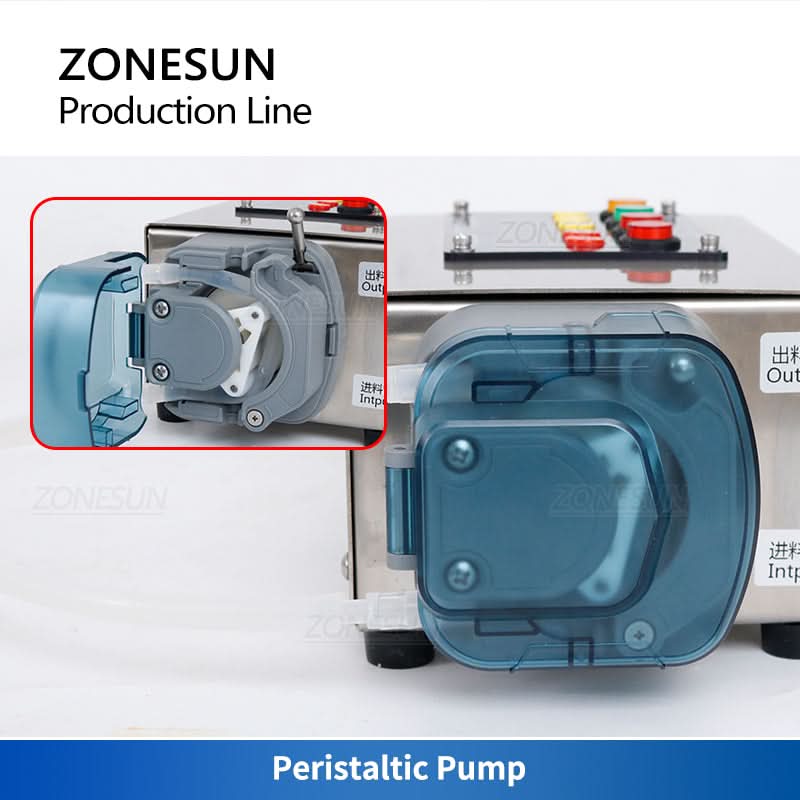

PERISTALTIC PUMP
With the peristaltic pump, the liquid flows only through the tubing and does not contact the machine.
PHOTOELECTRIC SENSOR
The high-sensitivity sensor accurately detects different types of bottles.
ADJUSTABLE CONVEYOR
The conveyor provides stable transport, and its width can be adjusted for different bottle sizes.
