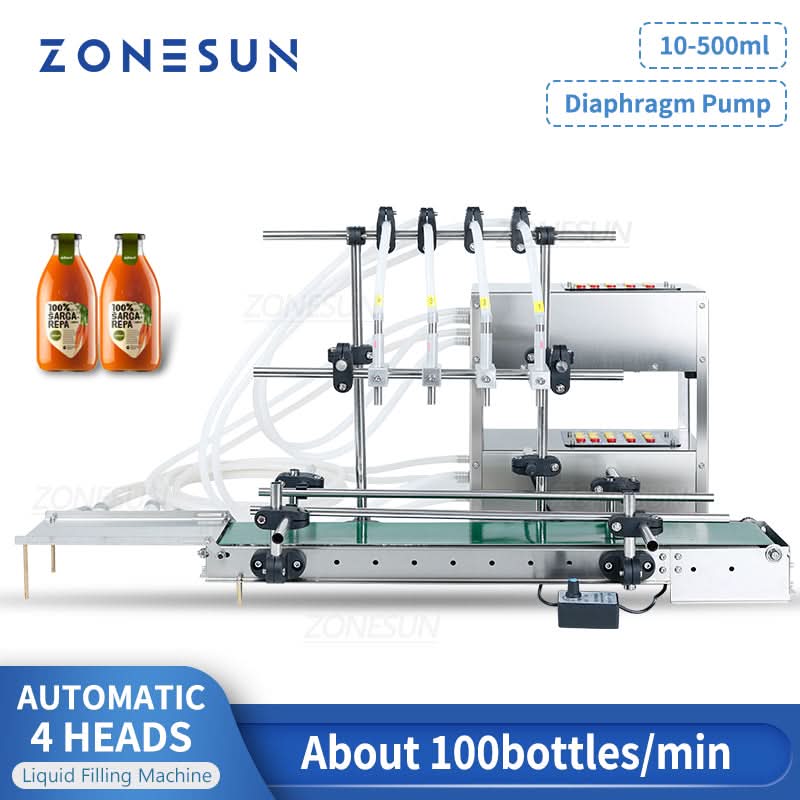

ZONESUN ZS-DTDP4G Automatic Diigtal Control Liquid Filling Machine 4 Heads Diaphragm Pump Bottle Liquid Water Juice Filler

Regular price $499.99

1. DESCRIPTION

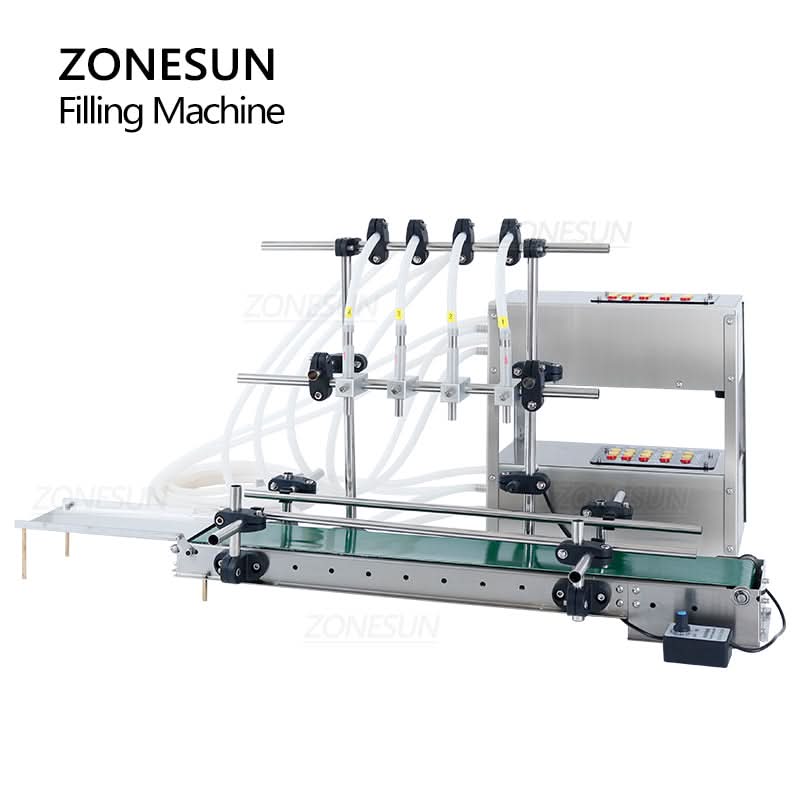

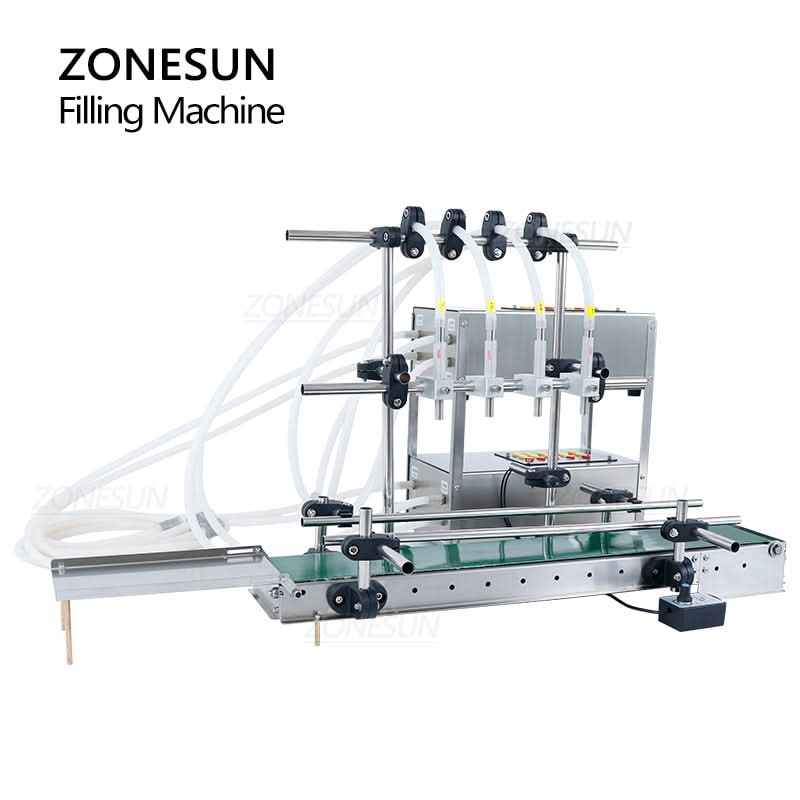

This automatic filling machine is used for filling low-viscous liquid, such as water, fresh juice, etc. in beverages, cosmetics, and daily chemical industries. It is designed with a conveyor belt, which makes it work automatically. It is space-saving as a small production line.

2. PARAMETER

Machine Model

ZS-DTDP4G

Machine Pump

Diaphragm Pump

Voltage

220V/110V 50-60Hz

Power

About 240W

Filling Range

10-500ml

Max Flow Rate

4L/min(based on water)

Filling Speed

About 100 bottles/min(based on 100ml water)

Filling Accuracy

±1%

Applicable Bottle ​Height

<250mm

Applicable Bottle Diameter

25mm-80mm

Bottleneck ​Diameter

>15mm

Filling Nozzle Diameter

OD 9mm

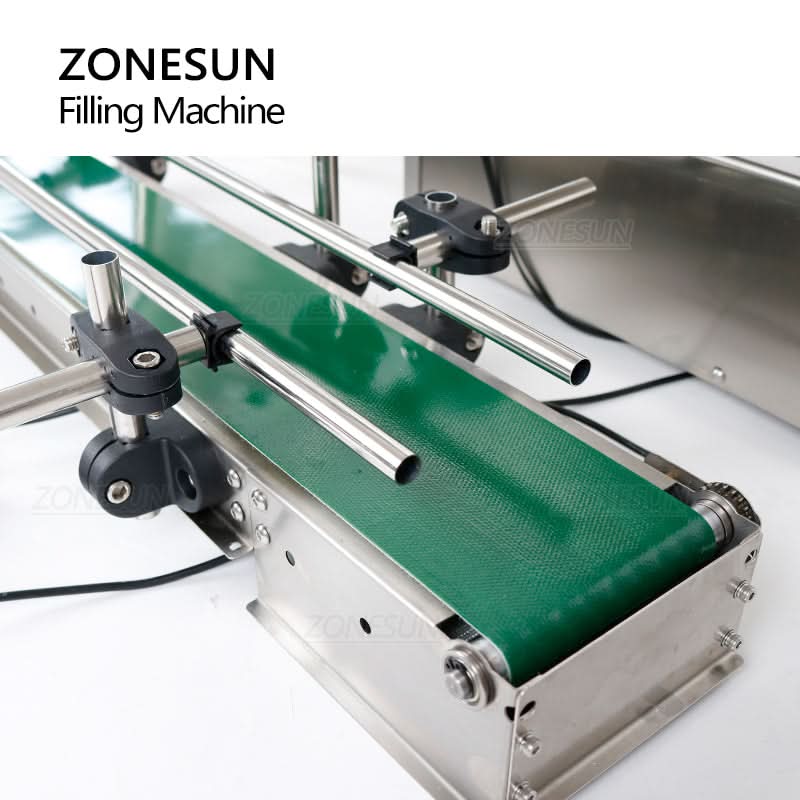

Size of Conveyor ​Belt

About ​600*100mm(Can choose 1200mm)

Size of Collecting Tray

About 210*102mm

Main Machine Size

About ​285*145*125mm

Machine Weight

About 10.5kg

Package Size

About ​390*200*150mm(Main Machine)

About ​650*160*180mm(Conveyor Belt)

Package Weight

About 13KG
