Features

• Automatic counting function, effectively control filling quantity

  Import single-chip microcomputer control, high efficiency, low power consumption

Self-suck function, don't need to pour

• The pump can stand for PH value within 5-8

• Anti-dripping design

• Reasonable design, made of stainless steel, meet GMP requirement

• Speed Parameter Range: 1-9, Filling Time Range: 0.01-99.99s, Interval time Range: 0.01-99.99s

• Save up to 6 sets of parameters for different-sized bottles and can choose from easily

• Widely used in chemistry, food, beverage, oil, and cosmetics, etc.

• Suitable for filling low-viscous liquid without pellets

  The pump can stand oil, heat, weak acid, weak alkali, abrasion and chemical products

• Integrates the advantage of self-suck pump and chemical pump

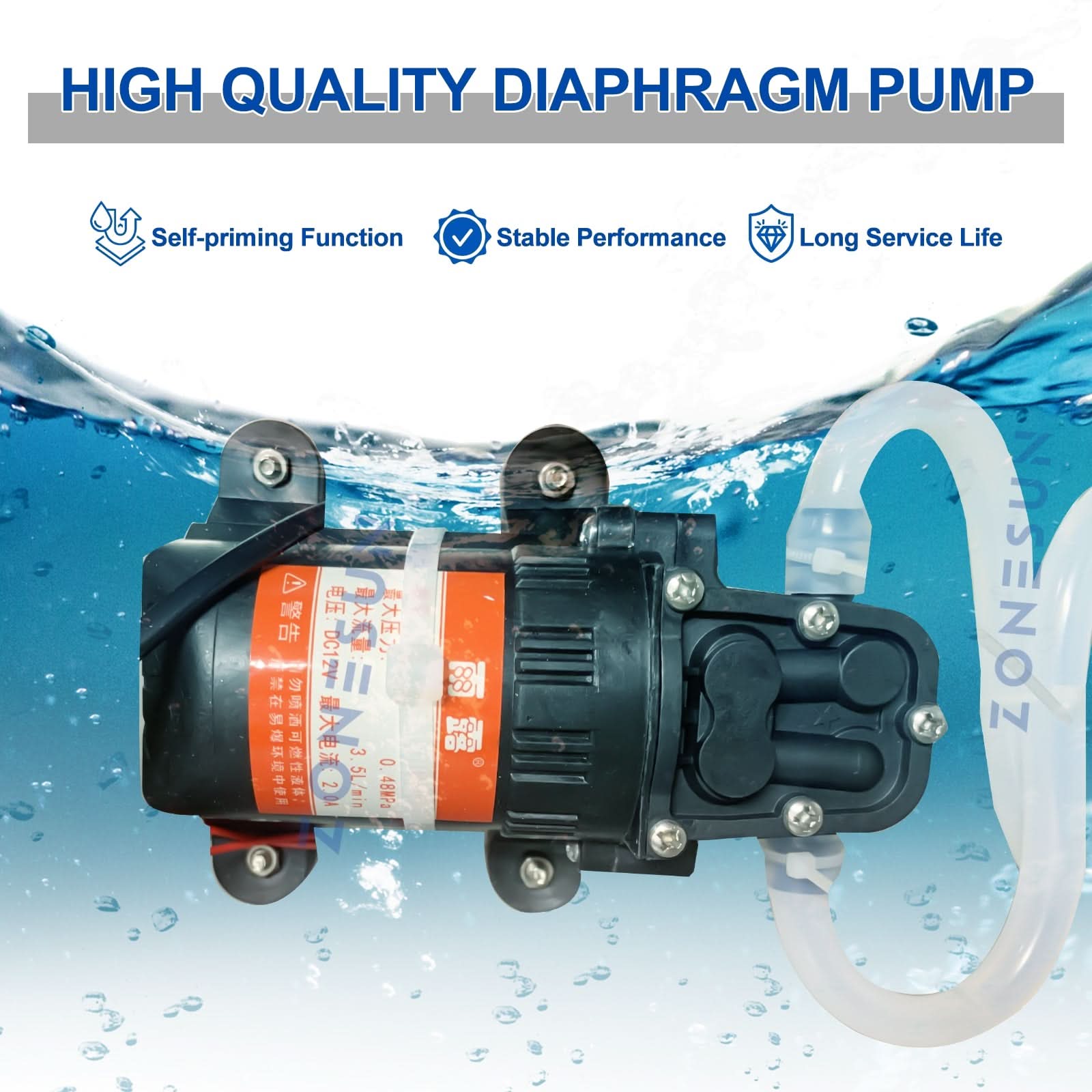

  Self suck, heat protect, stable working and continuous idle or load operate for long time

Parameter:

Voltage:AC110V-140V/180V-260V

Power:30W

Max Flow Rate:3.2L/min

Max Suck Distance:2m

Repeat Error:<0.5%

Package Dimension:400×380×200(mm)

Filling Volume Range:5ml-3500ml

Anti-dripping Function:Available

Memory Function without Electricity:Available

Machine Size:350 X 270 X 150(mm)

Diameter of Filling Nozzle:Φ 8mm

Suitable Soft Tube:17#(interior diameter: 6.4mm, thickness: 1.6mm, max pressure0.24Mp)

Note: Different liquid needs to choose different material of tube. The tube provided by us is silicone tube.

Description

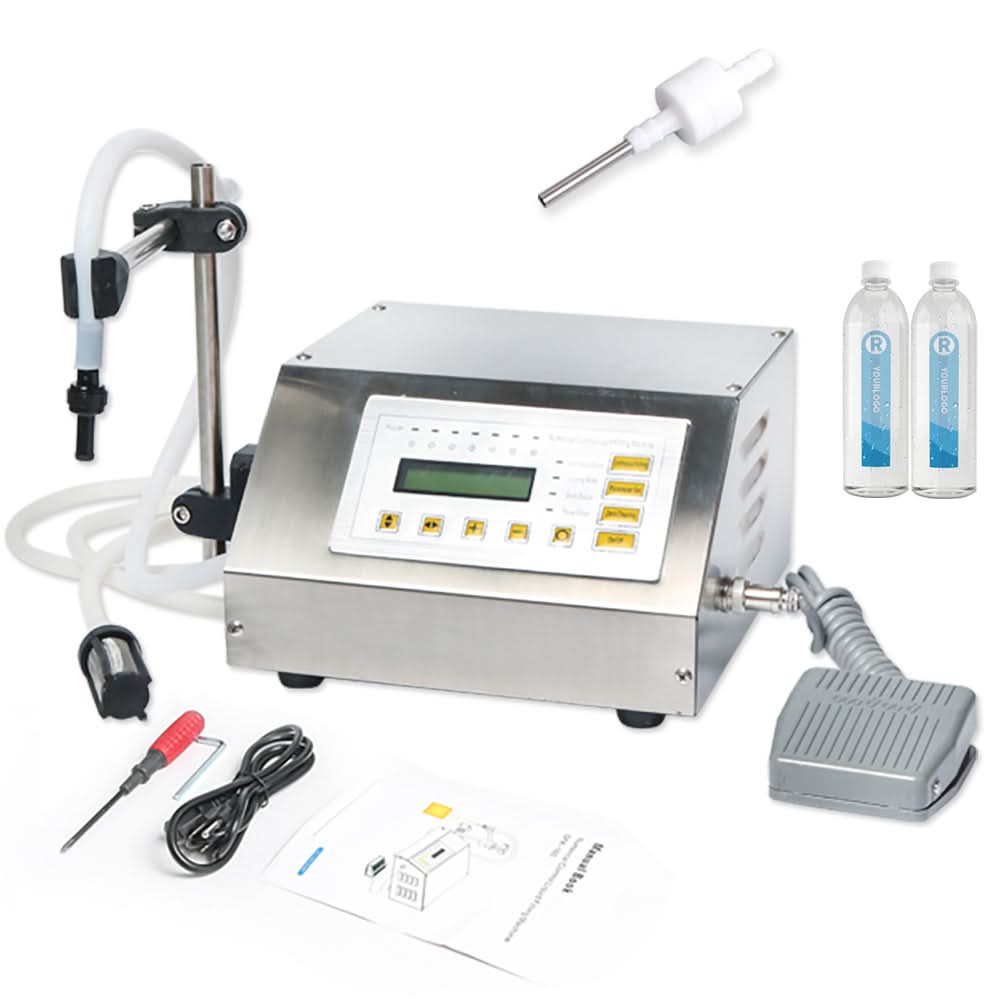

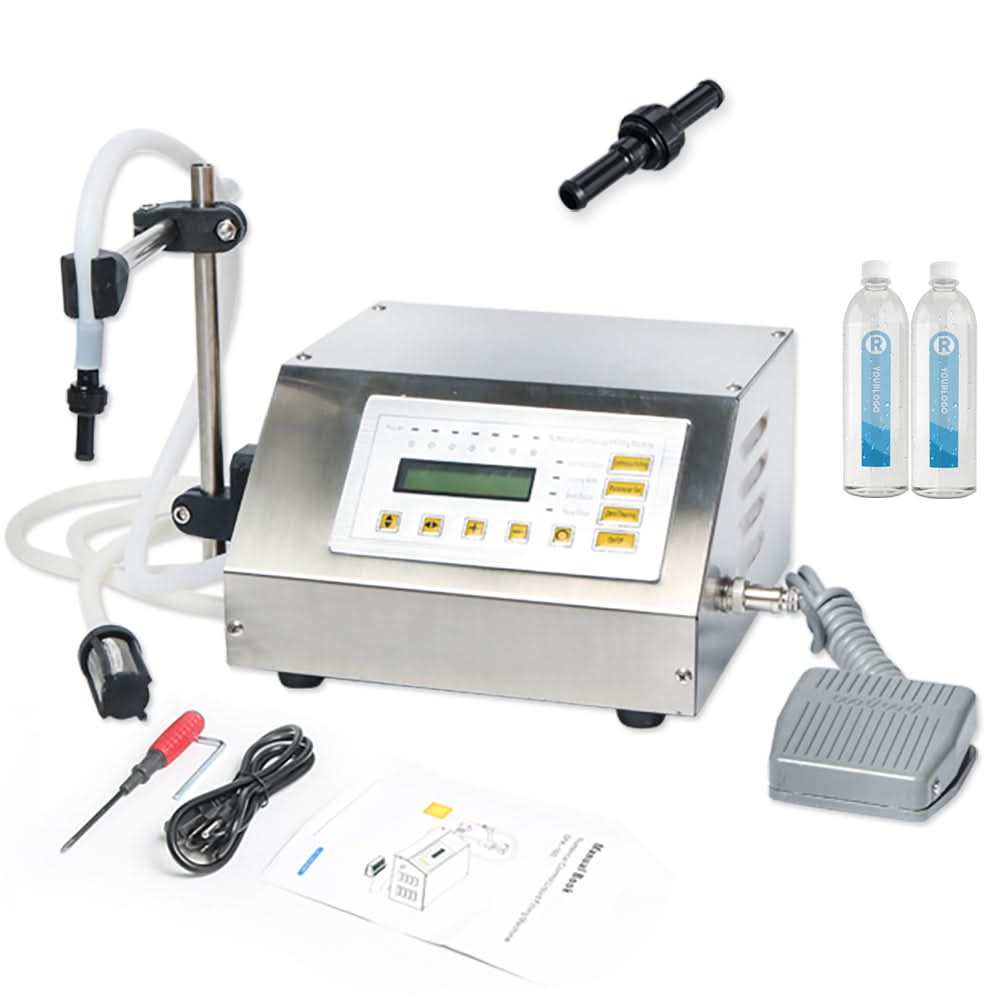

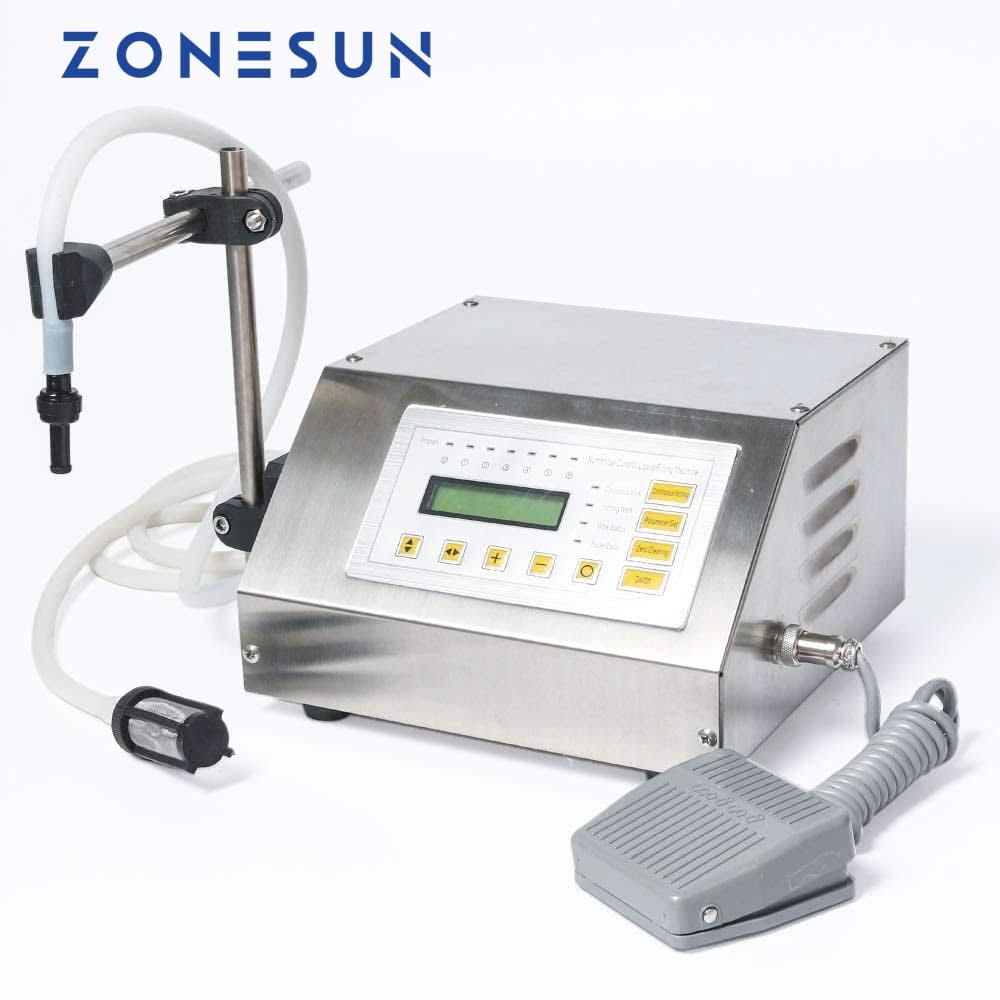

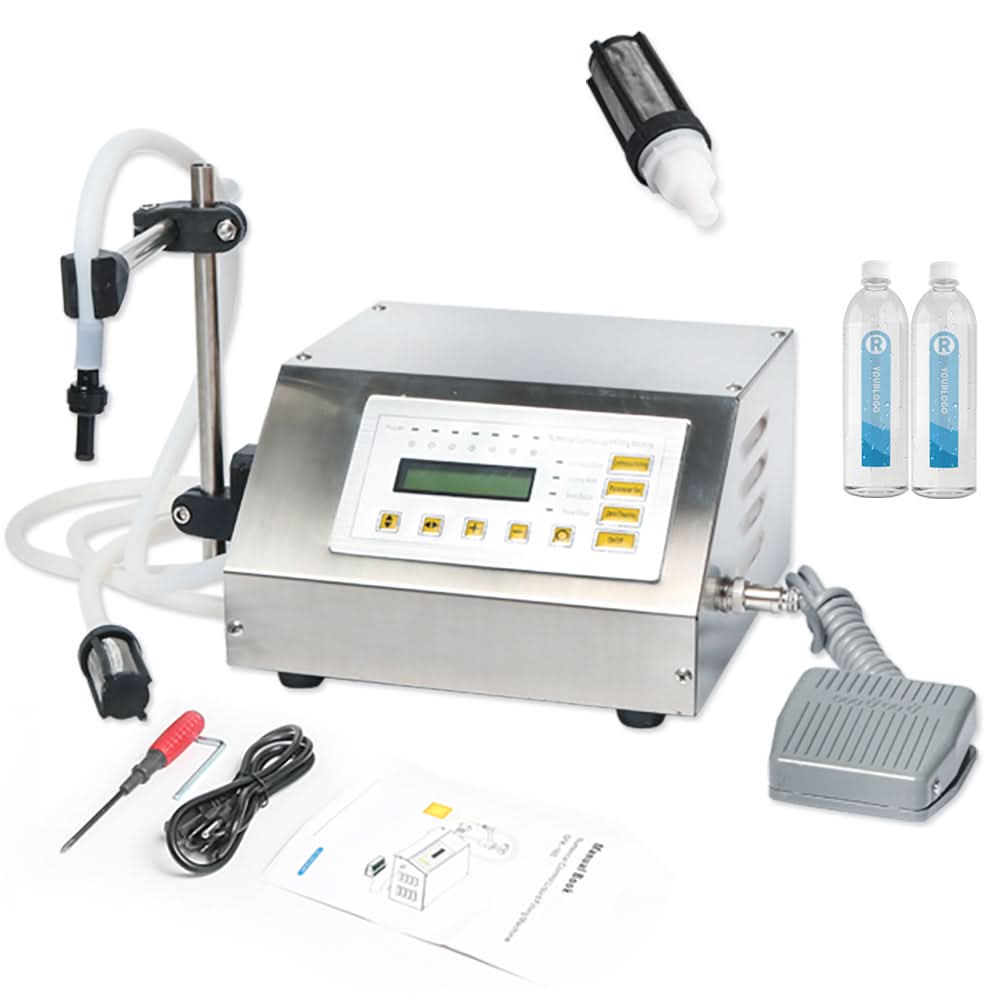

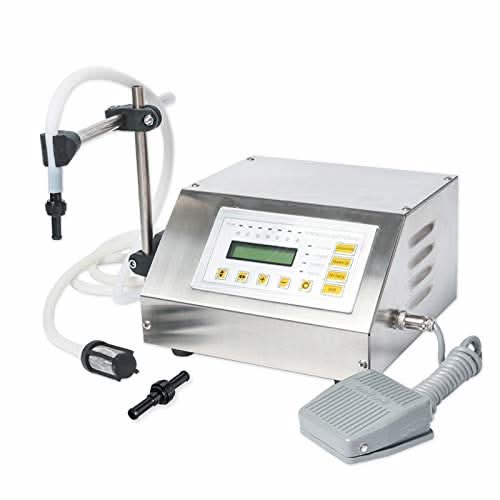

This numerical control liquid filling machine is compact and portable. The casing uses stainless steel so it is durable and easy to clean. The machine has a self-prime pump that can suck in the liquid from your container and then output via the nozzle. It can be used to fill many different types of clear thin liquid,including water, olive oil, fuel, drinks, vinegar, milk etc.

Liquid suitable: low viscous liquid like water, wine, solutions etc.

Liquid unsuitable: very thick liquid (sauce,detergent etc), or liquid containing small particles.

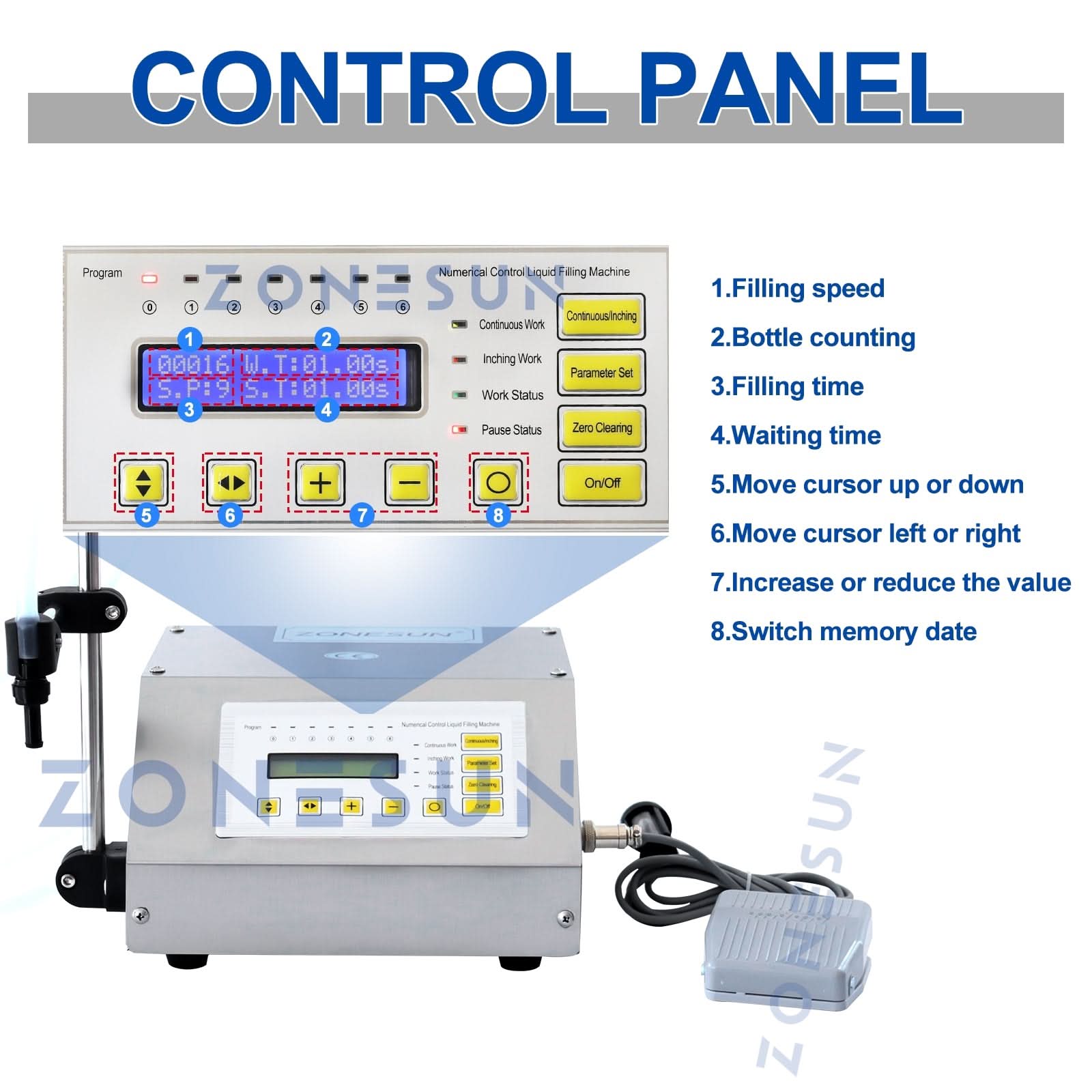

The tubes are made of silicone gel and the pump head is made of PVC plastic material so it can endure mild acid/alkaline solutions. The machine has a control front panel and digital display. You can easily enter your parameters by pressing the buttons on the control panel and the parameters will show in the LCD screen. The filling volume can be controlled via the filling time and speed parameters which give you much flexibility.

Installation

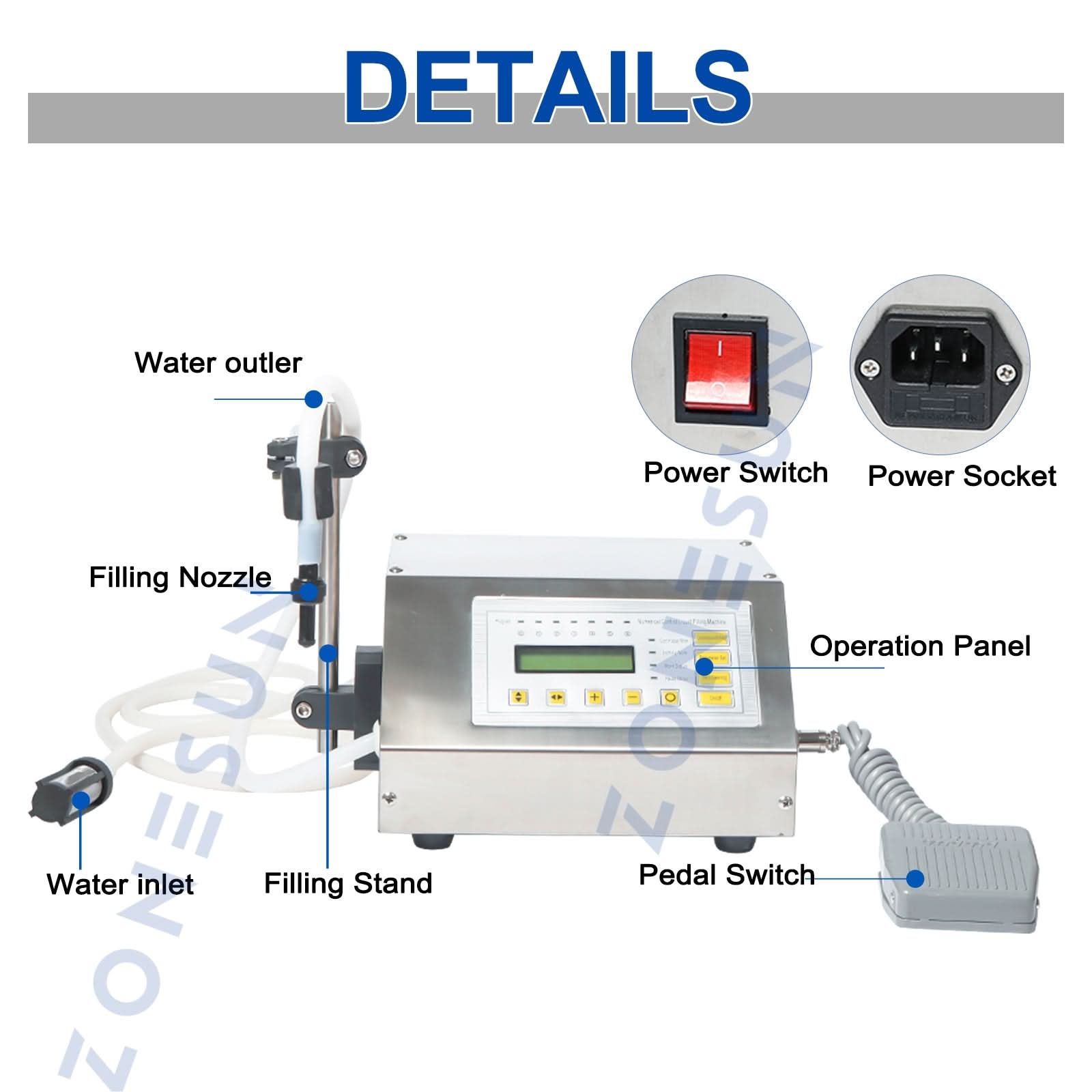

Take the plastic filling nozzle out and install it in the feeding tube. (Notice the triangle head connects the discharge tube). Take out the filling-head stand and install it on the left of the machines. Put the filling head in the clip and tighten it by socket wrench.

Connect the pedal switch with machine, and put the tube with filter below the liquid level inside the storage rank. The position of tank should be lower than the machine. Start to test the machine after all is ready.

We will test all of the filling machine before send out , so it's normal that the machine pump and tube with water inside when you receive it.

We upgrade this filling machine,the dimension is smaller than before one.Functions are same as before machine.Please notice that the USA customer and RU customer may receive the old filling machine since we ship them randomly.

Characteristics

1.Imported single-chip control,high efficiency,low power consumption
