ZONESUN ZS-FS01 Automatic Popcorn Pack Granule and Paste Sachet VFFS Packing Machine

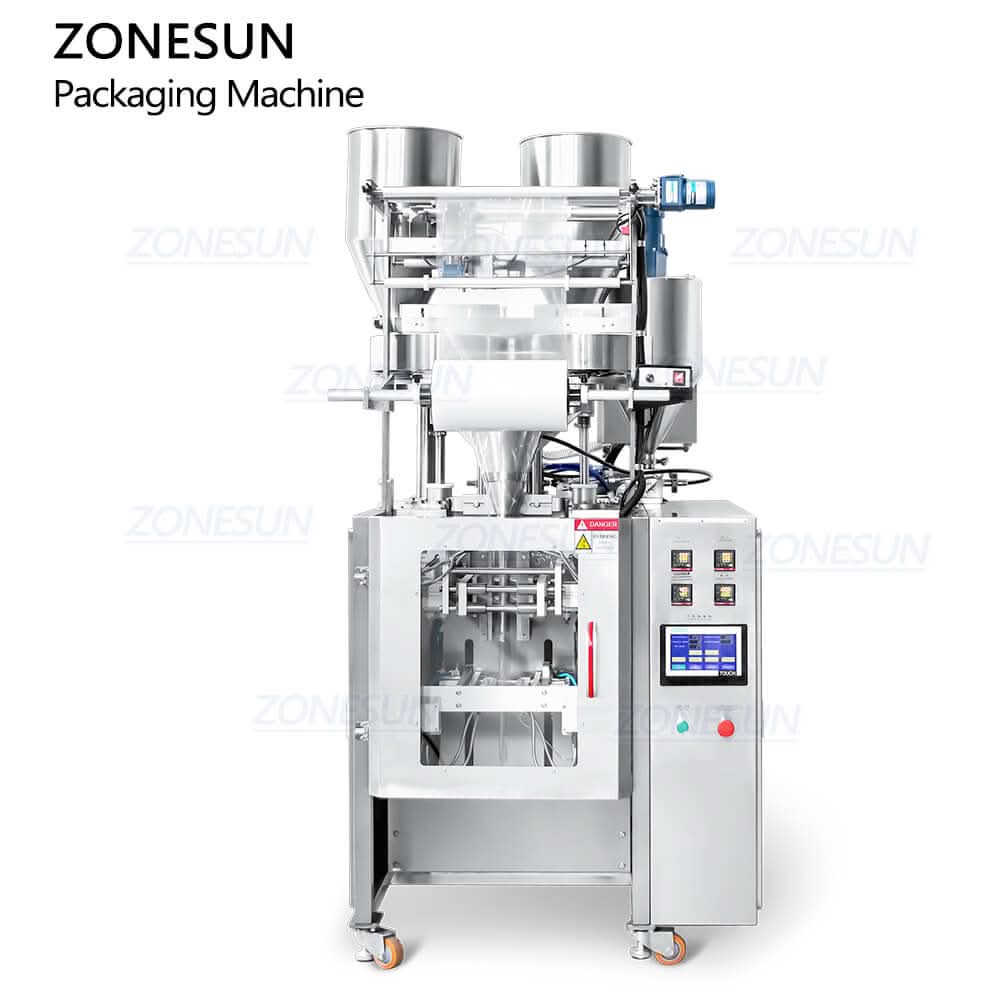

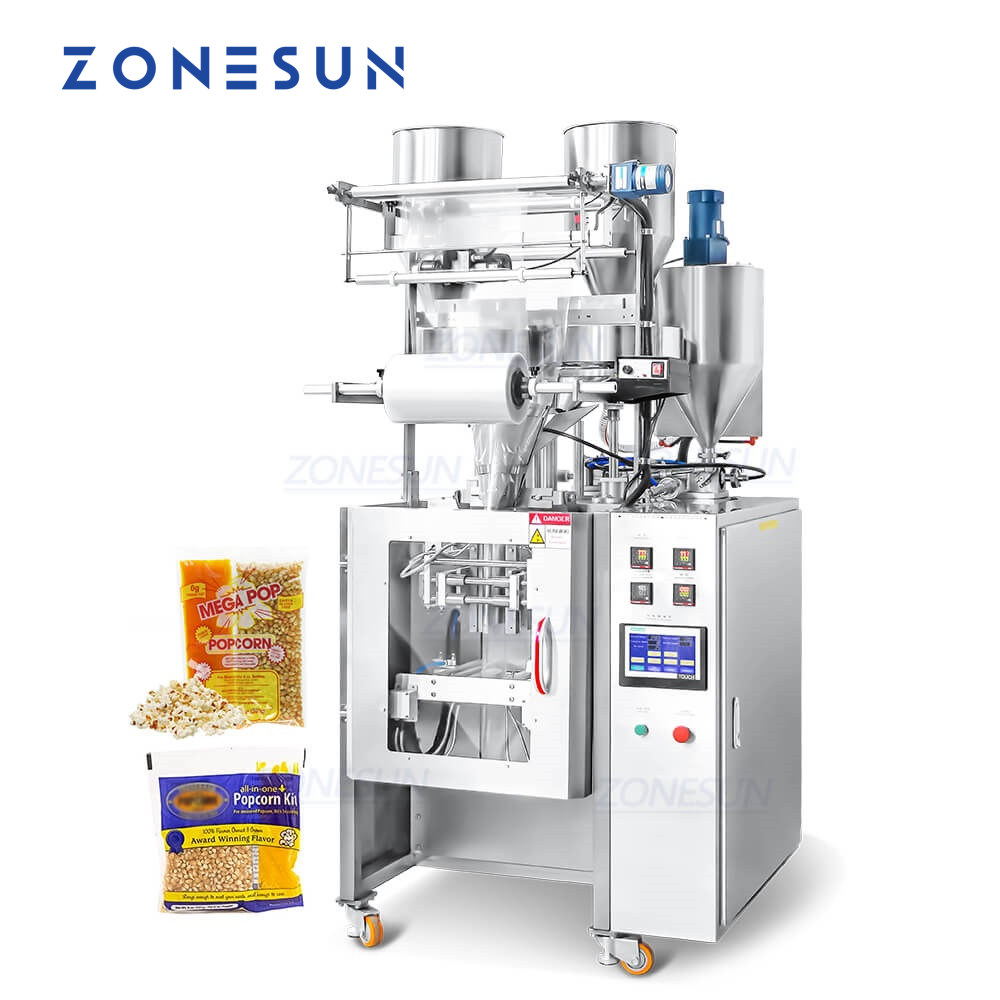

This VFFS packaging machine can finish the works of bag making,measuring, filling,sealing, bag cutting and counting automatically at the same time,it can also print batch number or production date according to the demand of customers.
Parameter
- Machine model:ZS-FS01
- Power supply:AC220V 50-60HZ 1.5KW
- Filling range:1-100g
- Bag size:60-250mm(L)*50-360mm(W)
- Working capacity:10-25bags/min
- Filling pump:Piston pump
- Measuring type:Measuring cup
- Suitable packaging film:BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene,Polyester/Aluminizer/Polyethylene, Nylon/CPP
- Machine size:About 850*1100*1900mm
- Machine weight:About 350kg
- Package size:About 1440*1150*2240mm
- Package weight:About 500kg

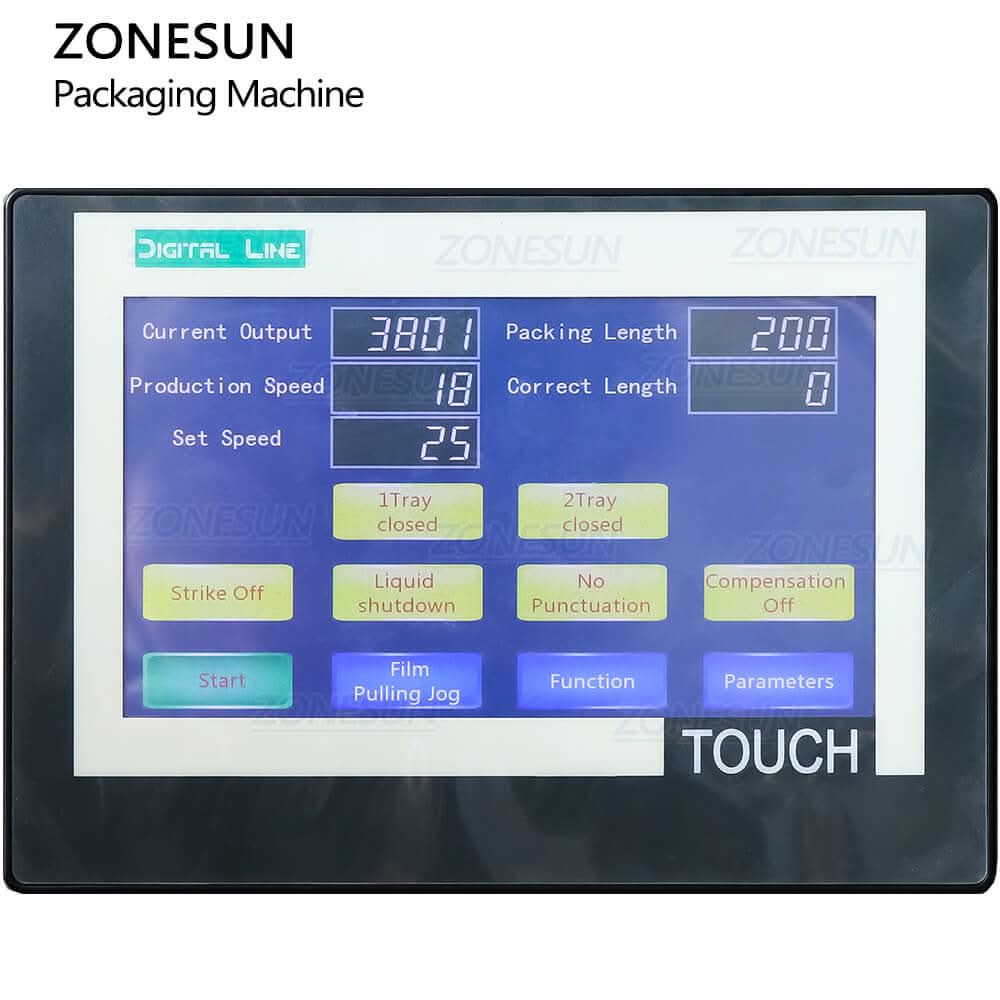

Controlled by PLC touch screen control panel, all of the working data will be showed clearly, this is more convenient when debugging machine.Different kinds of operation language can be customized as needed.

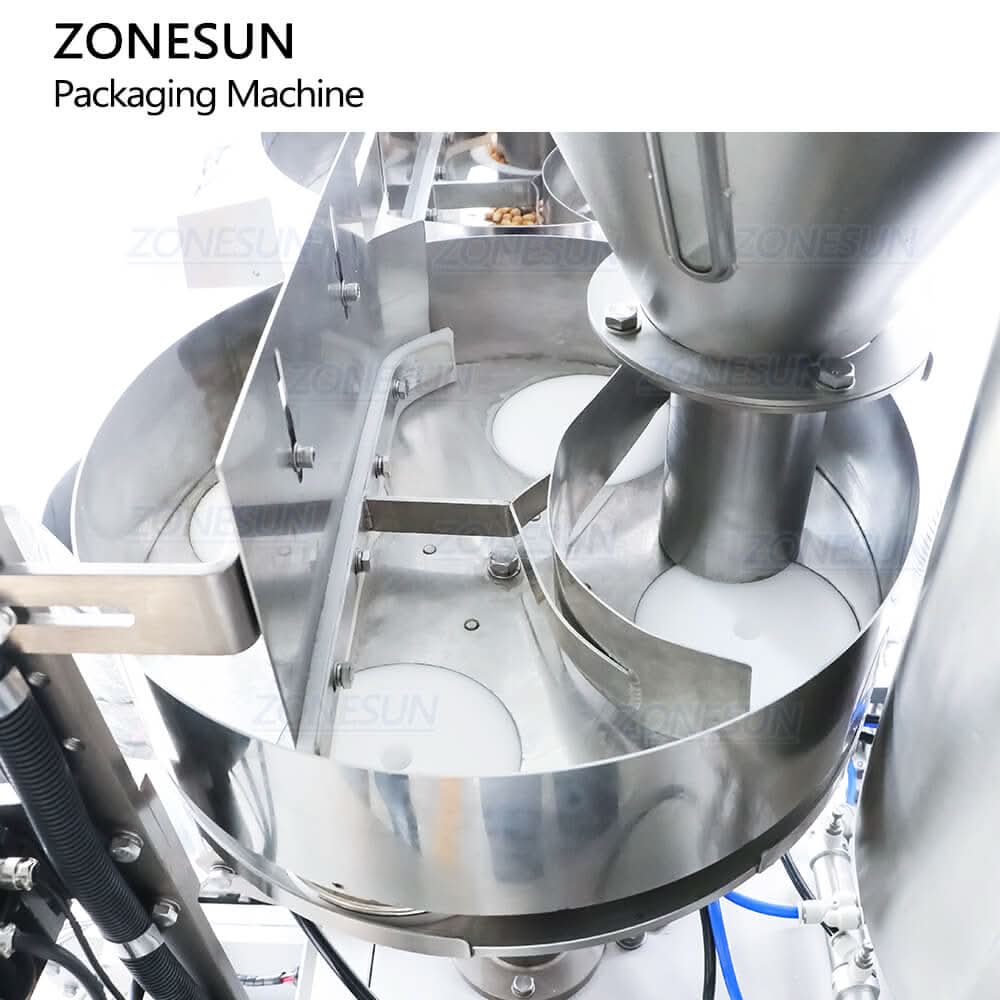

Use the measuring cup to control the filling amount of the granules, and change the size of the measuring cup to pack products with different filling amounts. This has high filling accuracy.

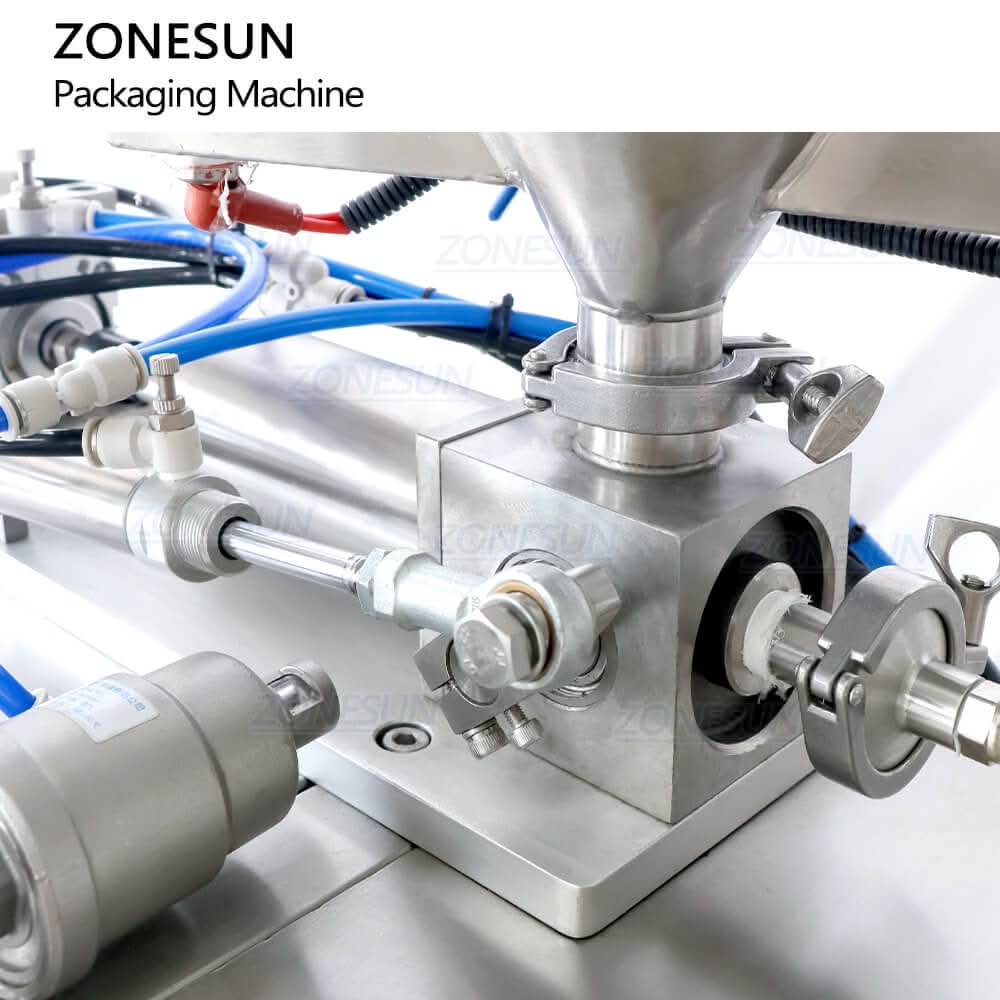

Use the piston pump to fill material into bags, which is more powerful when filling thicker liquid or paste.Different filling range of piston pump can be chosen as production need.

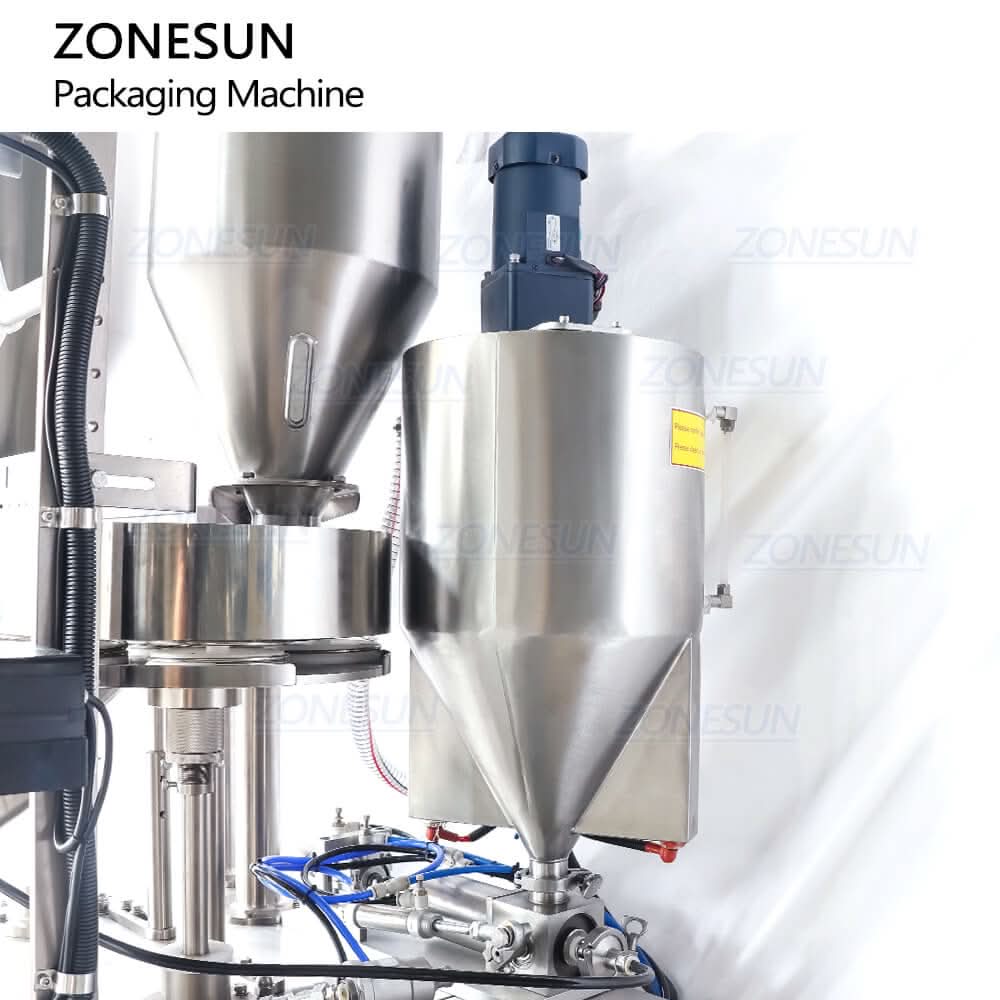

The hopper for liquid/paste is designed with a double-layer structure. Hot water can be added to the compartment to maintain a constant temperature of the filling material. Mixing and heating functions can be customized according to requirements to realize the pretreatment of the filling material.

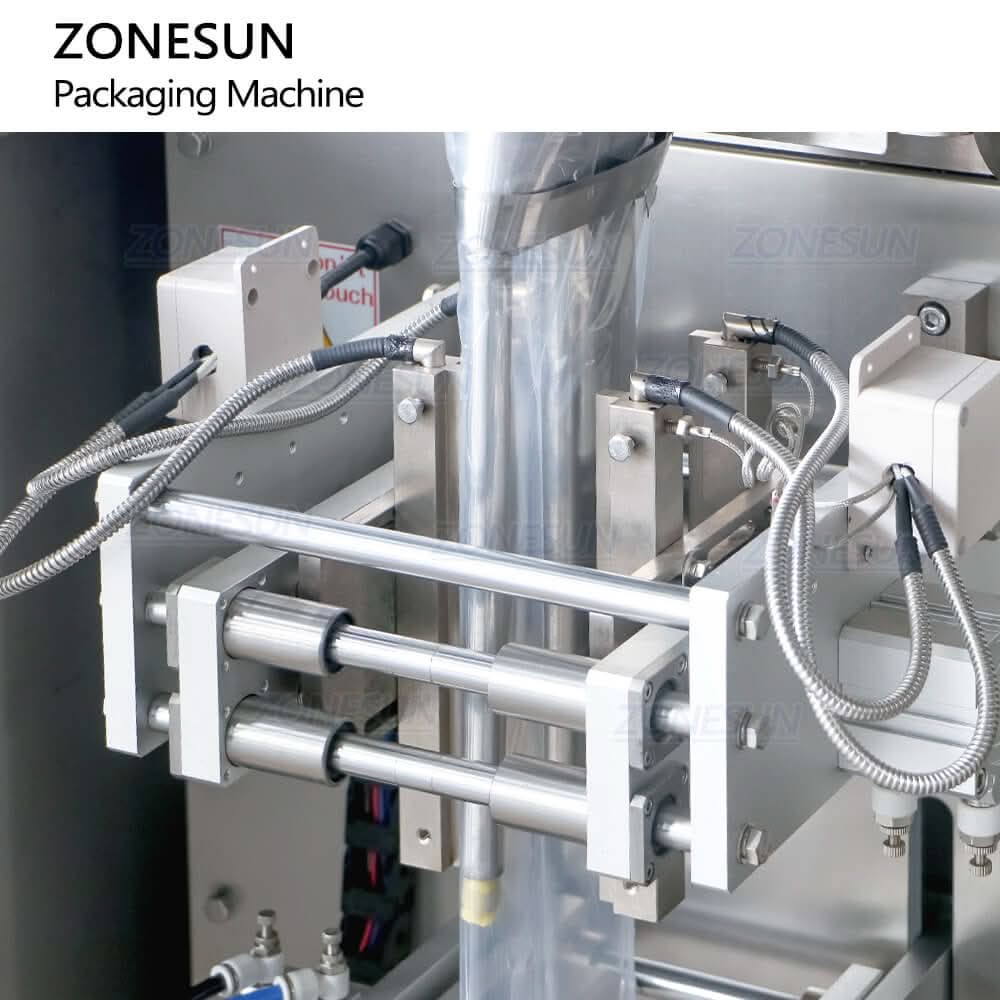

Use servo motor to control the bag length, this improves packaging accuracy.This machine is suitable for multiple kinds of packaging film includes BOPP,CPP.The sealing temeperature can be adjusted as operation need.

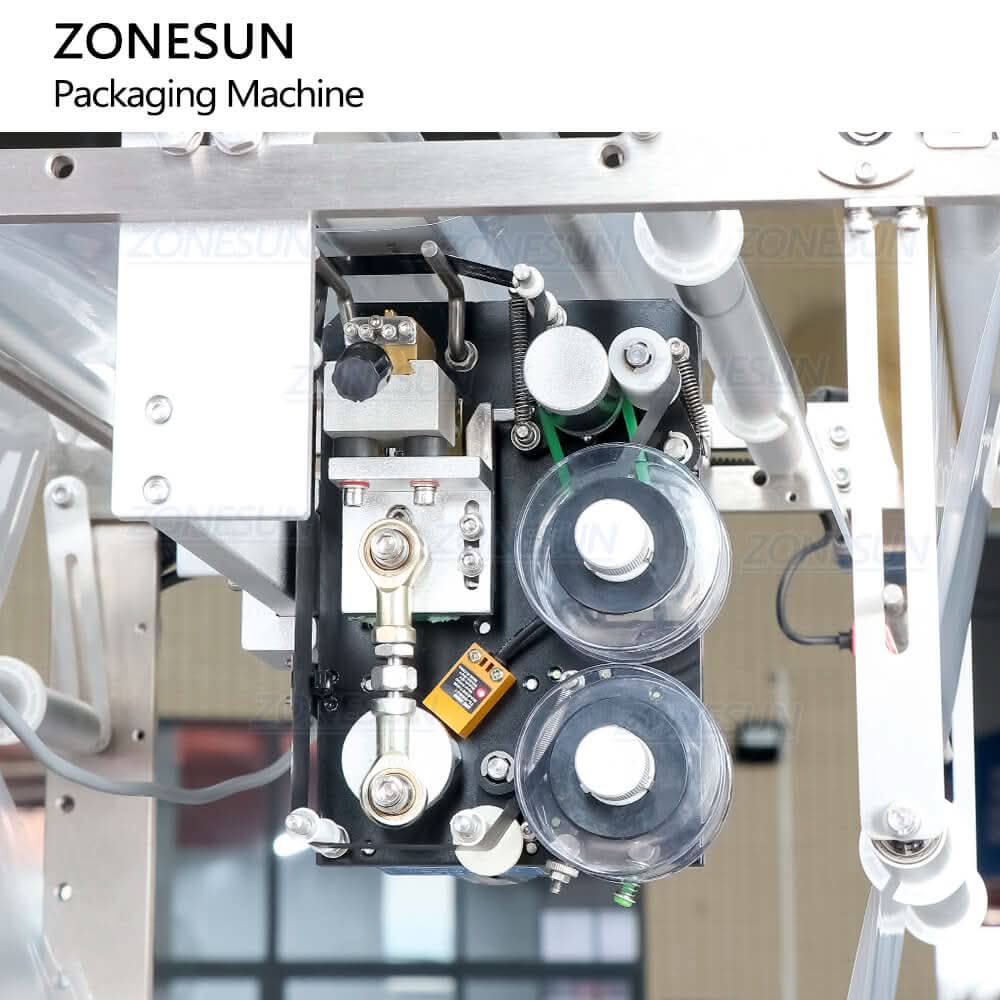

The extra date coder is optional, it can be equipped with to print batch number or production date on packaging film and saves packaging process.Different kinds of color ribbon can be chosen as production need.
