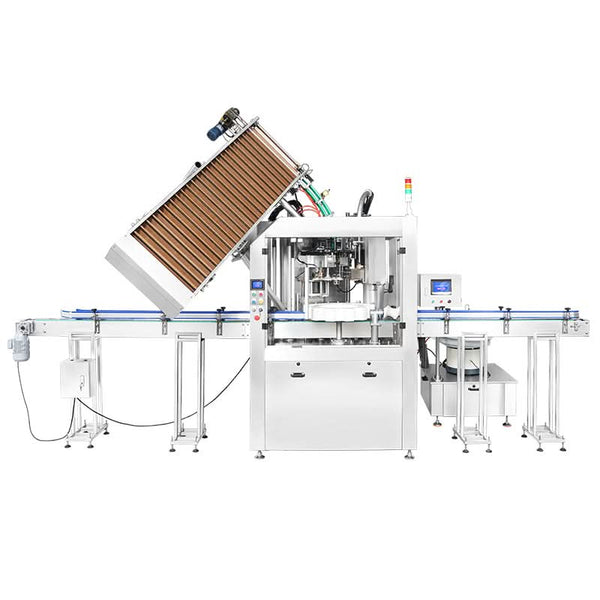

ZONESUN ZS-YG17 Automatic Monoblock Sparkling Cider Liquor Bottle Corking Wire-hooder Mead Corking Equipment
A corking and wirehooding machine is a device used in the bottling process, primarily for sparkling wines, ciders, and certain types of beer.The machine can push the cork into the bottle with considerable force, ensuring a tight seal. After the cork is placed, the machine then applies and secures the wirehood onto the bottle, twisting it to ensure it's tightly held.This machine is only suitable for the round bottles, can not be used for the square bottles
Parameter
- Machine Model:ZS-YG17
- Voltage:380V 3 Phase
- Power:2kW
- Working Speed:About 2000 BPH(depending on product size)
- Suitable Bottle Diameter:70-155mm(Can be customized)
- Suitable Bottle Height:220-390mm(Can be customized)
- Suitable Cork Size:Can be customized
- Air Pressure:0.5MPa
- Air Consumption:10L/min

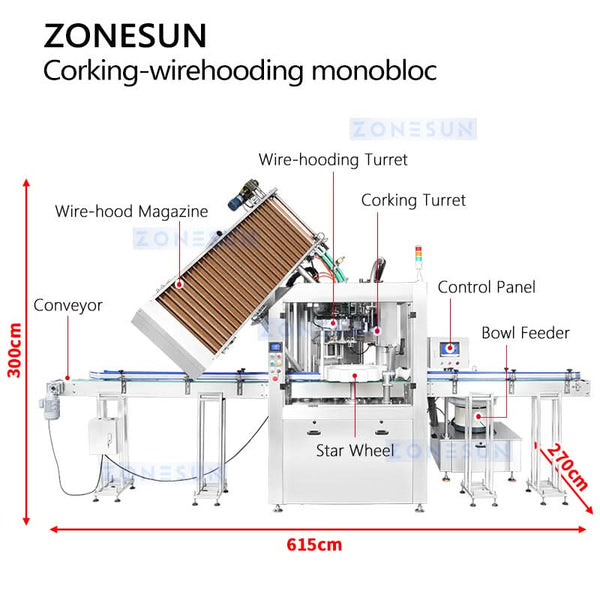

- Machine Size:About 6150*2700*3000mm
- Machine Weight:About 2000kg
Equipped with PLC touch screen control panel, this makes it more convenient to debug working parameter.Customizable interface improves working efficiency.
Equipped with vibratory bowl sorting machine, this unit is designed for feeding wooden corks automatically, saving labor cost. It can be customized according to cork size.
When bottles pass through, they will touch the micro switch and control the machine to work automatically. The working height and operating stroke can be adjusted according to bottle size. It improves working accuracy

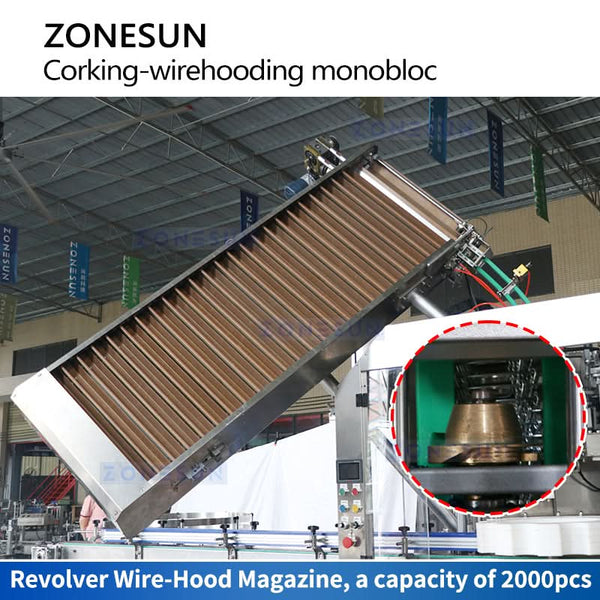

This wirehooding structure can pick up wire hoods and put them onto corks, Imitate human hands to wire hood the corks.It improving working accuracy and efficiency. It can be customized according to production need.
Equipped with wire hood loading structure.This unit is designed for arranging wire hoods in order and feeding them automatically. The running speed can be adjusted according to production need.
