Description

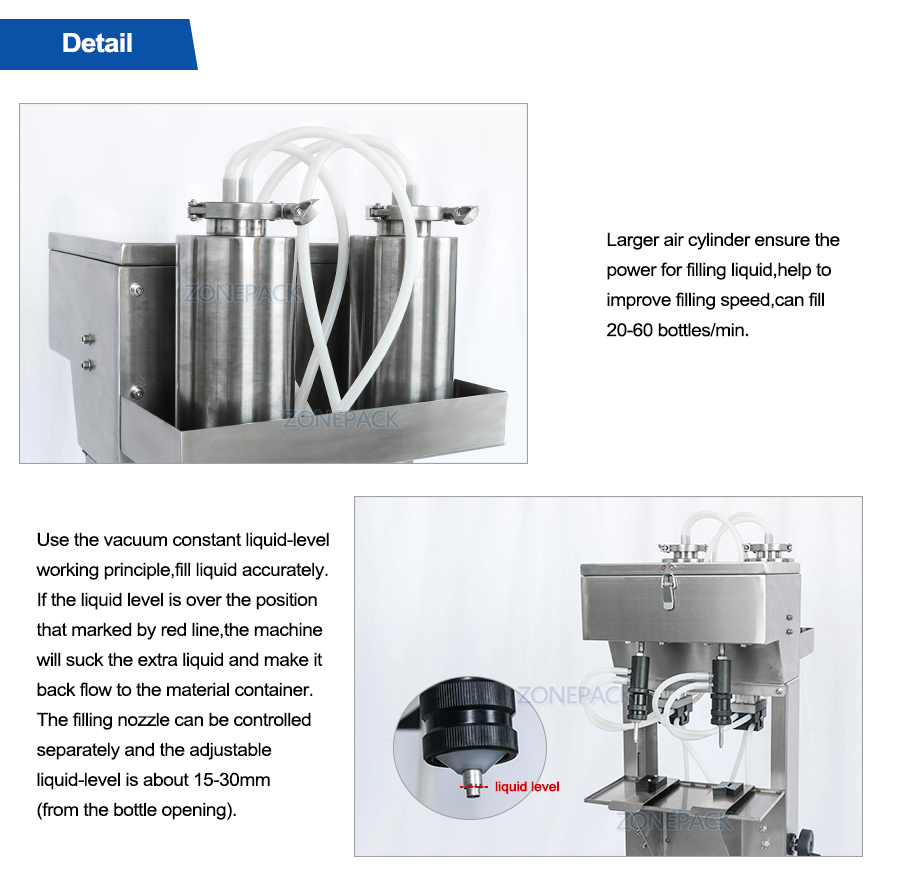

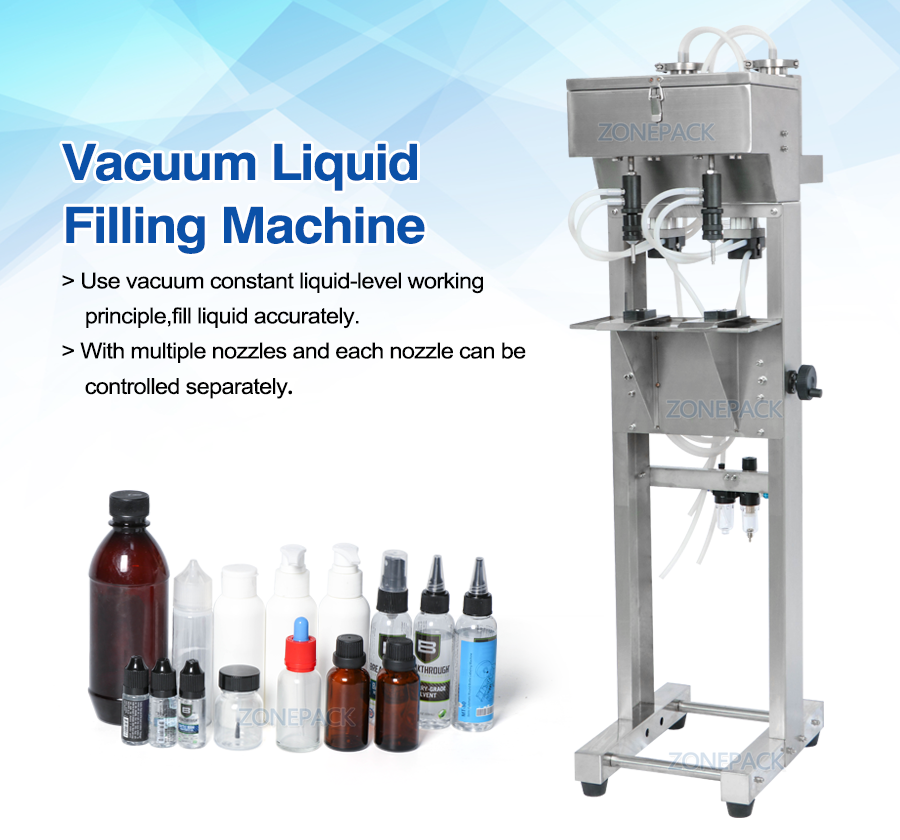

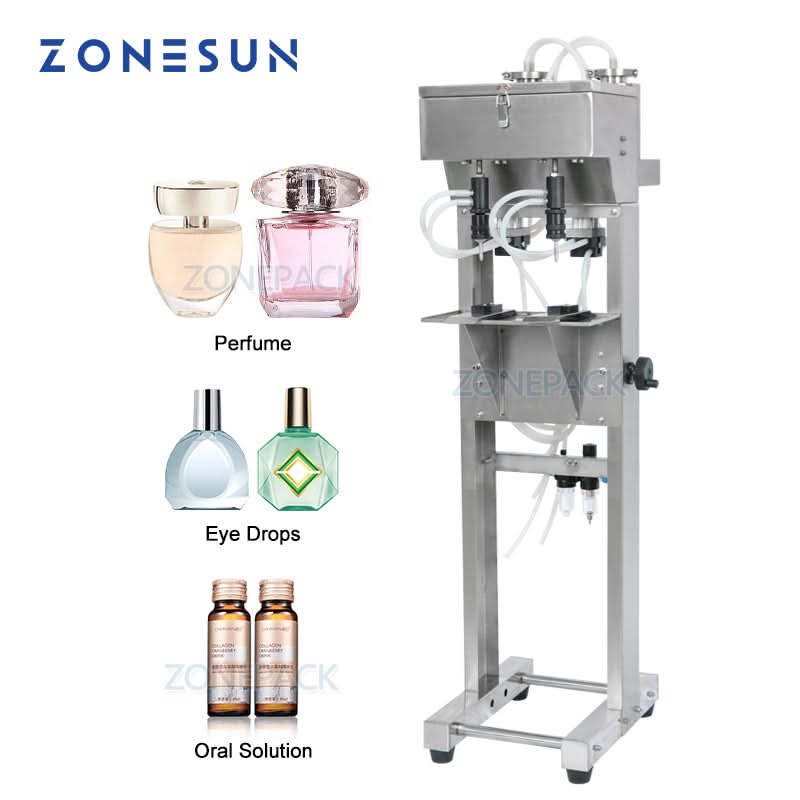

The vacuum liquid filling machine is a pure pneumatic equipment and requires no electricity. It is one of our most economical filling machines which is suitable for small-dose liquid products such as perfumes and eyewash. ZS-G4000 uses the vacuum constant liquid level filling principle, regardless of whether the bottle volume is the same, the filling liquid level will remain the same.
The main power of this machine is air source, customers need to buy the air compressor separately.
Parameter
|

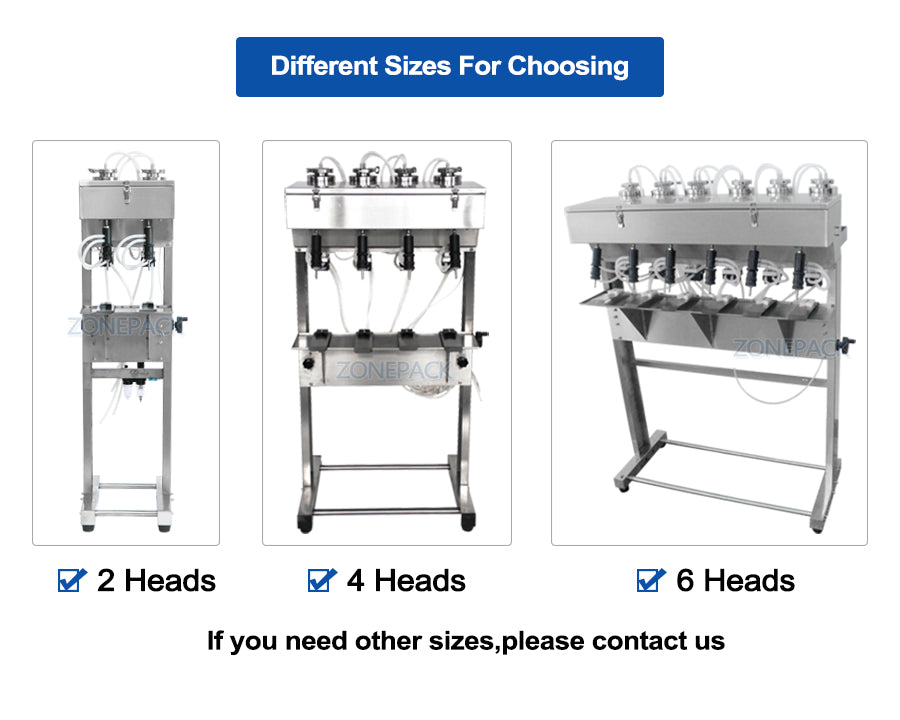

Model
|

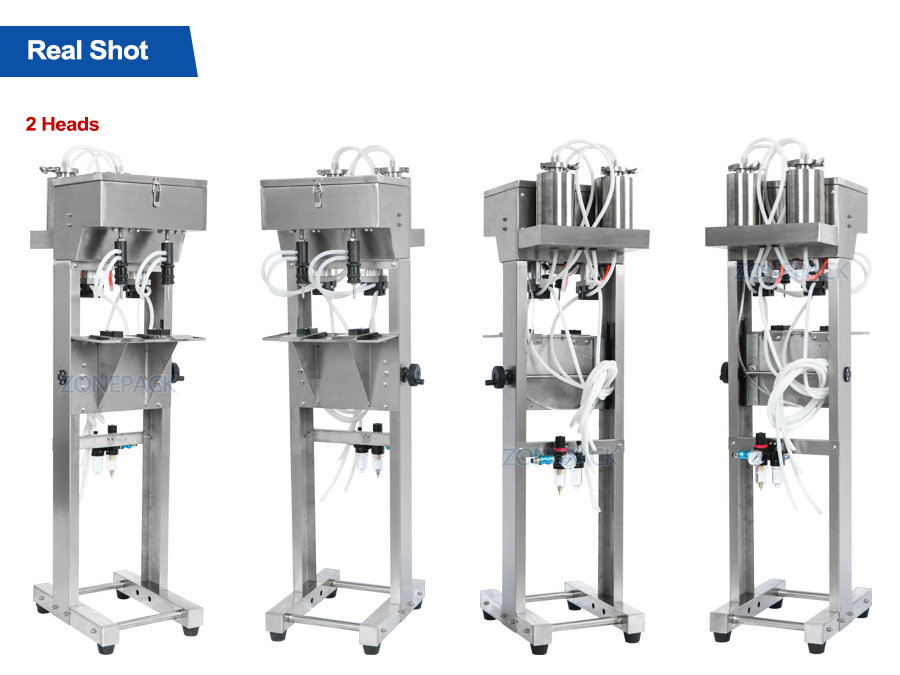

2 Heads
|

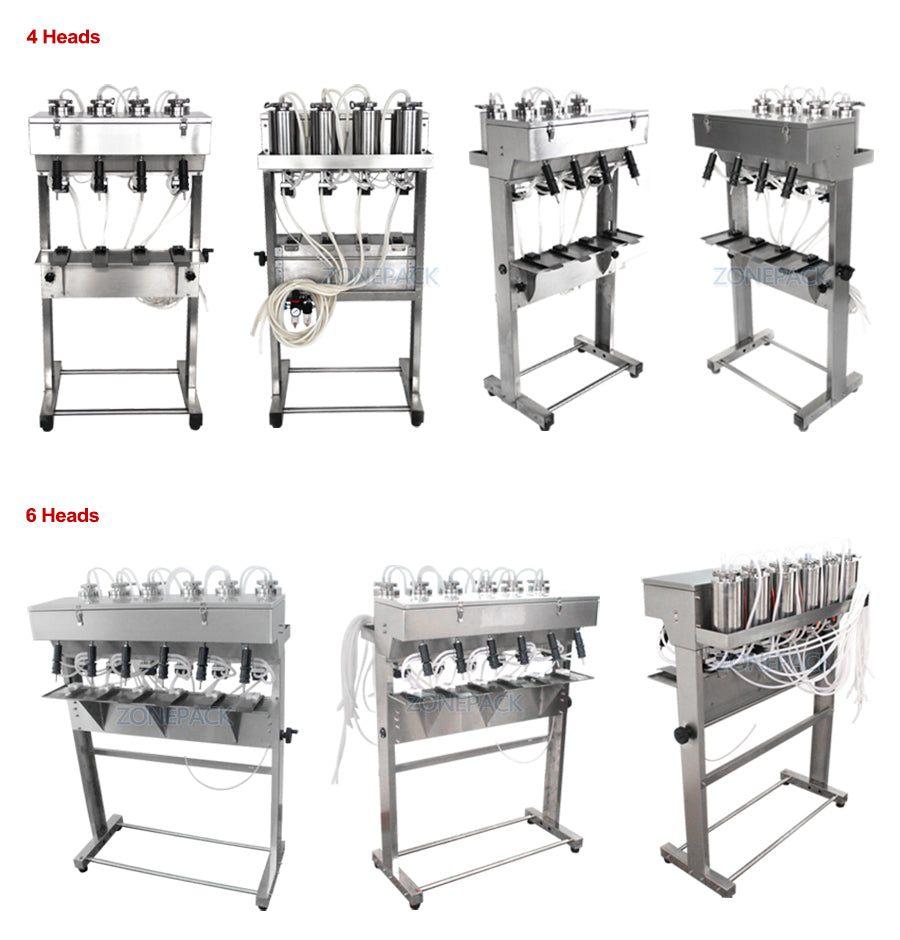

4 Heads
|
6 Heads
|
|||||
|
Air pressure
|
0.5-0.8MPa
|
|||||||
|
Liquid level accuracy
|
土1mm
|
|||||||
|
Viscosity range
|
The maximum applicable viscosity is 20Cps (static viscosity)
|
|||||||
|
Working Speed
|
20 Bottles / Minute
|
40 Bottles / Minute
|
60 Bottles / Minute
|
|||||
|
Bottle height
|
≤250mm
|
|||||||
|
Bottle Opening Size
|
≤φ4.5mm-φ28mm
|
|||||||
|
Adjustable liquid level (from the bottle mouth)
|
|
|||||||
|
Package size (mm)/ weight (kg)
|
1350*380*460 / 30.5
|
1350*710*480/48
|
1060* 1390*520/ 83
|
|||||
|
Pumping rate
|
5.5L/S
|
|||||||
