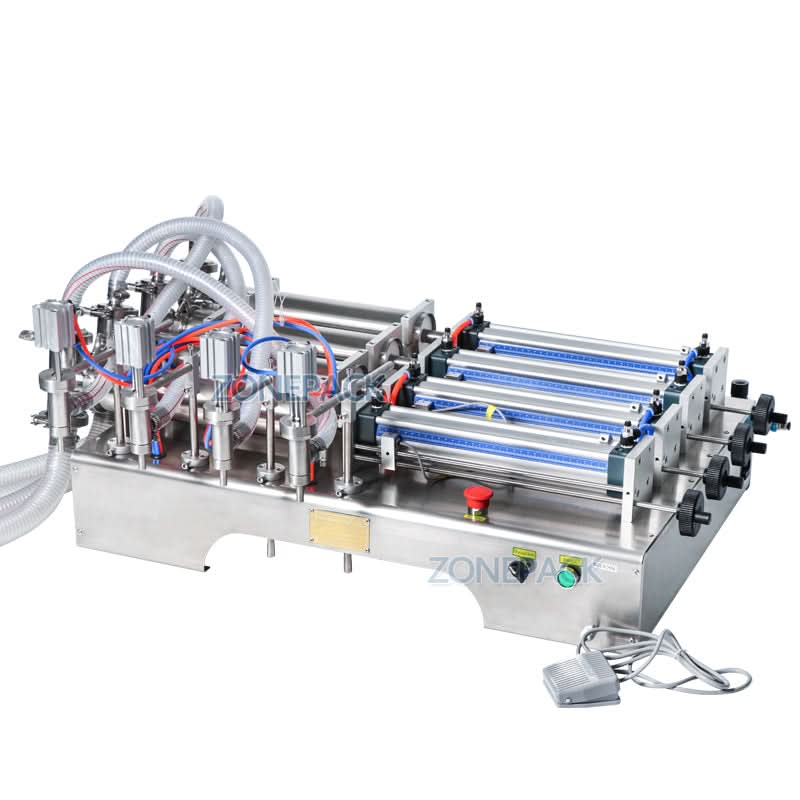

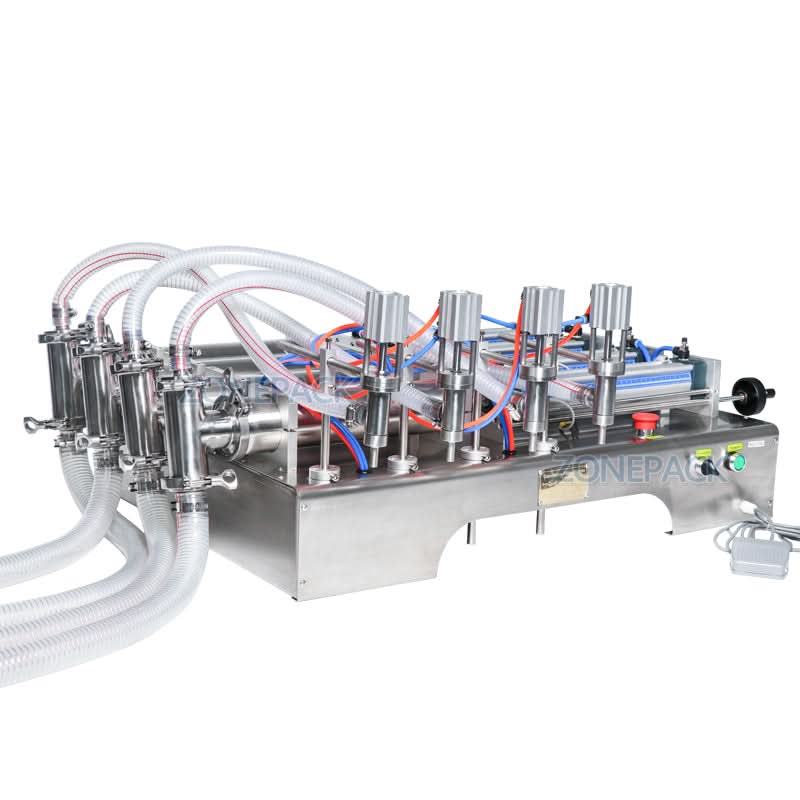

Four-Nozzle Pneumatic Liquid Filling Machine
This ZONESUN four-head pneumatic filling machine uses compressed air rather than electrical pumping at the filling body. It is designed for compatible liquids such as alcohol, perfume, essential oil, water and other products selected according to viscosity and filling range.

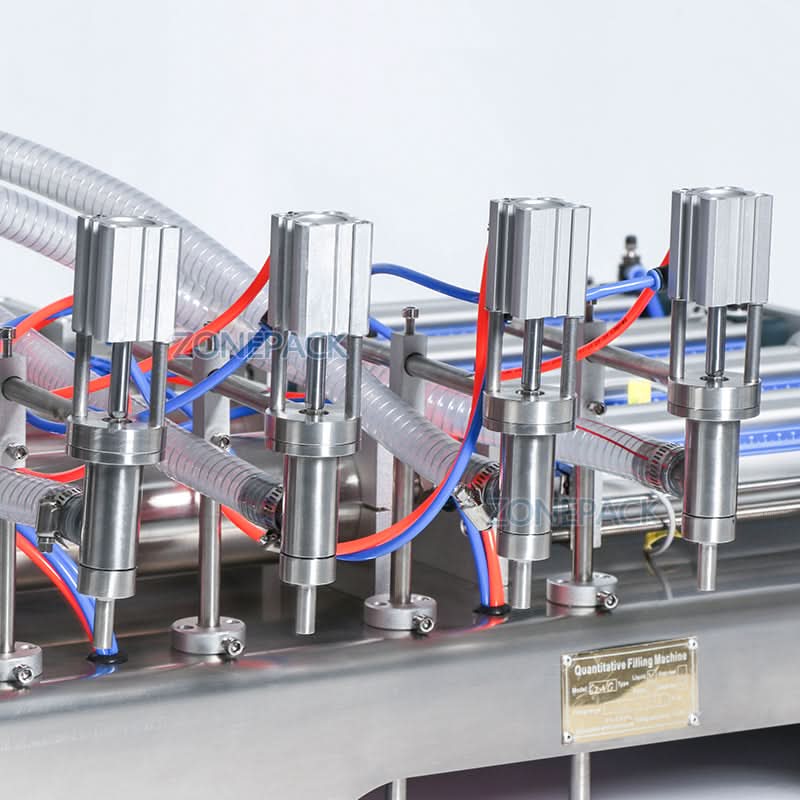

- Four filling nozzles: Supports simultaneous multi-container filling.
- Multiple filling ranges: Options cover 5 ml to 5000 ml.
- Pneumatic operation: An external air compressor is required.
- Horizontal construction: Suitable for small and medium production setups.
Filling Range Specifications
| Filling Range | Filling Speed | Filling Accuracy | Air Supply |
|---|---|---|---|
| 5–100 ml | 20–30 bottles/min | ≥±1% | 0.3–0.4 MPa |
| 20–300 ml | 20–30 bottles/min | ≥±1% | 0.4–0.6 MPa |
| 50–500 ml | 10–30 bottles/min | ≥±1% | 0.4–0.6 MPa |

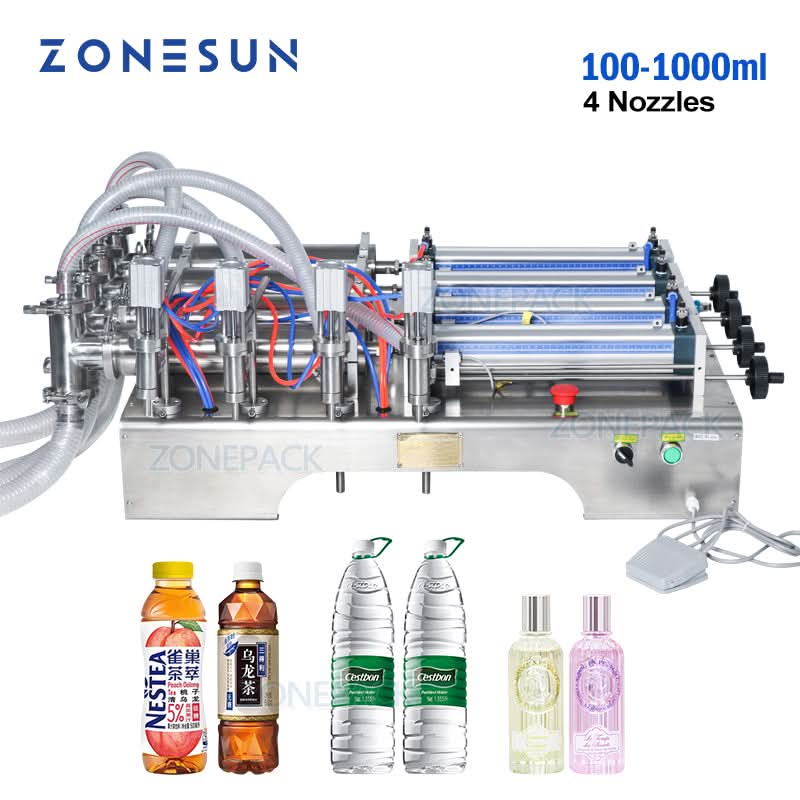

| 100–1000 ml | 10–30 bottles/min | ≥±1% | 0.4–0.6 MPa |
| 500–3000 ml | 5–15 bottles/min | ≥±1% | 0.5–0.7 MPa |
| 1000–5000 ml | 5–15 bottles/min | ≥±1% | 0.5–0.7 MPa |
Machine Specifications
| Packing Size | 1150 × 425 × 715 mm |
|---|---|
| Gross Weight | 78 kg |
| Machine Size | 850 × 625 × 250 mm |
| Net Weight | 61 kg |
Selection note: Actual filling performance depends on liquid viscosity, filling volume and air supply. Send product and container samples or detailed specifications before ordering.
