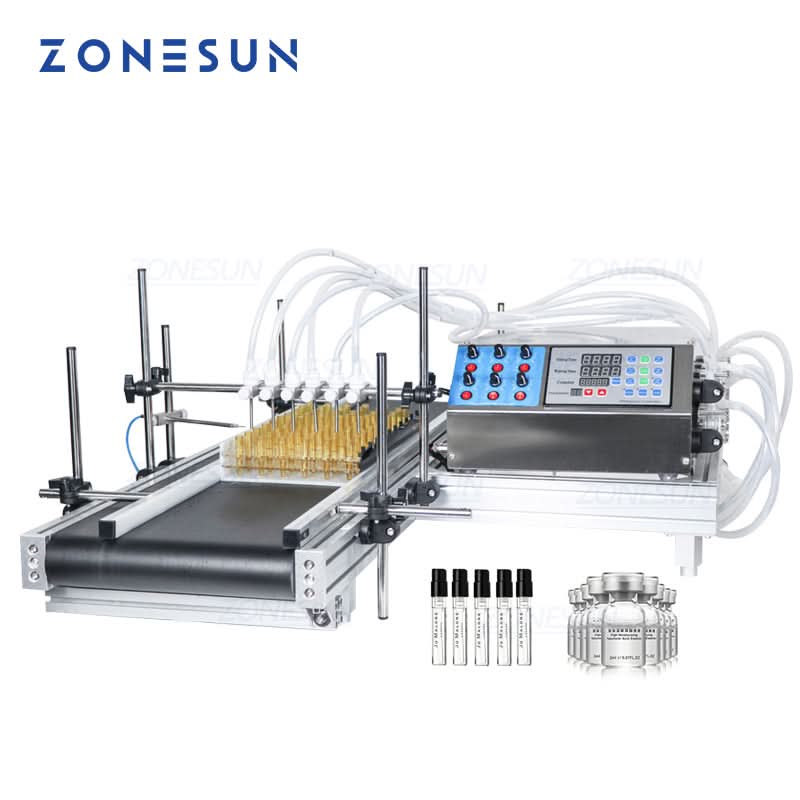

The ZS-DTPP6B is a compact, fully automatic liquid filling machine designed for precise dispensing of small-volume liquids such as solvents, essential oils, and reagents. Equipped with six independently controlled nozzles and a peristaltic pump system, it ensures hygienic, contact-free filling. Ideal for pharmaceuticals, cosmetics, daily chemicals, and food applications, this machine boosts productivity while maintaining high accuracy and cleanliness. Its desktop design and customizable bottle tray make it versatile for various production needs.
Item Details
Machine Model ZS-DTPP6B
Power Supply AC 110V/220V, 50Hz–60Hz, 60W × 6
Filling Range ≤50ml
Maximum Flow 650ml/min per nozzle (based on water)
Filling Nozzles 6 (customizable based on user requirements)
Working Speed 40–50 bottles/min (based on 50ml water)
Filling Accuracy ≤±1% (for water)
Filling Nozzle Diameter 4mm
Delay Range 0.01–999.9s
Conveyor Size 1080 × 350mm (L × W)
Machine Size Approx. 320 × 440 × 300mm (excluding conveyor)
Net Weight Approx. 31kg
FILLING NOZZLES
Small filling nozzles with 4 mm or 6 mm outer diameters help prevent liquid from spraying during filling. Other nozzle sizes are available for different production requirements.
CONTROL PANEL
The control panel adjusts filling volume through the filling time and filling speed settings. The filling time and speed of each nozzle can be controlled independently.
CONVEYOR BELT
The high-quality conveyor belt transports bottles smoothly and quickly, helping reduce production time and errors.
ELECTRIC EYE
The electric eye detects passing bottles, controls machine operation, and supports automated production.
PERISTALTIC PUMP
The high-quality peristaltic pump delivers filling liquid accurately without the liquid passing through the pump. Operators can monitor the filling status during operation.
BOTTLE TRAY
The bottle tray can be customized to suit the bottle size, helping keep bottles arranged together for more orderly filling. The bottle tray is supplied with the machine.
