ZONESUN Automatic Production Line Liquid Filling Capping Labeling Machine ZS-FAL180X4

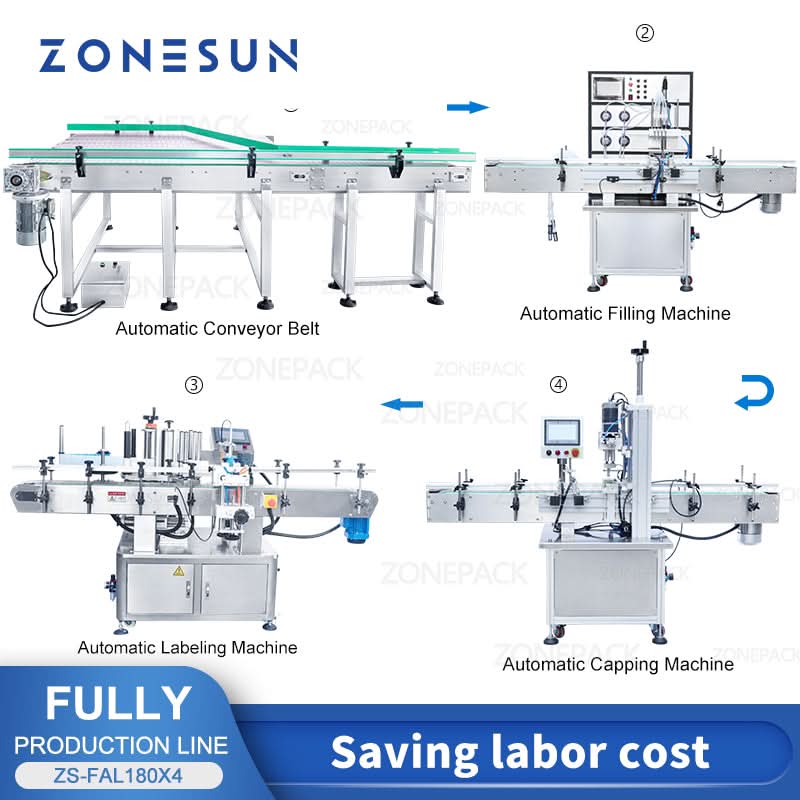

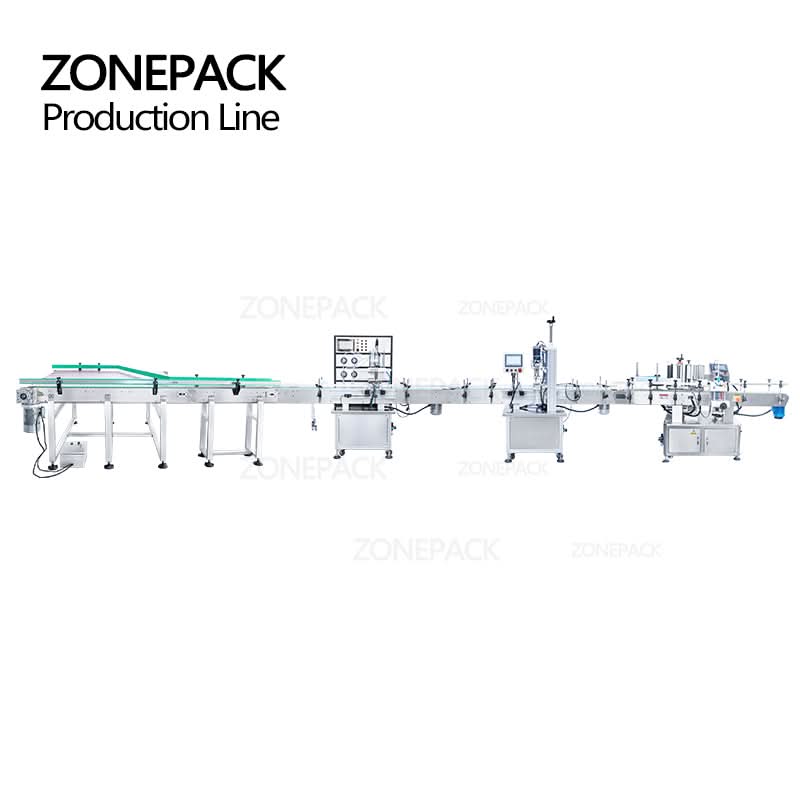

This automatic production line consists of a bottle unscrambling conveyor, a filling machine, a capping machine, and a labeling machine, which greatly improves production efficiency and saves labor. It applies to daily chemical products, skin care products, liquid healthcare products, etc.
PARAMETER
|
Machine Model |
ZS-CB190 |
|
Machine |
1.5KW |
|

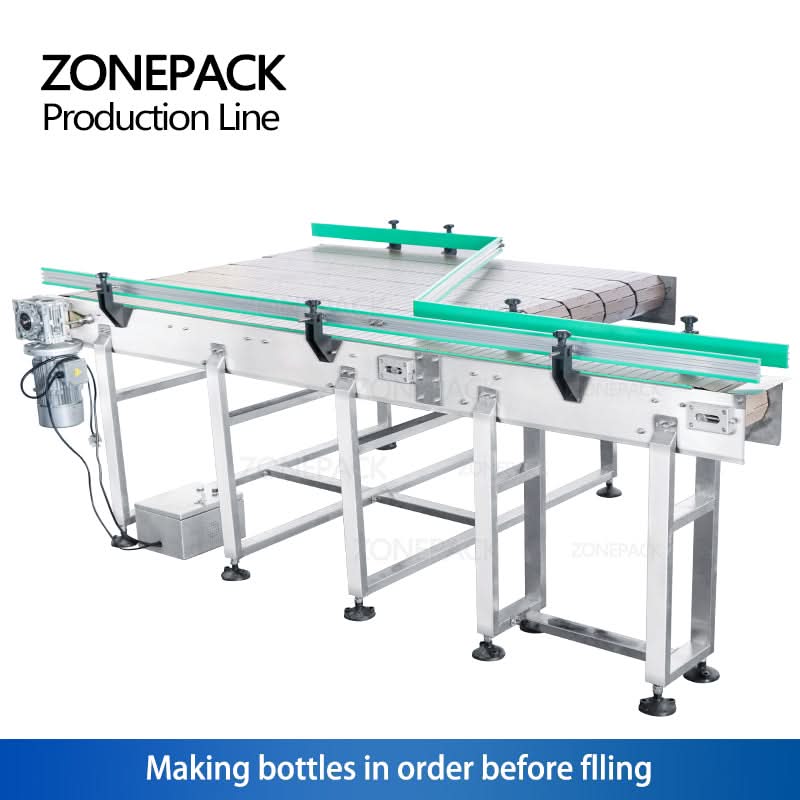

Conveyor size |
1760*1425mm + 960*190.5mm |
|
Conveyor width |
190.5mm (Single) |
|
Working speed |
0-20m/min |
|
Package size |
About 2050*1720*720mm |
|
Package weight |
About 276kg |
|

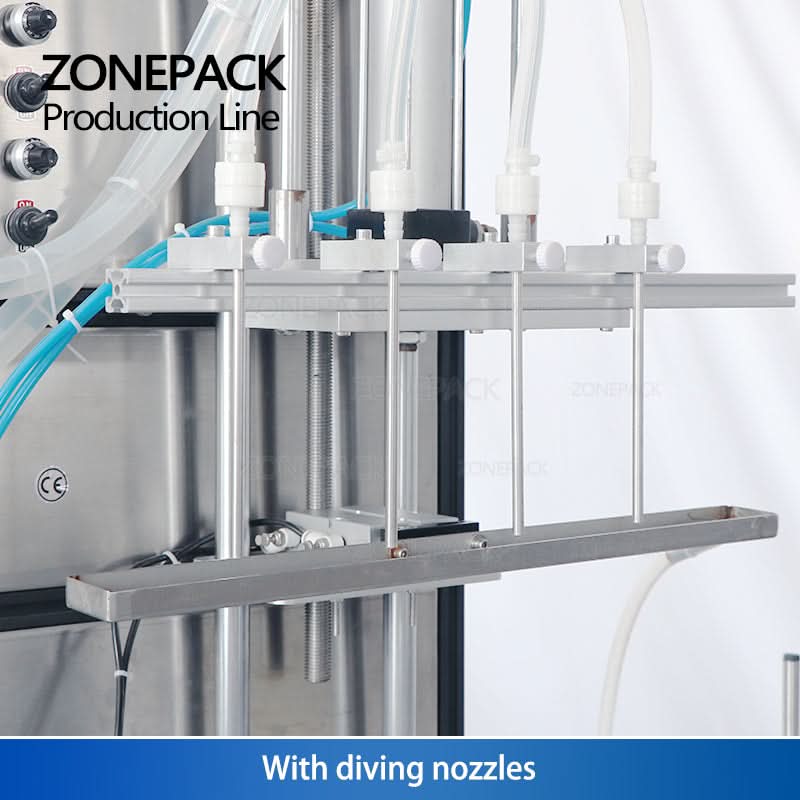

Machine Model |
ZS-VTMP80C |
||
|
Power Supply |
220V-50HZ/110V-60HZ |
||
|
Machine Power |
2000W |
||
|
Machine Pump |
316 Stainless Steel Magnetic Pump |
||
|
Suitable |
φ20-160mm H30-300mm |
||
|
Max Flow Rate |
6000ml/min |
7500ml/min |
12000ml/min |
|
Filling Accuracy |
≤100ml deviation≤±1ml > 100ml deviation≤±1% ( based on water) |
||
|
Filling Speed |
20-50 pcs/min |
20-50 pcs/min |
25-60 pcs/min |
|
Size of Air Compressor Connector |
φ8mm |
||
|
Net weight/Gross weight |
About 114.5kg/195.5kg |
||
|
Packing size |
About 2000*820*1580mm |
||
|

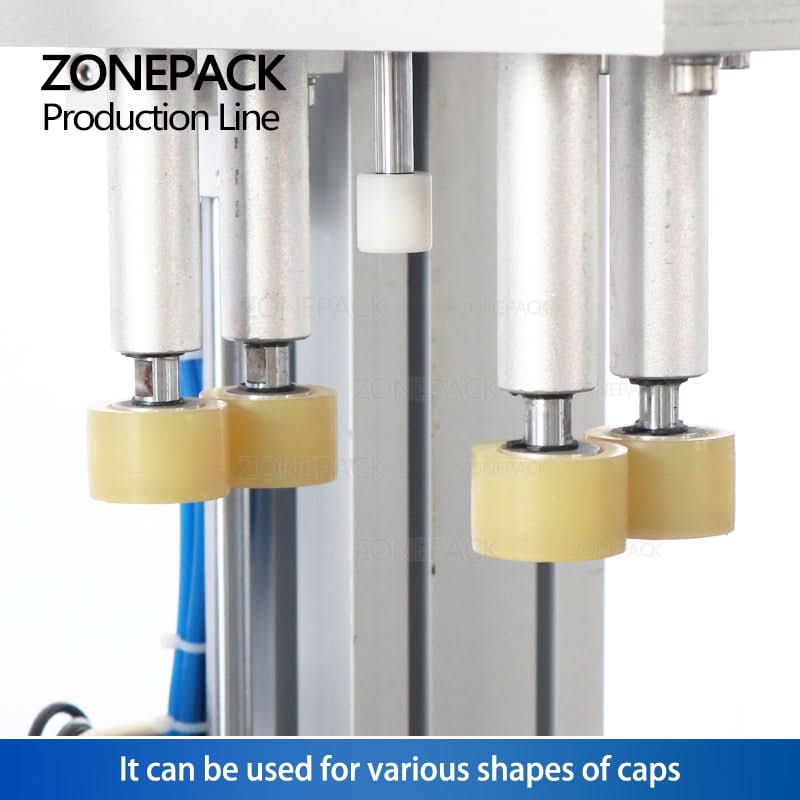

Machine Model |
ZS-XG16 |
|
Working Voltage |
AC220V/110v 50-60HZ |
|
Bottle Height |
30-300mm |
|
Cap Diameter |
18-70mm |
|
Bottle Diameter |
20-160mm |
|
Working Speed |
20-60 bottles/min (depend on bottle and cap size and shape) |
|
Working Pressure |
0.4-0.6MPa |
|
Machine Size |
About 1930*740*1600mm |
|
Packing size |
About 2000*820*1760mm |
|
Net weight/Gross weight |
About 113kg/192.5kg |
|

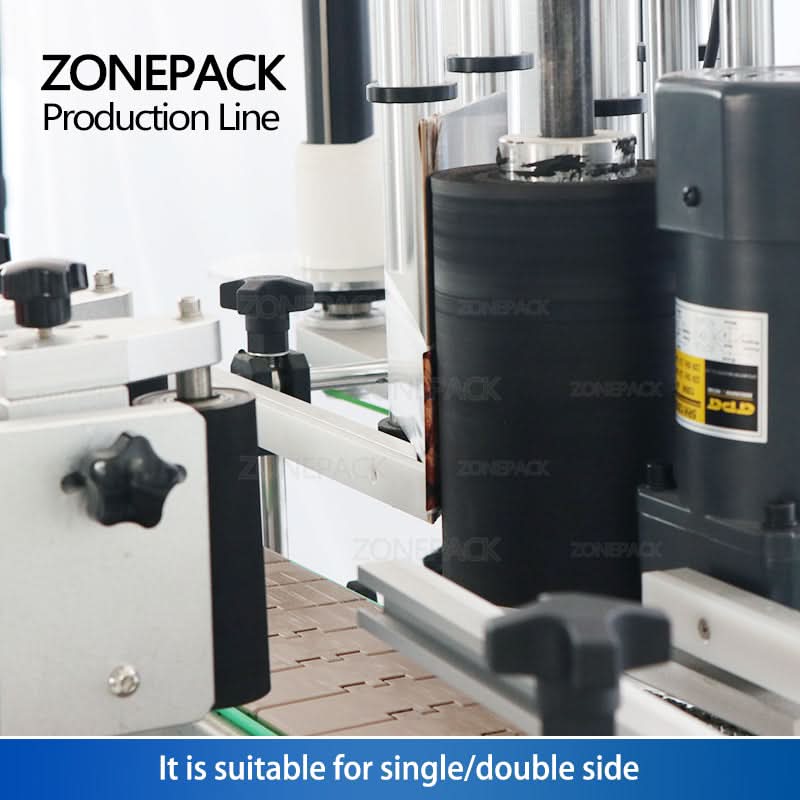

Model |
ZS-TB260 |
|
Power Supply |
AC220V 50Hz/60Hz 1500W |
|
Labeling Capacity |
25-50PCS /min(depend on bottle size) |
|
Labeling Accuracy |
±1.0mm |
|
Suitable Bottle Diameter |
φ30-100mm |
|
Label Size |
(L)15-200mm (H)15-150mm |
|
Label Roll Inside Diameter |
φ76mm |
|
Label Roll Outside Diameter |
φ350mm |
|
Conveyor Size |
1950(L)*100mm(W) |
|
Machine Size |
About 2000*1400*1300mm |
|
Packing Size |
About 2110*1040*1400mm |
|
Net weight/Gross weight |
About 223.5kg/280kg |
