1. Two filling heads can improve working efficiency.
2. It not only can separately control each head but also can filling in different filling speed.
3. Can use only one nozzle to work.

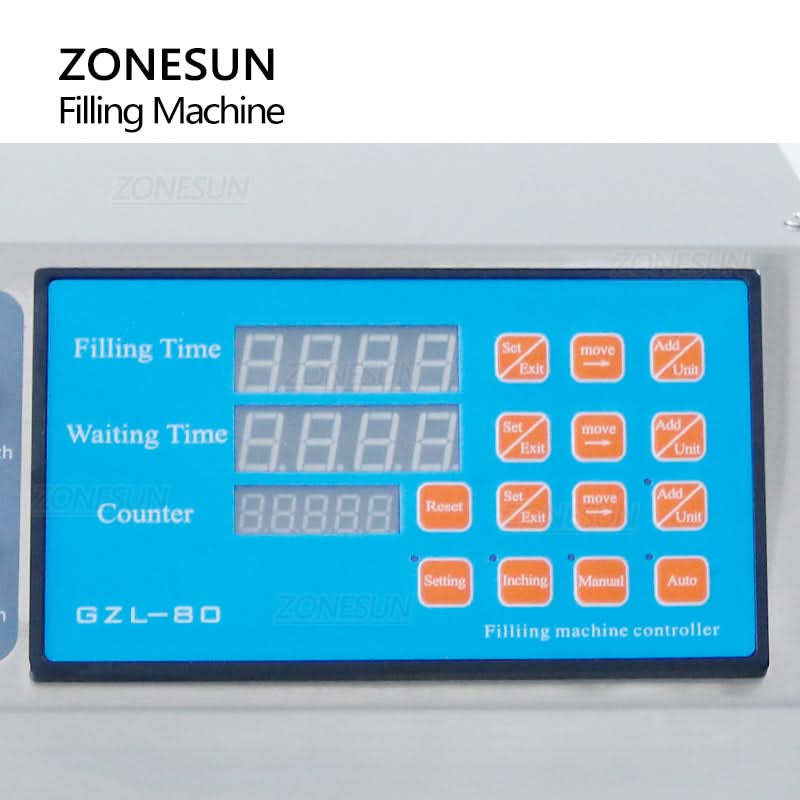

4. Digital Panel, very easy to operate. Filling Liquid From 3-4000ml very precisely per filling head.
Voltage AC 110V/220V
Filling Range 3ml-4000ml/min for each filling head
Max Flow Rate 4L/min
Package Size 400X380X200 (mm)
Max Suck Distance 2meter
Anti-dripping Funtion Available
Memory Function out of power Available

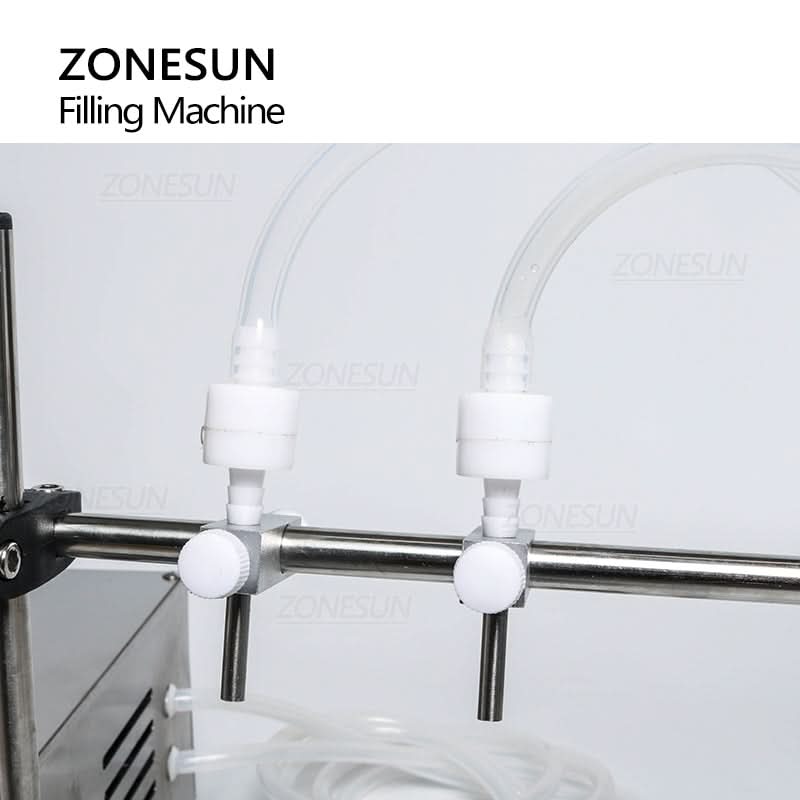

Interior diameter of filling nozzle 4/6mm
The feature of diaphragm pump
1. No need to oil seal, no oil inside, no pollution when fill liquid.
2 The pump chamber is separated from the motor. The liquid will not permeate into the motor when you use it for a long time,which greatly prolongs the life of the pump.
3. Sealing well, fast self-priming and stable, no need to manually add water.
4. We suggest you use this machine to filling the liquid not thicker than edible oil.
1. Import single-chip microcomputer control, high efficiency, low power consumption
2. Automatic counting function, effectively control filling quantiy
3. Digital tube display, touch screen is very easy to operate
4. High filing accuracy
5. Wide Voltage range
6. Working performance is stable and can be used for long time
7. This can self-suck the liquid.
8. The pump can stand for PH value within 5-8
9. Anti-dripping design with 2 heads.
10. Reasonable design, made of stainless steel, meet GMP requirement
