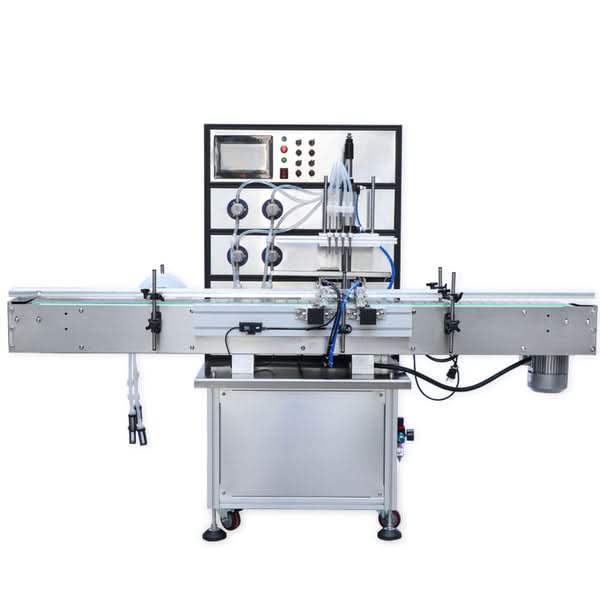

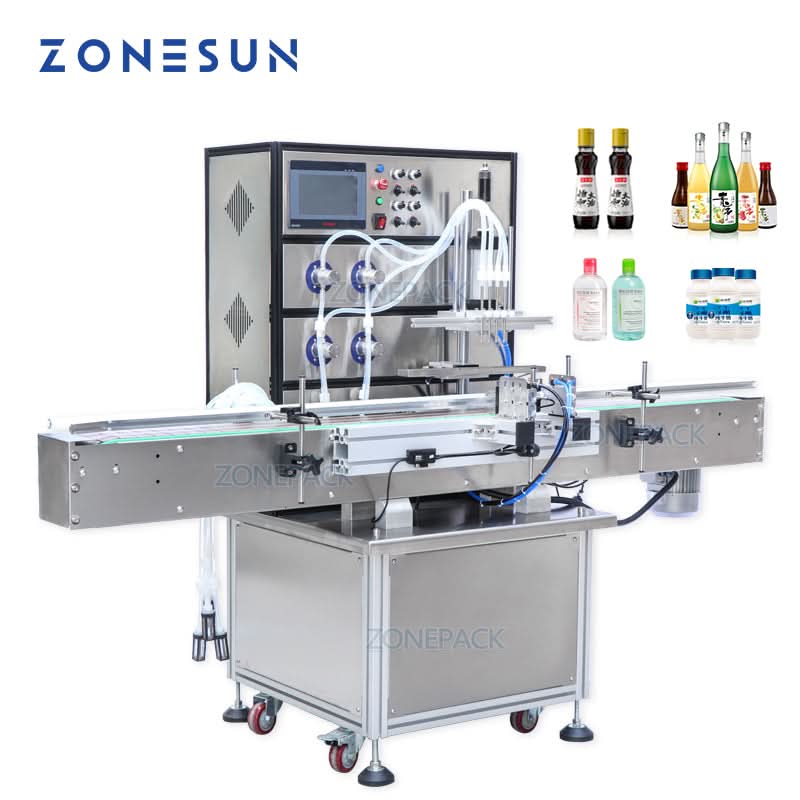

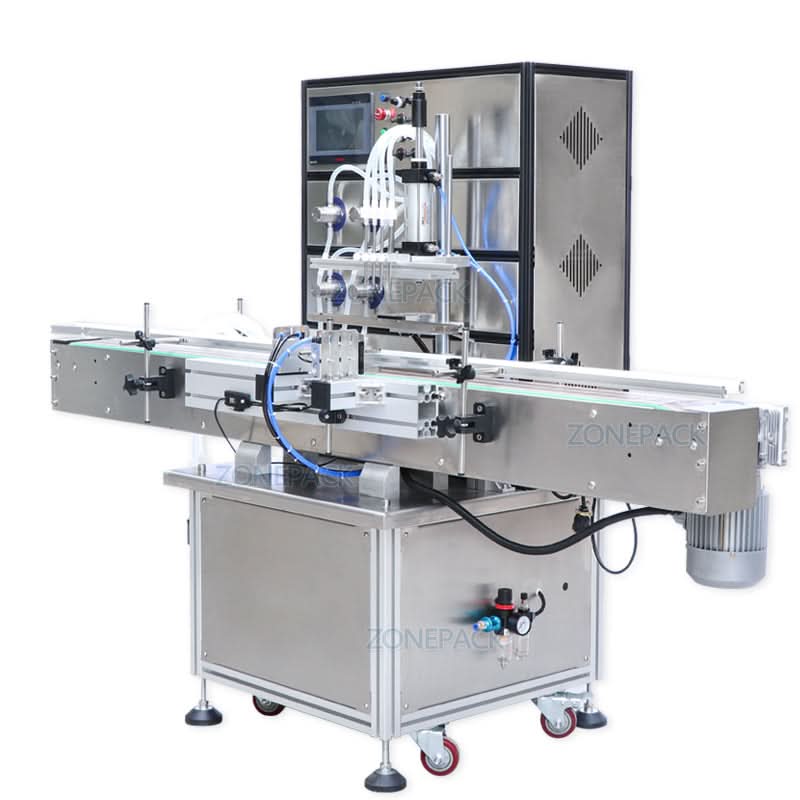

The ZONESUN ZS-VTMP80C is a fully automatic liquid filling machine equipped with a high-precision magnetic pump, designed for accurate and efficient filling of water, milk, toner, wine, and other low-viscosity liquids. With multiple independently controlled nozzles and a built-in conveyor, it integrates seamlessly into production lines to boost output and consistency. Suitable for containers ranging from φ20–160mm in diameter and 30–300mm in height, this machine is widely used in the food, cosmetics, and pharmaceutical industries.
Parameter
|
Container size
|
φ20-160mm H30-300mm
|
|||
|
Max flow rate
|
3000ml/min
|
5500m/min
|
5500ml/min
|
7500ml/min
|
|
Material of pump
|
Plastic
|
304stainless steel
|
316stainless steel
|
316stainless steel
|
|
Flling accuracy
|
≤100ml deviation≤±1ml
> 100ml deviation≤±1% ( based on water)
|
|||
|
Flling speed
|
20-40pcs/min
|
20-50pcs/min
|
20-50pcs/min
|
25-60pcs/min
|
|
|
(depending on bottles and flling liquid)
|
|||
|
Power supply
|
220V-50HZ/110V-60HZ
|
|||
|
The whole machine power
|
2kw
|
|||
|
Packing weight
|
150kg
|
|||
|
Packing size
|
2000 x 820 x 1580mm
|
|||

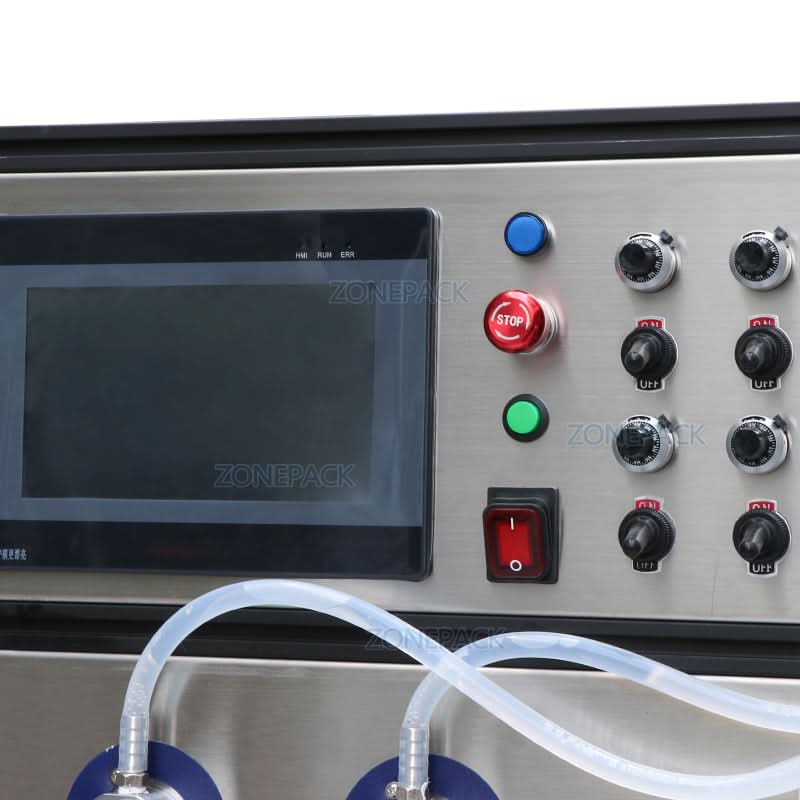

ENGLISH CONTROL PANEL
The English-language operating panel controls filling time and other working data.
EMERGENCY STOP AND OUTPUT CONTROLS
The emergency-stop button supports operator and machine safety, while the rotary knobs adjust filling output.

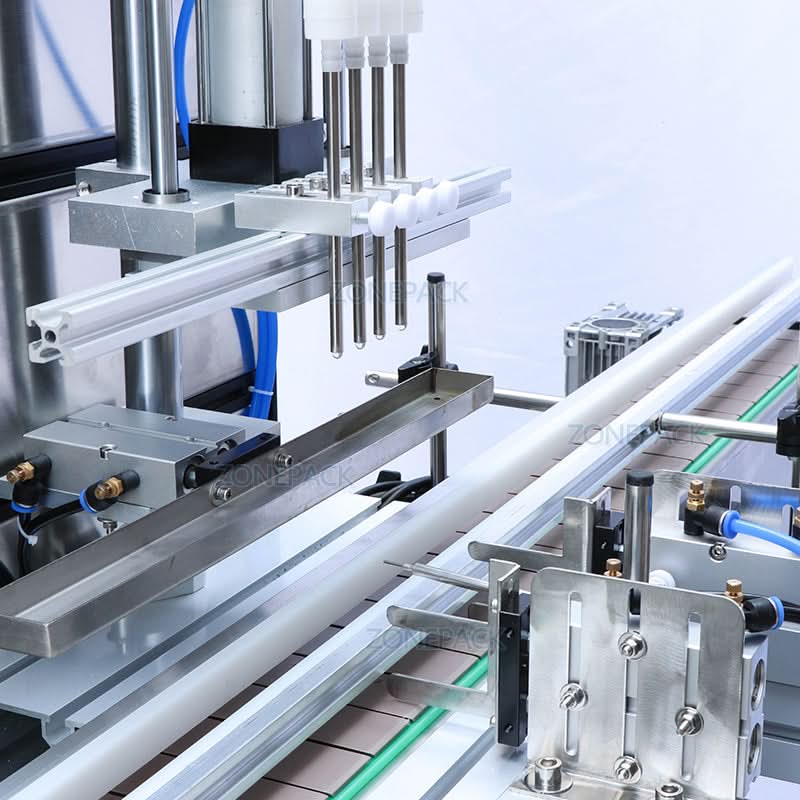

INDEPENDENT ANTI-DRIP NOZZLES
The anti-drip nozzles can be controlled independently. Two-, six-, and eight-nozzle configurations are also available.
ADJUSTABLE CONVEYOR
The preset conveyor speed can be adjusted when required.

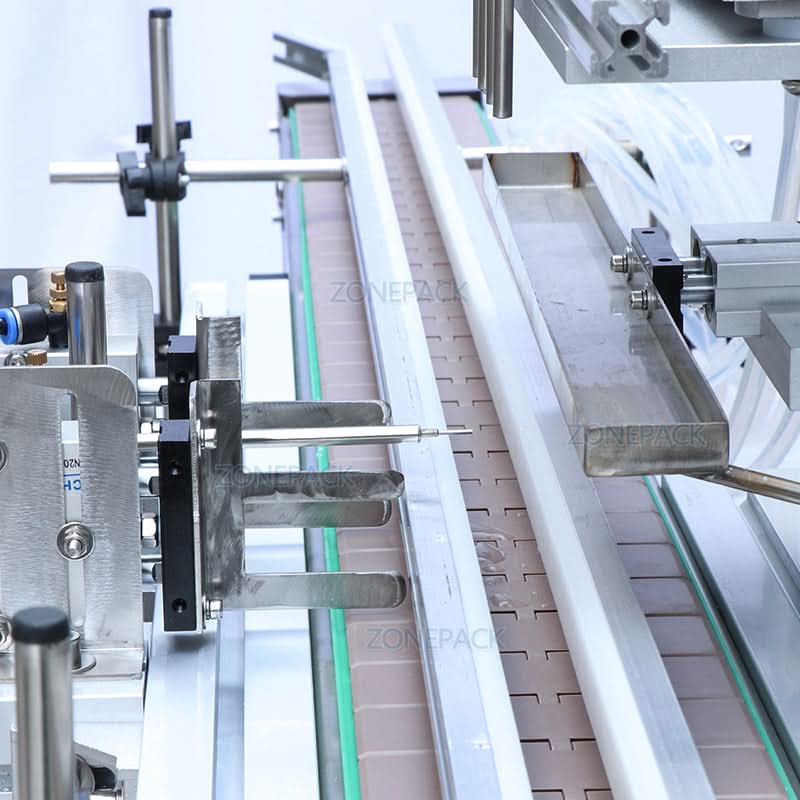

ANTI-DRIP GROOVE AND BOTTLE-SEPARATING PLATE
The anti-drip groove simplifies cleaning, while the separating plate spaces bottles accurately to help prevent missed or wasted containers.
SENSOR SENSITIVITY CONTROL
The adjustment control sets electric-eye sensitivity for accurate machine operation.
