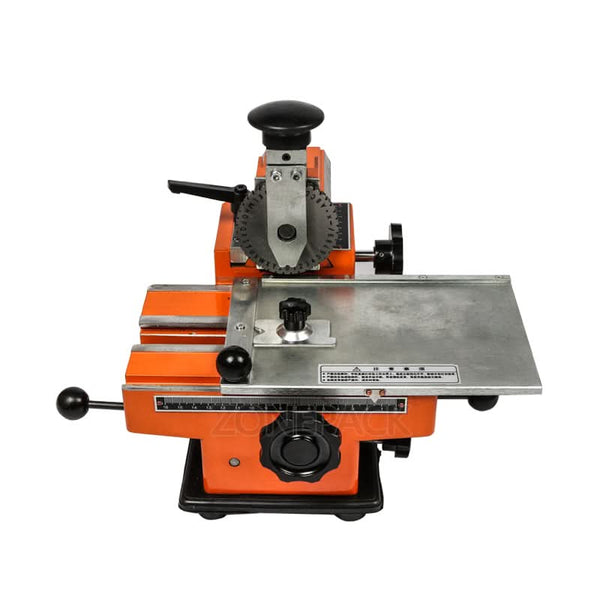

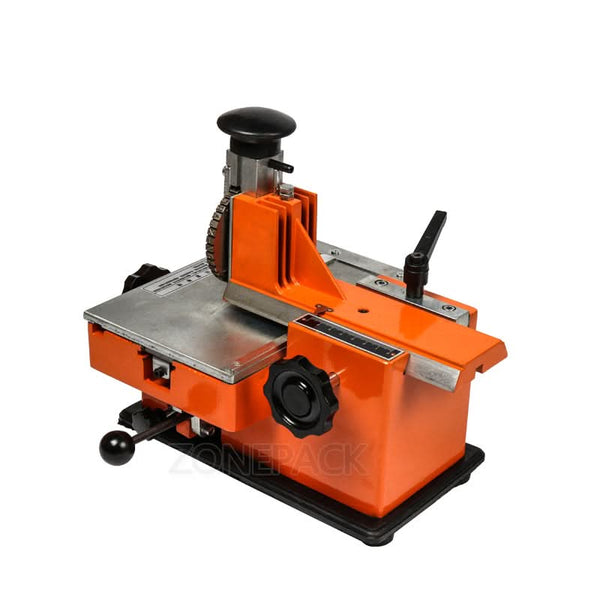

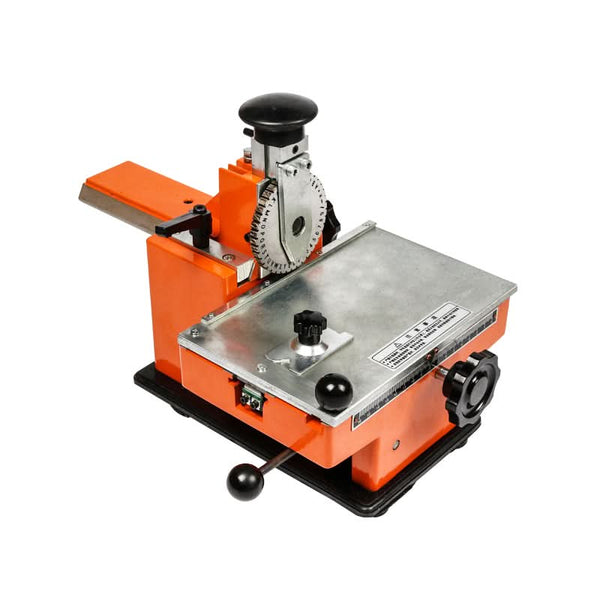

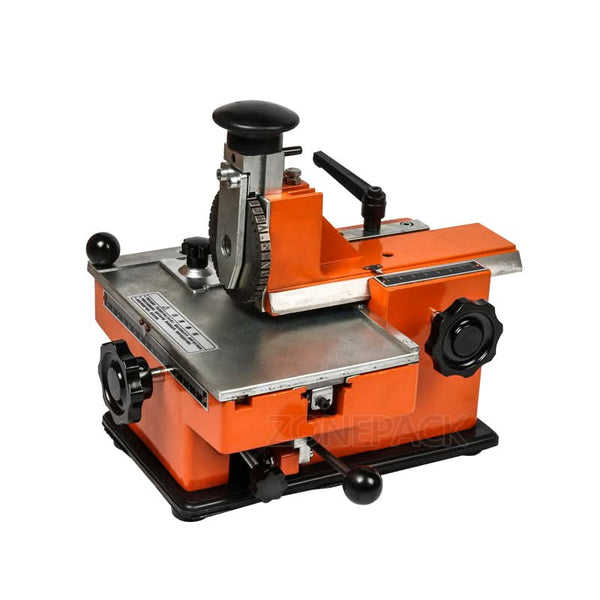

ZONEPACK Manual Sheet Embosser Metal Stainless Steel Stamping Printer Dog Tag Embossing Nameplate Marking Equipment Labels Tools

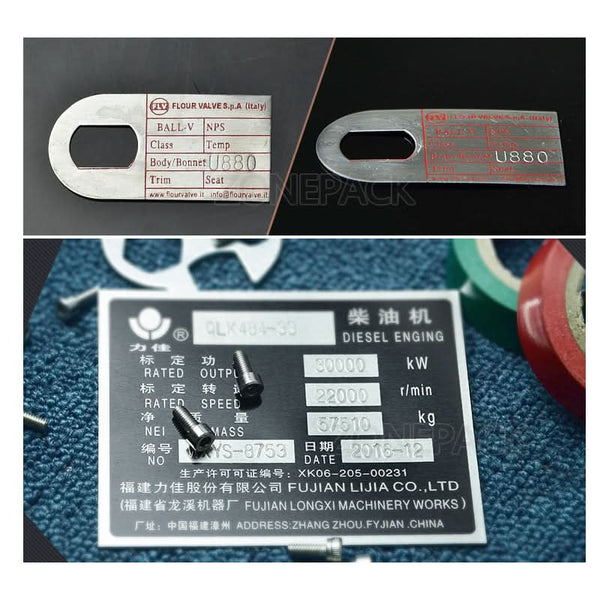

Emboss on all types of aluminum, copper, stainless steel, plastic tag for mechanical, electrical, pumps, valves, automobiles, motorcycles, electrical appliances. It embosses variable parameters: such as dog tag, specific model, date, batch number, serial number, serial number and so on.
Tag Material: Iron, Aluminum, Copper, Stainless steel
Maximum Label Size: 180*135mm
Letters Contained: A to Z
Numbers 0 to 9
Characters: . X / -
Height and Width:
2.0mm--2.0mm x 1.1mm (Suitable for a square within 3~4 mm height)
2.5mm--2.5mm x 1.4mm (Suitable for a square within 4~5 mm height)
3.0mm--3mm x 1.6mm (Suitable for a square within 5~6 mm height)
4.0mm--4mm x 2.1mm (Suitable for a square within 6~7 mm height)
5.0mm--5mm x 2.6mm (Suitable for a square within 7~8 mm height)
6.0mm--6mm x 2.8mm (Suitable for a square within 8~10 mm height)
Notice : Machine come with one Gear,Above Size Gear is option for you,You want which one please tell us.
Instructions for use:
1.The placing of signs methods, Signs placed in the work surface as shown upper left corner, with the signs and magnet clip without compression plate loosening.
2.Wheel loading and unloading, first used the word wheel wrench to remove the wheel nuts, and selected the right wheel, wheel lock fitted to the nut, aligned pointer.
3.Print, and start position adjustment, good signs placed to separate the clutch, turn the hand wheel spacing and kerning hand wheel so that wheel aligned characters printed on the box location just above the lock extension units, release the clutch lever, under pressure for a few kerning feed handles can be seen feeding on the caliper spacing density (hand wheel with a good tune kerning) depress the clutch, turn the hand wheel, release the clutch lever back in situ, with the palm of your hand slap of rubber parts, spacing after the feed handle pressure, to achieve printing.
