Regular price $349.90 Sale



Description

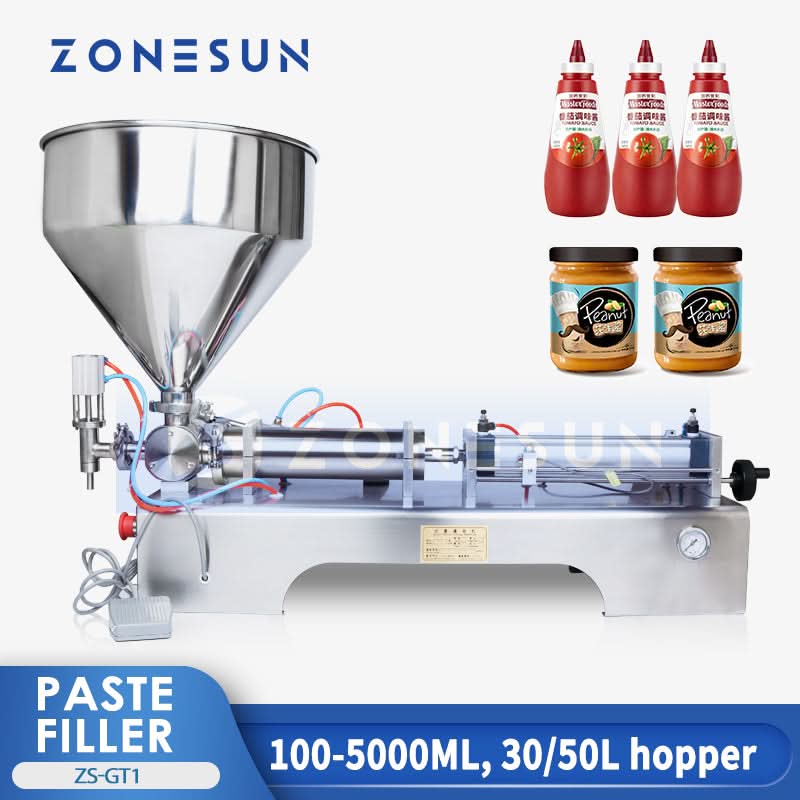

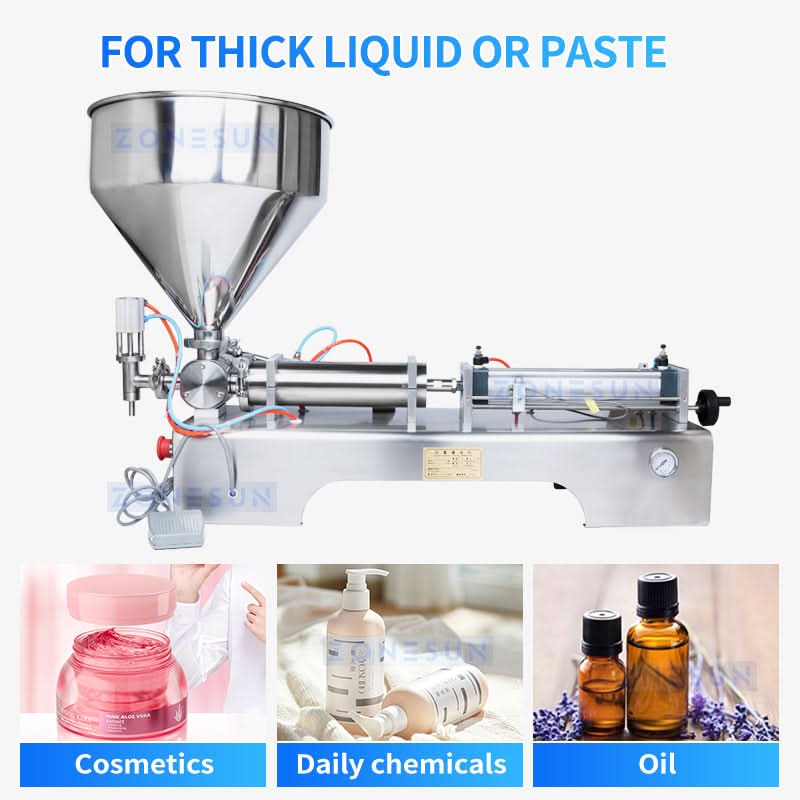

The structure of this paste filling machine is simple and reasonable precision, easy to operate, user-friendly design more in line with the requirements of the modern enterprise. Widely used in pharmaceutical, cosmetic, food, pesticides and special industries, is a high-viscosity fluid, paste quantitative filling the ideal equipment.

Features

The series filling machine structure is reasonable, model compact, reliable, accurate, easy to operate, Material contact parts are made of 304 stainless steel material, meet the GMP certification requirements. According to user needs within the scope of any regulation models filling volume and filling speed, high filling accuracy. Filling head adopts anti-leakage and lifting filling device.


Parameters

Model:G1 Paste Filling Machine
Voltage supply:220/110V 50/60Hz
Power:10W
Filling accuracy:≤ ± 0.5%
Filling speed:5-20bottles / min
With gas consumption:≥ 0.1m3/min
Filling volume:5-100/10-300/50-500/100-1000/300-2500/1000-5000ml (Optional)
Air pressure:0.4-0 .6 MPa(Not included the air compressor , need buy seperately )
Machine Weight:40KG
Machine size:1150x420x380mm

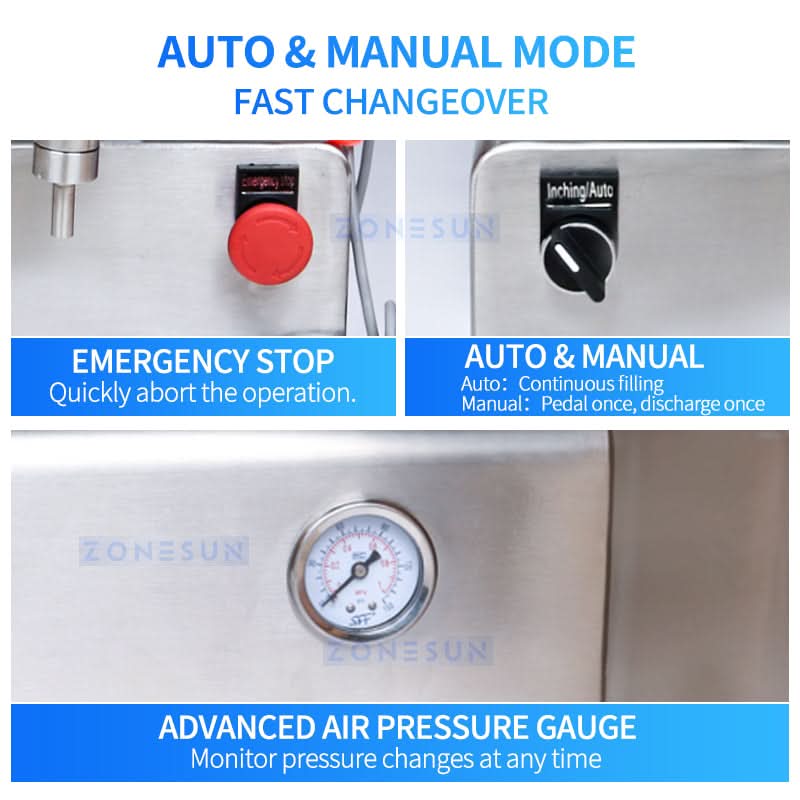

Control Panel:

Semi Auto/Continuous Operation Selector Switch
Air Pressure Gauge
Air Intake Pressure Adjustment
Piston Volume Adjust
Accessory:
Air Consumption 3-5KG   0.4-0.6MPa

Advantage:

All Parts in Contact with Product are Food Grade (SS 304/316)
Includes one 30Liter Hopper
Stainless Steel Construction
Rugged Rotary Valve System Design
Pneumatic Operation
Silica gel O-ring System(cam bear 200 Celsius degree)
Piston Feed Speed Adjustment
No-drip Option Included and Installed
Extremely Accurate (+/- 1%)
Extremely Easy to Clean and Maintain
Sanitary Stainless Steel Quick Disconnect Fittings
Extremely Easy to Operate
Quick Connect/Disconnect Pneumatic Fittings.
