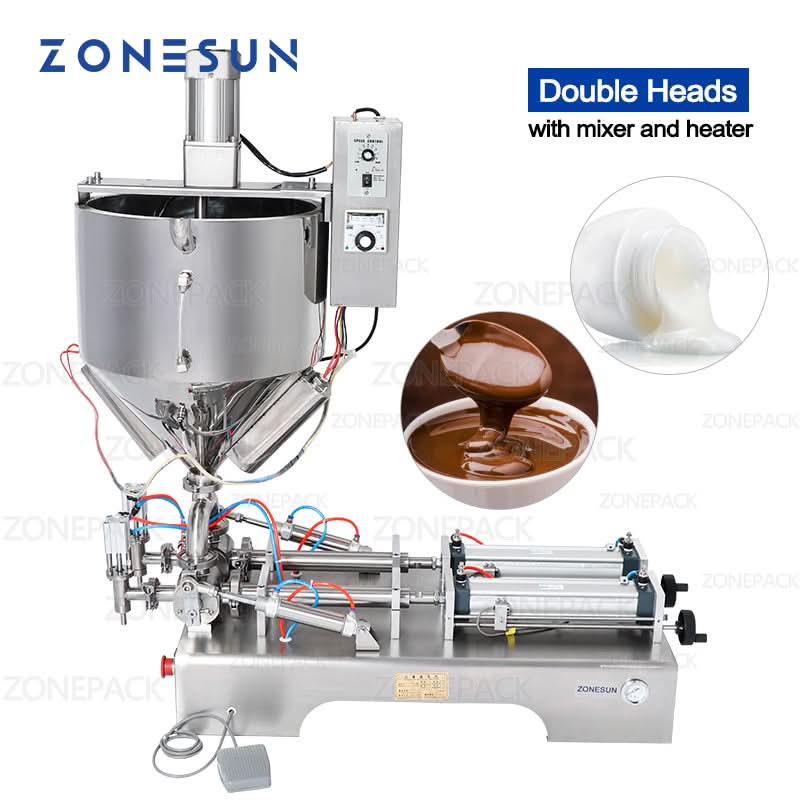

ZONEPACK Mixing with Heater Filler Arequipe Viscous Liquid Paste Chocolate Sauce Alcohol Gel Equipment Bottle Filling Machine
ZONEPACK Mixing with Heater Filler Arequipe Viscous Liquid Paste Chocolate Sauce Alcohol Gel Equipment Bottle Filling Machine
ZONEPACK Mixing with Heater Filler Arequipe Viscous Liquid Paste Chocolate Sauce Alcohol Gel Equipment Bottle Filling Machine
ZONEPACK Mixing with Heater Filler Arequipe Viscous Liquid Paste Chocolate Sauce Alcohol Gel Equipment Bottle Filling Machine
ZONEPACK Mixing with Heater Filler Arequipe Viscous Liquid Paste Chocolate Sauce Alcohol Gel Equipment Bottle Filling Machine
ZONEPACK Mixing with Heater Filler Arequipe Viscous Liquid Paste Chocolate Sauce Alcohol Gel Equipment Bottle Filling Machine

ZONEPACK Mixing with Heater Filler Arequipe Viscous Liquid Paste Chocolate Sauce Alcohol Gel Equipment Bottle Filling Machine

Regular price $1,950.00 Sale

About pneumatic filling machine
It will come together with spare parts and maintenance tools if you buy
We not only provide standard machines but also customize whatever you like, like add up a mixer for very high density stuffs, process a heating hopper, or make a bigger hopper, or make more filling head too meet with high production efficiency requirement, and even can provide you assistant equipment with cost price, like air compressor, and so on.

About filling solution business
Generally, our filling machines are divided into liquids filler, and paste filler, manual filler and semi-automatic filler and fully automatic filler, you can find almost filling solution over here, as we are very professional in this field, we would like give you our suggestion.

Features:
220/110V  50/60HZ (if you need 110v , please inform us ,then we will make 110v for you )
· Approximate Speed 20-40 pcs/min (depending on operator speed, product density, draw length, a fill speed, among others)

· All Parts in Contact with Product are Food Grade (SS 304/316)
· Includes one 30Liter Hopper
· Stainless Steel Construction

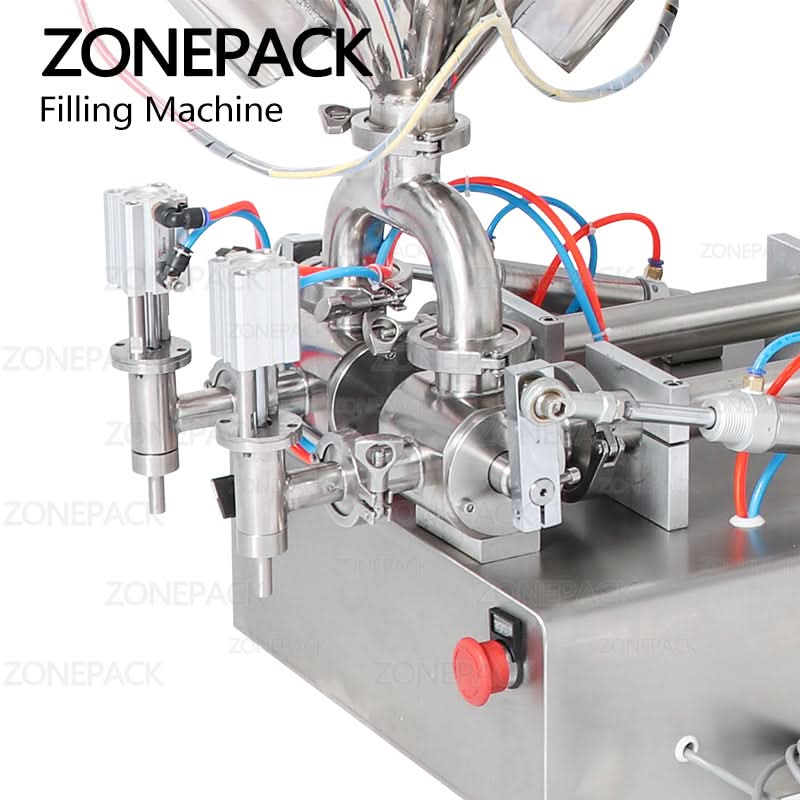

· Rugged Rotary Valve System Design
· Pneumatic Operation
· Silica gel O-ring System(cam bear 200 Celsius degree)
· Piston Feed Speed Adjustment
· No-drip Option Included and Installed
· Extremely Accurate (+/- 1%)
· Extremely Easy to Clean and Maintain
· Sanitary Stainless Steel Quick Disconnect Fittings
· Extremely Easy to Operate
· Quick Connect/Disconnect Pneumatic Fittings.

Control Panel:
 Semi Auto/Continuous Operation Selector Switch
 Air Pressure Gauge
 Air Intake Pressure Adjustment
 Piston Volume Adjust

Accessory
Air Consumption 3-5KG   0.4-0.6MPa
Wearing parts :  Silica gel O-ring System (when delivery, we will prepared enough for you use in one year.)

Attention

We will test all of the filling machine before send out , so it’s normal that the machine pump and tube with water inside when you receive it. !!!!!!
