| Labeling capacity | ±1.0mm |
|---|---|
| Labeling speed | 15-35pcs/min |
| Suitable bottle size | Diameter 20-230mm; height ≤ 260mm |
| Suitable label size | length 20mm-300mm; Height 20mm-230mm |
| Machine size | 950*540*530mm |
| Power supply | 110V/220V/50Hz |
| Machine weight | 35kg |
| Label inner diameter | 76mm |
| Label outer diameter | 280mm |

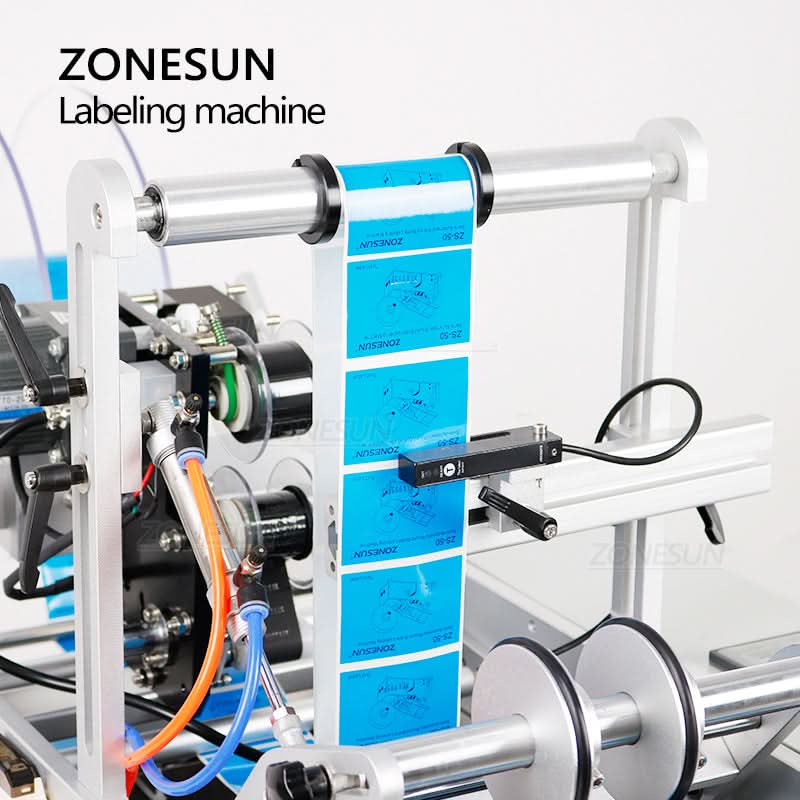

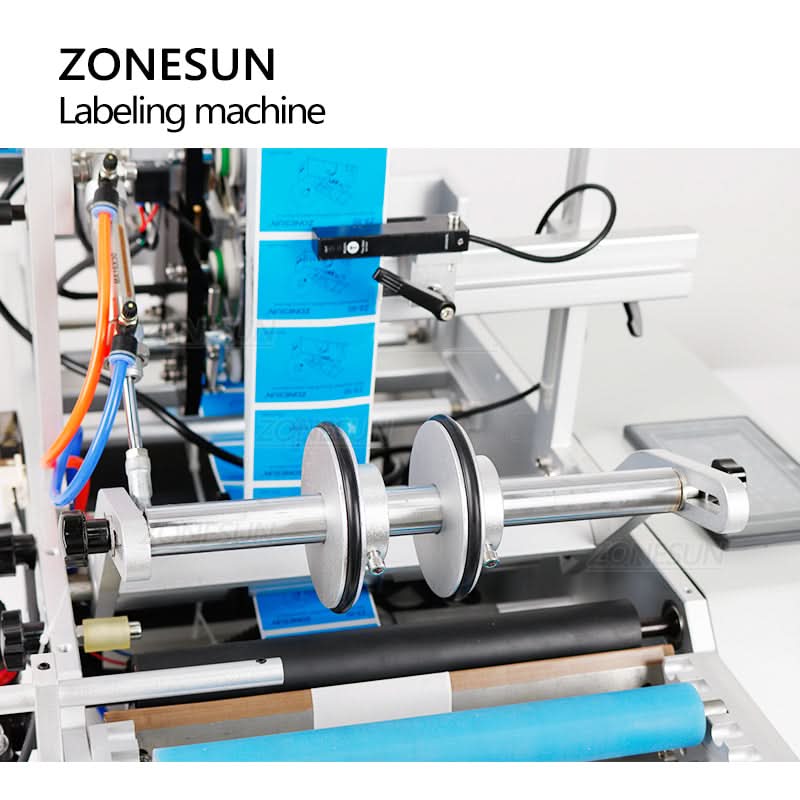

ELECTRIC EYE
The electric eye accurately detects labels and bottles to help prevent missed or wasted labels and containers.
AIR-PRESSURE GAUGE
The gauge displays the air pressure in real time, allowing it to be adjusted as needed. An external air compressor is required and sold separately.
EMERGENCY-STOP BUTTON
The emergency-stop button helps protect the machine and operator during operation. The labeling speed is also adjustable.
SINGLE- OR DOUBLE-SIDE LABELING
The machine supports both single- and double-side labeling. The English-language control panel simplifies testing and operation.
TWO OPERATING MODES
Operators can select automatic operation or foot-pedal control according to production needs.
MOTOR
The adjustable-speed motor provides stable, efficient operation and is designed for long-term use and straightforward maintenance.

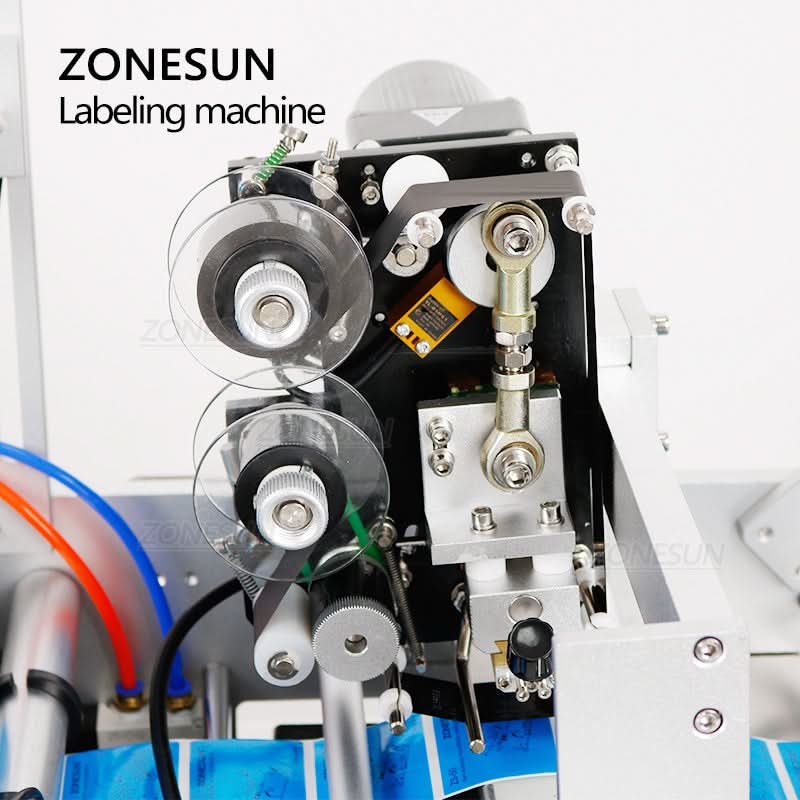

OPTIONAL DATE CODER
The machine can be equipped with a date coder, combining labeling and printing in one machine to shorten the production process.
