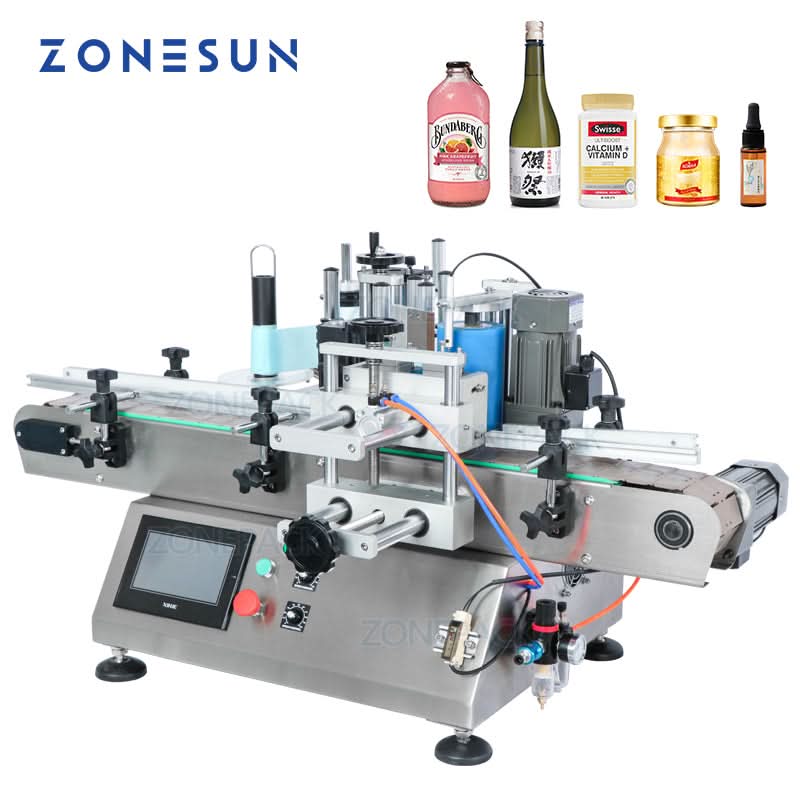

The ZONESUN ZS-TB500 is an automatic labeling machine for round bottles and jars. Its three-roller positioning structure supports a single label or front and back labels on the same round container. It is suitable for beverage, cosmetic, food and daily chemical containers with a bottle diameter of up to 100 mm.
Front & back label roll requirement: Front and back labels must alternate on the same roll in this sequence: front label, back label, front label, back label. Confirm the label layout and spacing with us before printing the roll.
Key Features
- Single-label or front-and-back double-label operation
- Working speed of approximately 20–50 bottles/min
- Suitable for labels measuring 15–140 mm wide and 25–300 mm long
- 7-inch touchscreen with adjustable delay time and working speed
- Standard and transparent-label sensor configurations available
- Optional coding unit for printing dates and batch numbers before labeling
Actual labeling speed depends on the bottle, label size and single-label or front-and-back operation.
Parameters
| Parameter | Specification |
|---|---|
| Machine Model | ZS-TB500 |
| Voltage | 110V, 60Hz / 220V, 50Hz |
| Working Speed | 20–50 bottles/min |
| Suitable Label Size | 15–140 mm (W) × 25–300 mm (L) |
| Label Roll Inner Diameter | 76 mm |
| Label Roll Outer Diameter | ≤240 mm |
| Suitable Bottle Diameter | ≤100 mm |
| Package Size | 1285 × 795 × 840 mm |
| Package Weight | 118 kg |
Choose Your Configuration
| Configuration | Label Type / Coding |
|---|---|
| Standard Label Sensor - No Coder | Opaque labels; no date or batch coding unit |
| Standard Label Sensor + Coder | Opaque labels; includes date and batch coding unit |
| Transparent Label Sensor - No Coder | Transparent labels; no date or batch coding unit |
| Transparent Label Sensor + Coder | Transparent labels; includes date and batch coding unit |
Select 110V or 220V to match your power supply. The coding unit is included only with a “+ Coder” configuration.
Before ordering: Confirm your bottle dimensions and label specifications. For tapered or irregular containers, contact us with bottle and label samples to confirm suitability.

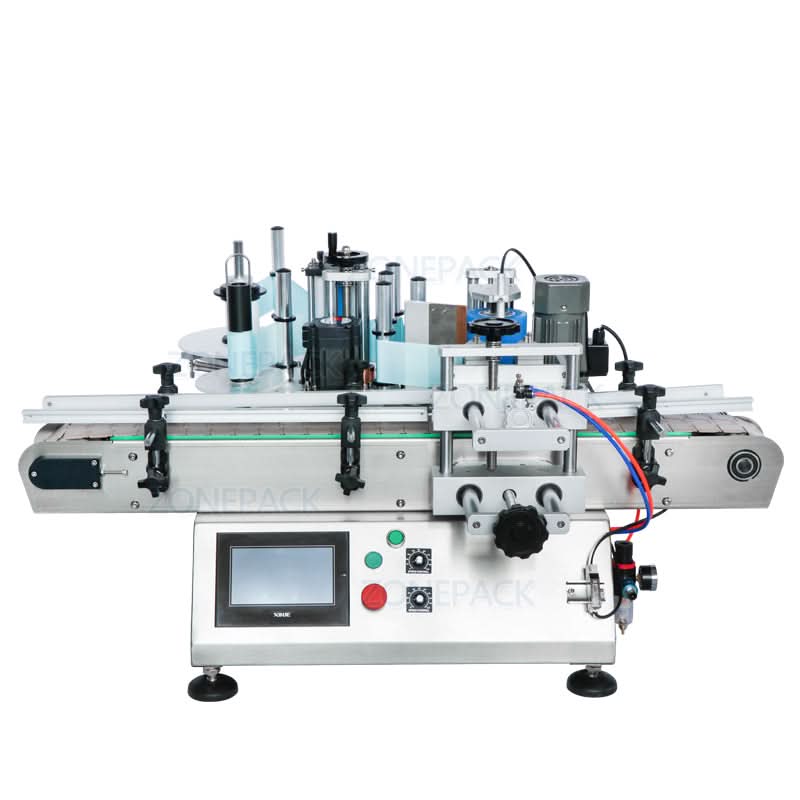

Image configuration: The overview image shows the machine with a coding unit. The supplied configuration depends on the option selected.

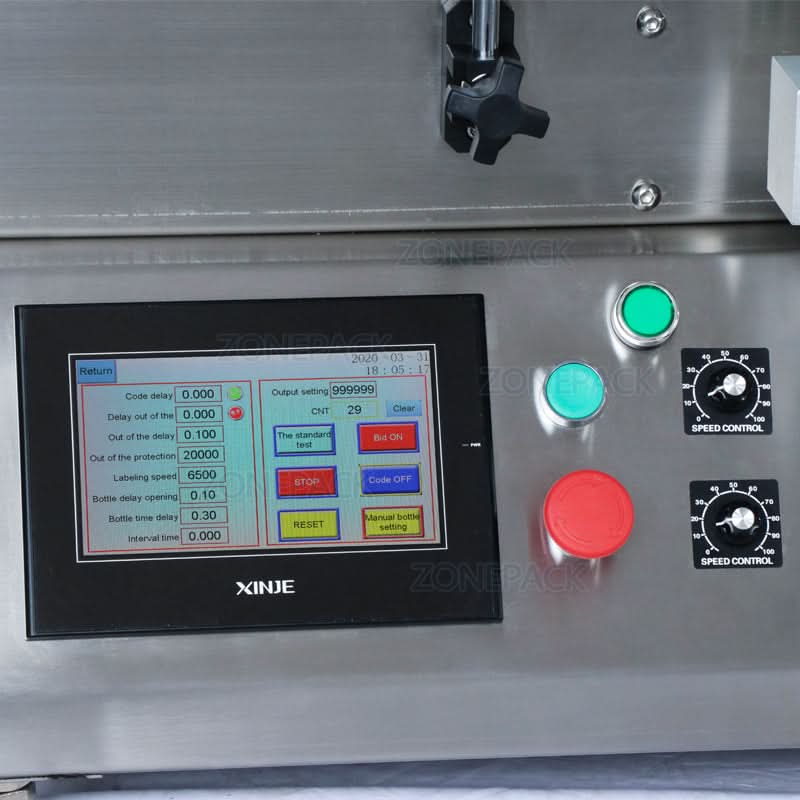

Use the English-language touchscreen to adjust delay time and working speed.

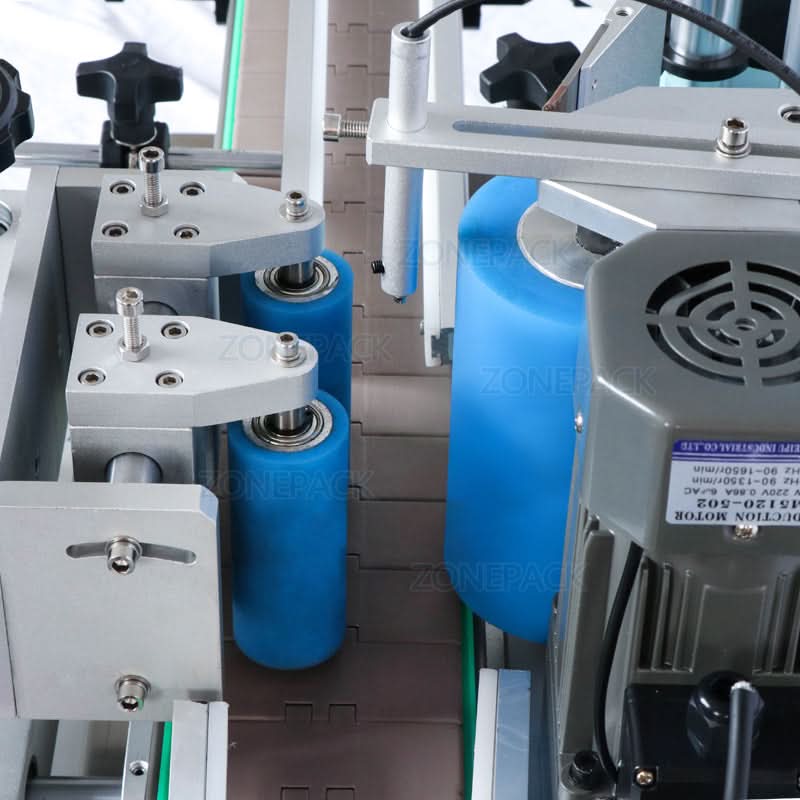

- Three rollers rotate round containers during labeling.
- The sensor detects containers as they enter the labeling position.
- Guide rollers feed the label roll into the labeling structure.
- Adjustable components support labels within the specified size range.
The optional coding unit prints dates and batch numbers on labels before application. Select a “+ Coder” configuration to include it.
- Motor drives the bottle-rotation and labeling mechanism.
- Variable-speed conveyor transports containers through the machine.
- Guide rails adjust for bottles up to 100 mm in diameter.
