ZONESUN V-Type Dry Powder Mixer & Blender, 2–200 L
- Price
- $554.00
Please check your cart or click "Buy It Now" to view shipping costs
Shipping Information
Shipping methods and costs vary by machine, package size, destination, and delivery method. Available options may include express delivery, air freight, sea freight, or logistics services.
To view the available shipping options and estimated cost, add the product to your cart and enter your delivery address at checkout.
We can help coordinate shipping and customs clearance for eligible destinations. Please contact us before ordering to confirm availability, delivery arrangements, and applicable charges.
For large machines, customized equipment, or complete production lines, please contact us before ordering so we can confirm the shipping method, packing requirements, freight cost, and estimated delivery time.
Import duties, customs clearance fees, local taxes, and other destination charges may apply.
V-Type Dry Powder Mixers in 2–200 L Capacities
The ZONESUN V-type mixer is designed for blending compatible dry powders and granules with good flowability. The rotating V-shaped vessel tumbles the material during mixing. Choose from V2, V5, V8, V10, V20, V50, V100 and V200 capacity options to match your batch requirements.
Applications include suitable food powders, chemical powders and other dry blending tasks. Confirm material compatibility, cleaning requirements and the required blend quality for your process before selecting a model.
Choose Your Capacity
| Model Option | Total Vessel Volume |
|---|---|
| V2 | 2 L |
| V5 | 5 L |
| V8 | 8 L |
| V10 | 10 L |
| V20 | 20 L |
| V50 | 50 L |
| V100 | 100 L |
| V200 | 200 L |
Capacity refers to total vessel volume, not the recommended batch volume or batch weight. Each model needs free space for the material to move during mixing. Confirm the working volume, suitable loading range, power, dimensions and electrical requirements of your selected model.
How to Select a Batch Size
- Specify your material: Provide the powder type, bulk density, particle size, flowability and moisture condition.
- Specify your target batch: Tell us the required weight or volume per batch and the ingredients to be mixed.
- Check blend quality: Mixing time and uniformity depend on the formulation, loading level and material properties. Sample testing helps establish a suitable process.
- Confirm suitability: Sticky, wet or strongly clumping materials need an application check before ordering.
ZS-V2 / 2 L Technical Specifications
The specifications below apply to the 2 L ZS-V2 version. They do not describe the larger capacity options.
| Parameter | Specification |
|---|---|
| Model | ZS-V2 (2 L version only) |
| Total Cylinder Volume | 2 L |

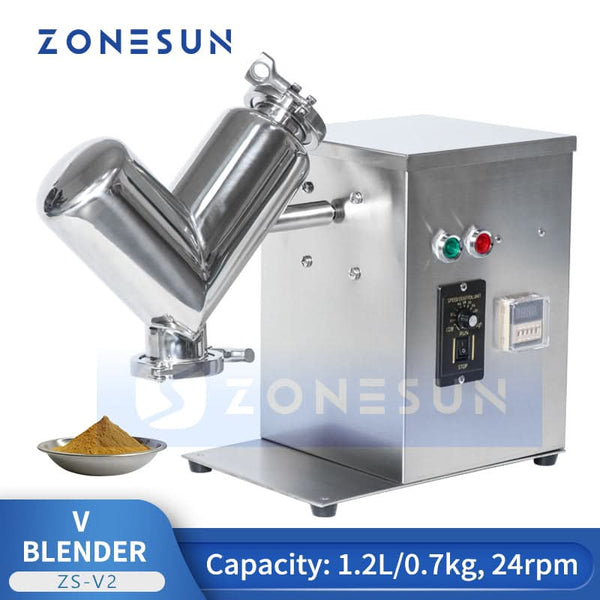

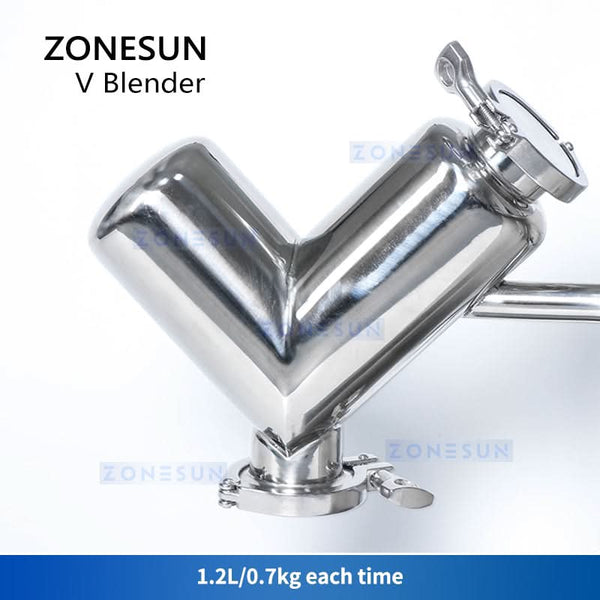

| Recommended Filling Volume | 1.2 L |
| Reference Batch Weight | Approx. 0.7 kg; depends on the powder's bulk density and suitable loading level |
| Voltage Options | 110 V / 60 Hz or 220 V / 50 Hz |

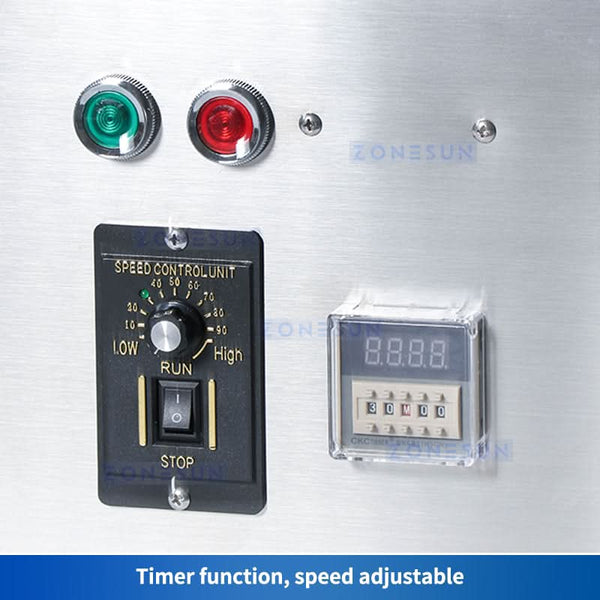

| Timing Range | 0–9999 minutes |
| Power | 0.25 kW |
| Mixing Speed | 24 rpm |

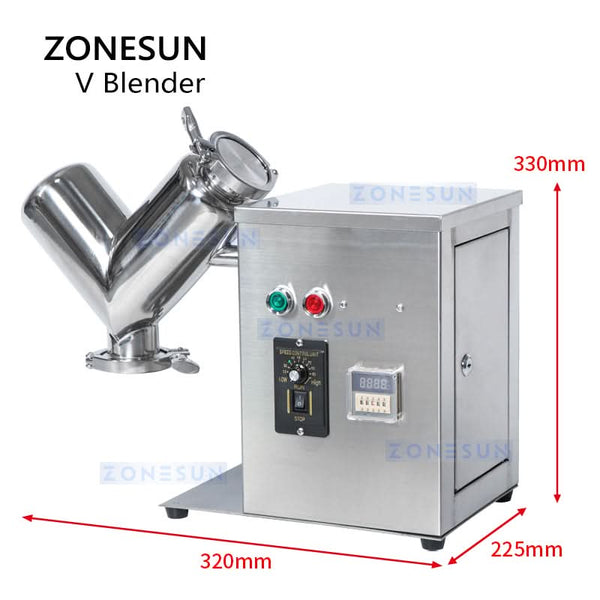

| Machine Dimensions | 320 × 225 × 330 mm |
| Net Weight | 14 kg |
| Package Dimensions | 330 × 420 × 400 mm |
| Listed Gross Weight | 19 kg |
For the 2 L version, 1.2 L is the listed recommended filling volume. The reference weight of 0.7 kg is not a universal capacity for all powders: the mass held in a given volume changes with bulk density. The timer's full setting range is not a recommended mixing duration.
Before Ordering a Larger Model
- Confirm the selected model's working capacity, motor power, mixing speed, dimensions and packing details.
- Match voltage and frequency to the available power supply; confirm phase, current and connection requirements where applicable.

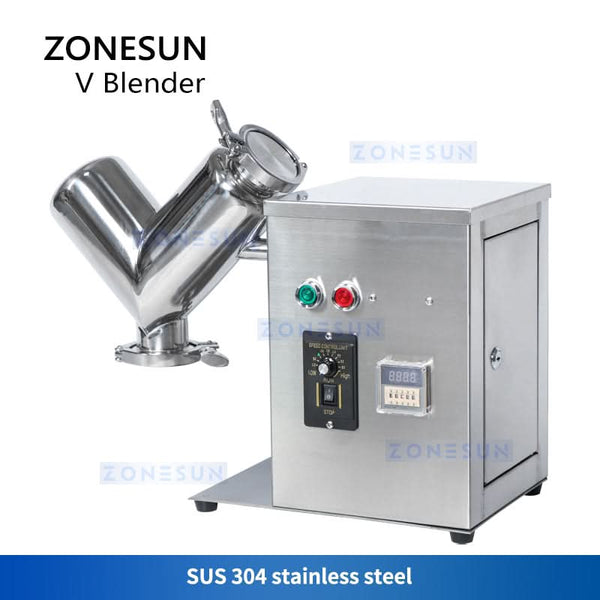

- Confirm product-contact material grade, access for cleaning, discharge arrangement and any required accessories.
- If you need an additional agitator or special configuration, confirm availability for the selected model before ordering.
Contact ZONESUN with your powder characteristics and target batch size for model-selection guidance.

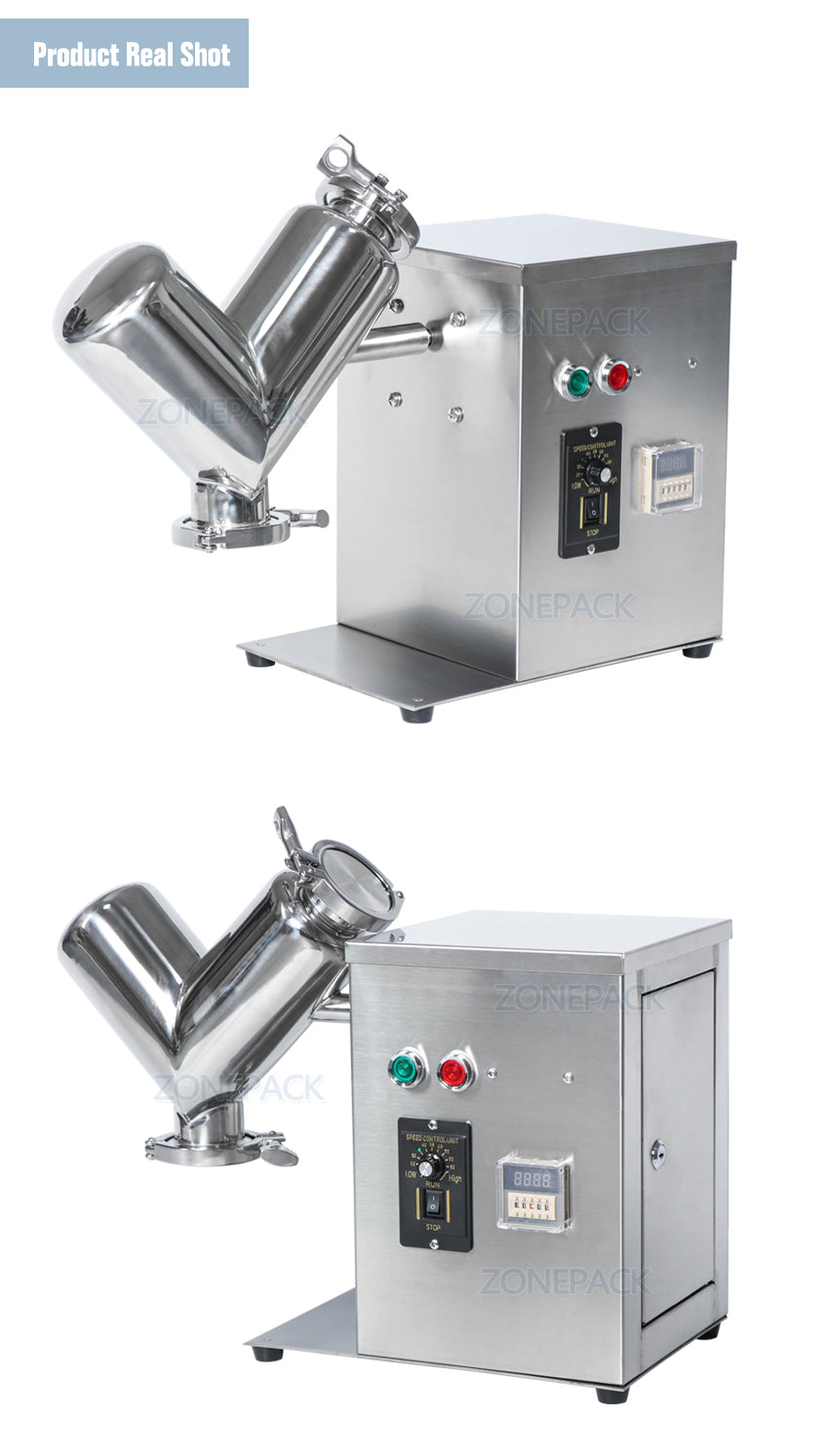

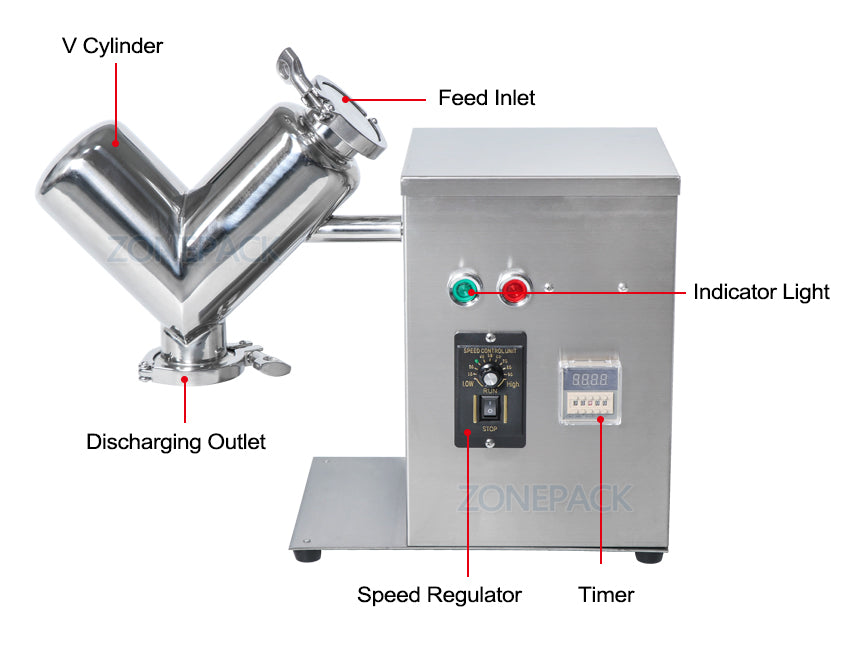

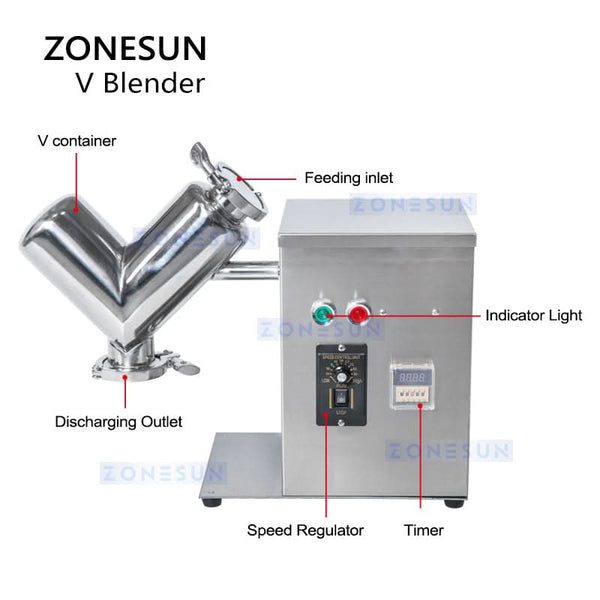

Machine & Application Details
Images show machine and application details. Confirm the appearance, dimensions and supplied components for the capacity selected.
