- This strapping tool has large tightening force, with the special structure design, easy steel, aluminum, heavy-duty packaging tighten and packaging.
- Machine durability, all of the body and components are made of high strength alloy materials, high-reliability design, advanced manufacturing technology.
- This Pneumatic Strapping Tool is widely used for paper, aluminum, wood, wooden packaging, chemical fiber, cotton, tobacco, chemicals, metal product industries.
- ZONEPACK one year warranty . if u meet any problem . please contact with us .such as how to use it.

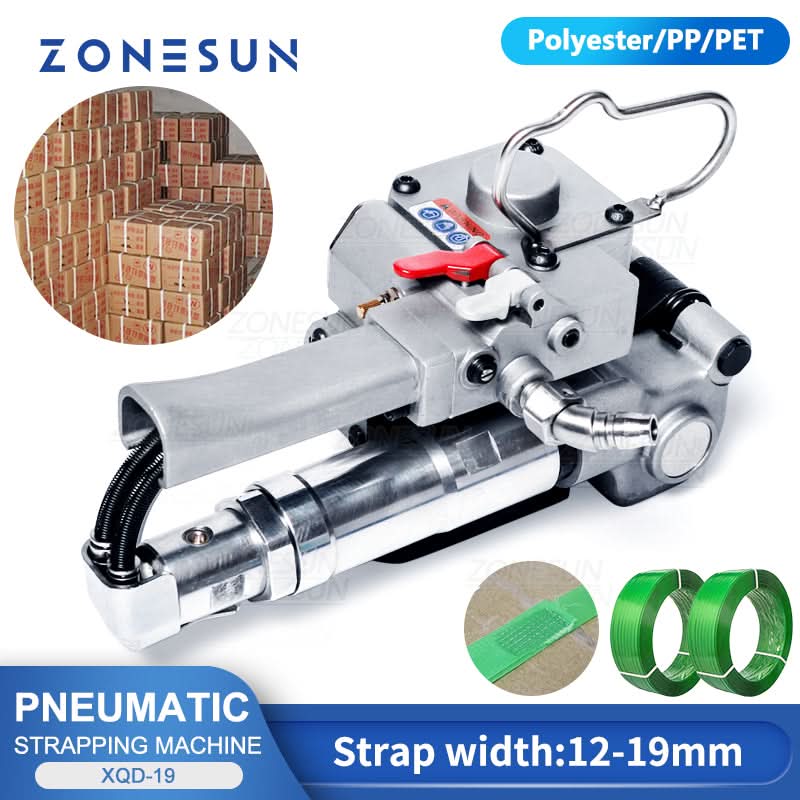

- Model number: XQD-19
- Power Type: Pneumatic
- Band width: 13-19mm
- Band thickness: 0.5(0.0196")-1.5mm(0.0059")
- Suitable packing width: 13/16/19mm
- Suitable band: PET strapping and PP strapping
- Strap material: Polyester
- The form of sealing: Frictional heat welding
- Max tension: 3500N
- Pressure: 0.5-0.7MPa
- Machine dimension:280x160x180mm
- Weight: 3.8kg
- This tool is specially designed for binding articles with PET packing belt and PP packing belt
Steps of using
1.Bundle the article with packaging belt, hold the lapped part with left hand ,leave about 300mm tail ,pull the remaining part out with right hand.
2.Hold handle and tighter with right hand, insert both upper and lower parts of the packaging belt into the packaging machine
3.Press the tightening button (right side) with the thumb of right hand til the packaging belt is tight fully
4.Press the fusion button (red) with the thumb of right hand till the packaging belt is fused and cut off.
5.Press handle and tightener tightly with right hand. Press the rewinding button with the little finger of right hand till the belt is released from the take-up pulley .Press handle and tightener tightly , remove the tool from the packaging belt.
