The ZONESUN ZS-DPYT12P is a semi-automatic 12-nozzle diaphragm pump filling machine designed for batch filling of low-viscosity, particle-free liquids. Each filling channel can be adjusted independently to help balance dispensing across the 12 nozzles. It is suitable for water, juice, milk, perfume and other compatible free-flowing liquids. Actual filling range, speed and accuracy depend on the liquid, container and machine settings; sample testing is recommended before purchase.
Key Features
- 12-Nozzle Batch Filling — Fills up to 12 containers per cycle to improve efficiency in semi-automatic production.
- Independent Channel Adjustment — Each filling channel can be adjusted separately for more consistent multi-nozzle dispensing.
- 50–4000 mL Adjustable Range — Supports a wide range of target volumes, depending on liquid properties and machine settings.
- Automatic and Foot-Pedal Modes — Select timed automatic operation or manual foot-pedal activation.
- Compact Semi-Automatic Design — Suitable for small and medium production areas with limited workspace.
Specifications
| Machine Model | ZS-DPYT12P |
| Voltage | 110V / 220V, 50–60Hz |
| Power | 300 W |
| Rated Current | 2.5 A |

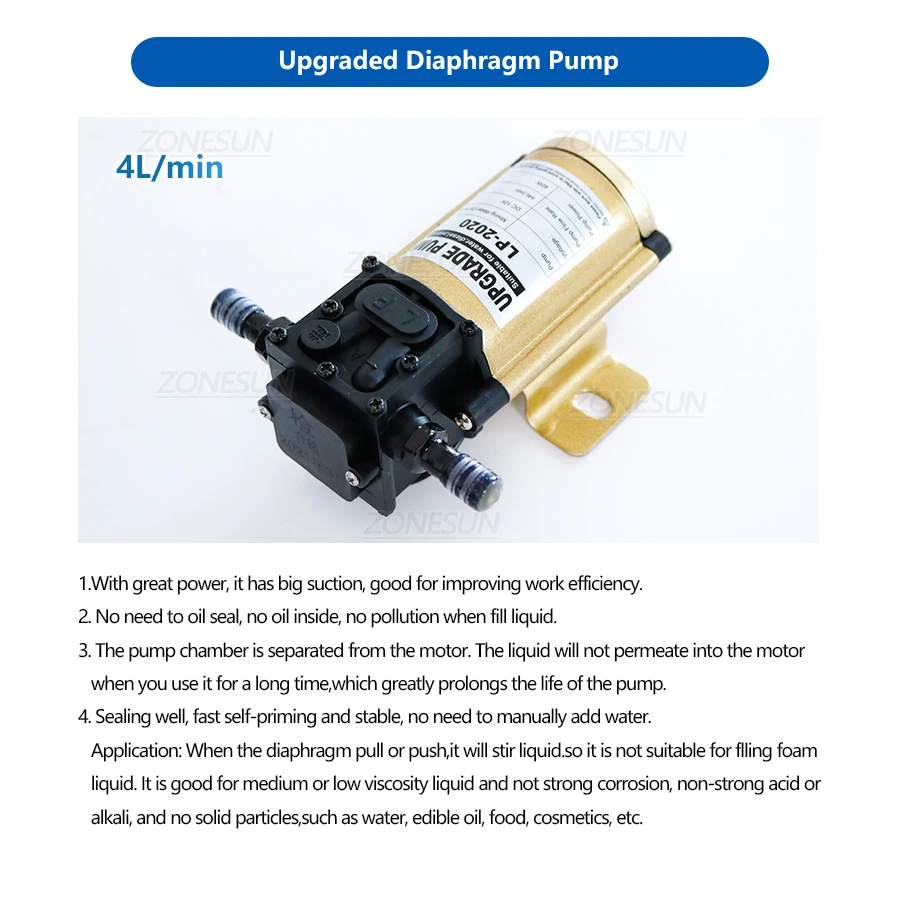

| Pump Type | Diaphragm Pump |
| Filling Range | 50–4000 mL |
| Maximum Flow Rate | 4 L/min × 12 (based on water) |
| Filling Nozzle Diameter | OD 6 mm |
| Filling Accuracy | ±0.5% (depends on liquid properties and settings) |
| Suitable Liquid | Compatible low-viscosity, particle-free liquids |
| Machine Weight | 42 kg |
| Machine Size (L × W × H) | Approx. 500 × 330 × 580 mm |
| Package Weight | 49 kg |
| Package Size (L × W × H) | Approx. 650 × 450 × 650 mm |
Compatibility Note: Confirm the pump, tubing and nozzle materials before filling corrosive, solvent-based or otherwise special liquids.
CONTROL PANEL
The digital control panel allows operators to set filling time and waiting time. It also displays the filling count for clear production monitoring.
FILLING NOZZLES
The anti-drip nozzles support controlled dispensing, and their height can be adjusted for bottles of different sizes.
INDIVIDUAL FILLING SPEED CONTROL
The filling speed of the 12 channels can be adjusted individually through their digital control panels.
TWO OPERATING MODES
The machine supports timed automatic operation and foot-pedal control, allowing operators to select a mode for the production task.
PUSH-PULL DESIGN
The push-pull structure provides convenient access for inspection and maintenance.
