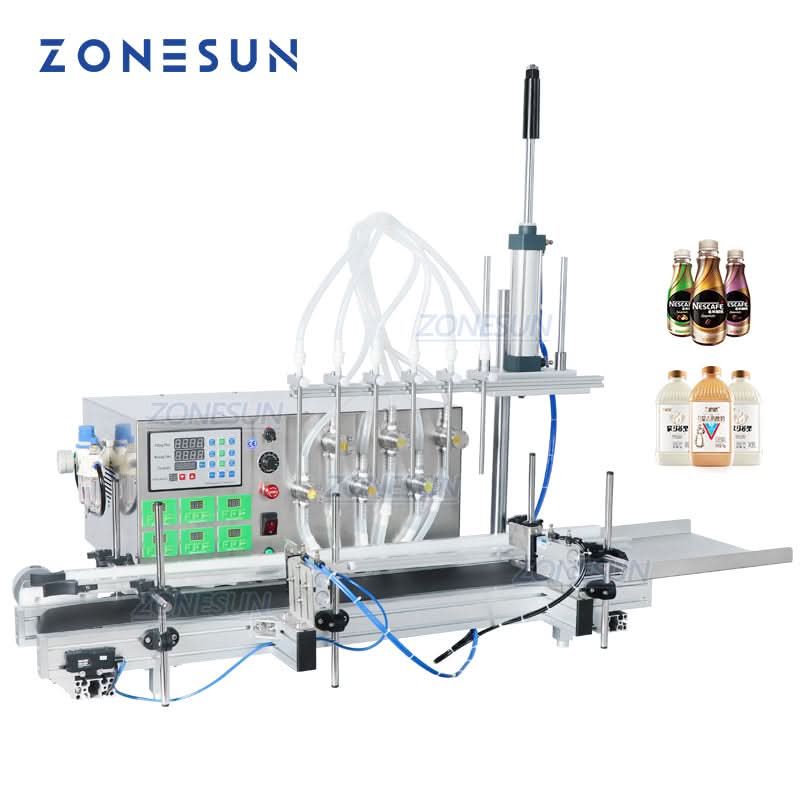

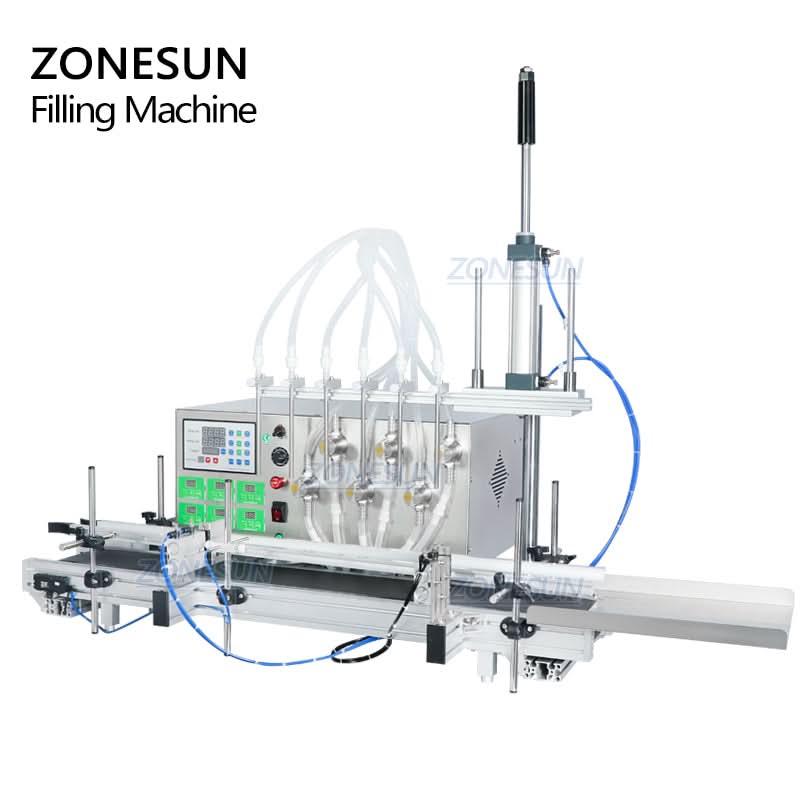

The ZONESUN ZS-DTMP6 automatic liquid filling machine is designed for precise and efficient bottling of low-viscosity liquids such as essential oils, perfumes, juices, and cooking oils. Featuring six diving nozzles, it handles foamy liquids with ease and ensures accurate filling through its high-performance magnetic pump system. Each nozzle operates independently, allowing flexible multi-line production. Compact and easy to operate, this desktop filler is ideal for small to medium-scale operations in the pharmaceutical, cosmetic, and daily chemical industries.
ZS-DTMP6A vs ZS-DTMP6B Liquid Filling Machine Specifications
| Parameter | ZS-DTMP6A | ZS-DTMP6B |
|---|---|---|
| Machine Model | ZS-DTMP6A | ZS-DTMP6B |
| Power Supply | 110V / 220V, 50–60Hz | 110V / 220V, 50–60Hz |
| Max Flow Velocity | 5500mL/min (per nozzle, based on water) | 9000mL/min (per nozzle, based on water) |
| Working Speed | 30–40 bottles/min (50–1000mL filling) | 40–55 bottles/min (50–1000mL filling) |
| Air Pressure | 0.3–0.4MPa | 0.3–0.4MPa |
| Filling Accuracy | ≤±1% (for water) | ≤±1% (for water) |
| Filling Nozzle Diameter | 6mm / 8mm | 6mm / 8mm |
| Delay Range | 0.01–999.9s | 0.01–999.9s |
| Count Range | 1–99999 times | 1–99999 times |
| Filling Volume | 3–1000mL (220V) / 3–500mL (110V) | 3–1000mL (220V) / 3–500mL (110V) |
| Air Compressor Connector Size | Outer Diameter 8mm | Outer Diameter 8mm |
| Suitable Bottle Height | ＜220mm (customizable, max 300mm) | ＜220mm (customizable, max 300mm) |
| Package Size | Approx. 1120 × 740 × 460mm | Approx. 1120 × 740 × 460mm |
| Gross Weight | Approx. 68kg | Approx. 70kg |
DIVING FILLING NOZZLES
An air cylinder controls the diving nozzles to help reduce bubbles during filling. The lifting distance can be adjusted according to production requirements.
SIX INDEPENDENT NOZZLES

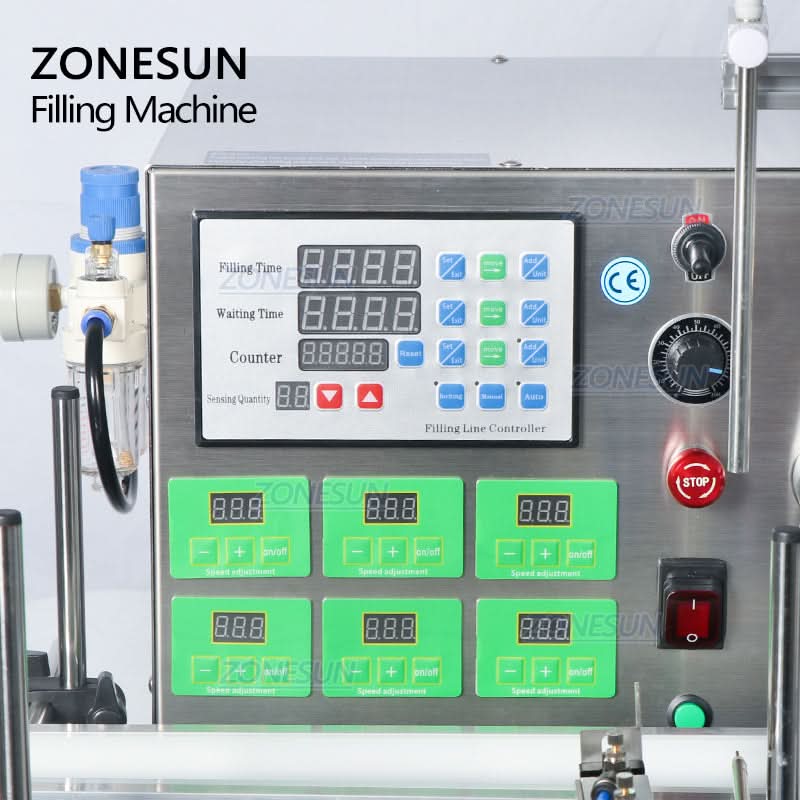

The machine has six diving filling nozzles that can be controlled independently, allowing different liquids to be filled at the same time.

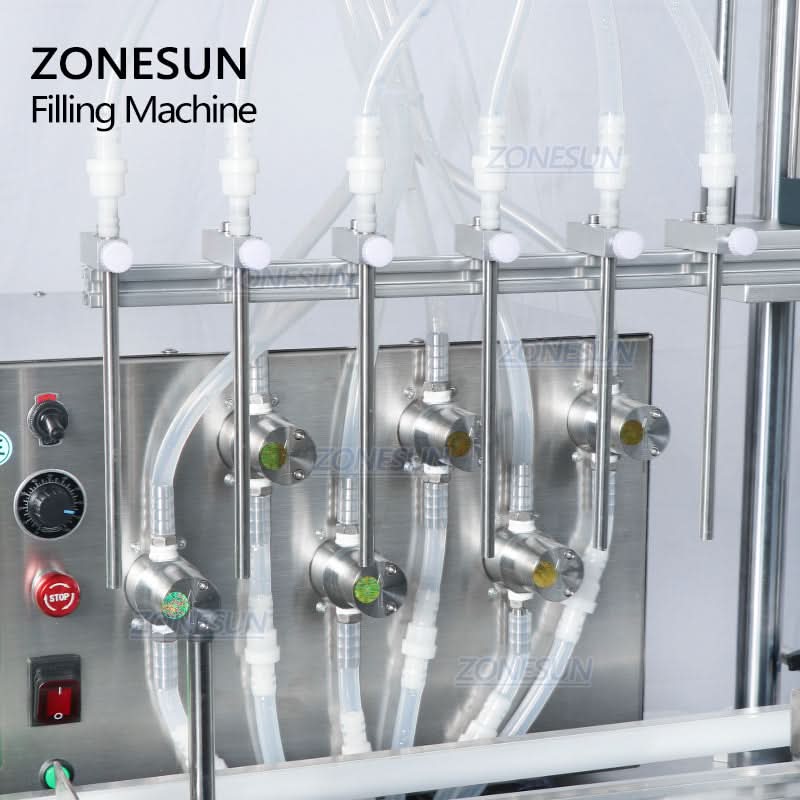

MAGNETIC PUMP
The magnetic pump is made of 304 stainless steel for beverage filling. A 316 stainless steel magnetic pump can also be customized if required.
