Parameter Specification
Machine Model ZS-GP262W
Machine Power 110V / 220V, 50–60Hz, 550W × 2
Machine Pump Gear Pump
Max Flow Rate 18L/min × 2
Filling Range 150mL–18L
Weighing Range 150g–100kg
Filling Error About ±10g
Hose Diameter 19mm (ID) / 25mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Filling Nozzle Diameter 12mm / 19mm
Max Suction Distance 4m
Max Head of Delivery 4m
Suitable Liquid Engine oil, cooking oil (not suitable for water)
Liquid Temperature <90°C
Machine Size 550mm × 370mm × 252mm (L × W × H)
Machine Weight 25.5kg
Package Size (Machine) 700mm × 430mm × 320mm
Package Size (Electronic Scale) 400mm × 370mm × 260mm
Package Weight 27kg

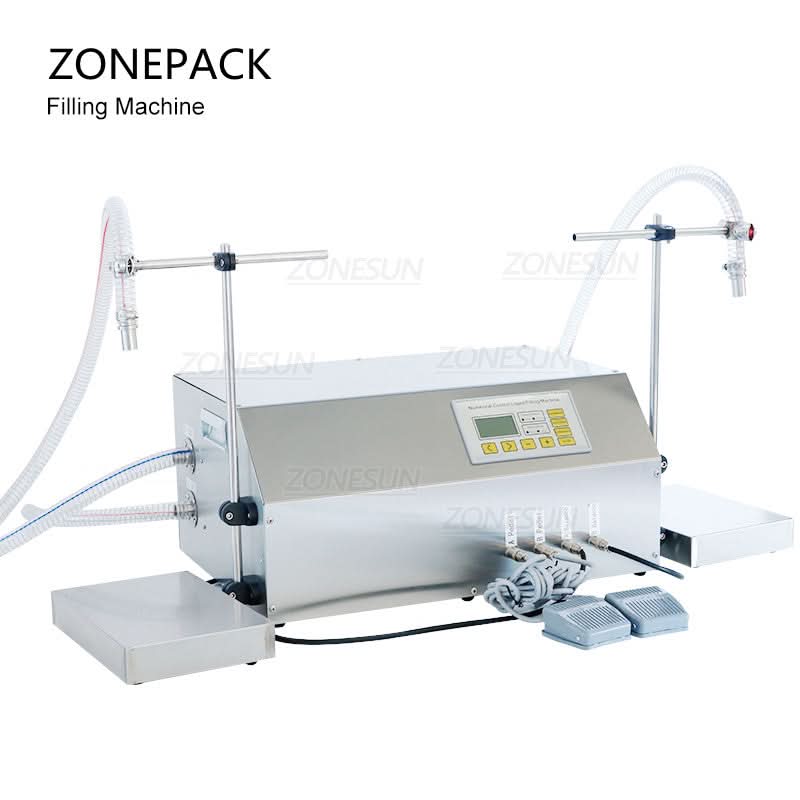

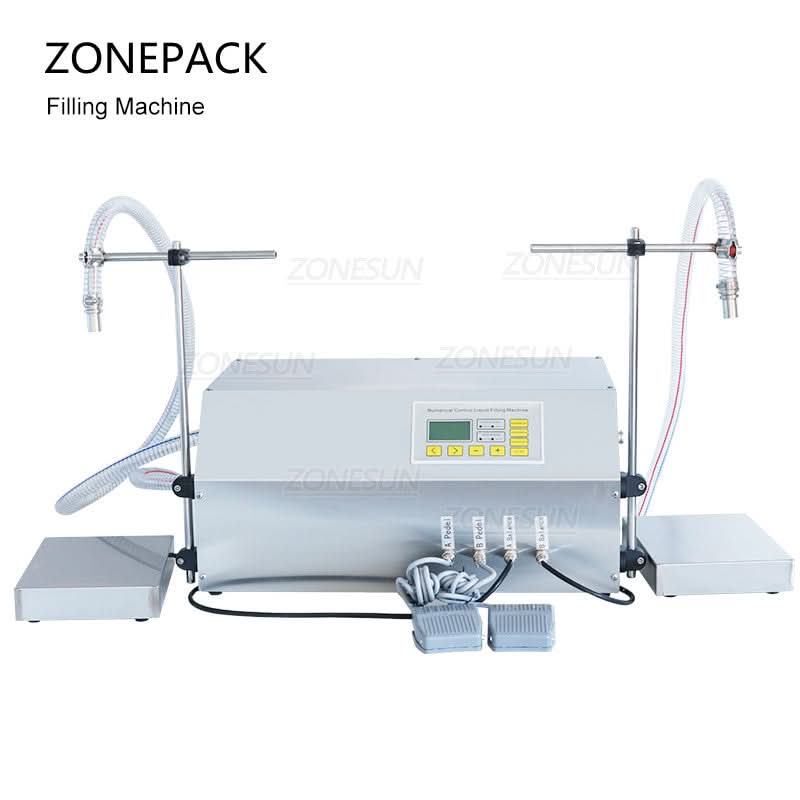

The control panel allows operators to set filling weight, filling speed, and operating mode. Its resume memory function enables saved working data to be reused quickly. The anti-drip filling nozzles support accurate filling. Each nozzle can be controlled independently for filling different liquids at the same time, and the nozzle height can be adjusted as needed. The machine starts or stops in response to signals from the electronic scale, helping reduce filling errors. The machine supports inching and automatic operation. Inching mode can be used to test the machine before production. After the filling speed and target amount are set, automatic mode starts filling when a bottle is detected. The filters help prevent impurities from entering and clogging the pump, supporting efficient pump operation and product quality.

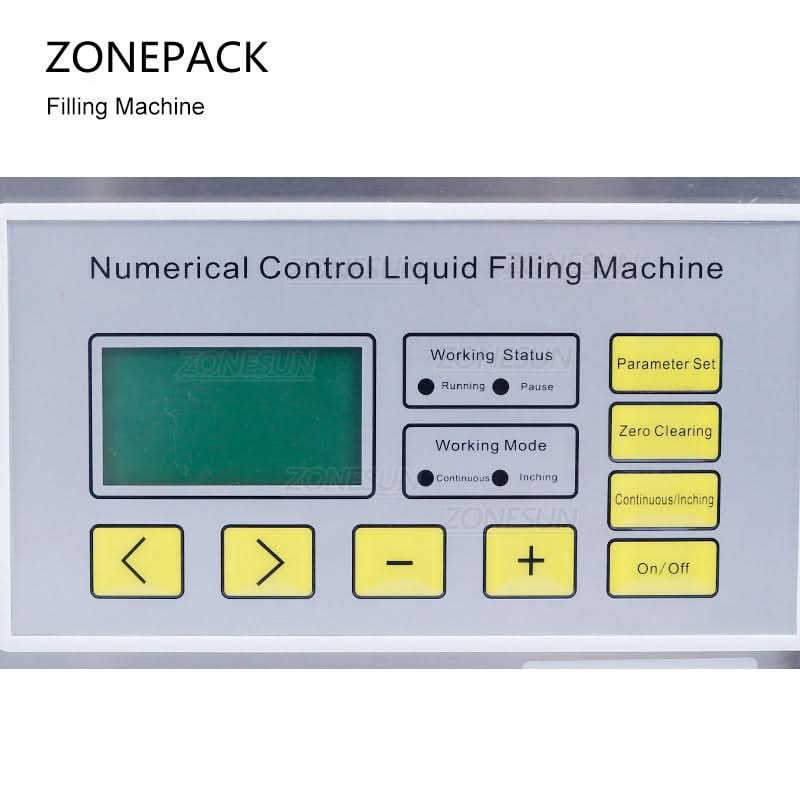

CONTROL PANEL

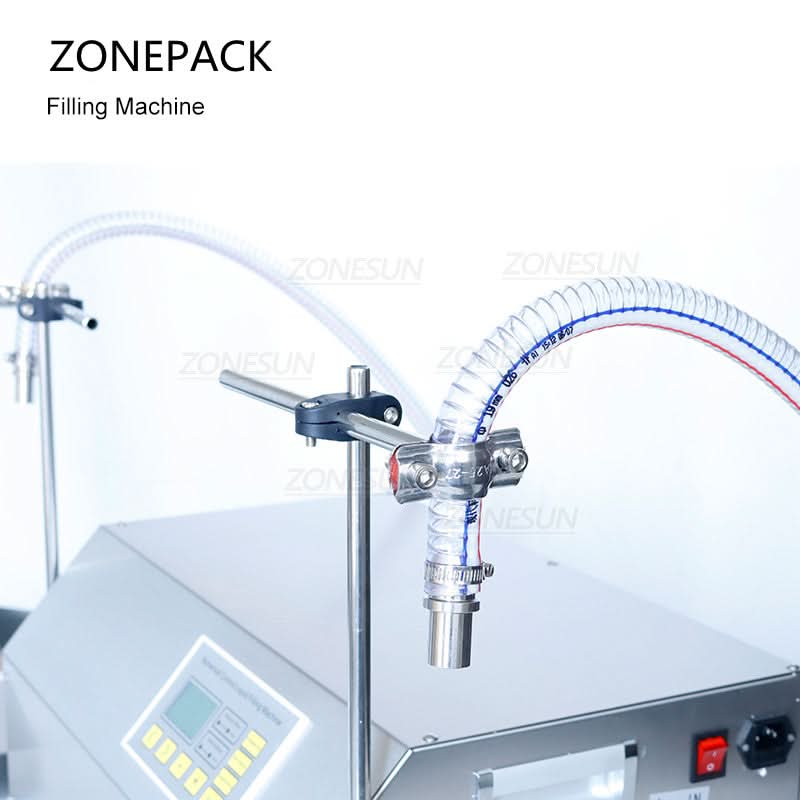

DUAL FILLING NOZZLES

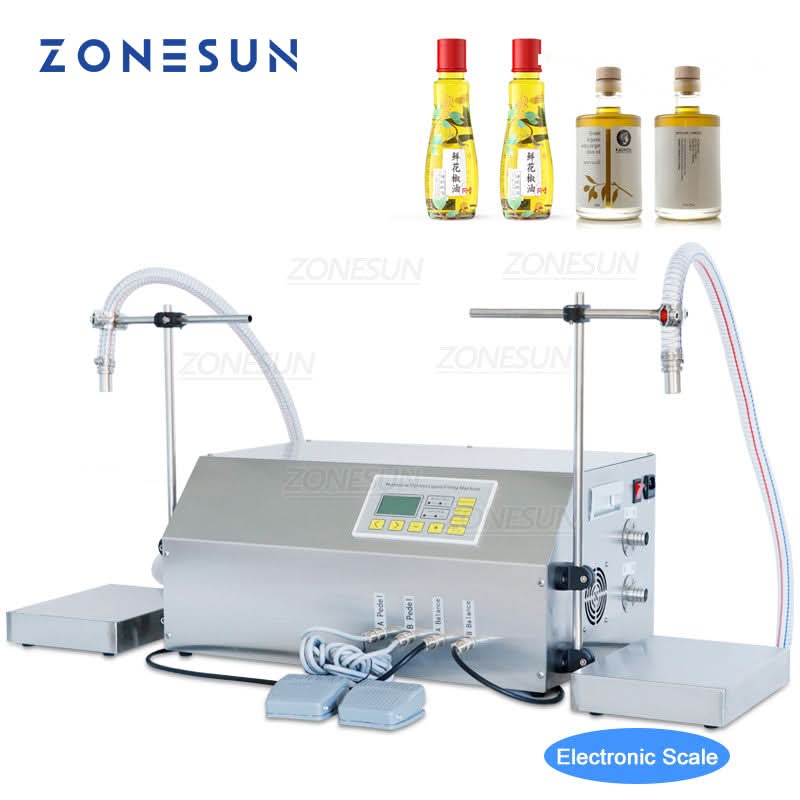

ELECTRONIC SCALE
TWO OPERATING MODES
FILTERS
