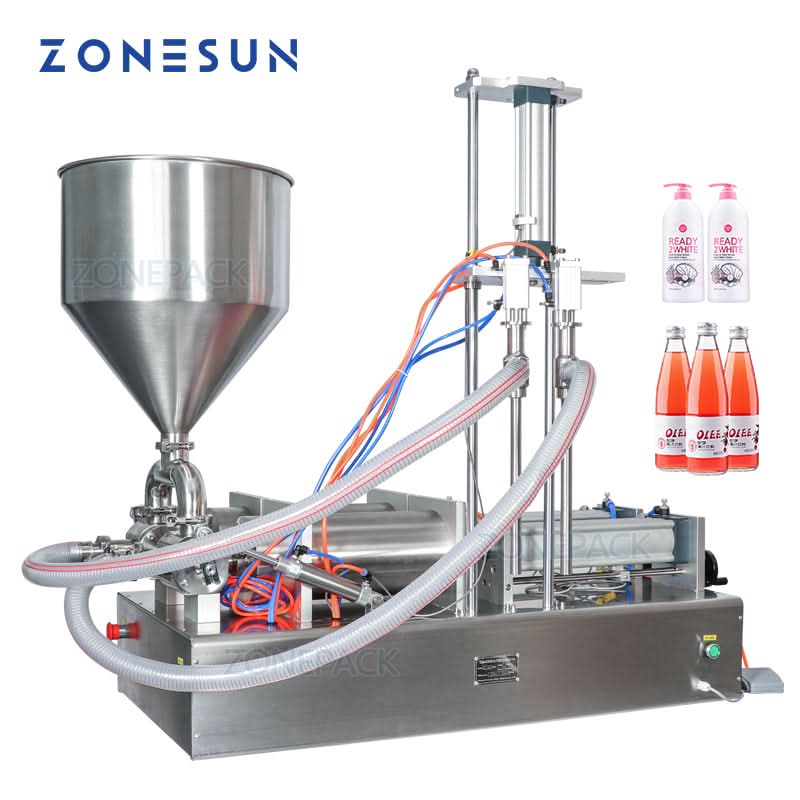

Zonesun ZS-GTD2 Pneumatic Paste Filling Machine with Diving Nozzles for Foam

Sale price: $1,140.00
List price: $1,596.00
You save: $456.00 (29%)

Please check your cart or click "Buy It Now" to view shipping costs

Shipping Information

Shipping methods and costs vary by machine, package size, destination, and delivery method. Available options may include express delivery, air freight, sea freight, or logistics services.

To view the available shipping options and estimated cost, add the product to your cart and enter your delivery address at checkout.

DDP (Delivered Duty Paid) service may be available for selected destinations. For large machines, customized equipment, or complete production lines, please contact us before ordering so we can confirm the shipping method, packing requirements, freight cost, and estimated delivery time.

For non-DDP shipments, import duties, customs clearance fees, local taxes, and other destination charges may apply.

Size:100-1000ml

100-1000ml

1000-5000ml

Voltage:110V

Product variants

The ZS-GTD2 pneumatic piston filling machine features dual diving nozzles that automatically lift during operation, making it ideal for foamy liquids such as car wash fluid, shampoo, body wash, and hand soap. With adjustable filling speed and volume, it offers precise control for various production needs. Its 30L hopper and stable pneumatic system ensure efficient performance for small to medium-scale manufacturing. Multiple filling ranges are available upon request.

Parameter Specification
Model ZS-GTD2
Filling Range 5–100ml / 10–200ml / 50–500ml / 100–1000ml / 500–2500ml / 1000–5000ml
Power Supply 110V / 220V, 10W
Filling Speed 0–50 bottles/min
Filling Accuracy ±0.5% – ±1%

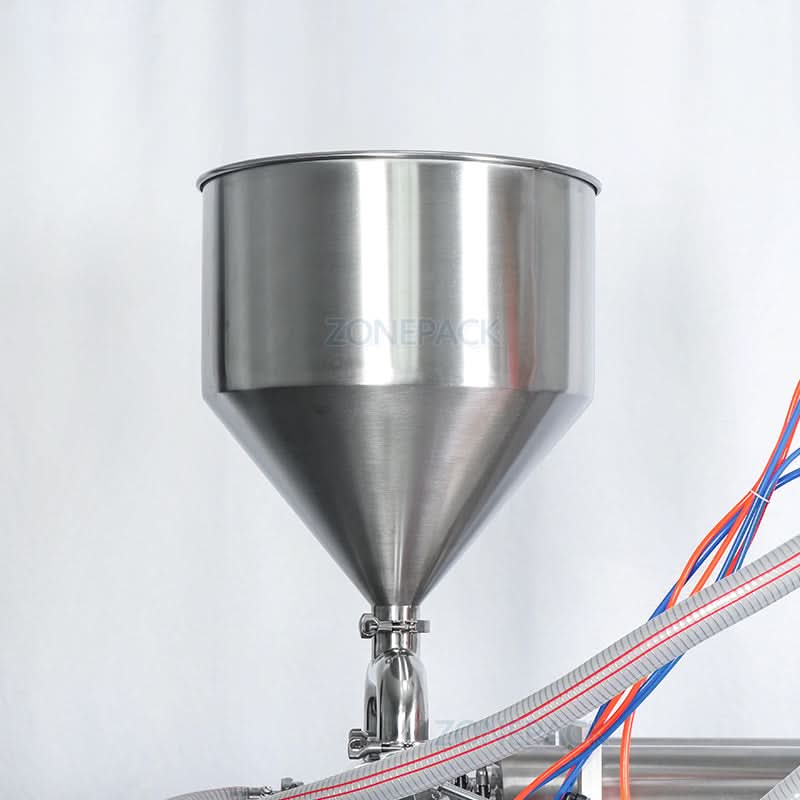

Hopper Size 30L
Air Pressure 0.4–0.6 MPa
Air Compressor Connector Size Outer Diameter 10 mm
Machine Weight 90.5 kg
Machine Size 111 × 55 × 113 cm
Filling Nozzle Size A ID: 15 mm / OD: 19 mm / Length: 310 mm
Filling Nozzle Size B ID: 18 mm / OD: 20 mm / Length: 41 mm
