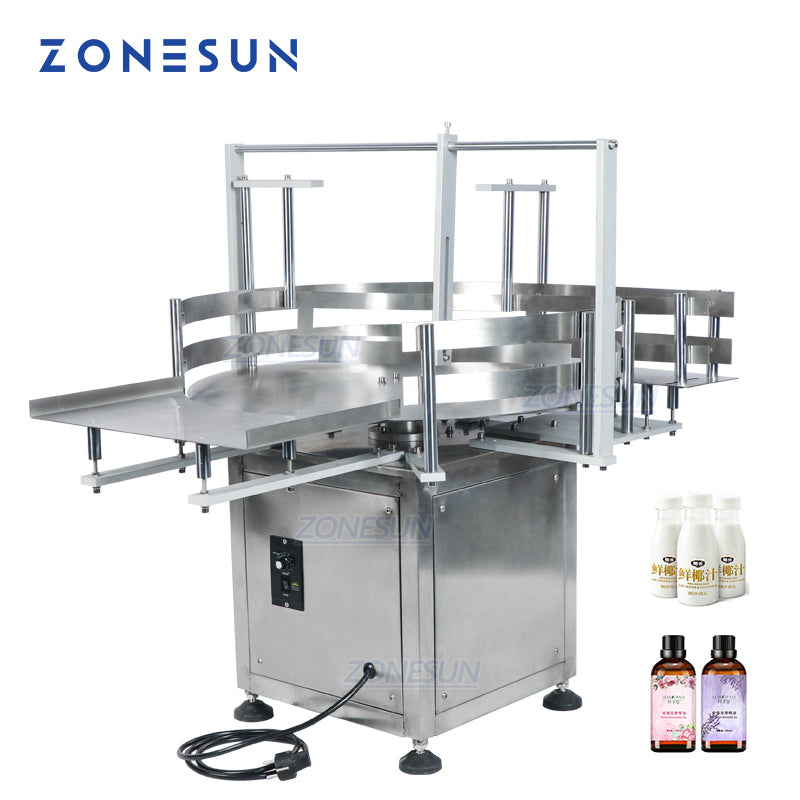

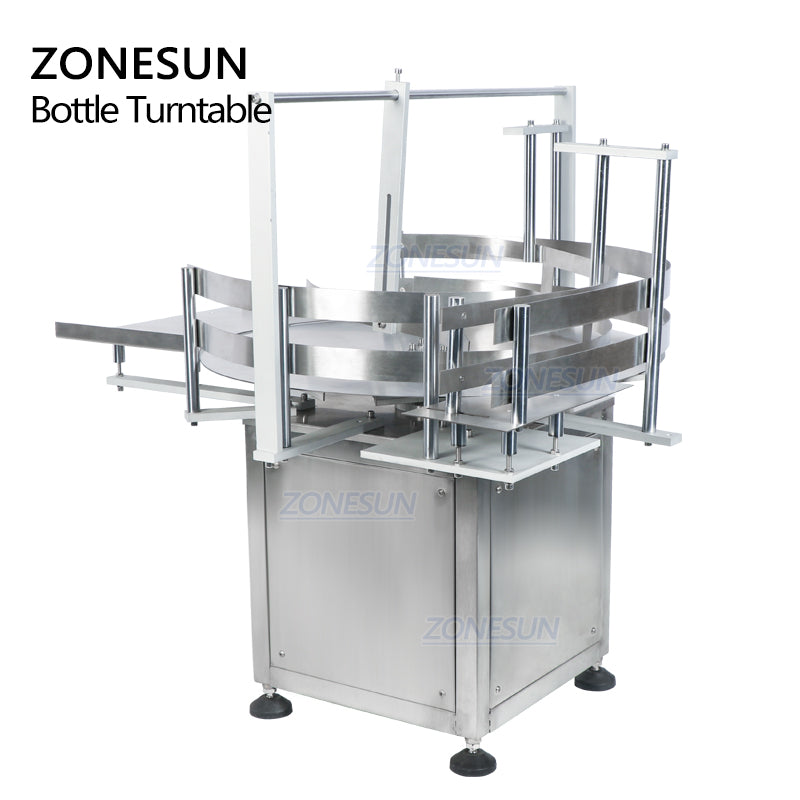

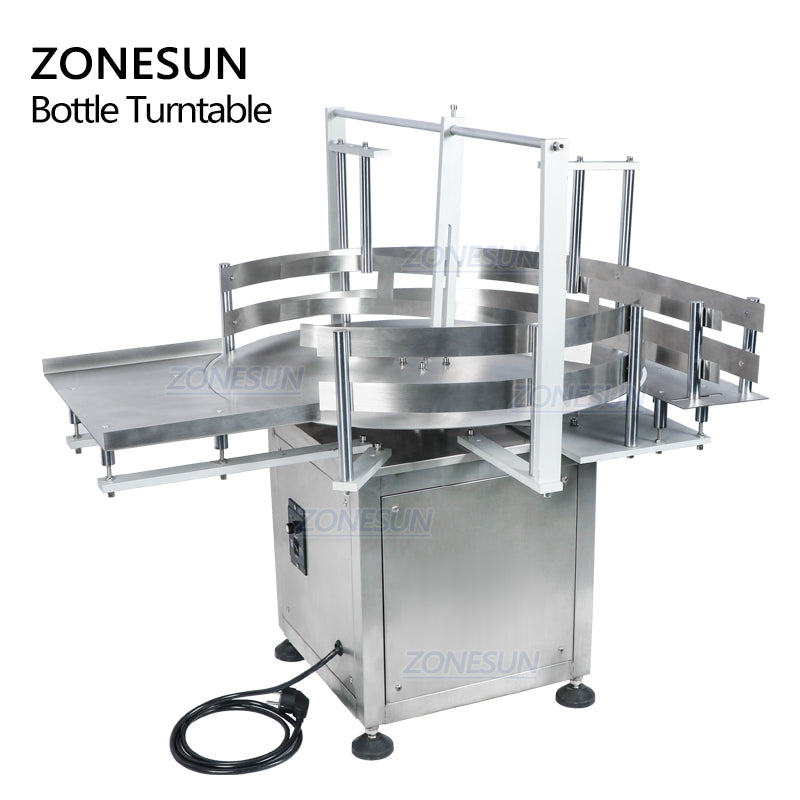

The ZONESUN ZS-LP600Z is a compact rotary bottle feeding turntable designed to arrange, buffer and feed upright round bottles into filling, capping or labeling equipment. It is suitable for compact packaging lines in cosmetic, pharmaceutical, food and beverage production.
How Bottles Are Loaded

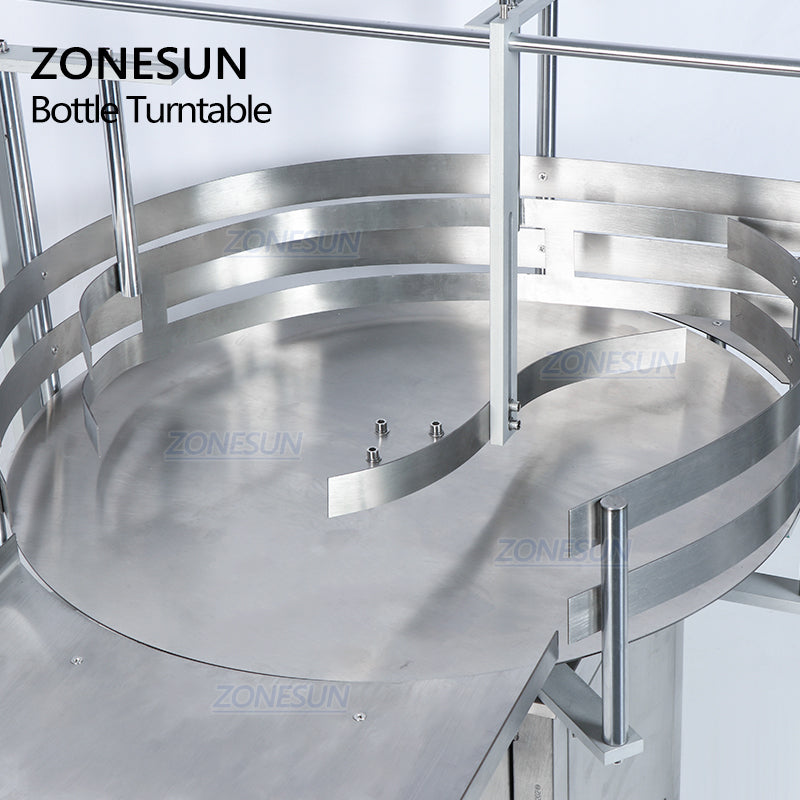

The operator places bottles upright on the turntable. The rotating table then arranges and feeds the upright bottles toward downstream equipment. Bottles lying on their sides must be stood upright by the operator before loading.
Connecting to Your Packaging Line
Before ordering, provide your conveyor working height, conveyor width, transfer direction, required bottle flow and a photo or layout of the connection point. We will review the turntable working height and outlet arrangement for your equipment. The listed package dimensions describe the shipping package, not the operating or transfer height.
Check bottle stability as well as dimensions. Lightweight empty bottles, tall narrow bottles and containers with unusual bases require application confirmation; dimensions alone do not establish reliable feeding performance. Share bottle dimensions, weight, material and photos, and arrange a sample assessment where needed.
This listing describes bottle feeding into downstream equipment. If you need an end-of-line collecting turntable, contact us to confirm whether the required collecting arrangement can be supplied.
Key Features
- Feeds upright round bottles continuously into downstream packaging equipment
- Approx. 40–60 bottles/min working speed, depending on bottle size and line conditions
- Suitable for bottles measuring 30–80 mm in diameter and up to 250 mm high
- 600 mm rotary turntable for compact production lines

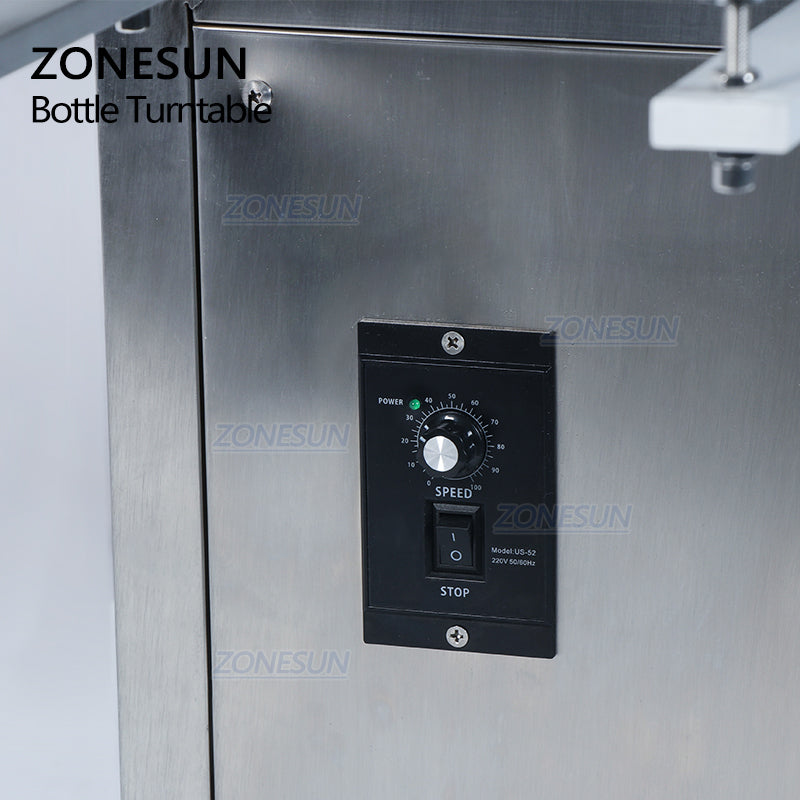

- Adjustable operating speed for matching downstream equipment

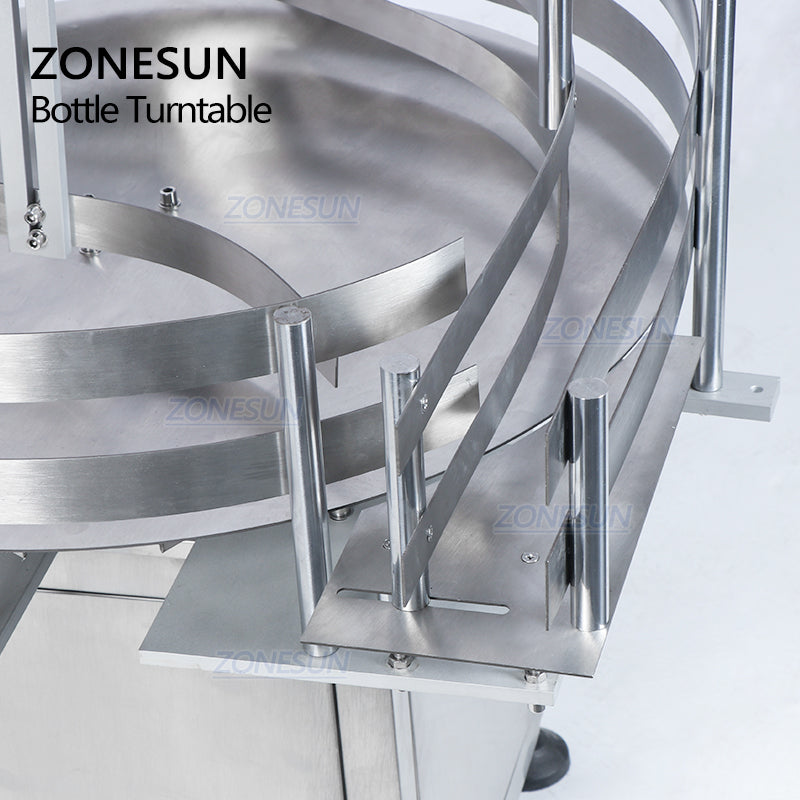

- Adjustable inlet and outlet positions for different bottle sizes
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZS-LP600Z |
| Turntable Diameter | 600 mm |
| Suitable Bottle Diameter | 30–80 mm |
| Suitable Bottle Height | ≤250 mm |
| Working Speed | Approx. 40–60 bottles/min (depends on bottle size and line conditions) |
| Motor Power | 40 W |
| Power Supply | 110V or 220V |
| Net Weight | Approx. 27.5 kg |
| Package Size | Approx. 790 × 690 × 670 mm |
| Gross Weight | Approx. 45 kg |
- Adjustable speed helps coordinate bottle flow with downstream equipment.
- The inlet and outlet positions can be adjusted for different upright bottle sizes.
