DESCRIPTION

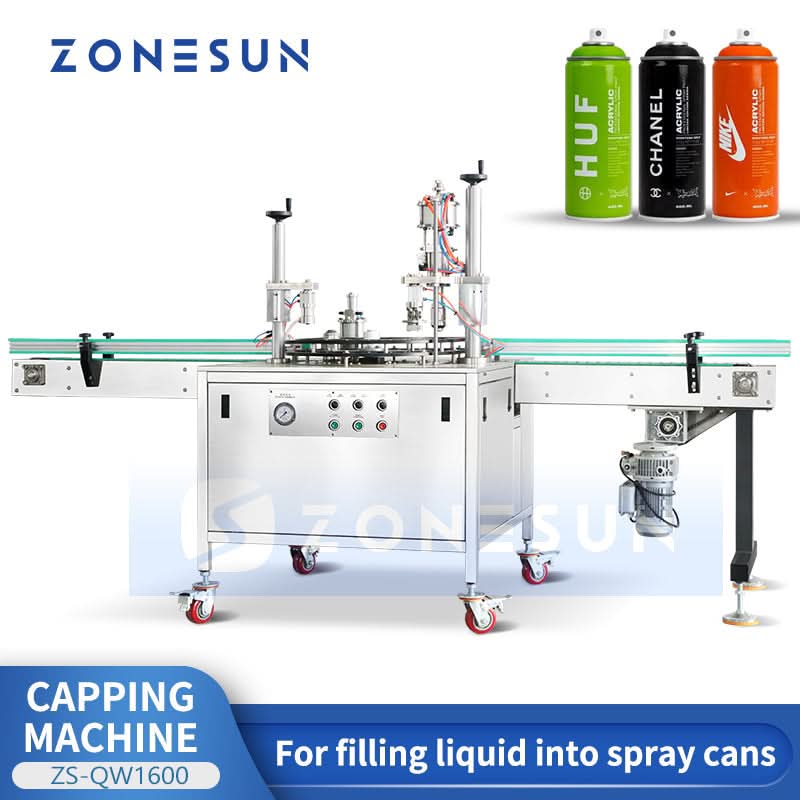

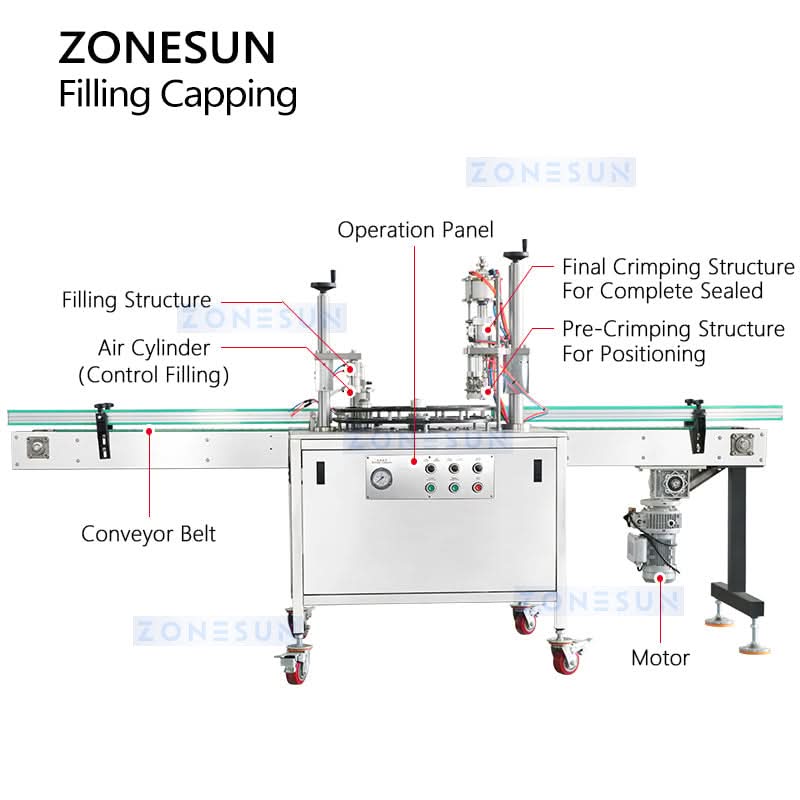

Introducing our Automatic Spray Can Filling and Sealing Machine—an innovative solution for packaging efficiency. This advanced machine streamlines production, precisely filling and sealing spray cans. With a conveyor belt and pneumatic cylinders, it ensures accurate liquid filling. Ideal for various applications including home cleaning products, personal care items, automotive maintenance, and more. Boost productivity and maintain top-quality packaging with our cutting-edge Spray Can Filling and Sealing Machine.
Parameter
- Machine Model: ZS‑QW1600
- Valve Size: Customized
- Filling Range: 50–500 ml
- Working Capacity: About 20 bottles/min
- Working Air Pressure: 0.5–0.8 MPa
- Suitable Aerosol Can Diameter: 35–69 mm
- Suitable Aerosol Can Height: 70–330 mm
- Machine Size: About 3050 × 1100 × 1650 mm
-
Package Size:
- Main Machine: About 1160 × 1130 × 1640 mm
- Booster Pump: About 500 × 470 × 790 mm
- Conveyor: About 2070 × 440 × 300 mm
- Package Weight: About 590 kg (475 kg main machine + 58 kg booster pump + 57 kg conveyor)
FILLING STRUCTURE

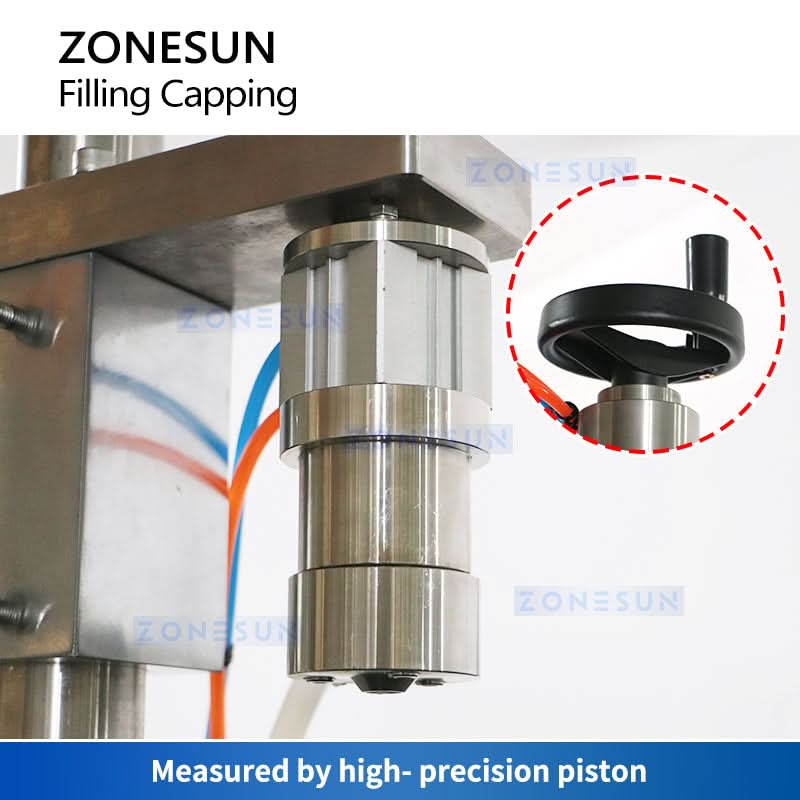

The piston-pump filling system uses cylinder-driven motion to dispense liquid with stable output. The nozzle height can be adjusted for different aerosol cans.
TWO-STAGE CRIMPING

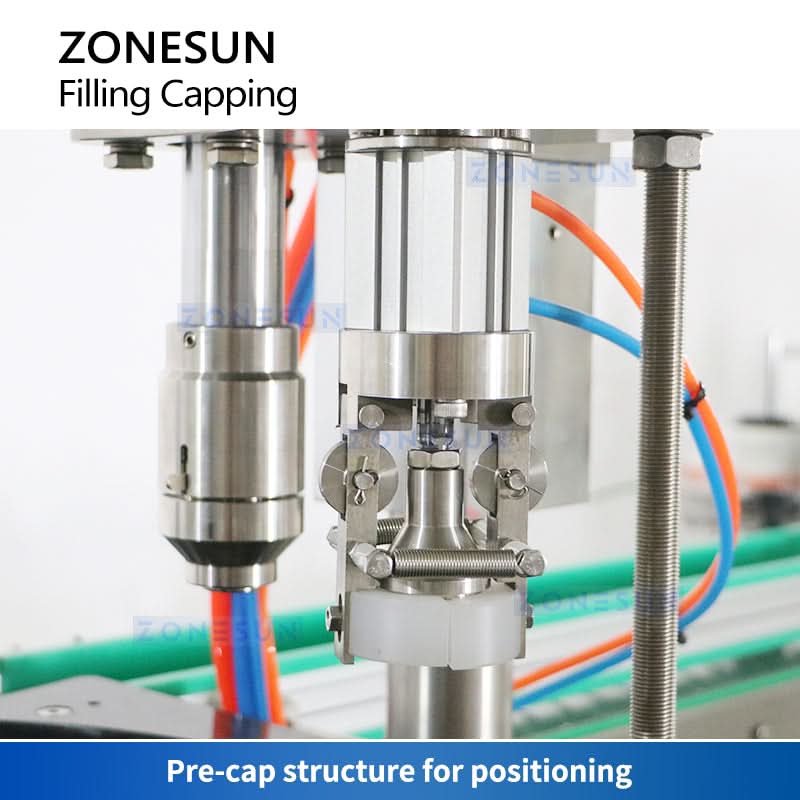

The two-stage crimping system pre-crimps the valve for positioning, then completes the final crimp for an airtight seal.
COMPACT LAYOUT
Filling and crimping are integrated on one workbench to reduce floor space while maintaining stable can transfer.

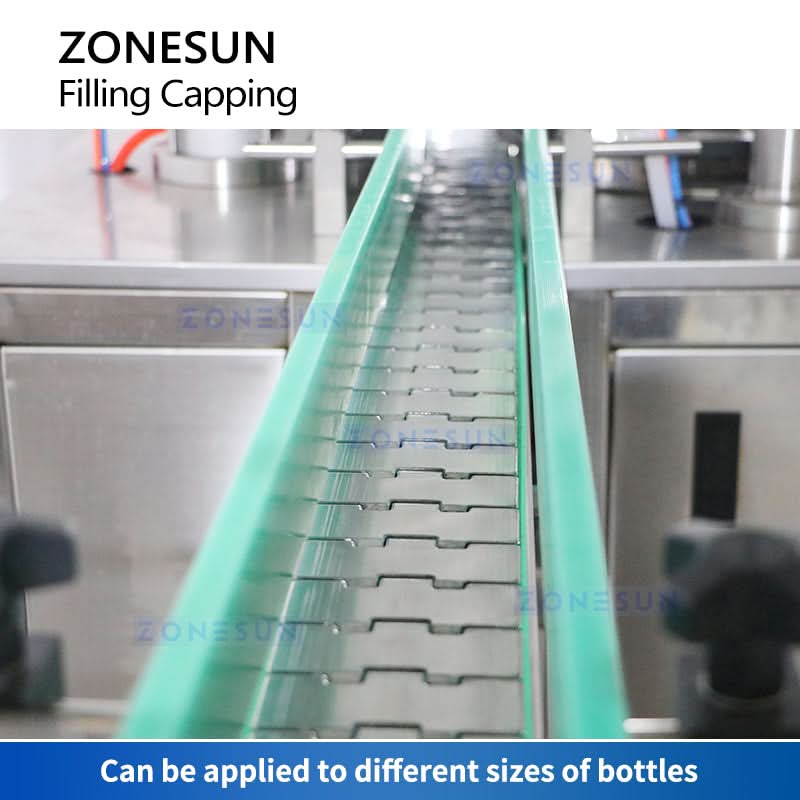

STAINLESS STEEL CONVEYOR
The stainless steel conveyor supports stable can transport and can be customized in width to suit different aerosol cans.
