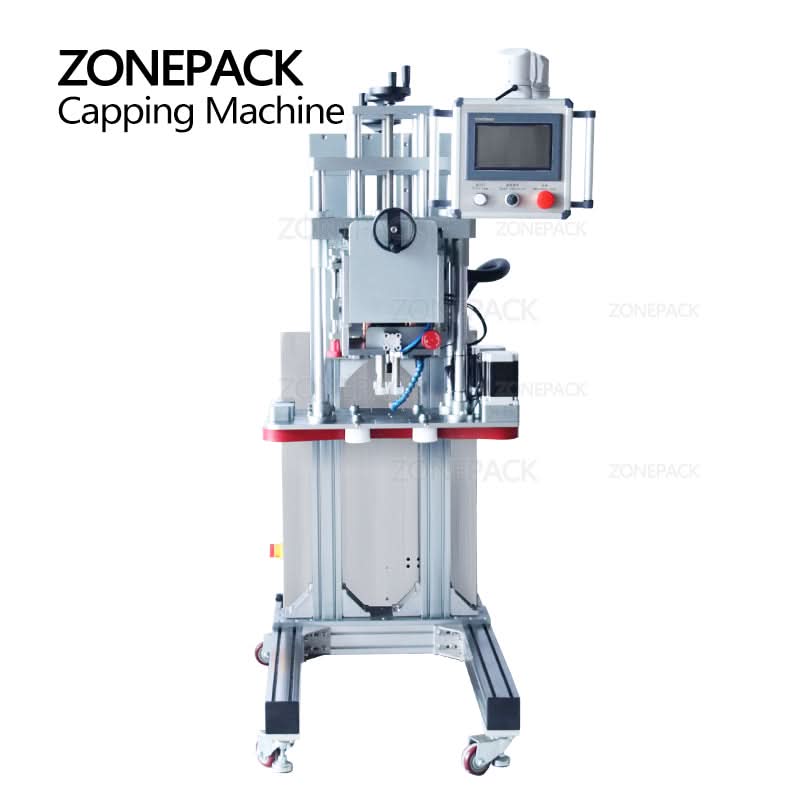

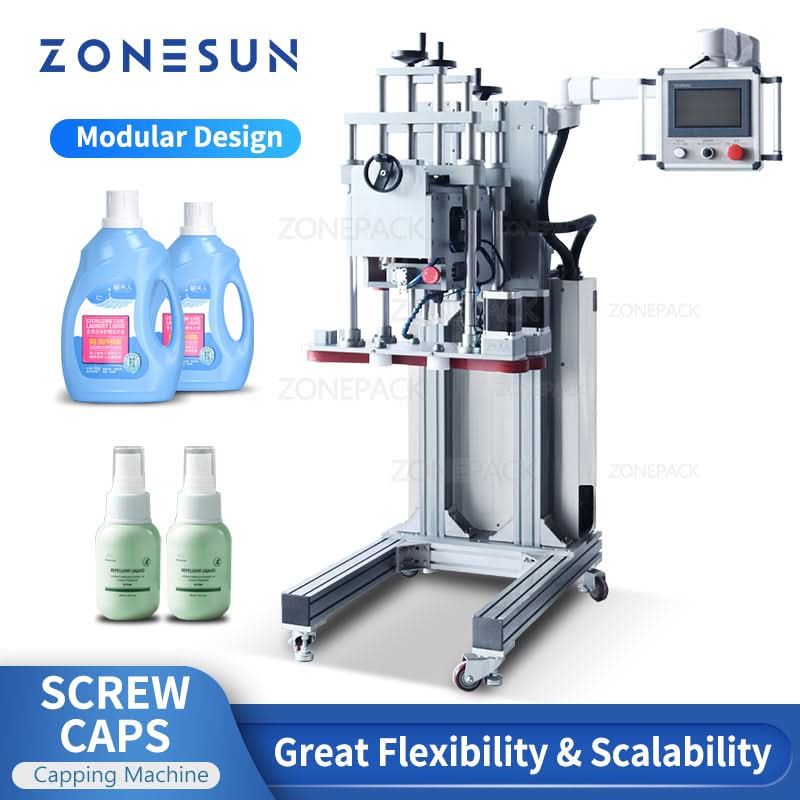

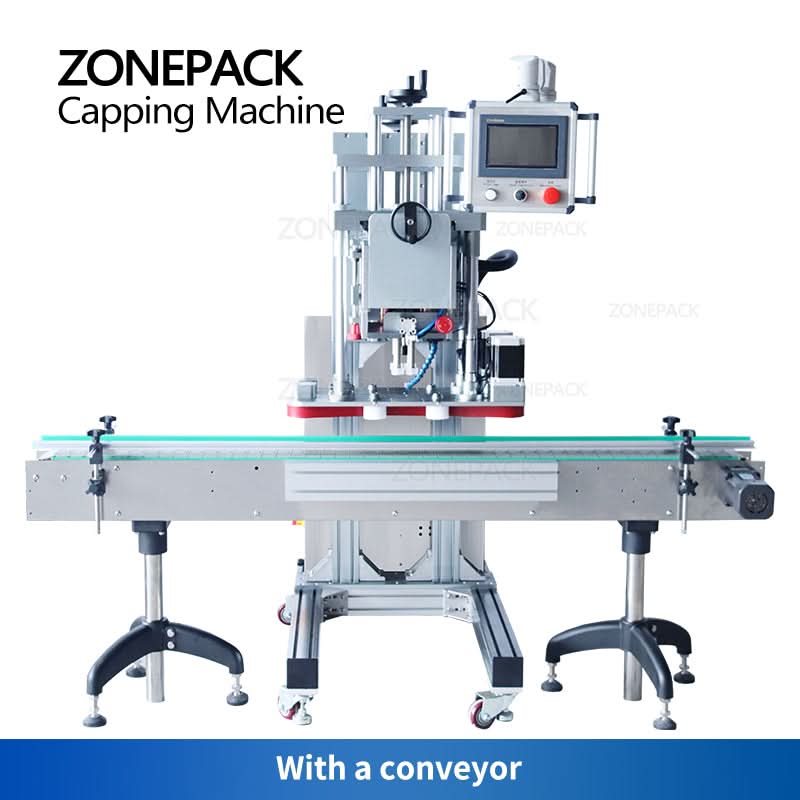

The ZS-XG20A is a versatile automatic capping machine designed for high-speed screw cap sealing across various bottle sizes and cap diameters. Featuring four precision rubber wheels, it ensures firm and uniform closure for bottles in the food, cosmetic, and daily chemical industries. Its adaptable structure allows seamless integration into existing filling lines, making it an ideal solution for scalable production environments where reliability, speed, and flexibility are key.
Specification Details
Model ZS-XG20A
Voltage 110/220V, 50–60Hz, 1KW
Working Speed Approx. 45 bottles/min
Cap Diameter 20–68mm (Standard) <br> 15–70mm / 20–115mm (Customized)
Bottle Size Height: 80–300mm <br> Diameter: 25–150mm

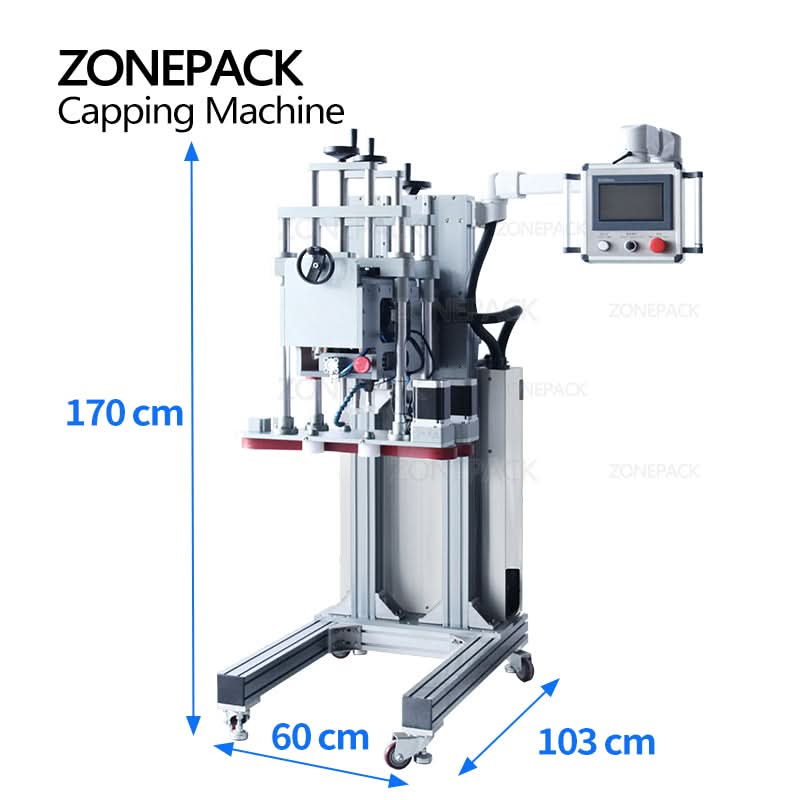

Machine Dimensions Approx. 600 × 1030 × 1700 mm
Machine Weight Approx. 200 kg
Package Size Approx. 1270 × 720 × 1870 mm
Package Weight Approx. 241 kg

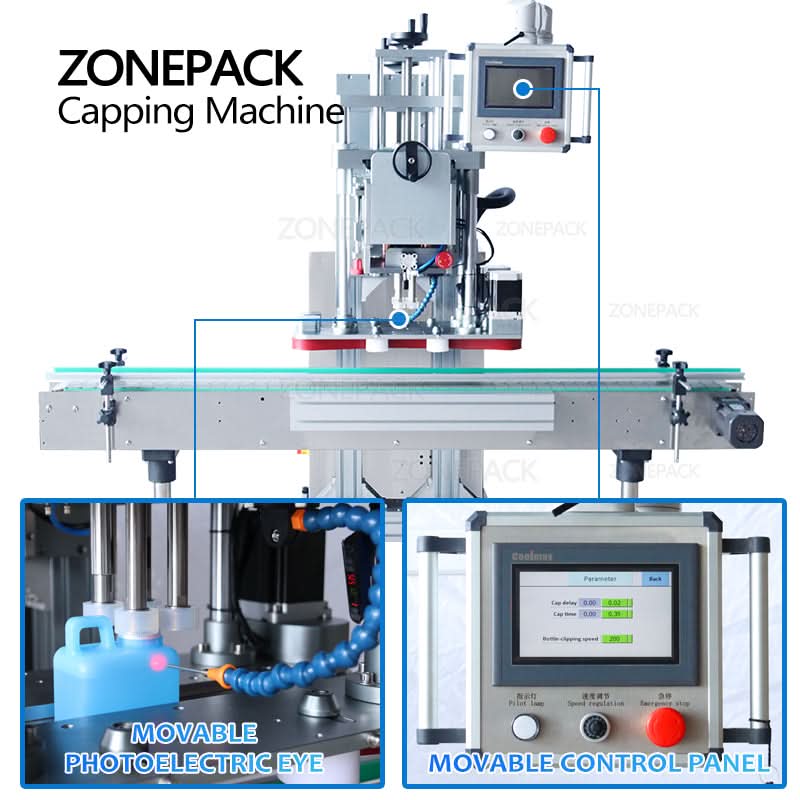

ADJUSTABLE CONTROL PANEL
The movable control panel can be positioned at a convenient operating angle.
PLC CONTROL
Capping parameters can be set easily through the PLC interface.
CAP COMPATIBILITY
The machine accommodates various screw caps, including spray and dropper caps, for bottles with diameters of 25–150 mm.
GUIDING RAILS
The guiding rails hold and stop containers during capping without requiring additional baffles.
