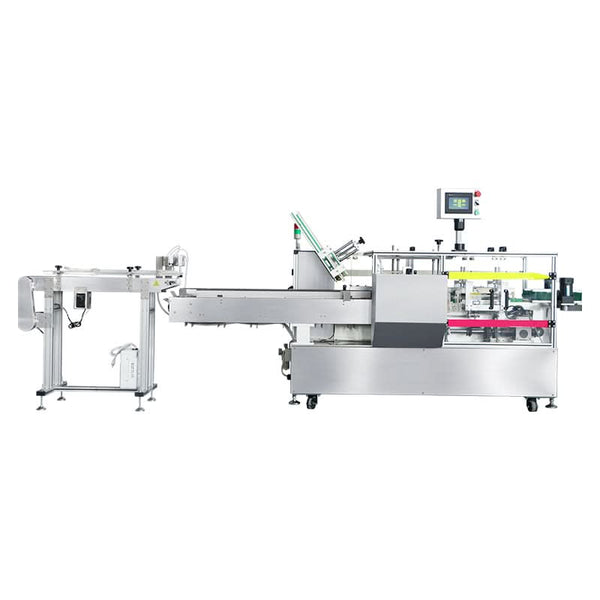

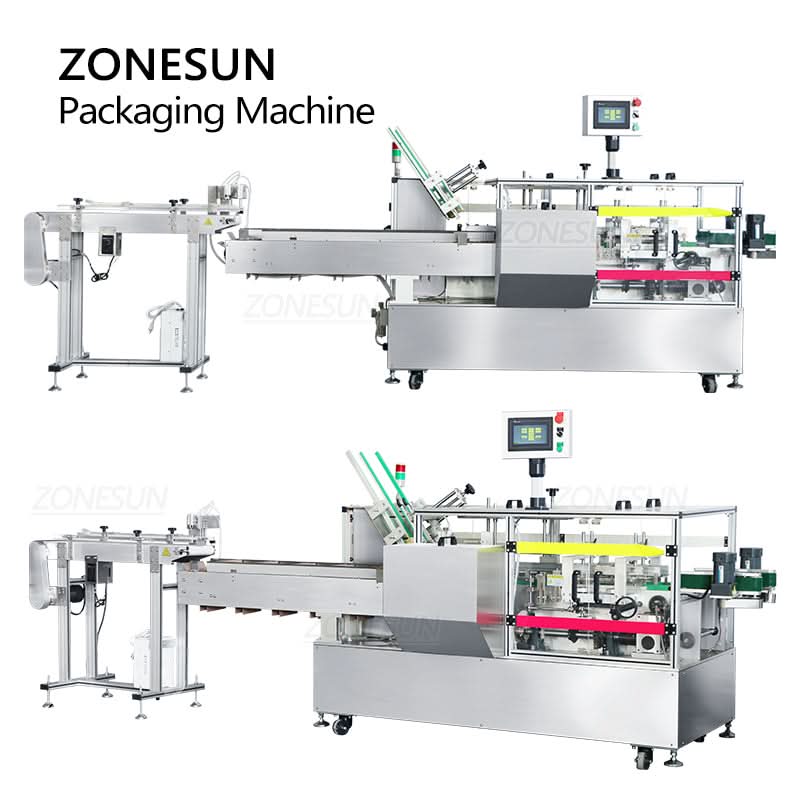

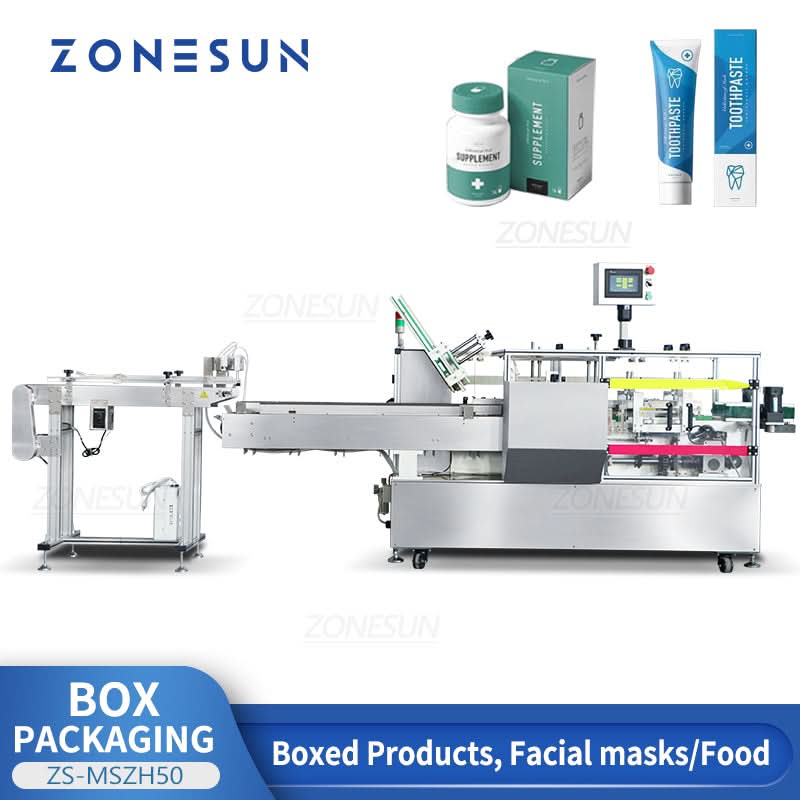

The ZONESUN ZS-MSZH50 is a fully automatic cartoning machine engineered for packing skincare products, facial masks, and other boxed items. Its streamlined workflow includes box opening, material insertion, flap folding, and sealing—all in one continuous motion. Designed to integrate seamlessly with upstream and downstream equipment, it supports the formation of complete production lines. It ensures clean sealing, precise folding, and consistent output across customized box formats.
Specification Details
Model ZS-MSZH50
Power Supply 110V / 220V / 380V
Power Consumption Approx. 0.75KW
Workflow Feeding → Box Opening → Filling → Flap Tucking → Sealing → Output
Efficiency Approx. 30–60 pieces/min
Paper Box Requirements 300–450g/m³; indentation ≥ 0.4mm; pre-folded; no glue leakage
Suitable Box Specifications - Skincare: 120–200 × 30–70 × 20–60mm (L × W × H)<br>- Facial Masks: 135–200 × 20–150 × 20–40mm (L × W × H)<br>(Customizable)
Air Pressure Requirement 0.6–0.8MPa
Air Consumption 130L/h
TOUCHSCREEN CONTROL PANEL
The machine uses a 7-inch English-language touchscreen with PLC control.

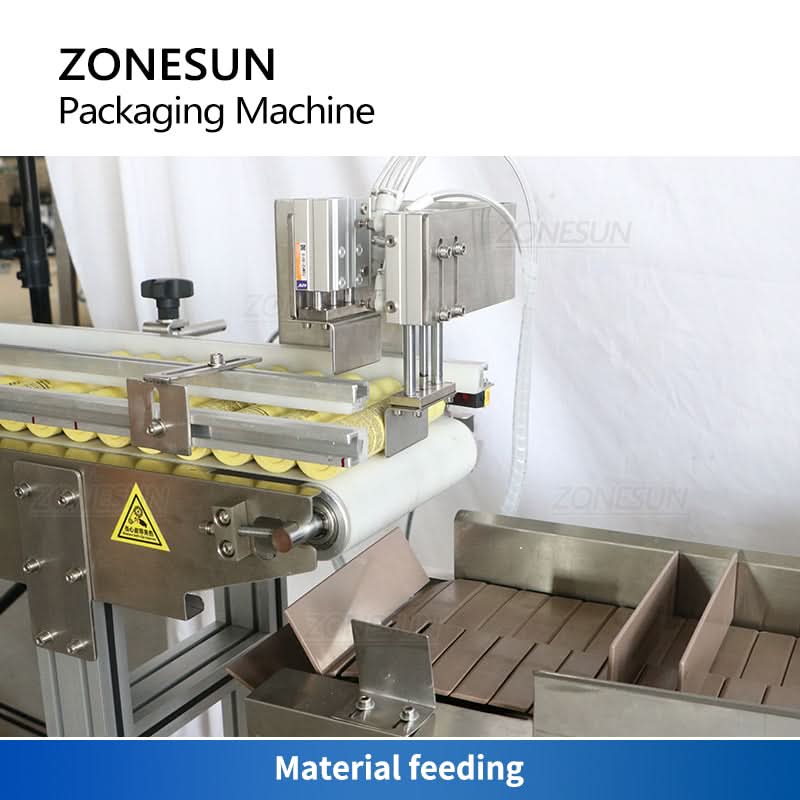

AUTOMATIC MATERIAL FEEDING
The feeding mechanism transfers products into the cartoning process automatically.

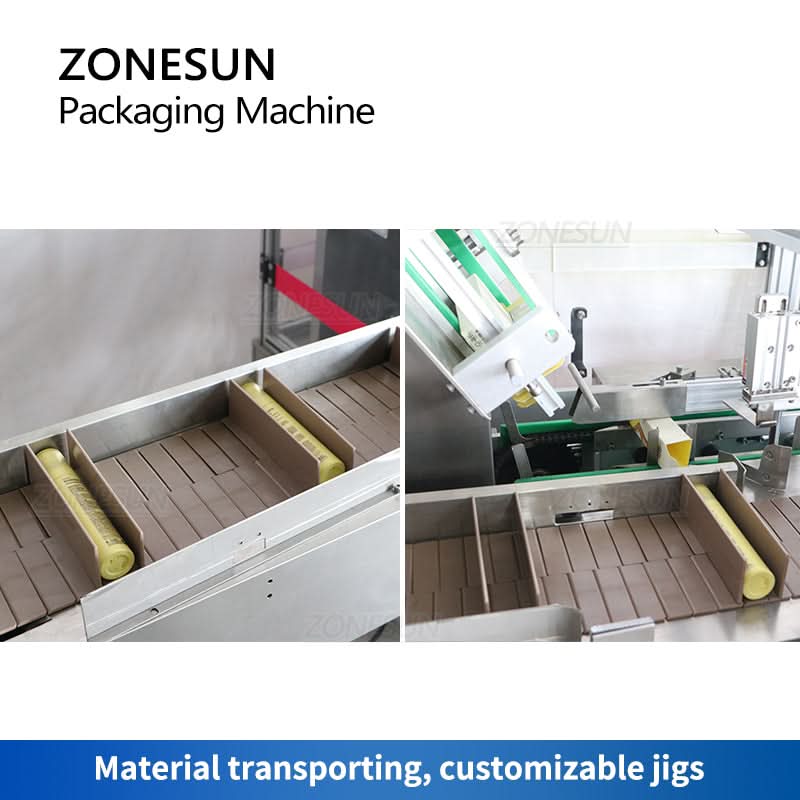

CUSTOMIZABLE TRANSPORT JIGS
The conveyor uses customizable jigs to hold and transport the products.

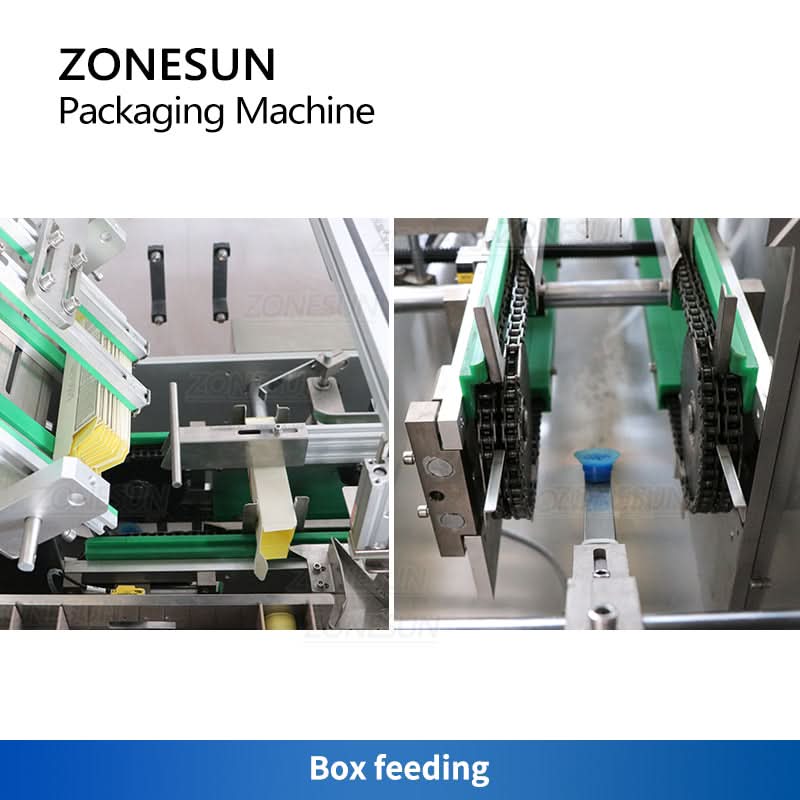

SUCTION BOX FEEDER
A suction mechanism feeds the boxes into the machine.

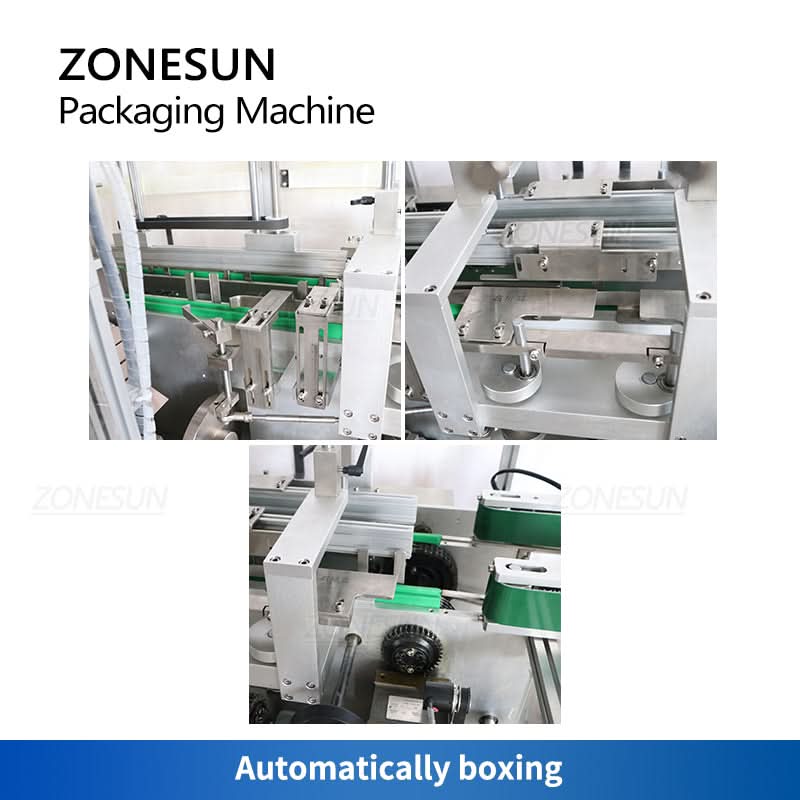

AUTOMATIC FLAP TUCKING
The machine automatically tucks the carton flaps.
ADJUSTMENT SCALES
Integrated scales make machine adjustments straightforward.
