DESCRIPTION

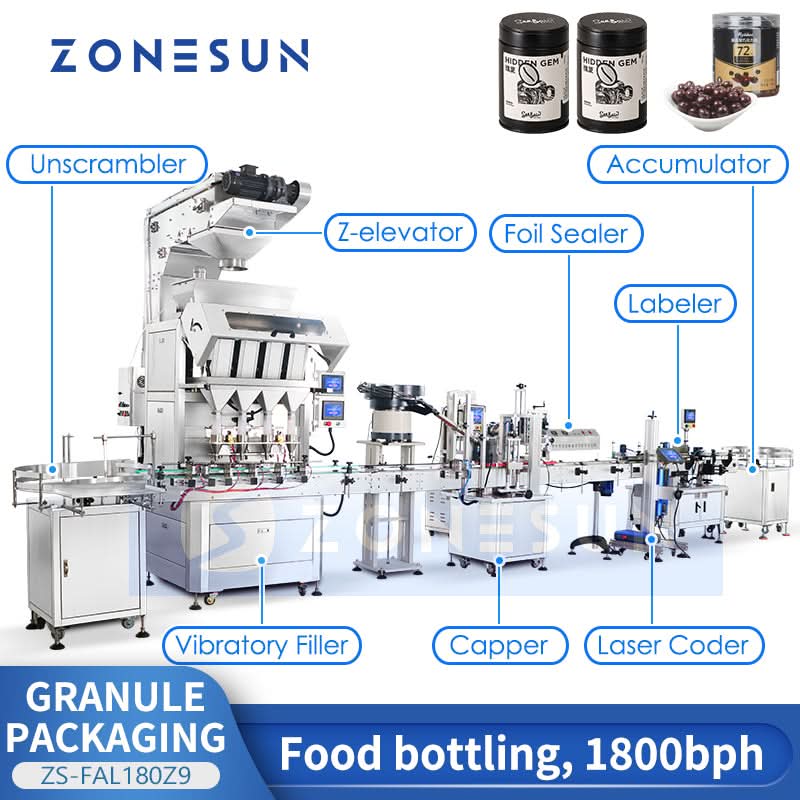

The ZONESUN ZS-FAL180Z9 is a fully automated bottling and packaging line designed for granular products. It integrates multiple processes including bottle unscrambling, material feeding, precise filling, capping, laser coding, foil sealing, labeling, and bottle accumulation. Ideal for streamlining production in industries such as food, pharmaceuticals, and chemicals, this system enhances efficiency, reduces labor, and ensures consistent packaging quality.
Parameter
Model ZS-LP800
Turntable 800 mm, 10 rpm
Capacity 2400–3600 bottles/hour
Suitable Bottle Diameter 20–100 mm
Suitable Bottle Height 30–120 mm
Motor Power 0.2 kW
Machine Size 850 × 850 × 1500 mm
Machine Weight 50 kg
Model ZS-LP800
Turntable 800 mm, 10 rpm
Capacity 2400–3600 bottles/hour
Suitable Bottle Diameter 20–100 mm
Suitable Bottle Height 30–120 mm
Motor Power 0.2 kW
Machine Size 850 × 850 × 1500 mm
Machine Weight 50 kg
HIGH-QUALITY MOTOR
The high-quality motor operates with low noise.
CUSTOMIZABLE SIZE
The turntable size can be customized.

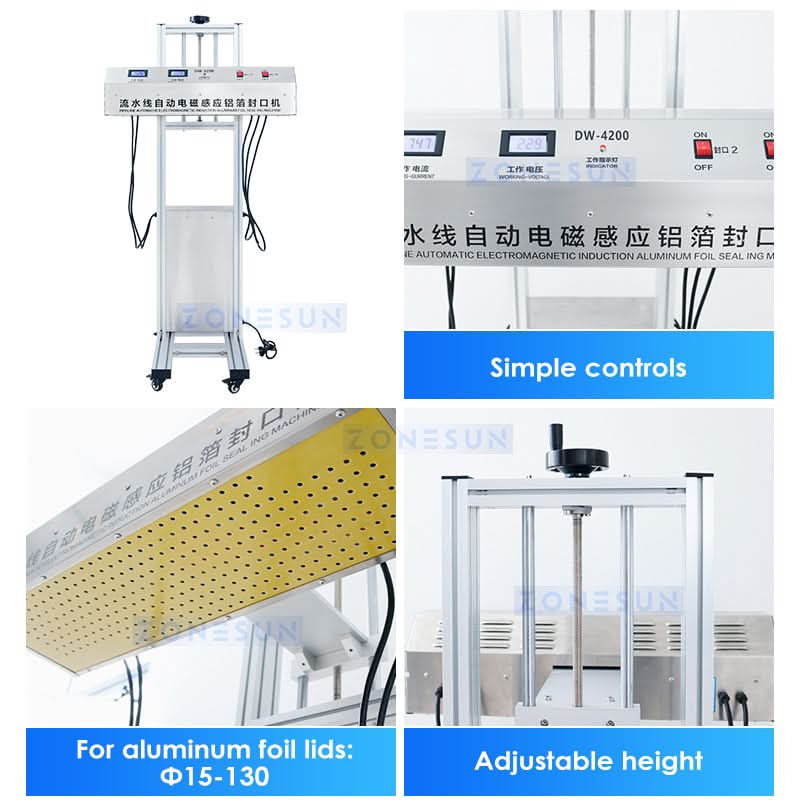

SIMPLE CONTROLS
The controls provide adjustable speed.
STAINLESS-STEEL CONSTRUCTION
The stainless-steel structure is sturdy and durable.

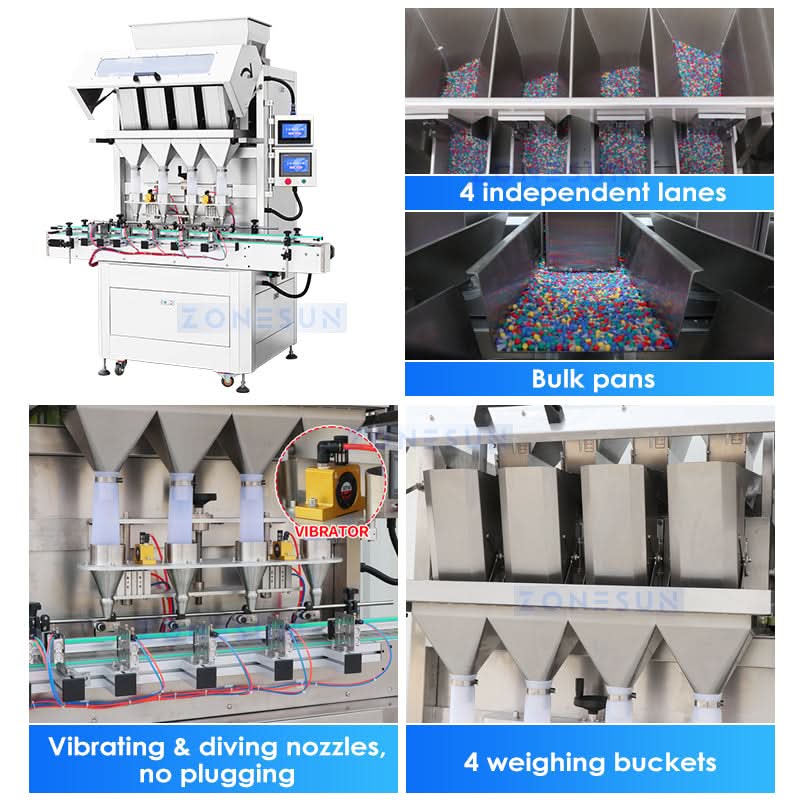

FOUR INDEPENDENT LANES
BULK PANS
FOUR WEIGHING BUCKETS
VIBRATING & DIVING NOZZLES
Help prevent material from plugging the nozzles.
INDEPENDENT SENSORS & STOPPERS

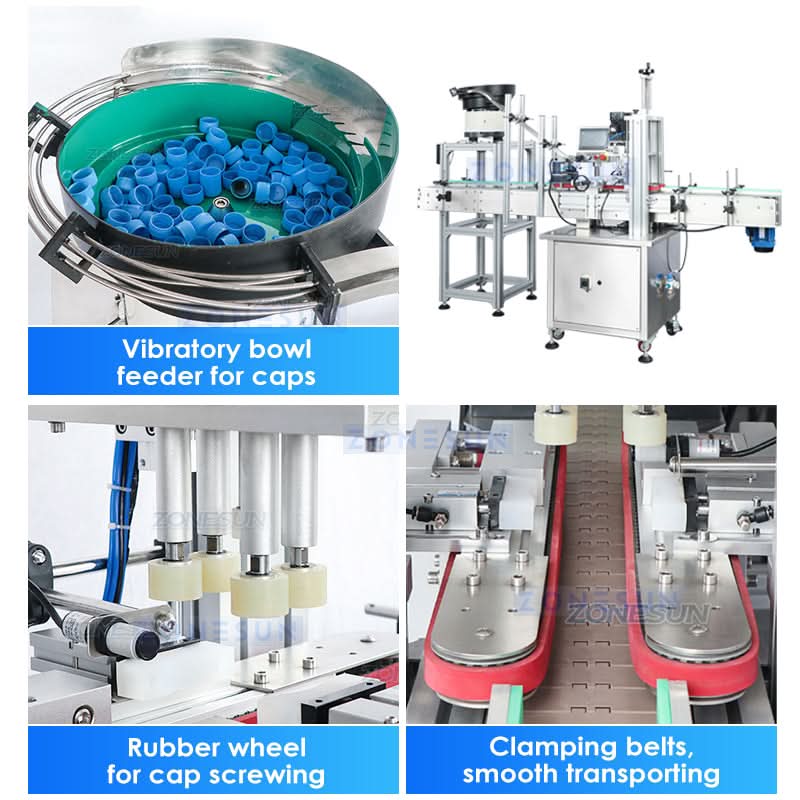

VIBRATORY BOWL FEEDER FOR CAPS
CAP DROPPING
RUBBER WHEEL FOR CAP SCREWING
CLAMPING BELT
Supports smooth bottle transport.
SPECTRAL THERMAL ENERGY

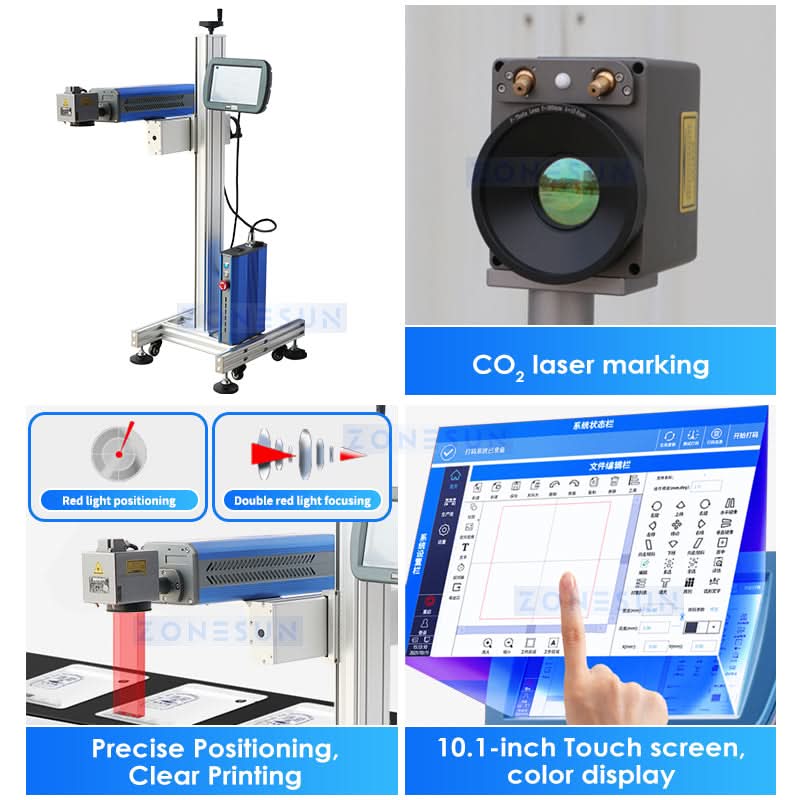

CO₂ LASER MARKING
PRECISE POSITIONING
Supports clear printing.
10.1-INCH TOUCHSCREEN
Provides a color display.

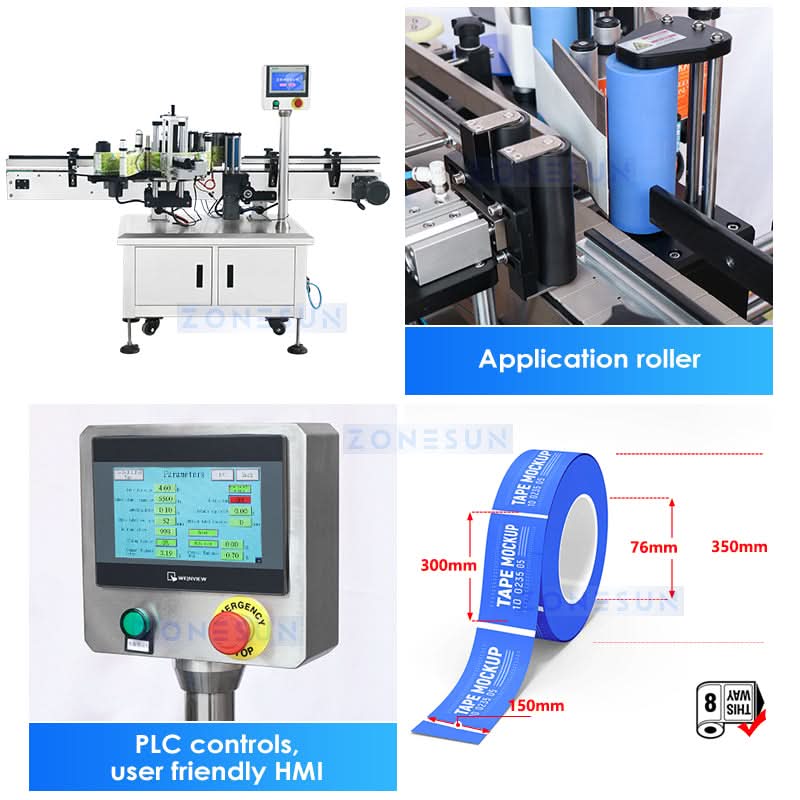

BOTTLE SEPARATOR
APPLICATION ROLLER
PLC CONTROL
Provides a user-friendly HMI.
